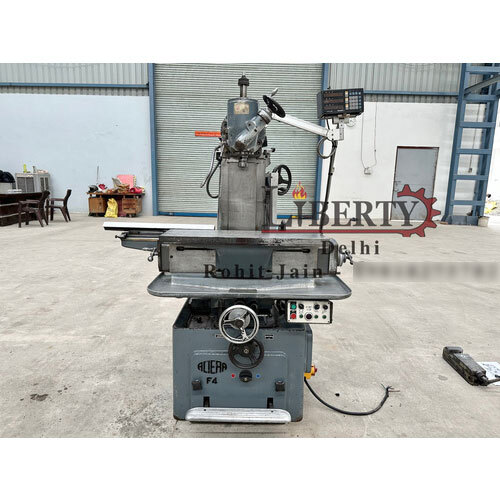

Aciera F4 Precision Universal Milling Machine

Name: Aciera F4 Precision Universal Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Aciera F4 Precision Universal Milling Machine Specification

Model
Aciera F4

Rotation
Spindle Reversible

Product Type
Universal Milling Machine

General Use
Precision Milling Operations, Toolroom, Prototyping, Educational, Light Production

Material
Cast Iron

Type
Bench Type

Capacity
Table Load Capacity: 80 kg

Weight (kg)
380 kg

Computerized
No

Automatic
No (Hand-controlled)

CNC Or Not
Not CNC (Manual Operation)

Control System
Manual

Table Size
600 mm x 160 mm

Table Slide Way
Dovetail

Floor Space
900 mm x 800 mm

Spindle Speed
40 2000 rpm (12 speeds)

Power
1.0 hp (approx. 0.75 kW)

Voltage
380V / 415V, 3-Phase

Dimension (L*W*H)
Approx. 900 mm x 800 mm x 1400 mm

Feature
Universal Swiveling Table, Vertical & Horizontal Spindle, High Precision, Rigid Construction

Color
Green

Traverse (Longitudinal) X-Axis
350 mm

Quill Travel (Vertical Spindle)
50 mm

Spindle Nose to Table Distance
40 mm 335 mm

Traverse (Vertical) Z-Axis
250 mm

Traverse (Cross) Y-Axis
150 mm

Accessories Included
Clamping Set, Drawbars, Operators Manual

Table Swivel Range
45

Horizontal Spindle Taper
ISO-30

Vertical Milling Head Attachment
Included as Standard

Coolant System
Yes, Fitted

Vertical Spindle Taper
ISO-30

Aciera F4 Precision Universal Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Aciera F4 Precision Universal Milling Machine

Make - Aciera (Switzerland)

Model - Type F4

Table Size - 800 mm x 250 mm

XYZ Travels - 400 mm x 175 mm x 450 mm

Manual Displacement of Table - 400 mm

Total Milling Length Possible - 800 mm

Spindle Taper - ISO 30

Spindle Speeds - 50 rpm to 3400 rpm

Table Feed Rates - 8 mm/min to 240 mm/min

Vertical Spindle Travel - 60 mm

- Automatic Feed & Rapid Travel on Longitudinal & Vertical Travels.

- Equipped with 3-Axis DRO.

- Vertical Head can be removed to do Horizontal Milling.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/0BkDsa3euPU

Versatile Universal Milling Capability

Featuring both vertical and horizontal ISO-30 spindles, the Aciera F4 offers exceptional flexibility for numerous milling procedures. The universal swiveling table and wide traversal ranges ensure users can undertake precise machining from various angles, supporting complex toolroom and prototyping needs. This adaptability is ideal for users requiring multifaceted milling solutions in compact workspaces.

Precision Engineering with Robust Construction

Constructed from high-grade cast iron and engineered for tight tolerances, the Aciera F4 delivers stable, high-precision results. The dovetail slideways enhance table movement accuracy, while the spindle speeds ranging from 40 to 2000 rpm (in 12 steps) cater to a wide variety of cutting conditions. This durable machine ensures consistent performance across repeated operations.

Comprehensive Accessories and Standard Features

The Aciera F4 comes fully equipped with vital accessories, including clamping sets, drawbars, and a detailed operator's manual, reducing startup times for new users. Standard features such as a built-in coolant system and the inclusion of the vertical milling attachment expand the machine's operational versatility straight out of the box.

FAQ's of Aciera F4 Precision Universal Milling Machine:

Q: How do I switch between vertical and horizontal milling operations on the Aciera F4?

A: The Aciera F4 is equipped with both vertical and horizontal ISO-30 spindle tapers. Utilize the included vertical milling head attachment for vertical operations, and remove it to access the horizontal spindle as needed. Switching involves securing the desired spindle attachment and ensuring the proper drawbar is used for each configuration.

Q: What types of work are best suited for the Aciera F4 milling machine?

A: This machine excels in precision milling operations such as toolmaking, prototyping, educational tasks, and light production. Its universal table, high accuracy, and multiple spindle configurations make it ideal for complex part fabrication and versatile machining projects.

Q: When should I use the table swiveling feature, and what is its range?

A: The 45 swiveling table allows users to machine angled features and complex geometries without repositioning the workpiece. It's particularly useful in toolroom and prototyping work where component flexibility and accuracy are essential.

Q: Where can the Aciera F4 be installed, and what are its space requirements?

A: Due to its compact, bench-type design with dimensions of approximately 900 mm x 800 mm x 1400 mm, the machine fits well in small workshops, laboratories, and educational facilities. Ensure you have access to 3-phase 380V/415V power supply and a floor space of at least 900 mm x 800 mm for proper installation.

Q: What is the process for adjusting spindle speeds on this milling machine?

A: The Aciera F4 uses a manual control system to select from 12 different spindle speeds ranging from 40 to 2000 rpm. Adjust the speed lever according to the material and tooling requirements before beginning your machining operation.

Q: How does the built-in coolant system benefit the milling process?

A: The integrated coolant system helps dissipate heat generated during machining, ensuring better surface finishes and extending both tool and workpiece life. It supports longer cutting sessions and is essential for precision and safety during heavy-duty tasks.

Q: What accessories come standard with the Aciera F4, and how are they used?

A: Standard accessories include a clamping set for secure workpiece holding, drawbars for tool attachment, and an operator's manual for guidance. These essentials help users set up quickly, execute precise machining, and maintain optimal safety and performance during operation.
