TOS 5 Number Heavy Duty Universal Milling Machine

Send Inquiry

Request To Call Back

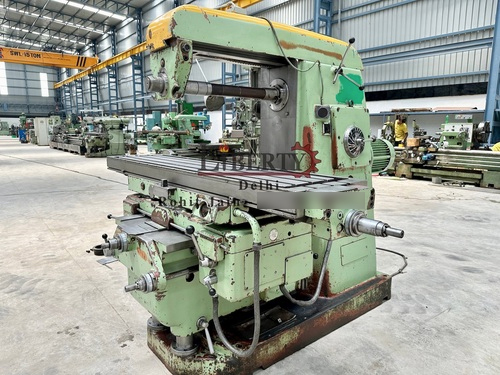

TOS 5 Number Heavy Duty Universal Milling Machine

Name: TOS 5 Number Heavy Duty Universal Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS 5 Number Heavy Duty Universal Milling Machine Specification

Model
TOS 5 Number

Rotation
360 Swiveling Table

Product Type
Universal Milling Machine

General Use
Heavy Duty Metal Milling

Material
Cast Iron Body, Alloy Steel Components

Type
Universal

Capacity
Heavy Duty

Weight (kg)
Approx. 2900 kg

Computerized
No

Automatic
No

CNC Or Not
No

Control System
Manual

Table Size
1500 mm x 360 mm

Table Slide Way
Dovetail

Floor Space
2500 mm x 1950 mm

Spindle Speed
30 1500 rpm (Variable Stepped Gears)

Power
5.5 kW (7.5 HP)

Voltage
415 V, 3 Phase, 50 Hz

Dimension (L*W*H)
2500 mm x 1950 mm x 1950 mm

Feature
High Precision, Rigid Construction, Versatile

Color
Industrial Green/Grey

Overall Height
1950 mm

Max Distance Spindle to Base
900 mm

Number of Feeds
18

Spindle Nose Diameter
110 mm

Cross Table Travel
320 mm

Feed Range (Longitudinal/Cross)
10 600 mm/min

Max Distance Spindle to Table
400 mm

Spindle Taper
ISO 50

Main Motor RPM
1440 rpm

Arbor Diameter
32 mm Standard

Vertical Table Travel
400 mm

Rapid Traverse Rate
2000 mm/min

Coolant Pump
Yes (0.1 HP)

Longitudinal Table Travel
1100 mm

TOS 5 Number Heavy Duty Universal Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS 5 Number Heavy Duty Universal Milling Machine

Make - TOS (Czech Republic)

Model - FA5AU

Table Size - 2000 mm x 450 mm

XYZ Travel - 1250 mm x 400 mm x 450 mm

Spindle Speeds - 18 rpm to 1400 rpm

Spindle Taper - ISO 50

Table Feed Rates - 10 mm/min to 1250 mm/min

Spindle Motor - 15 kW

- Rotating type Universal Table.

- Complete with Vertical Milling Head.

- With Bracket & Arbour for Horizontal Milling operations.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/Z_E9W2WO2M4

Precision Meets Versatility

Experience high-accuracy metal machining with the TOS 5 Universal Milling Machine. Featuring an ISO 50 spindle and a sturdy dovetail-slide table, this equipment ensures smooth, reliable performance for complex and heavy-duty tasks. Its manual control system gives operators full command, allowing for intricate detailing and flexible operations.

Designed for Heavy-Duty Applications

Built with a robust cast iron body and alloy steel parts, this milling machine is designed to withstand intensive workloads with minimal wear. The heavy-duty capacity, along with advanced feed and traverse rates, makes it perfect for metal fabrication industries demanding longevity, power, and consistent output.

Advanced Table Mobility

Equipped with a large 1500 mm x 360 mm table and 360 swiveling capability, the TOS 5 Number maximizes usability. Its travel range and rapid rates enable the handling of sizeable workpieces, catering to diverse machining needs from batch production to bespoke manufacturing.

FAQ's of TOS 5 Number Heavy Duty Universal Milling Machine:

Q: How do I operate the TOS 5 Number Milling Machine for precision metalwork?

A: To operate the TOS 5 Number, use the manual control system to adjust settings like spindle speed (30 - 1500 rpm), feed rates, and table movement. Ensure the workpiece is securely clamped on the dovetail-slide table before proceeding. Follow safety protocols and refer to the user manual for optimal results in heavy-duty metal milling.

Q: What industries benefit most from using this universal milling machine?

A: Industries such as metal fabrication, manufacturing, workshops, and engineering services benefit greatly from the TOS 5 Number Milling Machine. Its robust construction, high table mobility, and heavy-duty capability are ideal for handling large workpieces and demanding production schedules.

Q: When should I utilize the rapid traverse feature?

A: The rapid traverse rate of 2000 mm/min is best employed during non-cutting movements, allowing the table to reposition quickly between cuts or setups. This speeds up overall machining time and improves workflow efficiency without compromising accuracy during actual milling operations.

Q: Where can the TOS 5 Number Milling Machine be installed?

A: This milling machine is suitable for installation in industrial workshops, manufacturing plants, and metalworking facilities. Ensure sufficient floor space (2500 mm x 1950 mm) and proper three-phase electrical connections (415 V, 50 Hz) for safe and efficient operation.

Q: What is the process for changing spindle speed on this manual milling machine?

A: To change the spindle speed, manually adjust the variable stepped gears according to the required rpm range (30-1500 rpm). Always stop the spindle before making adjustments. Refer to the machine's gearbox diagram for the correct gear combination to achieve your desired speed.

Q: How does the swiveling table benefit machining processes?

A: The 360 swiveling table allows for versatile positioning of workpieces, facilitating compound angle milling, slotting, and multi-axis operations. This dynamic capability significantly expands the scope of machining tasks that can be performed with precision.
