Arno Nomo Italy Universal Milling Machine

Name: Arno Nomo Italy Universal Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Arno Nomo Italy Universal Milling Machine Specification

Model
Arno Nomo Italy Universal

Rotation
Spindle rotation reversible, vertical & horizontal

Product Type
Universal Milling Machine

General Use

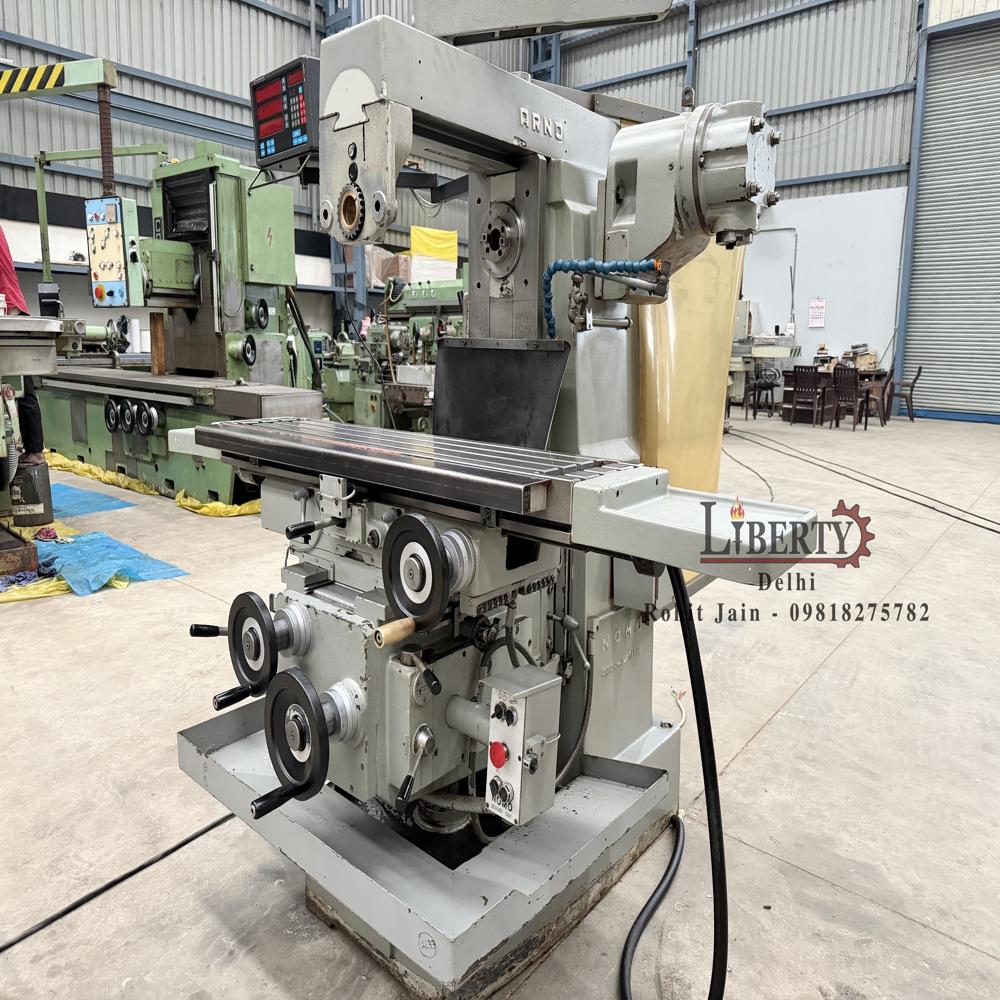

Arno Nomo (Italy) make Universal Milling Machine in excellent working condition. The Table Size of the machine is 1250 mm x 270 mm. The machine is complete with its Arbour and Bracket for Horizontal Milling Operations. It is also with a Parking-type Vertical Milling Head for Vertical Milling Operations. The technical details are as follows -

Material
Heavy-duty cast iron base and body

Type
Horizontal & Vertical Universal Milling

Capacity
Medium to Heavy Duty Job Capacity

Weight (kg)
Approx. 2000-2500 kg

Computerized
No

Automatic
Manual, with some power feeds

CNC Or Not
Not CNC (Manual)

Control System
Manual handwheel control with DRO (Digital Readout)

Table Size
Approx. 1400 x 290 mm

Table Slide Way
Box type hardened slideways

Magnetic Chuck Size
Not applicable (milling machine)

Grinding Wheel Size
Not applicable (milling machine)

Grinding Wheel Speed
Not applicable (milling machine)

Grinding Length
Not applicable (milling machine)

Floor Space
Approx. 1800 x 1700 mm footprint

Fuel Tank Capacity
Not applicable (electric)

Spindle Speed
Range 40-2000 RPM (variable) approx.

Power
Approx. 4-5 HP main motor

Voltage
380-415V, 3 Phase

Dimension (L*W*H)
Approx. 2250 x 1950 x 1850 mm

Feature
Swivel table, dro display, robust build

Color
Industrial grey

Year of Manufacture
Varies (typically from 1970s-1990s, imported used)

Feed Motor
Separate for automatic longitudinal/cross/vertical feeds

Vertical Table Travel
Approx. 400mm

Cross Table Travel
Approx. 300mm

Vice Included
Supplied as optional

Longitudinal Table Travel
Approx. 1000mm

Working Speed
Depends on operator & feed setting (manual feed control)

Condition
Reconditioned/Excellent running

Electrical Panel
Upgraded to modern standards (where reconditioned)

Coolant System
Integrated with recirculating pump

DRO System
Digital Readout on X, Y, Z axes

Table Swivel
45 degrees

Overarm Support
Yes, with arbor support for horizontal milling

Spindle Taper
ISO 40 / ISO 50 (depending on configuration)

Arno Nomo Italy Universal Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Arno Nomo Italy Universal Milling Machine

Make - Arno Nomo (Italy)

Table Size - 1250 mm x 270 mm

XYZ Travels - 850 mm x 300 mm x 400 mm

Spindle Taper - ISO-40

Spindle Speeds - 40 rpm to 1725 rpm

Table Feed Travel Rates - 10 mm/min to 840 mm/min

- Universal type Rotating Table.

- Equipped with a 3-Axis DRO.

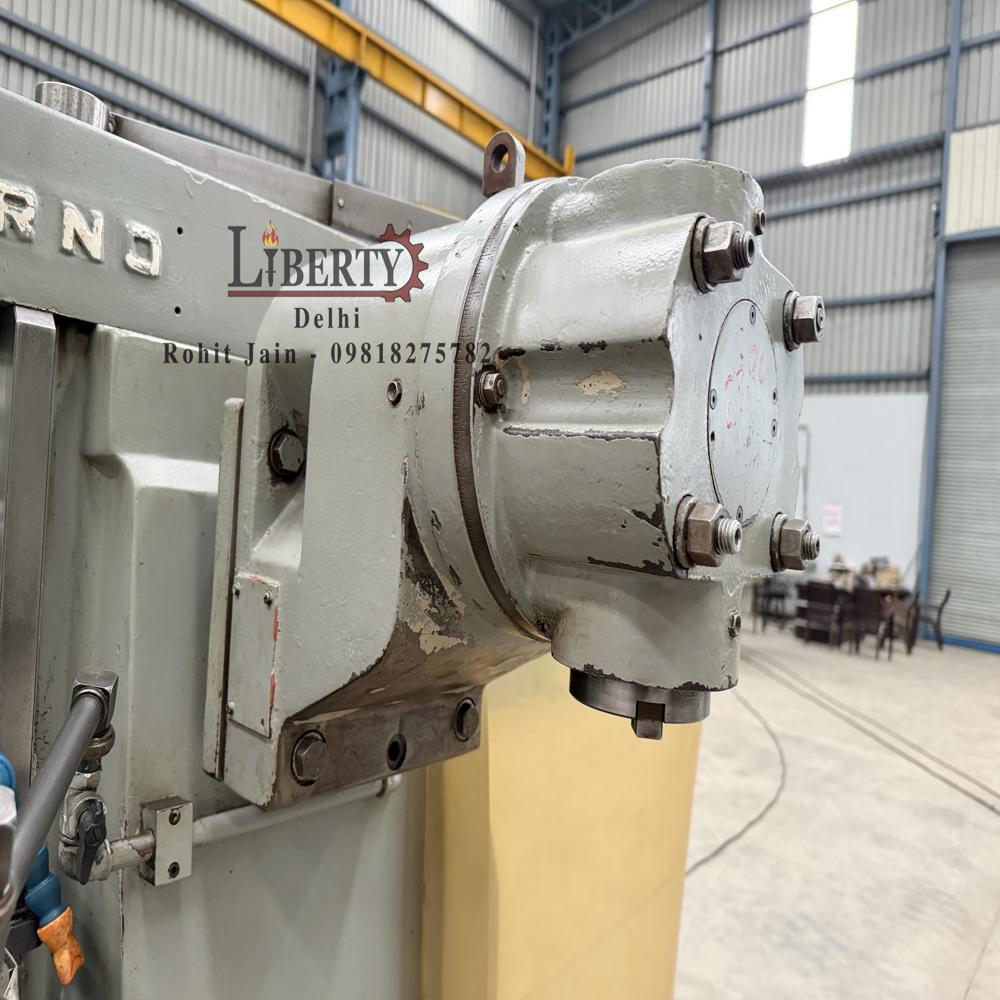

- Equipped with a Parking type Vertical Milling Head.

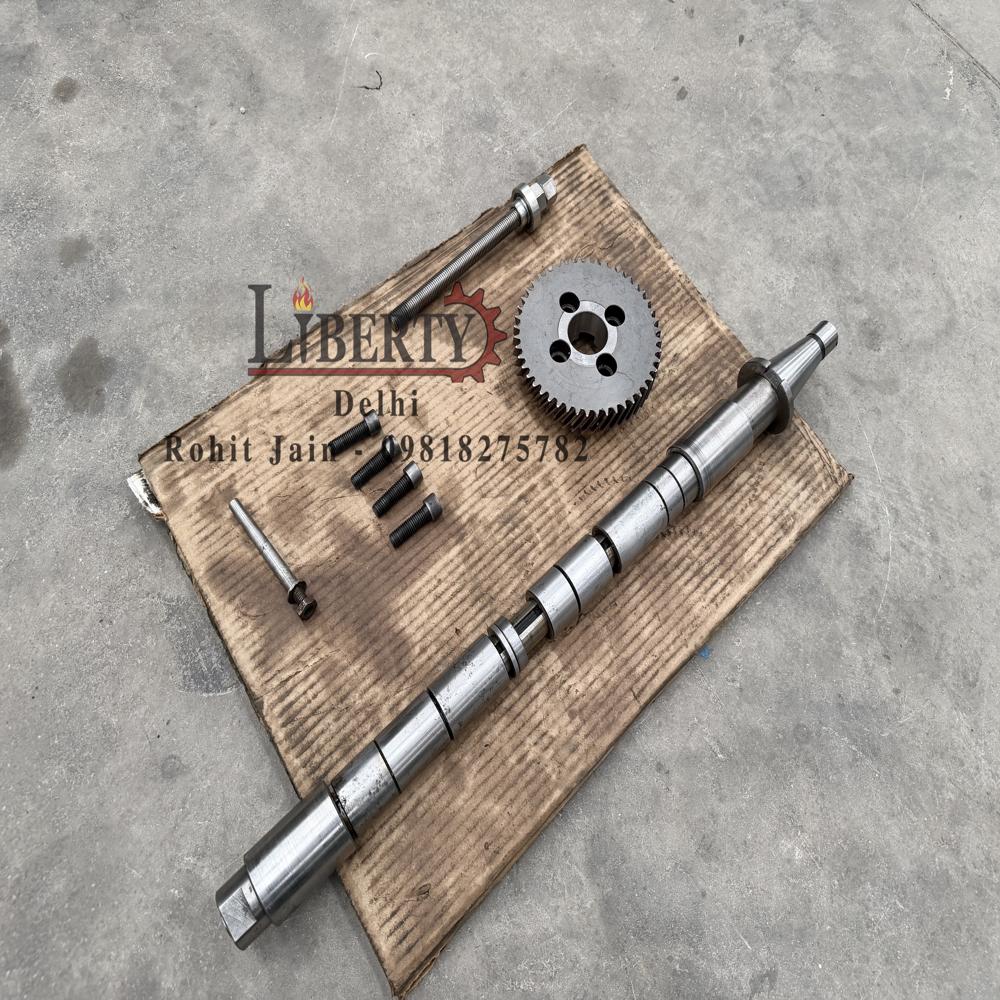

- Complete with Arbour & Bracket for Horizontal Milling Operations.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/C4Lgpu3UXHs

Versatile Milling Capabilities

The Arno Nomo Universal Milling Machine excels in handling both horizontal and vertical milling tasks. Its universal head easily transitions between operations, while the swivel table provides enhanced flexibility for angled cuts up to 45 degrees. This versatility allows it to adapt seamlessly to a diverse range of manufacturing processes, ideal for workshops managing varied jobs.

Robust Build for Heavy-Duty Use

Constructed from heavy-duty cast iron, this machine offers remarkable stability and durability, making it suitable for continuous medium to heavy-duty machining tasks. With a weight of approximately 2000-2500 kg and reinforced box-type hardened slideways, it maintains precision even during demanding industrial applications.

Precision and Ease of Operation

Equipped with variable working speeds, a 3-axis digital readout (DRO), and rapid traverse manual feeds, the Arno Nomo milling machine supports meticulous and efficient machining. Operators benefit from both mechanical and handwheel control modes, supporting quick adjustments and reliable repeatability for enhanced productivity.

FAQ's of Arno Nomo Italy Universal Milling Machine:

Q: How does the universal head enhance the capabilities of the Arno Nomo milling machine?

A: The universal milling head allows for both vertical and horizontal operations. This design provides greater flexibility by enabling users to switch quickly between different milling tasks, making it suitable for varied applications such as slotting, drilling, and contouring.

Q: What types of workpieces can I handle with this milling machine?

A: The machine is ideal for medium to heavy-duty jobs due to its robust build and large table size (approx. 1400 x 290 mm). It's well-suited for machining cast iron, steel, and various alloys, commonly used in industrial and manufacturing settings.

Q: When is the rapid traverse feature most beneficial during operation?

A: The rapid traverse feature is particularly useful when moving the table quickly for positioning workpieces or when setting up repetitive tasks. It helps reduce setup time and improves overall workflow efficiency in busy manufacturing environments.

Q: Where is this milling machine typically installed and used?

A: Due to its size (approx. 2250 x 1950 x 1850 mm) and electrical requirements (380-415V, 3 Phase), the Arno Nomo milling machine is best suited for industrial workshops, manufacturing plants, or professional tool rooms where robust, precise milling operations are regularly required.

Q: How can the 3-axis DRO system benefit machining processes?

A: The three-axis digital readout provides precise table position feedback in X, Y, and Z directions, enabling accurate milling operations. This reduces human error, speeds up setup, and enhances the consistency and quality of machined parts.

Q: What is the process for switching between vertical and horizontal milling operations?

A: Operators can switch by installing the appropriate arbour and bracket for horizontal milling, or by using the parking-type vertical milling head for vertical tasks. The universal head and manual controls make the transition straightforward and efficient.

Q: What safety features are included with this machine?

A: The machine includes standardized industrial wiring with a safety disconnect for operator protection. The heavy-duty cast iron base also ensures stability during operation, and the electric coolant pump helps maintain optimal cutting temperatures, further reducing risk during extended use.
