Bragonzi Italy 80 mm Spindle Horizontal Boring Machine

100000 INR/Piece

Get a Price/Quote

Product Details:

Power Source Electricity
Operating Type Automatic
Power 230 Volt (v)
Surface Treatment Painted
Weight (kg) 200 Kilograms (kg)
Color Green
Warranty 1 years
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Bragonzi Italy 80 mm Spindle Horizontal Boring Machine Price And Quantity

Minimum Order Quantity 1 Piece
Price 100000 INR/Piece

Bragonzi Italy 80 mm Spindle Horizontal Boring Machine Product Specifications

Operating Type Automatic
Surface Treatment Painted
Power 230 Volt (v)
Color Green
Power Source Electricity
Weight (kg) 200 Kilograms (kg)
Warranty 1 years
Usage & Applications Industrial

Bragonzi Italy 80 mm Spindle Horizontal Boring Machine Trade Information

Main Domestic Market All India

Product Description

Make - Bragonzi (Italy)

Spindle Diameter - 80 mm

Table Size - 990 mm x 820 mm

Cross Travel - 1500 mm

Vertical Travel - 1025 mm

Longitudinal Travel - 1350 mm

Spindle Travel - 600 mm

Facing Chuck Diameter - 550 mm

Spindle Taper - MT 5

Spindle Speeds - 16 rpm to 1250 rpm

- Complete with its Facing Chuck.

- Equipped with 3-Axis DRO.

- Complete with lots of tooling and other accessories.

- Machine is in excellent working condition.

Video of The Machine -

https: //youtu.be/KMS272wApbw

FAQs of Bragonzi Italy 80 mm Spindle Horizontal Boring Machine:

Q: What is the surface treatment of the Bragonzi Italy 80 mm Spindle Horizontal Boring Machine?

A: The surface treatment is painted.

Q: What is the weight of the Bragonzi Italy 80 mm Spindle Horizontal Boring Machine?

A: The weight of the machine is 200 kilograms.

Q: What is the power source required for the Bragonzi Italy 80 mm Spindle Horizontal Boring Machine?

A: The power source required is electricity with 230 Volt.

Q: What type of operating mode does the Bragonzi Italy 80 mm Spindle Horizontal Boring Machine have?

A: The operating type is automatic.

Q: What is the warranty period for the Bragonzi Italy 80 mm Spindle Horizontal Boring Machine?

A: The machine comes with a 1-year warranty.

Q: What is the color of the Bragonzi Italy 80 mm Spindle Horizontal Boring Machine?

A: The color of the machine is green.

Q: What is the recommended usage and application of the Bragonzi Italy 80 mm Spindle Horizontal Boring Machine?

A: It is designed for industrial usage and applications.

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Horizontal Boring Machine' category

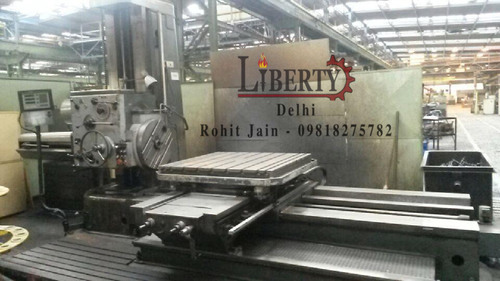

Horizontal Boring Machine Price : 26000 USD ($)/Piece Minimum Order Quantity : 1 Usage & Applications : Industrial use machining large parts Power : 5kW 20kW Color : Metallic Weight (kg) : Varies by model Surface Treatment : Other, Corrosionresistant coating Technology : Other, Advanced boring technology Operating Type : Other, Manual / Automatic Power Source : Other, Electric Warranty : 1 year standard warranty Cooling System : Integrated cooling system Dimension (L*W*H) : Customizable dimensions Voltage : 220V 440V Lubricating System : Automatic lubrication Operating Temperature : Ambient industrial temperature Frequency : 50Hz / 60Hz Machine Type : Horizontal Boring Machine Power Rating : Variable based on model Frame Type : Heavyduty metal frame Noise Level : Low noise operation Accuracy : High precision Features : Durable high precision easy to operate

Send Inquiry

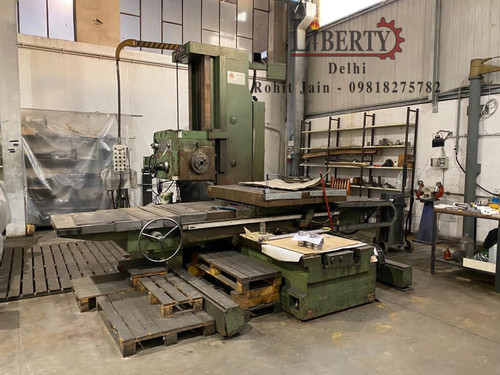

Pama AL100 Horizontal Boring Machine Price : 21000 USD ($)/Piece Minimum Order Quantity : 1 Usage & Applications : Metal boring and industrial applications Power : Electric Color : Green Weight (kg) : Approx. 1500 Kg Cooling System : Integrated cooling mechanism Dimension (L*W*H) : Standard industrial dimensions Voltage : 220V Lubricating System : Automatic lubrication system Operating Temperature : Optimized for industrial environments Frequency : 50 Hz Machine Type : Horizontal Boring Machine Power Rating : 10 kW Frame Type : Rigid Noise Level : Low operational noise Accuracy : High precision Features : Durable frame horizontal boring functionality

Send Inquiry

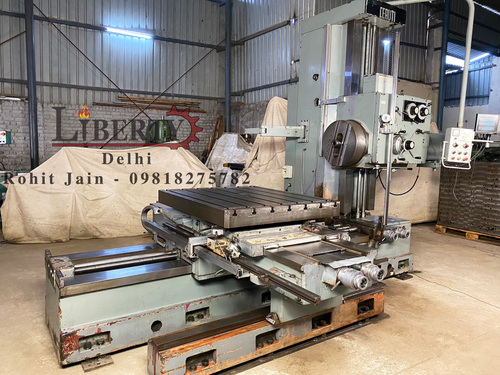

Ceruti AC 85 Horizontal Boring Machine Price : 100000 INR/Piece Minimum Order Quantity : 1 Usage & Applications : Industrial Power : 230 Volt (v) Color : Grey Weight (kg) : 180 Kilograms (kg) Surface Treatment : Galvanized Technology : CNC Operating Type : Automatic Power Source : Electricity Warranty : 1 years

Send Inquiry

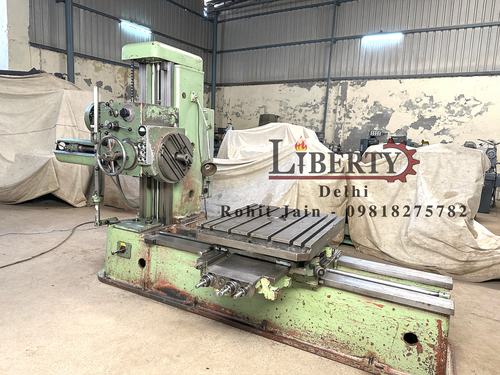

TOS H63A Horizontal Boring Machine Price : 100000 INR/Piece Minimum Order Quantity : 1 Usage & Applications : Industrial Power : 230 Volt (v) Color : Green Surface Treatment : Galvanized Technology : CNC Operating Type : Automatic Power Source : Electricity Warranty : 1 years
