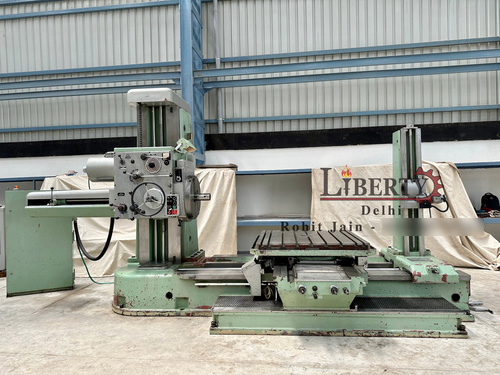

TOS 100 mm Horizontal Boring Machine

Name: TOS 100 mm Horizontal Boring Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS 100 mm Horizontal Boring Machine Specification

Operating Temperature
5C to 40C

Machine Type
Horizontal Boring

Connectivity Options
Standard Power Hookup

Control System
Manual / Electrical

Frame Type
Rigid Cast Iron

Model No
TOS WHN 13

Power Rating
7.5 kW

Accuracy
0.02 mm

Frequency
50 Hz

Noise Level
Low (<80 dB)

Cooling System
Automated Coolant System

Production Capacity
24/7 operation

Drive
Direct Gear Drive

Features
Heavy-duty construction, adjustable spindle speeds, rapid traverse

Voltage
415 V

Lubricating System
Centralized Lubrication

Motor Power
10 HP

Product Type
Horizontal Boring Machine

Technology
Conventional Mechanical

Power Source
Electric

Operating Type
Semi-Automatic

Power
10 HP

Surface Treatment
Painted

Dimension (L*W*H)
Approx. 3500 x 1800 x 2000 mm

Weight (kg)
Approx. 6500 kg

Color
Industrial Grey

Usage & Applications
Precise boring, facing, drilling, milling large components

Safety Features
Emergency stop, overload protection

Spindle Taper
ISO 50

Rotary Table Indexing
Manual/Electrical

Rapid Traverses
Yes

Longitudinal Table Travel (X)
1600 mm

Tool Clamping
Manual

Spindle Travel
900 mm

Table Size
1400 x 1250 mm

Cross Table Travel (Z)
1250 mm

Table Load Capacity
3000 kg

Hydraulic System
Integrated

Spindle Diameter
100 mm

Vertical Head Travel (Y)
1200 mm

Main Bearing Type
Heavy-duty ball/roller bearings

TOS 100 mm Horizontal Boring Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS 100 mm Horizontal Boring Machine

Make - TOS (Czech Republic)

Model - W100

Spindle Diameter - 100 mm

Table Size - 1250 mm x 1250 mm

Cross Travel - 1600 mm

Vertical Travel - 1120 mm

Longitudinal Travel - 1250 mm (with Tailstock equipped)

Spindle Travel - 900 mm

Facing Chuck Diameter - 600 mm

Spindle Taper - MT 6

Spindle Speeds - 7.1 rpm to 1120 rpm

- Complete with Facing Chuck & Tailstock.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/VU-AGWfLDaE

Robust Construction and Power

With a rigid cast iron frame and powerful 10 HP direct gear drive, the TOS WHN 13 combines durability and strength to handle even the most demanding machining tasks. Its heavy-duty ball and roller bearing main structure ensures precise operation and long-term reliability during continuous and intensive industrial applications.

Precision and Versatility for Large Components

Designed for usage across boring, drilling, facing, and milling, this horizontal boring machine accommodates large workpieces weighing up to 3000 kg. The spacious 1400 x 1250 mm table, adjustable spindle speeds, and manual/electrical rotary indexing support intricate, versatile machining needs for various industry sectors.

User-Centric Design and Integrated Safety

Featuring manual and electrical controls alongside emergency stop and overload protection, the WHN 13 prioritizes operator safety and ease of use. Its automated coolant and centralized lubrication systems further streamline maintenance, ensuring smooth, safe, and consistent performance.

FAQ's of TOS 100 mm Horizontal Boring Machine:

Q: How does the TOS 100 mm Horizontal Boring Machine enhance precision for large-scale machining?

A: The WHN 13 provides high precision (0.02 mm) through a combination of advanced spindle design (ISO 50 taper with 900 mm travel), robust direct gear drive, and heavy-duty bearings. This ensures accurate and repeatable performance, crucial for large and complex components.

Q: What are the primary applications for this horizontal boring machine?

A: This machine is ideally used for precise boring, facing, drilling, and milling of large workpieces. Its large table and significant load capacity (up to 3000 kg) make it suitable for manufacturing sectors such as heavy machinery, automotive, energy, and general fabrication that require machining sizable parts.

Q: When is rapid traverse useful in the operation of this machine?

A: Rapid traverse enables quick, efficient repositioning of machine axes during setup or between machining passes. This function increases productivity and reduces idle time, especially useful in 24/7 production environments where efficiency directly impacts output.

Q: Where can this machine be installed and what are the connectivity requirements?

A: The TOS WHN 13 is suitable for installation in industrial workshops or manufacturing facilities. It requires a standard industrial power hookup, operating at 415 V and 50 Hz, and utilizes standard connections for both electrical and coolant systems.

Q: What is the process for tool clamping and table indexing on this model?

A: Tool clamping is performed manually, allowing operators direct control over tool changes. Table indexing (rotary motion) is available in both manual and electrical modes, providing flexibility for complex machining tasks and setup preferences.

Q: How does the integrated hydraulic and lubrication system benefit machine maintenance and operation?

A: The integrated hydraulic system powers essential functions such as table movement, while the centralized lubrication system ensures even distribution of lubricant, minimizing wear and reducing the need for frequent manual maintenance. This increases machine longevity and operating reliability.

Q: What safety features are built into the WHN 13 horizontal boring machine?

A: Key safety features include an emergency stop mechanism and overload protection. These functions are designed to immediately halt operations in hazardous conditions, protecting both the operator and the equipment from potential harm or damage.
