TOS Czech W100A Horizontal Boring Machine

Name: TOS Czech W100A Horizontal Boring Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS Czech W100A Horizontal Boring Machine Specification

Accuracy
High precision, up to 0.02 mm

Production Capacity
Custom / Per Operation

Voltage
400 V

Model No
W100A

Features
Rotary Table, High Precision, Sturdy Construction

Power Rating
7.5 kW

Cooling System
Water Cooling

Lubricating System
Centralized Lubrication

Control System
Manual with Electrical Controls

Drive
Gear Transmission

Frequency
50 Hz

Motor Power
7.5 kW

Noise Level
Standard Industrial

Operating Temperature
5C 45C

Machine Type
Horizontal Boring Machine

Frame Type
Robust Fabricated Frame

Product Type
Horizontal Boring Machine

Technology
Conventional

Power Source
Electric

Operating Type
Semi-Automatic

Power
7.5 kW

Surface Treatment
Paint Coated

Dimension (L*W*H)
Approx. 5000 x 2500 x 2500 mm

Weight (kg)
Approx. 9000 kg

Color
Light Blue / Grey

Usage & Applications
Precision Boring, Drilling, Milling of Metal Parts

Quill Travel
900 mm

Spindle Stroke (Z-Axis)
900 mm

T-Slot Size
22 mm

Spindle Diameter
100 mm

Number of Speed Steps
18

Maximum Boring Diameter
1000 mm

Made In
Czech Republic (TOS Varnsdorf)

Rotary Table Indexing
0.001°

Electrical Requirements
3 Phase, 50 Hz

Table Size
1250 x 1120 mm

Table Loading Capacity
3000 kg

Main Spindle Taper
ISO 50

Longitudinal Travel (X-Axis)
1250 mm

Minimum Boring Diameter
10 mm

Rapid Traverse Rate
2500 mm/min

Transversal Travel (Y-Axis)
1120 mm

About TOS Czech W100A Horizontal Boring Machine

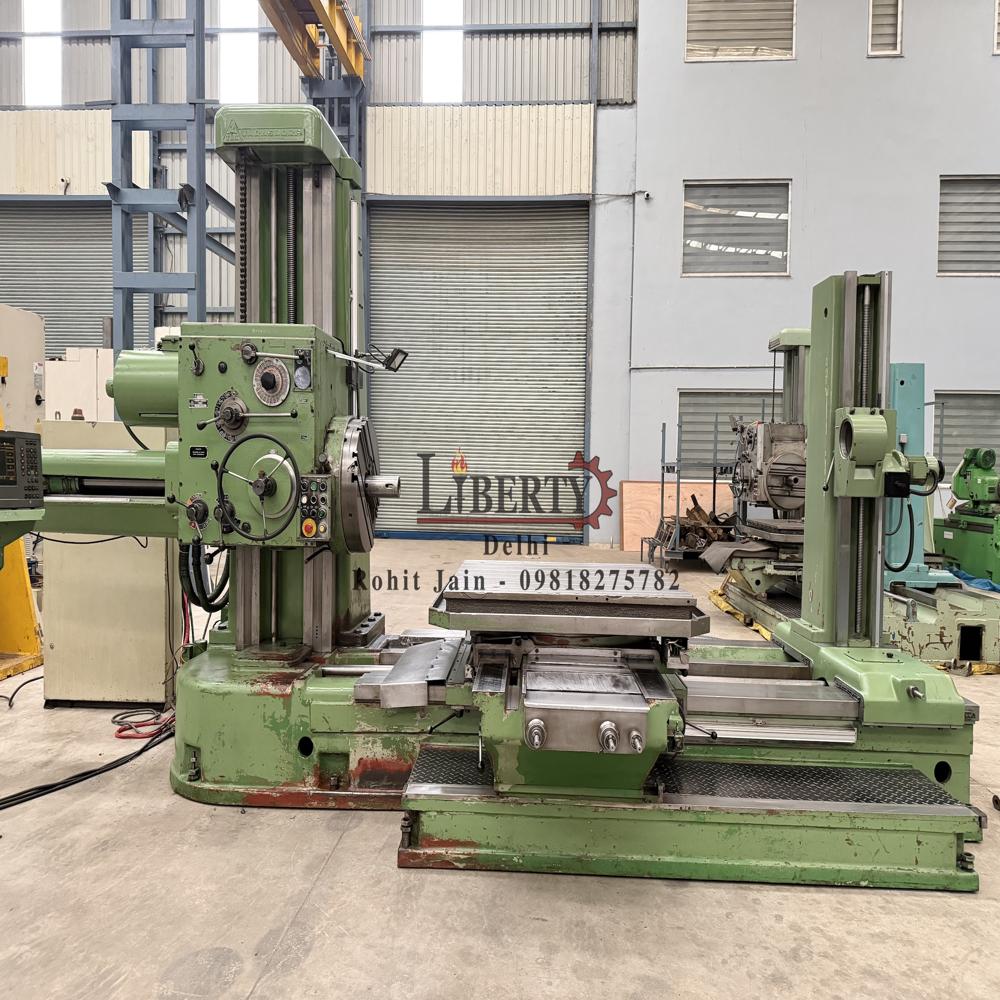

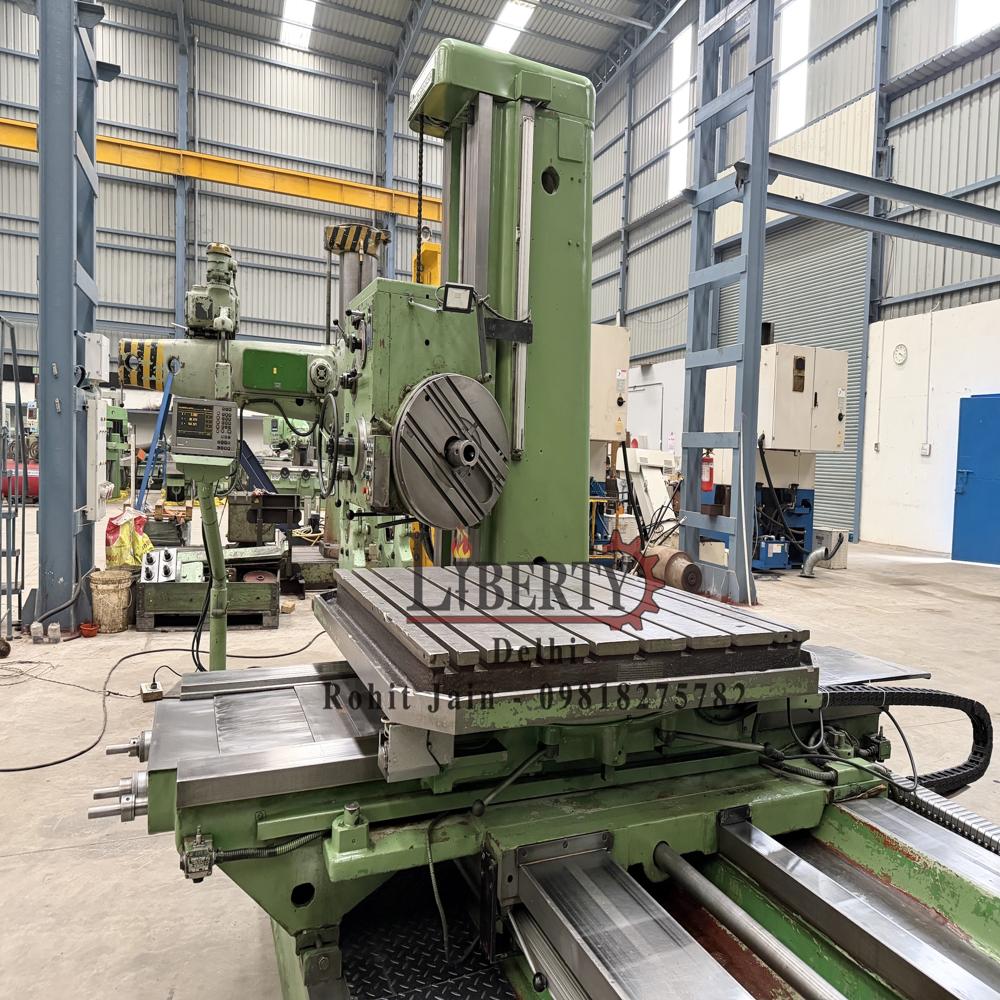

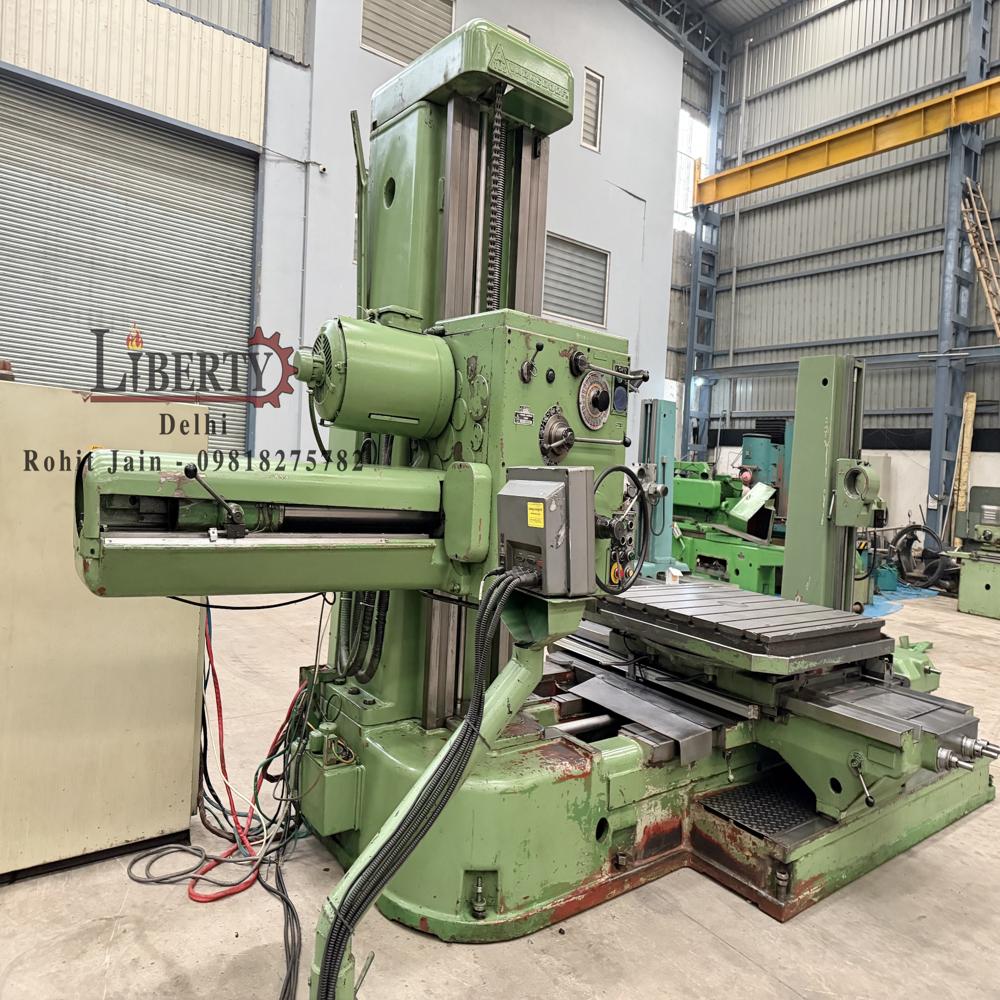

TOS (Czech Republic) make Table Type Horizontal Boring Machine in excellent working condition. The model of the machine is W100A and the Spindle Diameter is 100 mm. The machine is complete with its Facing Chuck, Tail-Stock and 3-Axis DRO. It is the latest model of the conventional Table type Horizontal Boring made by TOS Czech company. The technical details are as follows -

Make - TOS (Czech Republic)

Model - W100A

Spindle Diameter - 100 mm

Table Size - 1250 mm x 1250 mm

Cross Travel - 1600 mm

Vertical Travel - 1120 mm

Longitudinal Travel - 1250 mm (with Tail-Stock equipped)

Spindle Travel - 900 mm

Facing Chuck Diameter - 600 mm

Spindle Taper - MT-6

Spindle Speeds - 7.1 rpm to 1120 rpm

Facing Chuck Speeds - 7.1 rpm to 224 rpm

- Complete with Facing Chuck, Tailstock & equipped with 3-Axis DRO.

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/t6KfgCm8Dwc

Exceptional Precision & Versatility

The TOS W100A stands out with its high-precision operations, delivering accuracy up to 0.02 mm on a variety of metal components. Its rotary indexing table (0.001 degree) and extensive axis travel ensure it adapts seamlessly to numerous industrial applications, such as boring, drilling, and milling. With a rigid framed structure and centralized lubrication, the machine excels in maintaining consistent and reliable performance over extended operational periods.

Strength and Capacity for Demanding Jobs

Built with a durable, fabricated frame and a robust rotary table, this machine can accommodate loads up to 3000 kg. The main spindle taper (ISO 50), 18-speed gear transmission, and power rating of 7.5 kW provide the strength and adaptability necessary for intensive manufacturing environments. Whether handling heavy-duty production or intricate one-off tasks, the W100A's design prioritizes stability, safety, and long service life.

FAQ's of TOS Czech W100A Horizontal Boring Machine:

Q: How does the TOS Czech W100A support high-precision machining tasks?

A: The W100A delivers precision through its robust construction, rotary table with 0.001 indexing accuracy, and a spindle accuracy of up to 0.02 mm, making it suitable for exacting boring, milling, and drilling operations.

Q: What types of applications is this horizontal boring machine best suited for?

A: This machine is ideal for precision machining tasks such as boring, drilling, and milling metal parts, particularly in industrial settings requiring heavy-duty and high-accuracy performance.

Q: When should maintenance be performed on the W100A, and what systems aid its upkeep?

A: Routine maintenance should follow the manufacturer's recommendations, typically after set operating intervals. The centralized lubrication and water cooling systems help simplify upkeep and prolong machine life.

Q: Where can the TOS W100A be installed and used effectively?

A: The W100A is suitable for installation in industrial workshops, manufacturing plants, and production facilities, especially where robust handling of large and heavy metal components is required.

Q: What is the operational process for setting up and using this horizontal boring machine?

A: Setup involves placing the machine on a stable foundation, connecting it to a 3-phase, 400 V electrical supply, and configuring cutting tools and workpieces on the rotary table. Manual and electrical controls guide the operational sequence.

Q: How does the rotary table enhance the machine's functionality?

A: The high-precision rotary table allows for precise indexing (to 0.001), enabling complex and multi-angle machining operations without frequent repositioning of the workpiece, thus saving time and enhancing output quality.

Q: What benefits can users expect from choosing the TOS W100A for their operations?

A: Users will benefit from reliable performance, high machining accuracy, large load capacity, and operational flexibility, making it an excellent investment for high-precision and heavy-duty applications.
