Bridgeport 1ES-G Universal Milling Machine

Send Inquiry

Request To Call Back

Bridgeport 1ES-G Universal Milling Machine

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Bridgeport 1ES-G Universal Milling Machine Specification

Model
1ES-G

Rotation
Clockwise/Counter-clockwise

Product Type
Universal Milling Machine

General Use
Metalworking and precision machining

Material
Cast Iron

Type
Horizontal / Universal

Capacity
Medium Duty

Weight (kg)
1200 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Table Size
900 mm x 250 mm

Table Slide Way
Dovetail

Floor Space
1560 mm x 1450 mm

Spindle Speed
55 2000 rpm

Power
2 HP

Voltage
415 V

Dimension (L*W*H)
1560 mm x 1450 mm x 1620 mm

Feature
Heavy Duty Gear Drive, Hardened and Ground Bed

Color
Grey

Max Distance Spindle to Knee
480 mm

Handwheel Graduation
0.02 mm

Cross Travel
220 mm

Coolant Pump
0.1 kW

Arbor Diameter
22 mm

Vertical Travel
390 mm

Main Motor
1.5 kW

Table Load Capacity
200 kg

Max Distance Spindle to Table
390 mm

Quill Travel
90 mm

Lubrication System
Automatic

WorkingSpeed
Variable

Number of Feeds
12

Feed Range
18 360 mm/min

Longitudinal Travel
520 mm

Spindle Taper
ISO 40

Bridgeport 1ES-G Universal Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Bridgeport 1ES-G Universal Milling Machine

Make - Bridgeport (England/USA)

Model - 1ES-G

Table Size - 762 mm x 203 mm

Longitudinal Feed Travel - 343 mm (Automatic)

Spindle Speeds - 50 rpm to 2500 rpm

Spindle Taper - ISO 40

Table Feed Rates - 0.08 mm/rev to 1.00 mm/rev

Cross Travel of Table - 152 mm

Vertical Travel of Table - 254 mm

- Complete with Arbour & Bracket for Horizontal Milling Operations.

- Machine is with its Vertical Milling Head.

- With lots of Cutters, Tool Holders, Splash Guards & other accessories.

- Equipped with Coolant Tank and Pump.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/2N5Q5P6eDEo

Precision Engineering and Versatility

The Bridgeport 1ES-G is engineered for precise metalworking and machining tasks. With its hardened and ground bed, dovetail slideways, and variable working speeds, it offers exceptional adaptability for various applications. The ISO 40 spindle taper and 520 mm longitudinal travel provide extensive working space, while the robust cast iron construction ensures long-lasting durability.

User-Friendly Manual Operation

Designed for manual control, the Bridgeport 1ES-G allows machinists to make fine adjustments with a 0.02 mm handwheel graduation. The machine features 12 feed rates to accommodate different materials and machining needs. Its intuitive interface and reliable performance make it suitable for both skilled operators and those newer to manual milling.

Heavy-Duty Build for Industrial Use

With a table load capacity of 200 kg and a strong main motor of 1.5 kW, this machine handles medium-duty workloads efficiently. Its automatic lubrication system, heavy-duty gear drive, and cast iron body enhance durability, making it ideal for exporters, importers, manufacturers, and suppliers seeking reliable machinery for metalworking operations.

FAQ's of Bridgeport 1ES-G Universal Milling Machine:

Q: How does the Bridgeport 1ES-G milling machine enhance machining precision?

A: The Bridgeport 1ES-G is equipped with a 0.02 mm handwheel graduation and dovetail slideways, ensuring precise manual movements. Its hardened and ground bed, combined with an automatic lubrication system, maintains smooth operation and accuracy during metalworking processes.

Q: What is the process for changing spindle speeds and feeds on this machine?

A: Spindle speeds are set manually using the machine's variable speed control, offering a range from 55 to 2000 rpm. The 12 available feed rates (18-360 mm/min) are selected through dedicated feed controls, enabling quick adjustment to match specific material and application requirements.

Q: When should the lubrication system be checked or maintained?

A: While the Bridgeport 1ES-G has an automatic lubrication system that continuously supplies oil to essential components, it is advisable to check oil levels and inspect for leaks or blockages at regular intervals, typically during scheduled maintenance or every few weeks, depending on usage frequency.

Q: Where can this machine be installed efficiently?

A: With floor space requirements of 1560 mm x 1450 mm and weighing 1200 kg, the machine is best installed in workshops or manufacturing environments equipped with reinforced flooring and three-phase 415 V power supply. Its medium-duty capacity suits a variety of industrial metalworking setups.

Q: What benefits does the non-CNC, manual system provide for users?

A: This machine's manual control system offers greater flexibility for custom, low-volume tasks and allows skilled operators to make instant adjustments during machining. It is cost-effective for shops that require reliable versatility without the complexity or expense of CNC controls.

Q: How is the Bridgeport 1ES-G utilized for metalworking applications?

A: The machine is designed for a variety of precision metalworking tasks, including milling, drilling, and shaping. Its universal horizontal design, adjustable spindle speeds, and heavy-duty construction make it ideal for tool rooms, fabricators, and component manufacturers handling medium-duty workloads.

Q: What is the maximum workpiece size and weight the table can support?

A: The table measures 900 mm x 250 mm and has a maximum load capacity of 200 kg, suitable for medium-sized metal components. The maximum distance from spindle to table is 390 mm, permitting a significant range of part heights.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Milling Machine Category

Rambaudi Versamill Bed Type Milling Machine

Price 100000 INR / Piece

Minimum Order Quantity : 1 Piece

Feature : Other, Robust structure, precision slideways, universal head

General Use : Industrial, Metalworking, Heavy duty milling

Material : Cast Iron

Type : Other, Horizontal / Universal

Get a Price/Quote

Tiger FU-3L Universal Milling Machine

Price 23000 INR / Piece

Minimum Order Quantity : 1 Piece

Feature : Other, Swiveling table, hardened slideways, robust construction

General Use : Industrial milling operations, metalworking

Material : Other, Highgrade cast iron, alloy steel

Type : Other, Horizontal & Universal

Get a Price/Quote

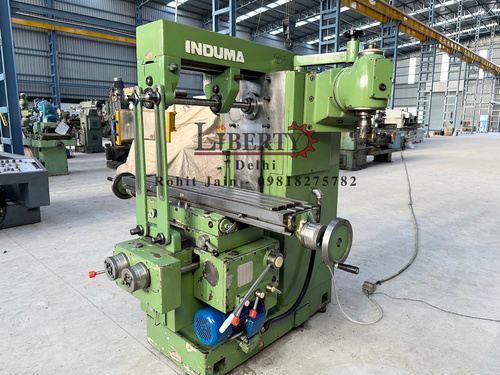

Induma 1120 x 250 Milling Machine
