Bridgeport USA Vertical Milling Machine
Bridgeport USA Vertical Milling Machine

Bridgeport USA Vertical Milling Machine

Price 100000 INR/ Piece

MOQ : 1 Piece

Bridgeport USA Vertical Milling Machine Specification

  • Rotation
  • Spindle Head Swivels 360
  • Model
  • Bridgeport Series I
  • Product Type
  • Vertical Milling Machine
  • General Use
  • Industrial Metal Milling
  • Material
  • Cast Iron
  • Type
  • Bridgeport Series I
  • Capacity
  • Maximum Table Load 300 kg
  • Weight (kg)
  • 950 kg
  • Computerized
  • No
  • Automatic
  • No
  • CNC Or Not
  • No (Manual)
  • Control System
  • Manual
  • Table Size
  • 1067 mm x 229 mm
  • Table Slide Way
  • Dovetail
  • Floor Space
  • 1800 mm x 1500 mm approx.
  • Spindle Speed
  • Variable, 604200 RPM
  • Power
  • 2 HP
  • Voltage
  • 220V/440V, 3 Phase
  • Dimension (L*W*H)
  • 1500 mm x 1700 mm x 2100 mm approx.
  • Feature
  • Turret Head, R-8 Spindle Taper, Swiveling Head
  • Color
  • Grey
  • Table Load Max
  • 300 kg
  • Number of T-Slots
  • 3
  • Head Tilt (Forward/Backward)
  • 45
  • Head Tilt (Left/Right)
  • 90
  • Longitudinal Table Travel
  • 914 mm
  • Quill Travel
  • 127 mm
  • Spindle Taper
  • R8
  • Knee Travel (Vertical)
  • 406 mm
  • T-Slot Size
  • 16 mm
  • Coolant System
  • Optional
  • Cross Table Travel
  • 305 mm
  • WorkingSpeed
  • Feed 0.040.5 mm/rev


Bridgeport USA Vertical Milling Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Main Domestic Market
  • All India


About Bridgeport USA Vertical Milling Machine

Make - Bridgeport (USA)

Model - Series I 2-HP

Table Size - 1070 mm x 230 mm

Longitudinal Travel - 680 mm (Automatic)

Cross Travel - 300 mm

Spindle Speeds (Infinitely Variable) - 50 rpm to 3750 rpm

Spindle Travel - 127 mm

Spindle Diameter - 86 mm

- Equipped with a 2-Axis DRO.

- Automatic Feed & Rapid Movement on Longitudinal Travel.

- Electrical Drawing of the machine is available.

- Machine is in excellent working condition.


Video of The Machine -

https://youtu.be/7yNt58UX2eo



Exceptional Versatility and Precision

The Bridgeport Series I Vertical Milling Machine is engineered for a broad spectrum of metal milling operations. The swiveling head (90 left/right, 45 forward/backward) and extensive table travel allow users to undertake complex tasks with high accuracy. Built with a heavy-duty cast iron frame, it provides stability and durability in any industrial setting.


Adaptable Manual Operation

Operating solely through manual controls, this machine enables experienced machinists to retain complete command over the milling process. Feed rates between 0.04-0.5 mm/rev ensure precise material removal, making it a preferred choice for custom fabrication, prototyping, and repair jobs.

FAQ's of Bridgeport USA Vertical Milling Machine:


Q: How do I adjust the head tilt on the Bridgeport Series I milling machine?

A: The head of the Bridgeport Series I can be tilted 90 left/right and 45 forward/backward. To adjust, simply loosen the designated locks on the turret head and reposition the head to your desired angle, then retighten to secure it in place.

Q: What materials can be processed on this milling machine?

A: This manual milling machine, with its robust cast iron construction, is suitable for a variety of metals including mild steel, aluminum, brass, and cast iron, making it apt for most industrial milling tasks.

Q: When should the optional coolant system be used?

A: The optional coolant system is recommended during intensive or prolonged milling sessions, especially when working with harder metals or at higher spindle speeds. It helps dissipate heat, reduce tool wear, and improve surface finish.

Q: Where is the Bridgeport Series I ideal for use?

A: This milling machine is best suited for industrial environments, such as manufacturing plants, metal workshops, and tool rooms requiring high precision and solid capacity for metalworking.

Q: What are the main benefits of using the manual Bridgeport Series I over CNC alternatives?

A: Manual operation grants skilled machinists direct control over every aspect of milling, allowing for quick setup, flexible adjustments, and intricate, one-off jobs without the need for programming.

Q: How do I maximize the machine's table load capacity safely?

A: Ensure the load is evenly distributed on the table's 1067 mm x 229 mm surface and does not exceed 300 kg. Secure all workpieces using the T-slots and proper fixtures to maintain stability during operation.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Milling Machine Category

Bridgeport 1ES-G Universal Milling Machine

Bridgeport 1ES-G Universal Milling Machine

Price 100000 INR / Piece

Minimum Order Quantity : 1 Piece

General Use : Metalworking and precision machining

Product Type : Universal Milling Machine

Feature : Other, Heavy Duty Gear Drive, Hardened and Ground Bed

Color : Other, Grey

Bridgeport USA Turret Milling Machine

Bridgeport USA Turret Milling Machine

Price 2184.0 INR / Piece

Minimum Order Quantity : 1 Piece

General Use : Industrial and Engineering Workshop

Product Type : Turret Milling Machine

Feature : Other, High Precision, Rigid Body

Color : Other, Grey

TOS FA4U Universal Milling Machine

TOS FA4U Universal Milling Machine

Price 15000 INR / Piece

Minimum Order Quantity : 1 Piece

General Use : Milling operations

Product Type : Universal Milling Machine

Feature : Universal Milling, Other

Color : Other, Grey

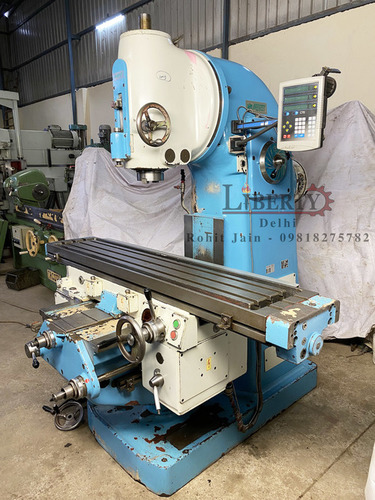

TOS FA4A-V Vertical Milling Machine
