Price 100000.0 INR/ Piece

MOQ : 1 Piece

BTM Italy Double-Column CNC Bandsaw Machine Specification

  • Cooling System
  • Automatic Coolant Circulation
  • Production Capacity
  • Variable as per job size
  • Voltage
  • 415 V
  • Motor Power
  • 4 kW
  • Drive
  • Worm Gear Drive
  • Features
  • Heavy-duty construction, Automatic feeding, Multiple cutting programs, Low vibration, Energy efficient
  • Machine Type
  • Bandsaw Machine, CNC
  • Noise Level
  • <70 dB
  • Operating Temperature
  • 5C to 45C
  • Frame Type
  • Double Column
  • Accuracy
  • High Precision 0.05 mm
  • Lubricating System
  • Automatic Lubrication
  • Frequency
  • 50 Hz
  • Connectivity Options
  • USB and LAN for Data Transfer
  • Model No
  • BTM-DCNC-320
  • Power Rating
  • 4 kW
  • Control System
  • CNC Controller with Digital Display
  • Product Type
  • Double-Column CNC Bandsaw Machine
  • Technology
  • CNC
  • Power Source
  • Electric
  • Operating Type
  • Semi-Automatic
  • Power
  • 4.0 kW
  • Pressure
  • Hydraulic
  • Surface Treatment
  • Powder Coated
  • Dimension (L*W*H)
  • 3000 x 1500 x 2200 mm
  • Weight (kg)
  • 2100 kg
  • Color
  • Blue & Grey
  • Usage & Applications
  • Industrial metal cutting; suitable for steel, stainless steel, alloy, and aluminum sections
  • Maximum Cutting Diameter
  • 320 mm
  • Blade Guide System
  • Hard Alloy Guide and Bearings
  • Safety Standards
  • CE Certified
  • Operator Interface
  • Ergonomic Panel
  • Service Support
  • On-site and Remote Diagnostics
  • Saw Blade Tension
  • Hydraulic / 20-25 MPa
  • Emergency Stop
  • Yes
  • Working Speed
  • Adjustable, up to 80 m/min
  • Max Cutting Thickness
  • 320 mm
  • Clamping Type
  • Hydraulic Vise
  • Blade Cleaning
  • Automatic Chip Brush
  • Cutting Angle
  • 0 (Straight Cut)
  • Transport Mode
  • Base with Lifting Points
  • Min Workpiece Size
  • 10 x 10 mm
  • Main Structure Material
  • High-Grade Cast Iron Frame
  • Blade Speed Adjustment
  • Variable Frequency Drive (VFD)
  • Display Type
  • Touch Screen LCD
  • Coolant Tank Capacity
  • 40 Liters
  • Material Feed
  • Automatic Rollers
  • Saw Blade Size
  • 4115 x 34 x 1.1 mm
  • Hydraulic Oil Tank Capacity
  • 32 Liters



About BTM Italy Double-Column CNC Bandsaw Machine

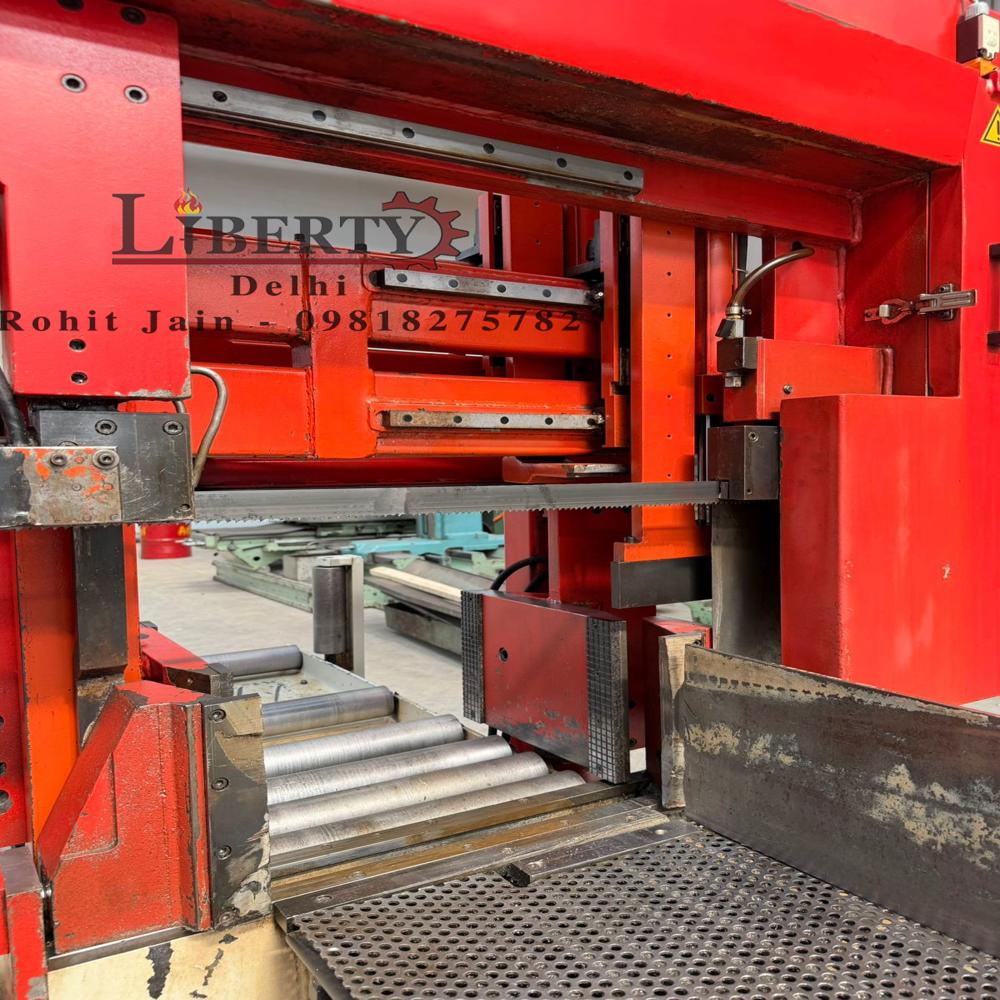

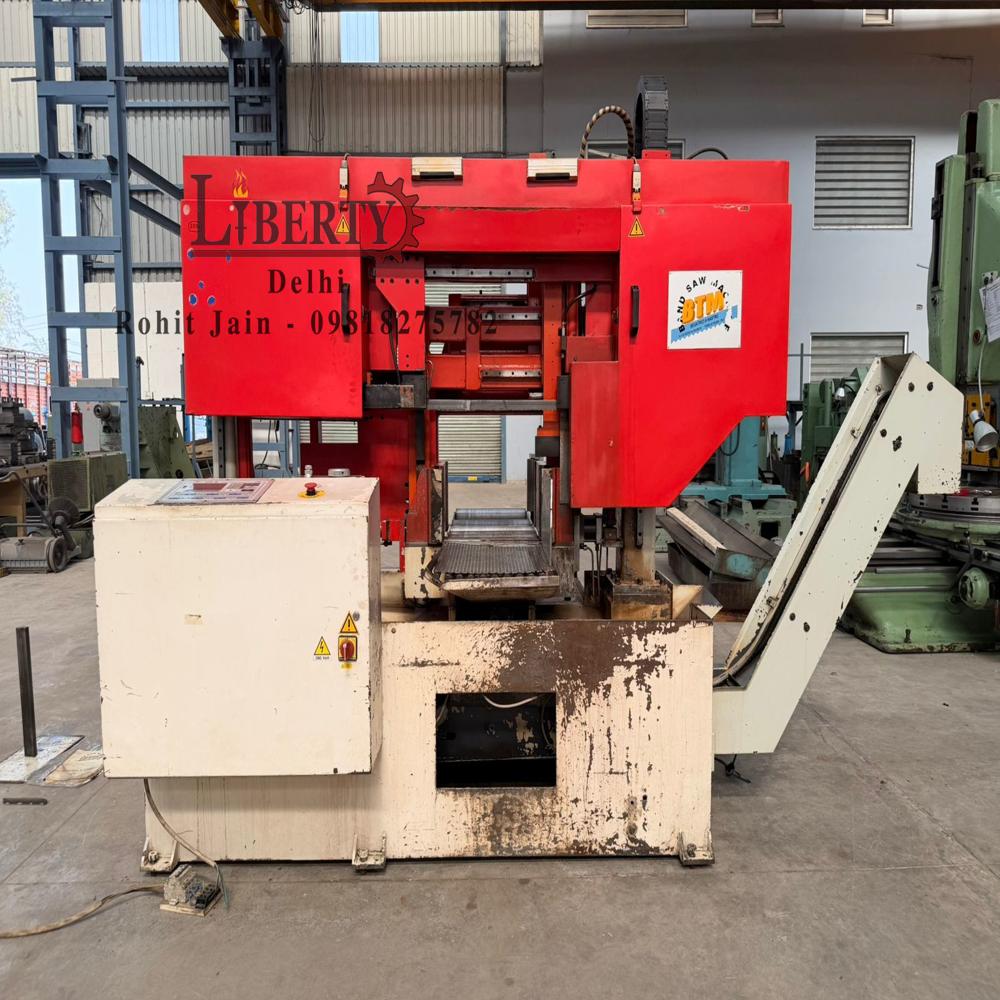

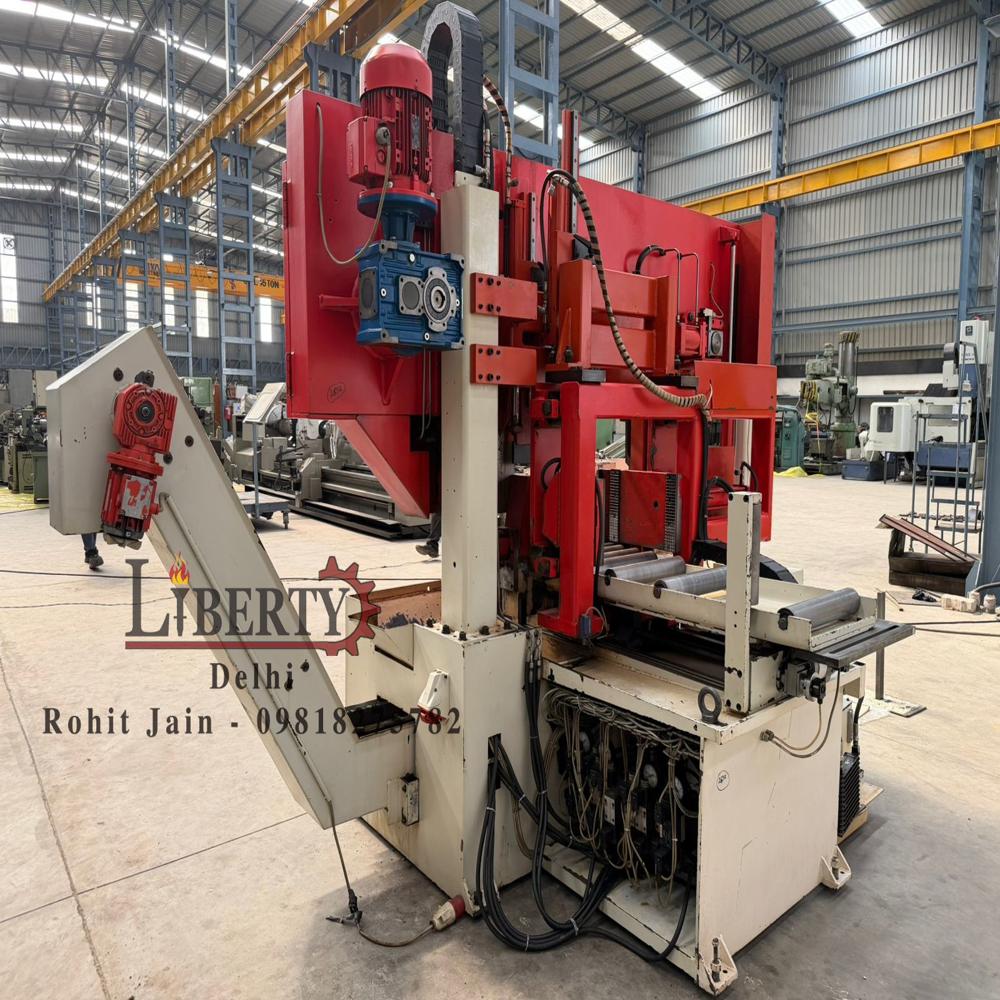

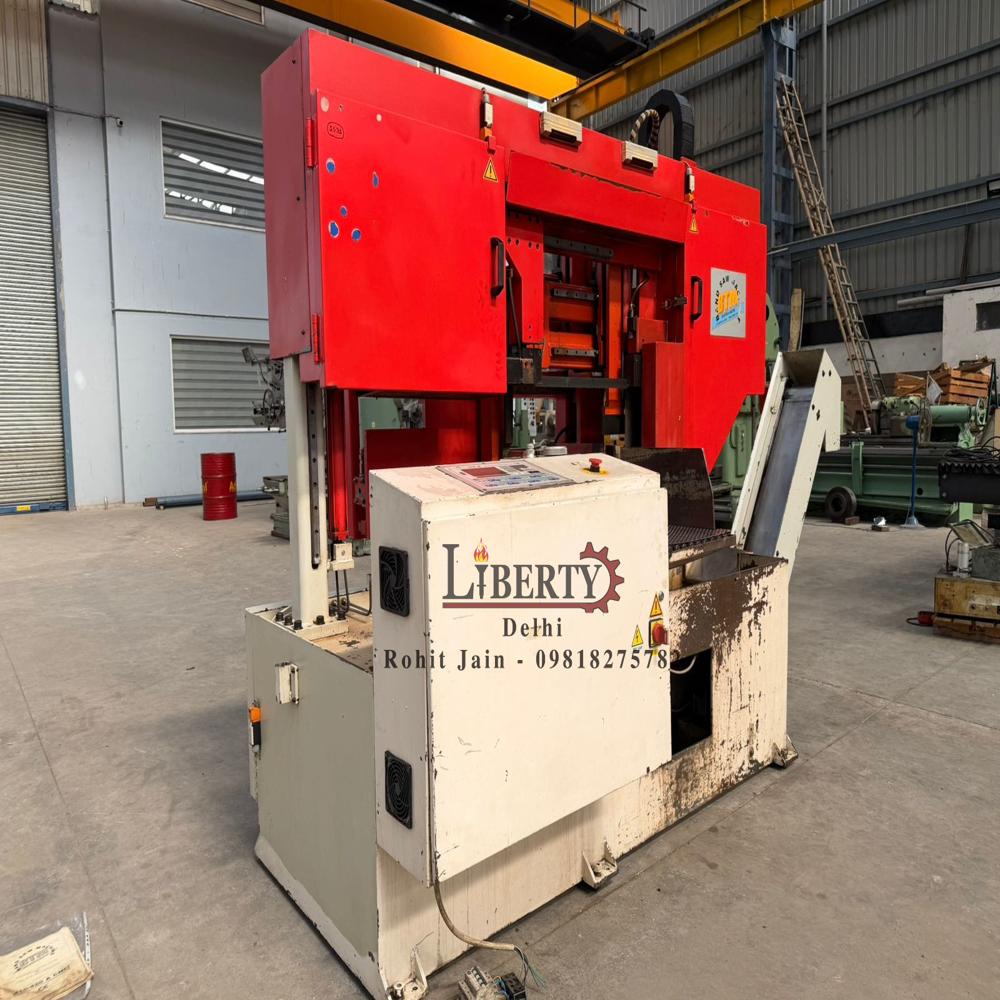

BTM (Italy) make Double-Column Type CNC Bandsaw Machine, Model 410/420-A-CNC, available in excellent working condition. The cutting capacity of the machine for Round is 410 mm Diameter and for Flat is 420 mm 410 mm. It is a CNC, Fully Automatic & Programmable Double-Column Heavy Duty Bandsaw Machine. The machine is also suitable for Bundle Cutting Operations. The technical details are as follows -

Make - BTM (Italy)
Model - 410/420-A-CNC
Cutting Capacity for Round - 410 mm Diameter
Cutting Capacity for Flat - 420 mm x 410 mm
Cutting Capacity for Bundle - 250 mm x 250 mm
Blade Size - Length 5300 mm x Width 34 mm x Thickness 1.10 mm
Blade Speed Range - 17 m/min to 127 m/min
Blade Motor Power - 4.0 kW
Machine Weight - 3120 kg
Year of Make - 2001
Type - CNC | Fully Automatic | Programmable
- Complete with Coolant Pump & Chip Conveyor.
- Operating Manual is available.
- Machine is in excellent working condition.

Video of The Machine -


Precision and Performance

Engineered for high-precision cutting, the BTM-DCNC-320 bandsaw machine maintains accuracy up to 0.05 mm, ensuring reliable results for a range of metal materials. Its heavy-duty cast iron structure and variable frequency drive support stability, low vibration, and consistent output during demanding industrial operations.


Operator-Friendly Design

The ergonomic operator panel, touch screen LCD display, and automated features like hydraulic clamping and roller feeding make setup and operation straightforward. This design reduces operator fatigue and minimizes manual intervention, allowing efficient multitasking and reducing downtime.


Advanced Automation and Safety

Equipped with automatic blade cleaning, coolant circulation, and lubrication systems, the machine assures longevity and consistent performance. The CE-certified emergency stop and comprehensive safety systems provide peace of mind while on-site or remote diagnostics enable efficient technical support.

FAQ's of BTM Italy Double-Column CNC Bandsaw Machine:


Q: How does the BTM Double-Column CNC Bandsaw Machine achieve high cutting accuracy?

A: The machine utilizes a rigid double-column cast iron frame and a hard alloy blade guide system paired with precision bearings, allowing it to achieve high precision cutting up to 0.05 mm. Its CNC controller manages cutting parameters for repeatable, consistent results.

Q: What materials can be processed on the BTM-DCNC-320 bandsaw machine?

A: This machine is suitable for industrial cutting of steel, stainless steel, alloy, and aluminum sections. Its adjustable working speed and hydraulic clamping ensure effective cutting across various metal types and sizes, from 10x10 mm up to 320 mm diameter.

Q: When should the variable speed feature be adjusted during operation?

A: Adjusting the variable speed via the VFD (Variable Frequency Drive) is useful when switching between different materials or thicknesses. Slower speeds are optimal for harder alloys, while higher speeds work well for softer metals like aluminum, helping optimize blade life and cutting efficiency.

Q: Where can the BTM CNC Bandsaw Machine be installed?

A: The machine can be installed in industrial workshops, metal fabrication plants, and production facilities. Its base is equipped with lifting points for easy transportation and placement in locations with adequate electric power supply and suitable operating temperatures (5C - 45C).

Q: What is the process for automatic feeding and clamping?

A: The material is held in place using a hydraulic vise and fed automatically through rollers. These systems can be programmed via the CNC controller, greatly reducing manual handling and enabling seamless batch processing and repeatable accuracy.

Q: How does the machine benefit industrial manufacturers?

A: Manufacturers benefit from high productivity, precision, energy efficiency, and low noise (below 70 dB). Automation streamlines operations, while multiple cutting programs and automatic systems reduce operational costs and extend machine and blade life.

Q: What support is available if the machine encounters issues?

A: Service support is provided both on-site and remotely via built-in diagnostics. The machine's connectivity options (USB and LAN) simplify software updates and troubleshooting, ensuring minimal downtime and fast technical assistance.
