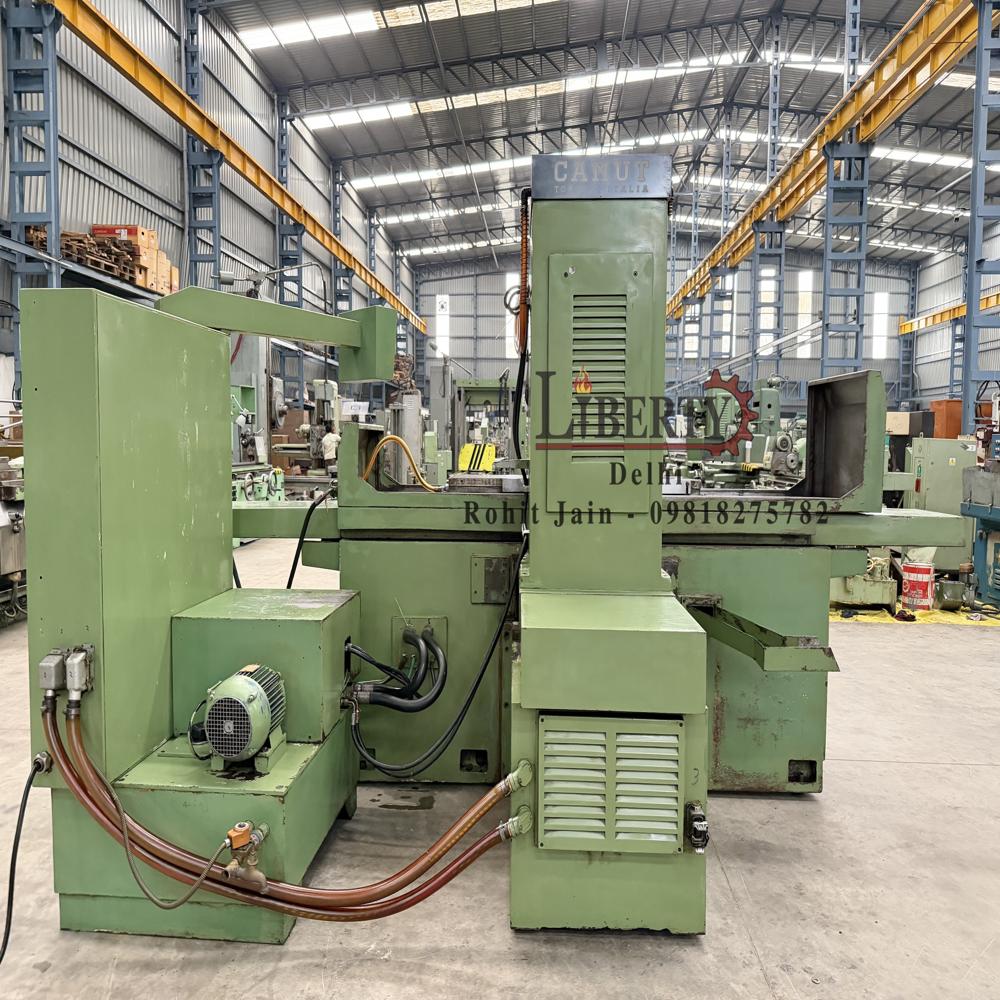

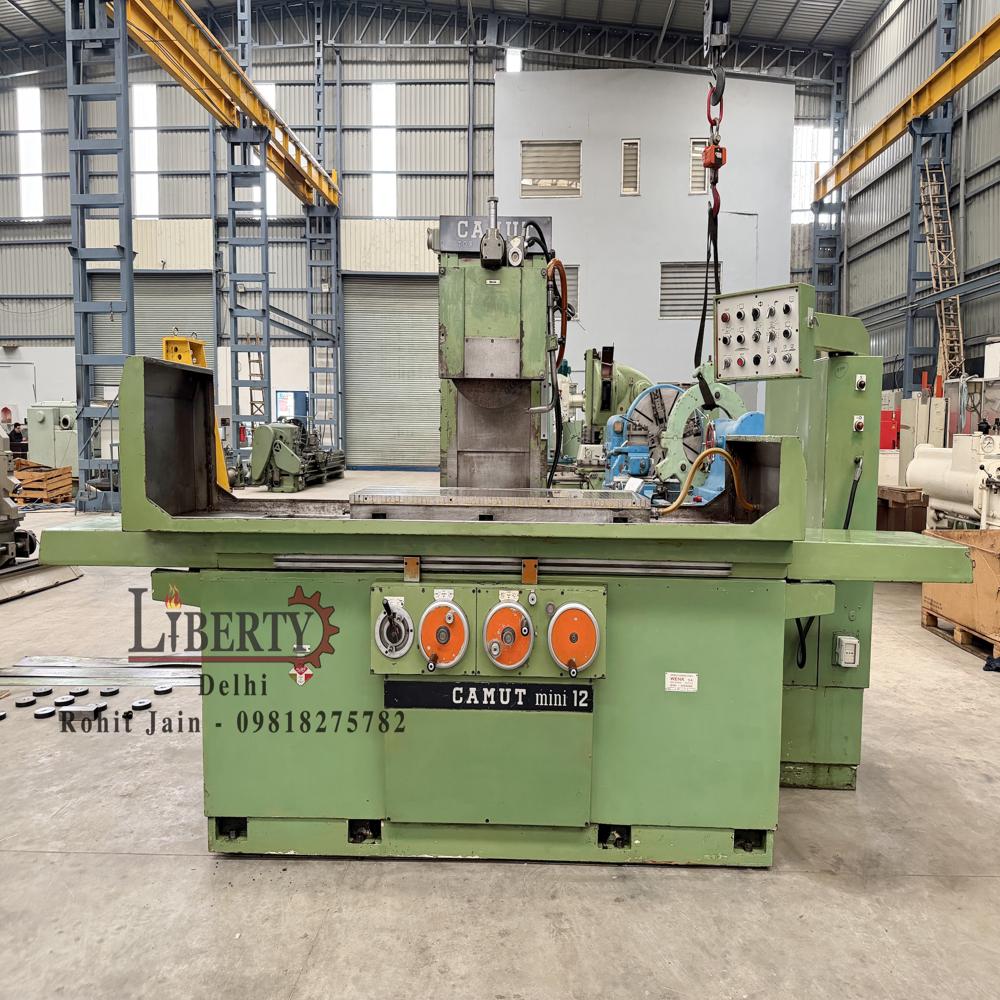

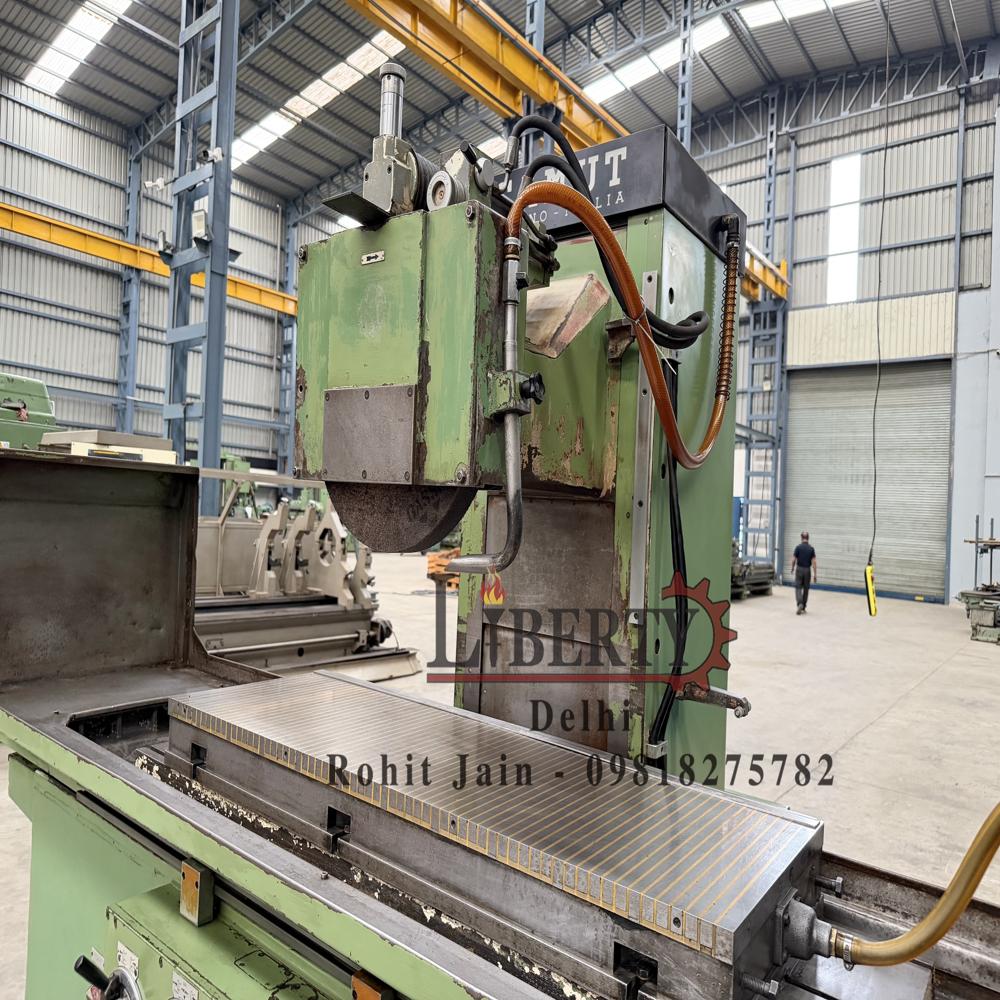

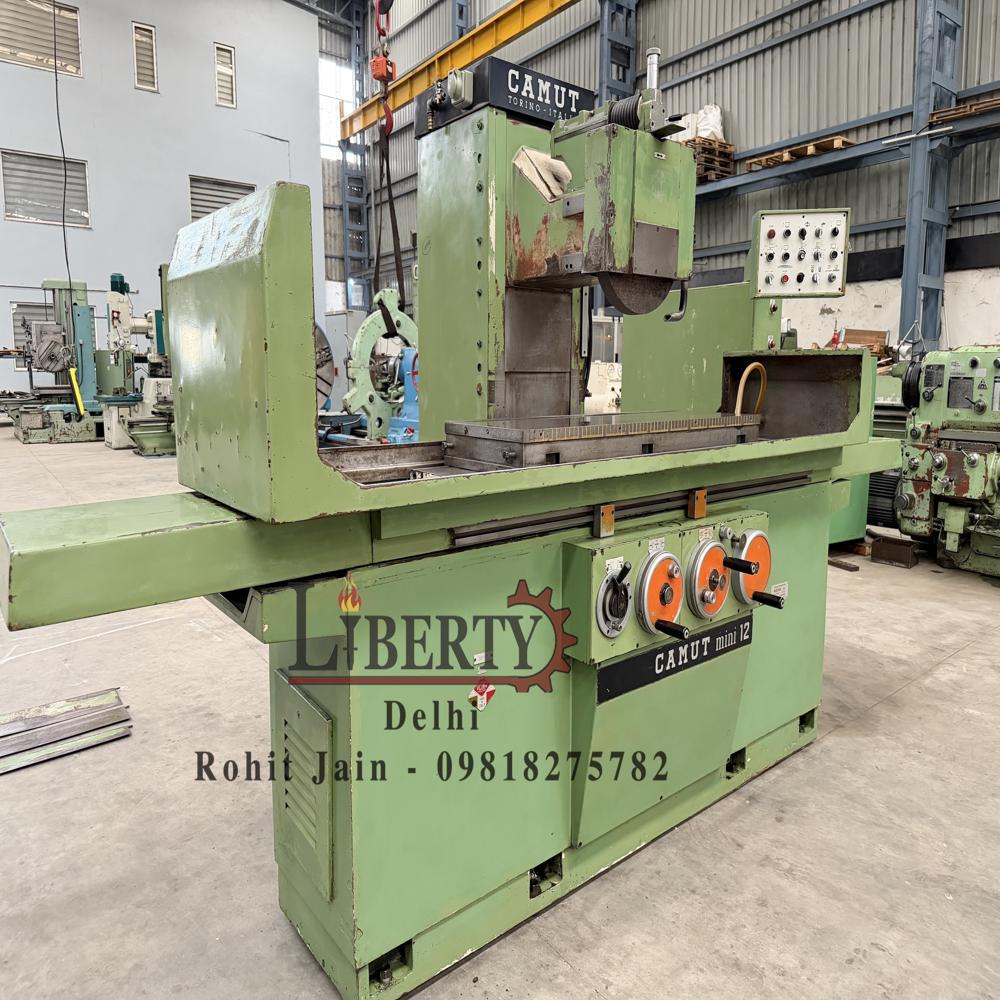

Camut Italy 400 mm x 1200 mm Surface Grinding Machine

Name: Camut Italy 400 mm x 1200 mm Surface Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Camut Italy 400 mm x 1200 mm Surface Grinding Machine Specification

Rotation
Grinding Wheel Rotation: 1450 rpm

Model
Camut Mini 12

Product Type
Surface Grinding Machine

General Use
Camut (Italy) make Heavy Duty Surface Grinding Machine in excellent working condition. The model of the machine Mini 12 having a Grinding Capacity of 400 mm x 1200 mm. It is a High-Precision Machine having Micro-Feed Travels on both the Cross Travels and in Vertical Travels. The machine's cross-travel involves moving the complete vertical column making it very suitable for Heavy-Duty and High Precision Work. The Least Count of the Vertical Travels is 1 Micron (0.001 mm). The technical details are as follows -

Material
Heavy Duty Cast Iron

Type
Hydraulic Surface Grinder

Capacity
400 mm x 1200 mm grinding capacity

Weight (kg)
Approx. 3800 kg

Computerized
No

Automatic
Yes, Hydraulic Table Travel

CNC Or Not
Non-CNC

Control System
Manual

Table Size
400 mm x 1200 mm

Table Slide Way
Vee & Flat

Magnetic Chuck Size
400 mm x 1200 mm

Grinding Wheel Size
Standard, as per OEM (specify if known)

Grinding Wheel Speed
Approx. 1450 rpm

Grinding Length
1200 mm

Floor Space
(Approximate) 2900 mm x 1800 mm

Fuel Tank Capacity
Hydraulic oil tank: Approx. 80 liters

Spindle Speed
Approx. 1450 rpm

Power
7.5 HP / 5.5 kW

Voltage
415 V, 3 Phase

Dimension (L*W*H)
Approx. 2900 mm x 1800 mm x 2000 mm

Feature
Precision surface grinding, sturdy construction, manual controls

Color
Green

Max. Table Traverse
1300 mm (approx.)

Coolant System
Yes, fitted

Lubrication System
Automatic

Installation Requirement
Concrete foundation

Control Panel
Multi-function electrical panel

Operation
Floor mounted, operator side controls

Accessories Included
Magnetic Chuck, Wheel Dresser, Coolant Pump

Hand Wheel Graduation
0.01 mm per graduation

Working Speed
Variable (manual feed)

Vertical Feed
Motorized/manual

Main Motor Power
7.5 HP

Made In
Italy

Condition
Used/Good Working Condition

Camut Italy 400 mm x 1200 mm Surface Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Camut Italy 400 mm x 1200 mm Surface Grinding Machine

Make - Camut (Italy)

Model - Mini 12

Magnet Size - 400 mm x 1200 mm

Grinding Wheel Size - Diameter 400 mm x 50 mm Width

Max. Height between Magnet Top to Wheel Center - 510 mm

Least Count of Vertical Travels - 1 Microns (0.001 mm)

Least Count of Cross Travels - 5 Microns (0.005 mm)

- Equipped with a Hydraulic Top Mounted Wheel Dresser.

- Micro-Feed Travels on both Vertical & Cross Movements.

- Feature of Automatic Depth Adjustment and Plunge Grinding.

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/SwzzBOlMsdE

Precision Engineering for Demanding Applications

The Camut Mini 12 Surface Grinding Machine is engineered for operations where superior surface finish and accuracy matter most. Its micro-feed on vertical and cross travels allows for fine adjustment, ensuring a surface finish precision up to 0.003 mm. This heavy-duty machine provides essential support for industries requiring reliable, consistent, and clean grinding tasks.

Sturdy Construction and Easy Operation

Built from heavy-duty cast iron and weighing around 3800 kg, the Camut Mini 12 promises long-term stability and vibration resistance during use. The manual controls, featuring three wheels, ensure straightforward operation even for users new to non-CNC grinders. Hydraulic table travel and centralized lubrication add further convenience, ensuring both operator comfort and machine longevity.

Efficient and Flexible Performance

The combination of a variable-speed hydraulic feed system and a standard-size grinding wheel (1450 rpm) makes this grinder adaptable to different materials and workloads. Its magnetic chuck and large table size (400 mm x 1200 mm) enable secure, versatile workpiece handling. The built-in coolant and lubrication systems protect both the machine and the workpiece, extending the life of consumables and delivering consistent results.

FAQ's of Camut Italy 400 mm x 1200 mm Surface Grinding Machine:

Q: How does the variable hydraulic table speed benefit the grinding process?

A: The variable hydraulic table speed allows operators to adjust the movement of the workpiece, accommodating different types of materials and required finishes. This flexibility enhances control over the grinding process, improving surface quality and reducing the risk of errors or overheating.

Q: What are the main uses of the Camut Mini 12 Surface Grinding Machine?

A: The Camut Mini 12 is primarily used for high-precision surface grinding of metal components. Its large grinding capacity (400 mm x 1200 mm) and sturdy construction make it suitable for workshops and manufacturing units demanding consistent, flat surface finishes in toolrooms, production lines, or heavy engineering applications.

Q: When should I use manual control instead of automated (CNC) systems?

A: Manual controls are ideal when flexibility and hands-on adjustment are needed, such as in custom, prototype, or small-batch work where fast switching between tasks is beneficial. Non-CNC machines like the Camut Mini 12 offer precise manual interventions that are valuable for specialized or non-repetitive grinding jobs.

Q: Where is the grinding precision most noticeable in this machine?

A: The Camut Mini 12 delivers high-precision surface finishes, with accuracy up to 0.003 mm. This degree of precision is especially crucial in toolmaking, mold making, and parts that require tight tolerances and flawless flatness.

Q: What process should be followed for proper maintenance and smooth operation?

A: Regular cleaning of the grinding area, checking and replenishing the hydraulic oil (approx. 80 liters), ensuring the centralized lubrication system is active, and observing coolant levels will keep the machine running smoothly. Periodic inspection of the grinding wheel, magnetic chuck, and manual controls is also recommended for optimal longevity.

Q: How does the centralized lubrication system enhance machine performance?

A: The centralized lubrication system ensures that critical moving parts are consistently oiled, reducing friction, wear, and the need for frequent manual lubrication. This leads to better performance, minimized downtime, and extended component life.
