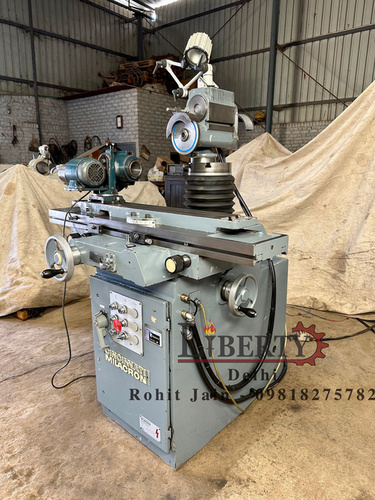

Cincinnati Tool & Cutter Grinder

Name: Cincinnati Tool & Cutter Grinder
Brand: Liberty Metal & Machines Private Limited
Price: 1100 USD
Availability: InStock

Get a Price/Quote

MOQ : 1 Piece

Cincinnati Tool & Cutter Grinder Specification

Material
Cast Iron (Body), High-Speed Steel or Abrasive (Wheel)

Drill Bits Types
Suitable for various drill angle grinding

Cutter Type
Tool & Cutter Grinder

Shape
Rectangular (Base), Cylindrical (Grinding Wheel)

Cutting Force
Depends on material & grinding wheel

Operation Type
Universal, Multi-Operation

Machine Type
Cincinnati Tool & Cutter Grinder

Hardness
Up to 60 HRC (Grinding Wheel)

Cutting Speed
Variable, up to 3600 RPM

Cutting Capacity
Up to 300 mm length

Tool Type
Grinder

Length
Approx. 1500 mm (Machine Length)

Coating
Uncoated

Features
Heavy Duty, Versatile, Adjustable table, Motorized

Operate Method
Manual & Semi-Automatic

Cutting Accuracy
High Precision (±0.02 mm)

Diameter
180 mm - 200 mm (Grinding Wheel)

Processing Type
Surface, cylindrical, and tool grinding

Weight
Approx. 1000 kg

Spindle Speed
3600 RPM (Max)

Table Size
1000 mm x 150 mm (Approx.)

Condition
Used / Refurbished

Make
Cincinnati

Controls
Hand operated wheels and power feeds

Coolant System
Integrated

Blade Size
Not Applicable (Uses Grinding Wheel)

Wheel Size
180 mm to 200 mm Diameter, 13 mm Thickness

Max Workpiece Diam.
Approx. 200 mm

Motor Power
1.5 - 2 HP

Application
Sharpening and grinding of cutting tools such as end mills, drills, reamers

About Cincinnati Tool & Cutter Grinder

Cincinnati Tool & Cutter Grinder

Features:

Table Size: 6" x 36"
Max. Swing: 10"
Longitudinal Table Travel: 16"
Cross Table Travel: 10"
Vertical Head Travel: 10.5"
Table Swivel: 180 degrees
Wheel-head Swivel: 360 degrees
Wheel-head Vertical Tilt: +/- 15 degrees
With Motorized Wheel-head
With loots of tooling & accessories.
Machine is in excellent working condition.

Versatile Sharpening & Grinding Power

This Cincinnati Tool & Cutter Grinder is engineered for both surface and cylindrical grinding, allowing users to sharpen and resurface a wide range of cutting tools, including drill bits and end mills. The machines universal design makes it suitable for complex tool shapes and versatile operations, catering to manufacturing, repair, and maintenance environments.

Precision Engineering and Heavy-Duty Construction

Constructed with a durable cast iron base and a high-speed steel or abrasive grinding wheel, this grinder maintains stability and accuracy during demanding applications. Its ability to handle workpieces up to 200 mm in diameter and 300 mm in length ensures adaptability for various jobs, while the adjustable table enhances user control for precise results.

Integrated Coolant System for Efficiency

To reduce heat and extend tool life, the grinder incorporates a built-in coolant system. This feature ensures smooth operation, minimizes thermal distortion, and supports continuous heavy-duty grinding, making the machine especially suitable for prolonged use in industrial settings.

FAQs of Cincinnati Tool & Cutter Grinder:

Q: How do you operate the Cincinnati Tool & Cutter Grinder?

A: Operation is primarily manual, using hand-operated wheels for precise adjustments, but the machine also offers power feeds for assisted movements. Its controls are intuitive, suitable for both semi-automatic and manual grinding tasks, providing flexibility for different user needs.

Q: What types of tools can I sharpen or grind with this machine?

A: This grinder is designed for sharpening and regrinding cutting tools such as end mills, drills, reamers, and similar components. It is also suitable for cylindrical and surface grinding tasks, making it a universal tool for various tool room and manufacturing applications.

Q: When should I use the integrated coolant system?

A: The coolant system should be used during all grinding operations to minimize heat buildup, reduce thermal distortion, and enhance tool and wheel longevity. It is especially recommended for extended grinding sessions or when working with heat-sensitive materials.

Q: Where is the Cincinnati Tool & Cutter Grinder best suited for use?

A: This machine is ideal for tool rooms, machine shops, manufacturing plants, and maintenance departments where high-precision tool sharpening is necessary. Its heavy-duty construction and versatile design make it suitable for both small workshops and larger industrial operations.

Q: What is the process for grinding a tool on this machine?

A: To grind a tool, secure the workpiece on the adjustable table, set the required wheel speed (up to 3600 RPM), and use the hand wheels or power feeds to position and advance the tool accurately against the grinding wheel. Activate the coolant system to maintain optimal conditions during grinding.

Q: Why is high precision important for tool grinding with this machine?

A: Achieving high precision (0.02 mm) ensures consistent tool performance, increases tool life, and prevents material wastage. This level of accuracy is particularly critical in manufacturing environments where tolerances are tight and the quality of sharpened tools impacts overall productivity.

Q: What benefits does this grinder offer over other models?

A: Its universal operation, heavy-duty construction, adjustable table, and integrated coolant system provide enhanced versatility and durability. Users benefit from its ability to handle a wide range of tool types, adjustable speed, and high accuracy, making it a valuable asset for diverse grinding requirements.
