Colchester Triumph 2000 Gap Bed Lathe Machine

Name: Colchester Triumph 2000 Gap Bed Lathe Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Colchester Triumph 2000 Gap Bed Lathe Machine Specification

Product Type
Gap Bed Lathe Machine

Material
Cast Iron

Cutting Thickness
Up to 30 mm

Cutting Speed
25 - 2000 RPM

CNC Or Not
No (Conventional)

Automatic Grade
Manual

Control System
Manual

Max. Swing Diameter
400 mm

Voltage
415 V

Weight (kg)
1600 kg

Dimension (L*W*H)
2000 mm x 1000 mm x 1200 mm

Capacity
Heavy Duty

Feature
Robust Construction, High Precision, Gap Bed Feature

Color
Standard Grey

Taper in Tailstock
MT4

Distance Between Centers
1000 mm

Coolant Pump
Included

Chuck Size
250 mm

Threads Range (Metric)
0.2-14 mm

Number of Spindle Speeds
12

Bed Width
280 mm

Spindle Bore
54 mm

Model
Colchester Triumph 2000

Lead Screw Diameter
35 mm

Tailstock Quill Travel
150 mm

Threads Range (Inch)
2-72 TPI

Main Motor Power
7.5 HP

Application
Metal and Engineering Industries

Colchester Triumph 2000 Gap Bed Lathe Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

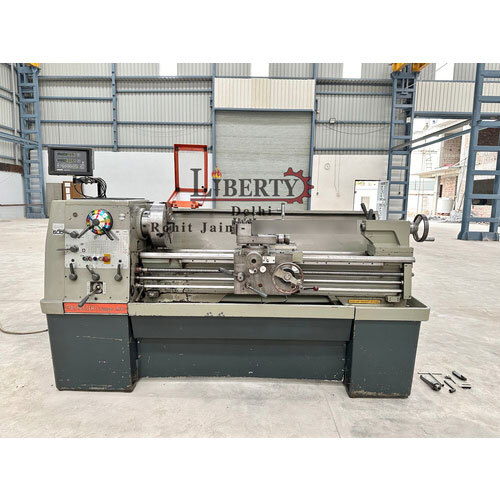

About Colchester Triumph 2000 Gap Bed Lathe Machine

Make - Colchester (England)

Model - Triumph 2000

Center Height - 195 mm

Length of Job - 1270 mm

Max. Diameter of Job over Bed - 390 mm

Max. Diameter of Job over Cross-Slide - 230 mm

Max. Diameter of Job in Gap - 600 mm

Bed Width - 280 mm

Chuck Diameter - 315 mm

Spindle Speeds - 25 rpm to 2000 rpm

Spindle Bore - 55 mm

- Equipped with a 2-Axis DRO.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/eQC1mXxB6xg

High Precision & Robust Construction

Built with a sturdy cast iron structure and advanced engineering, the Triumph 2000 delivers high precision and long-term durability. Its robust bed width of 280 mm and 1600 kg weight ensure minimized vibration and consistent accuracy, making it suitable for heavy-duty applications in metal and engineering industries.

Versatility in Metalworking Applications

The gap bed feature allows machinists to handle oversized or unusually shaped workpieces with ease. The wide threading range (metric: 0.2-14 mm, inch: 2-72 TPI) and 12 variable spindle speeds make this lathe adaptable to a variety of metalworking operations, from threading to facing and turning.

User-Friendly Manual Control

Equipped with a straightforward manual control system, the Colchester Triumph 2000 is ideal for skilled operators seeking hands-on precision. The tailstock, equipped with a 150 mm quill travel and MT4 taper, supports complex operations such as drilling and reaming, offering flexibility for bespoke engineering tasks.

FAQ's of Colchester Triumph 2000 Gap Bed Lathe Machine:

Q: How does the gap bed feature enhance machining capabilities on the Colchester Triumph 2000 Lathe?

A: The gap bed design allows for larger workpieces to be accommodated, enabling users to machine items with greater diameters or irregular shapes that would not fit on a standard lathe. This flexibility is particularly valuable in custom engineering projects and heavy-duty metalworking.

Q: What types of industries benefit from using the Colchester Triumph 2000 Gap Bed Lathe?

A: This lathe is ideal for metal and engineering industries, including fabrication shops, machinery manufacturing, repair workshops, and educational training facilities. Its heavy-duty build and high precision make it suitable for both production and maintenance settings.

Q: When should the Triumph 2000 lathe be chosen over a CNC-controlled model?

A: The Triumph 2000 is best selected when manual operation and direct user control are preferred, such as in custom jobs, small production runs, or environments where skilled operators require hands-on adjustments for specialized tasks.

Q: What is the process for threading using this lathe?

A: Threading involves selecting the appropriate thread pitch using the lead screw (35 mm diameter) and adjusting the spindle speed via one of the 12 available settings. The wide thread range (both metric and inch) allows for versatility, while manual controls ensure precise engagement and depth of cut.

Q: Where is the Colchester Triumph 2000 manufactured and supplied?

A: This model is manufactured and widely supplied in the United Kingdom, with availability through exporters, importers, manufacturers, suppliers, and traders catering to both domestic and international clients.

Q: How does the included coolant pump benefit machining operations?

A: The built-in coolant pump helps dissipate heat during cutting, prolonging tool life, maintaining dimensional accuracy, and improving the surface finish of machined parts, which is especially important during prolonged or heavy-duty operations.

Q: What maintenance is required for this manual lathe to ensure longevity?

A: Regular maintenance includes lubricating moving parts, checking and tightening bolts, inspecting the coolant pump, cleaning chips and debris, and ensuring all manual controls function smoothly, which collectively extend the life and sustain the precision of the machine.
