Csepel Hungary UF-231/A Universal Milling Machine

Name: Csepel Hungary UF-231/A Universal Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Csepel Hungary UF-231/A Universal Milling Machine Specification

Rotation
Both Clockwise and Counterclockwise

Model
UF-231/A

Product Type
Universal Milling Machine

General Use

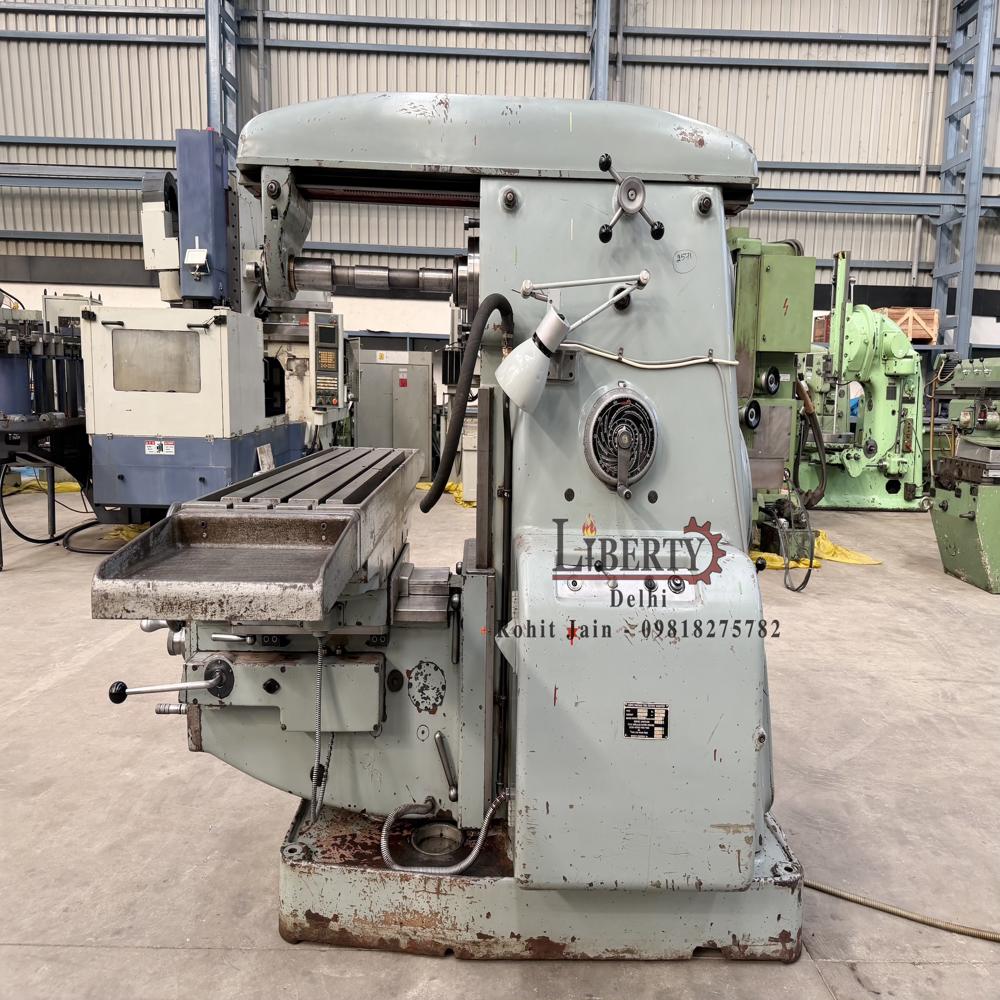

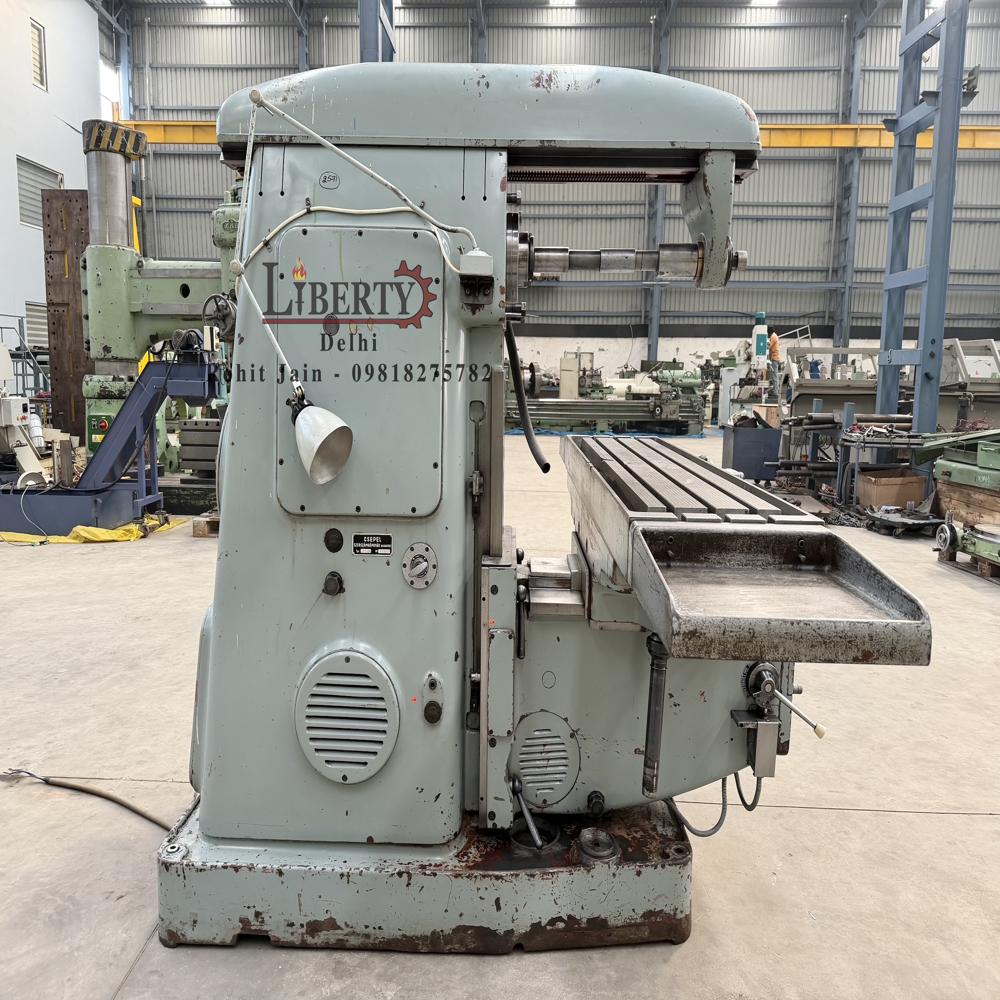

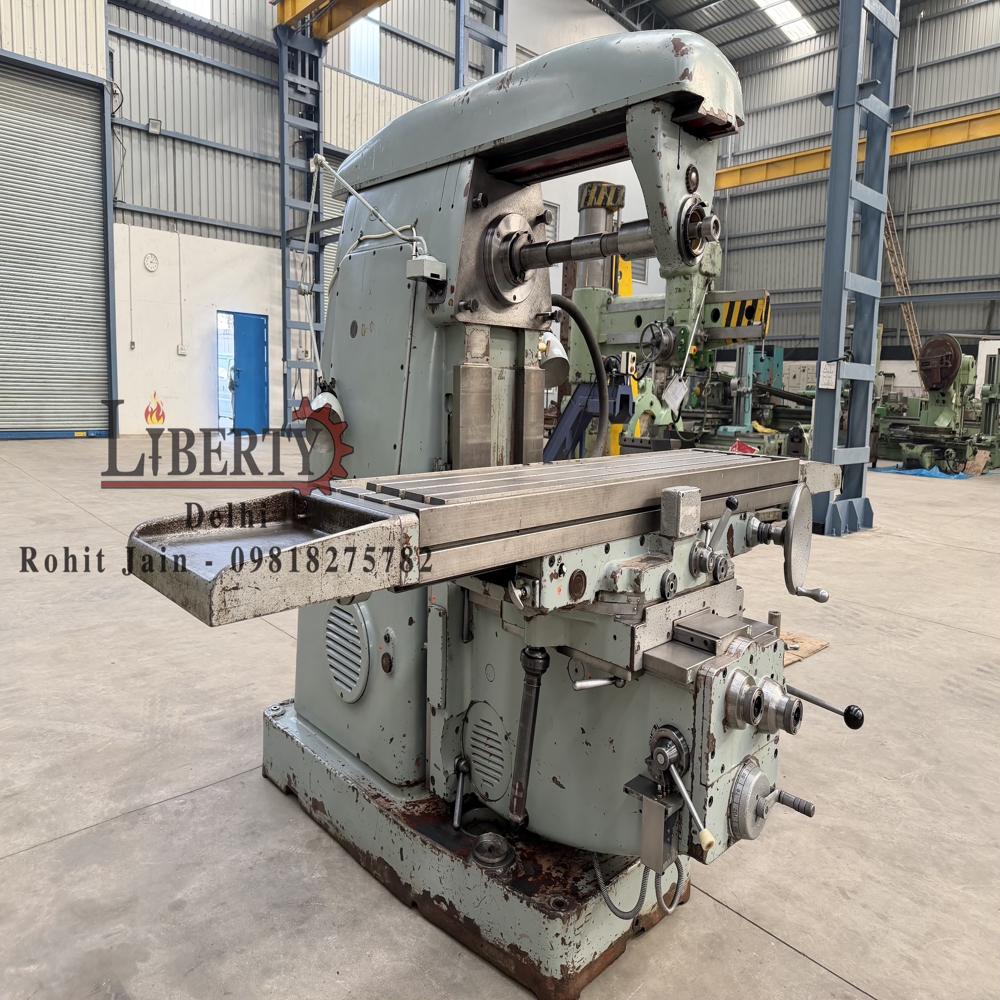

Universal Milling Machine made by Csepel (Hungary) in excellent working condition. The model of the machine is UF-231/A and the Table Size is 1650 mm x 400 mm. It is a Universal type Milling Machine complete with its Vertical Milling Head as well as with its Slotting Head. The technical details are as follows -

Material
Cast iron body, Steel components

Type
Horizontal and Vertical Universal

Capacity
Universal milling with vertical and slotting head attachment

Weight (kg)
~2900 kg

Computerized
No

Automatic
Semi Automatic (Power Feeds)

CNC Or Not
No, Conventional

Control System
Manual

Table Size
1650 mm x 400 mm

Table Slide Way
Box-type hardened and ground

Floor Space
Approx. 2600 mm x 2400 mm

Spindle Speed
45 to 1800 rpm (12 steps)

Power
5.5 kW (main) + auxiliary drives

Voltage
380 V / 3 Phase

Dimension (L*W*H)
Approx. 2600 mm x 2400 mm x 1950 mm

Feature
Universal Milling Head, Slotting Attachment, Vertical Milling Head

Color
Industrial Grey/Green

Rapid Feed Rate
2240 mm/min

Max. Distance from Spindle Nose to Table
420 mm

Main Motor Power
5.5 kW

Cross Travel (Y-Axis)
350 mm

Machine Condition
Used, Excellent Working Condition

Vertical Travel (Z-Axis)
420 mm

T-Slots (Number x Width x Distance)
3 x 18 mm x 80 mm

Coolant Pump Motor
0.09 kW

Feed Range (Longitudinal/Transverse)
22 to 1120 mm/min

Longitudinal Travel (X-Axis)
1200 mm

Vertical Head Spindle Taper
ISO 40

Milling Arbor Diameter
27 mm

Electrical Supply
380V / 50Hz / 3PH

Horizontal Spindle Taper
ISO 50

Quill Travel (Vertical Head)
80 mm

Working Speed
Feeds: 22 to 1120 mm/min

Max. Milling Cutter Diameter
160 mm

About Csepel Hungary UF-231/A Universal Milling Machine

Make - Csepel (Hungary)

Model - UF-231/A

Table Size - 1650 mm x 400 mm

XYZ Travel - 1200 mm x 300 mm x 400 mm

Spindle Taper - ISO-50

Spindle Speeds - 30 rpm to 950 rpm

Table Feed Rates - 20 mm/min to 400 mm/min

Table Swivel Angle - +45 degree to -45 degree

Weight of the Machine - 4.15 tons (approximately)

- Complete with Vertical Milling Head, Slotting Head, etc.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/CzQ2Lxo8qgM

Comprehensive Milling Capabilities

The UF-231/A offers unmatched flexibility with its universal design, featuring both vertical and horizontal milling functions. Its table size and impressive travel distances allow for machining of large and complex workpieces. This machine is well-suited for general engineering, metal fabrication, toolrooms, and small-batch production.

Precision Engineering and Build Quality

Constructed from high-grade cast iron and fitted with box-type hardened and ground slide ways, this milling machine ensures longevity and stability. Its powerful motor and precision-ground components provide consistent, accurate machining for demanding tasks, supporting a range of milling and slotting operations.

User-Friendly and Reliable Operation

Equipped with a manual control system and semi-automatic power feeds, the UF-231/A is easy to operate and maintain. With straightforward electrical requirements (380V, 3-phase) and rapid feed rates, it enables efficient workflow, making it a reliable choice for both seasoned machinists and workshop newcomers.

FAQ's of Csepel Hungary UF-231/A Universal Milling Machine:

Q: How does the UF-231/A Universal Milling Machine accommodate different milling operations?

A: This machine is designed with both vertical and horizontal milling heads, along with a slotting attachment, making it extremely versatile for various milling, cutting, and slotting tasks. Its robust construction and multiple spindle taper options (ISO 40/50) allow for a wide range of tool compatibility.

Q: What are the travel specifications and how do they benefit machining processes?

A: With longitudinal (X-axis) travel of 1200 mm, cross (Y) travel of 350 mm, and vertical (Z) travel of 420 mm, the UF-231/A can handle larger workpieces and complex operations. This expansive movement increases production capability and enhances precision on bigger components.

Q: When should you use the vertical head versus the horizontal spindle?

A: The vertical head is ideal for tasks requiring vertical cuts, slotting, and drilling, using cutters with an ISO 40 taper. The horizontal spindle, fitted with an ISO 50 taper, is suited for heavy-duty milling using larger cutters and for machining surfaces parallel to the table.

Q: Where is the Csepel UF-231/A typically utilized?

A: This universal milling machine is commonly used in industrial workshops, manufacturing plants, machinery repair facilities, and tooling departments, as its flexibility and capacity allow it to excel in a variety of machining environments.

Q: What is the process for changing between vertical and horizontal milling operations?

A: Switching between the vertical and horizontal heads is manual, requiring the operator to mount the appropriate head and adjust the settings as needed. This process is straightforward, supported by the machine's design, and allows for quick transitions between operations.

Q: How does the power feed system enhance operation efficiency?

A: The semi-automatic power feeds, ranging from 22 to 1120 mm/min, provide smooth, consistent table movement during milling. This minimizes manual effort, improves surface finish, and accelerates machining cycles, especially on larger workpieces or repetitive jobs.

Q: What are the key benefits of using this universal milling machine for general machining tasks?

A: The Csepel UF-231/A's universal design, precision engineering, and semi-automatic feeds make it a flexible and reliable tool. Users benefit from its capacity to handle both small and large projects with ease, achieve high accuracy, and adapt swiftly between different milling tasks.
