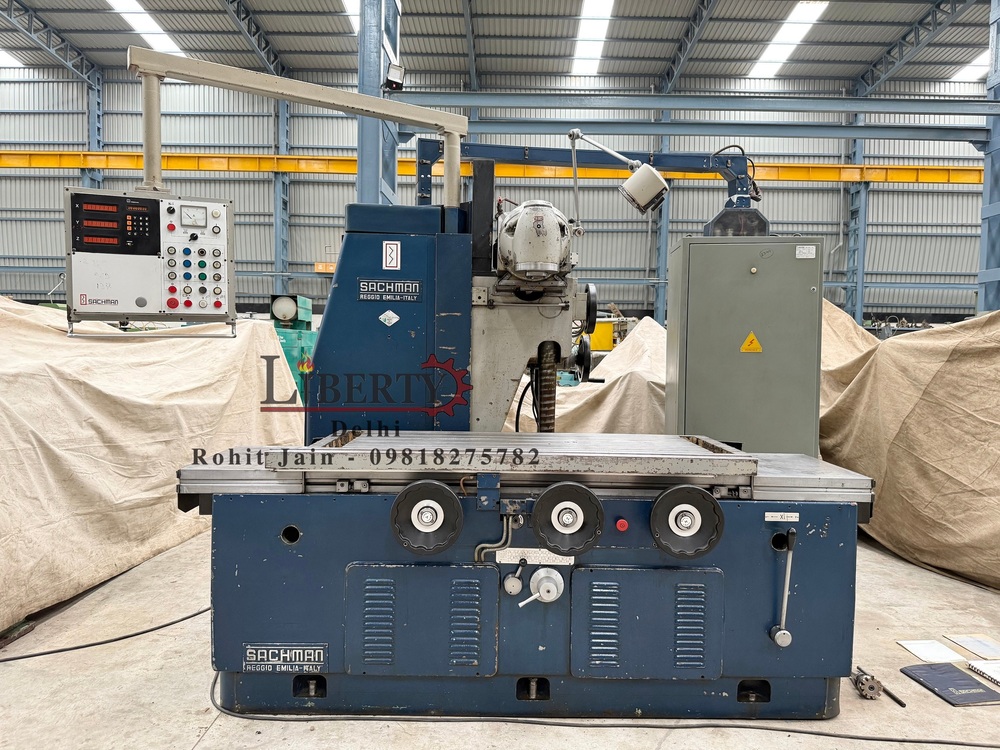

Sachman Italy 1600 mm x 560 mm Bed Milling Machine

Name: Sachman Italy 1600 mm x 560 mm Bed Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Sachman Italy 1600 mm x 560 mm Bed Milling Machine Specification

Model
Sachman Italy Bed Mill

Rotation
Spindle Rotating

Product Type
Bed Milling Machine

General Use
Heavy Duty Milling Operations

Material
Cast Iron, Steel

Type
Horizontal Bed Milling

Capacity
Heavy Duty

Weight (kg)
Approx. 4300 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC (Manual)

Control System
Conventional

Table Size
1600 mm x 560 mm

Table Slide Way
Box Type

Floor Space
Approx. 3.2 m x 2.5 m

Spindle Speed
20 - 1800 rpm (Variable)

Power
7.5 kW

Voltage
380/415 V, 50 Hz, 3 Phase

Dimension (L*W*H)
Approx. 3200 mm x 2500 mm x 2000 mm

Feature
Rigid Construction, Precision Work, Durable

Color
Blue-Grey

Main Motor Type
Induction Motor

Table Load Capacity
Maximum 1500 kg

Z Axis Travel
510 mm

Y Axis Travel
520 mm

Feed Range (Longitudinal/Transverse/Vertical)
5 mm/min to 1500 mm/min

Working Table Surface
Precision Ground

T-Slot Size
18 mm

Spindle Taper
ISO 50

Lubrication System
Centralized Automatic

X Axis Travel
1300 mm

Rapid Traverse Speed
Up to 3000 mm/min

No. of T-Slots on Table
5

Coolant System
Provided

Sachman Italy 1600 mm x 560 mm Bed Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Sachman Italy 1600 mm x 560 mm Bed Milling Machine

Make - Sachman (Italy)

Table Size - 1600 mm x 560 mm

Longitudinal Travels - 1370 mm

Cross Travels - 725 mm

Vertical Travels - 750 mm

Spindle Speeds - 30 rpm to 2000 rpm

Spindle Taper - ISO 40

Feed Rates of Travel - 2.3 mm/min to 916 mm/min

Max. Height between Table to Spindle Nose - 800 mm

- Universal Double-Swivel type Head for Vertical, Horizontal & Angular Milling.

- Equipped with a 3-Axis DRO.

- Operating Manual, Electrical Drawings etc. are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/gXfo67bcay8

Built for Heavy-Duty Performance

With a solid cast iron and steel structure, the Sachman Italy Bed Milling Machine excels in high-stress industrial environments. Its box-type table slideways, large table size, and high table load capacity allow for stable, precise milling of heavy workpieces, maximizing efficiency in manual machining applications.

Versatility in Milling Operations

This bed mill is ideal for a wide range of heavy-duty operations, offering variable feeds (5 to 1500 mm/min) and rapid traverse speeds up to 3000 mm/min. The ISO 50 spindle taper and five precision T-slots enhance compatibility with different tools and fixtures, broadening its application in various manufacturing and metalworking industries.

FAQ's of Sachman Italy 1600 mm x 560 mm Bed Milling Machine:

Q: How is the Sachman Italy Bed Milling Machine typically used in industrial settings?

A: This milling machine is designed for heavy-duty manual milling tasks, such as face milling, slotting, drilling, and precision contouring. Its rigid construction and large work table make it ideal for machining sizeable or complex components in manufacturing and fabrication industries.

Q: What benefits does the centralized automatic lubrication system offer?

A: The centralized automatic lubrication system ensures consistent oil distribution to critical machine components, reducing wear, improving operational reliability, and minimizing maintenance requirements for prolonged machine longevity.

Q: Where can the Sachman Bed Milling Machine be installed, considering its size and power?

A: Owing to its substantial dimensions (approx. 3.2 m x 2.5 m x 2.0 m) and high power requirements (7.5 kW, 380/415 V, 3 Phase), this machine is best suited for spacious industrial workshops with proper electrical infrastructure and floor load capacity.

Q: When would an operator choose this manual bed milling machine over a CNC alternative?

A: Operators may prefer this manual bed milling machine for jobs that require greater manual control, flexibility in setup, or lower production volumes where the cost and complexity of CNC technology are not justified.

Q: What is the process of maintaining the precision ground working table?

A: Routine maintenance involves regular cleaning of the table surface, periodic inspection for wear, and prompt removal of debris and coolant residues to ensure the sustained flatness and accuracy of machined parts.

Q: What types of materials can this milling machine handle effectively?

A: Thanks to its sturdy build, the Sachman Bed Milling Machine can efficiently machine a range of metals including cast iron, steel, and other alloys, supporting heavy workpieces up to 1500 kg and a variety of machining operations.
