Cuoghi Italy APE-40 Tool Sharpening Machine

Name: Cuoghi Italy APE-40 Tool Sharpening Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cuoghi Italy APE-40 Tool Sharpening Machine Specification

Machine Type
Universal Tool Sharpening Machine

Features
Italian build, easy operation, tilting head, wide clamping range, coolant system

Cutting Speed
Grinding wheel speed: 2800 RPM

Cutting Force
Depends on tool & grinding parameters

Length
Up to 320 mm (tool length)

Material
HSS, Carbide, Cobalt tools compatible

Drill Bits Types
Universal: can sharpen twist drills, end mills, and reamers

Shape
Bench-top, vertical compact design

Operate Method
Manual with lever and precision adjustments

Tool Type
Drill, Endmill, Reamer, Tap Sharpening

Hardness
Not specified (machine body: robust cast iron construction)

Operation Type
Manual/Semi-automatic

Cutting Accuracy
High precision with micrometric adjustments

Cutter Type
Twist Drills, End Mills, Reamers, Taps

Cutting Capacity
Drill 2-40 mm, End mill 3-40 mm

Diameter
2 mm 40 mm (tool diameters)

Processing Type
Tool Sharpening/Grinding

Coolant System
Integrated coolant tank and pump

Tilting Head
Adjustable up to 40° both sides

Clamping Range
Wide range for various tool types

Dimensions
50 x 70 x 40 cm

Accessories
Standard collet set, spindle, wheel dresser

Motor Power
0.75 kW (1 HP)

Power Supply
3 Phase, 400V, 50Hz

Suitable For
Workshops, tool rooms, manufacturing, maintenance

Weight
Approx. 110 kg

Grinding Wheel Bore
20 mm

Grinding Wheel Material
CBN or Diamond optional

Cuoghi Italy APE-40 Tool Sharpening Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

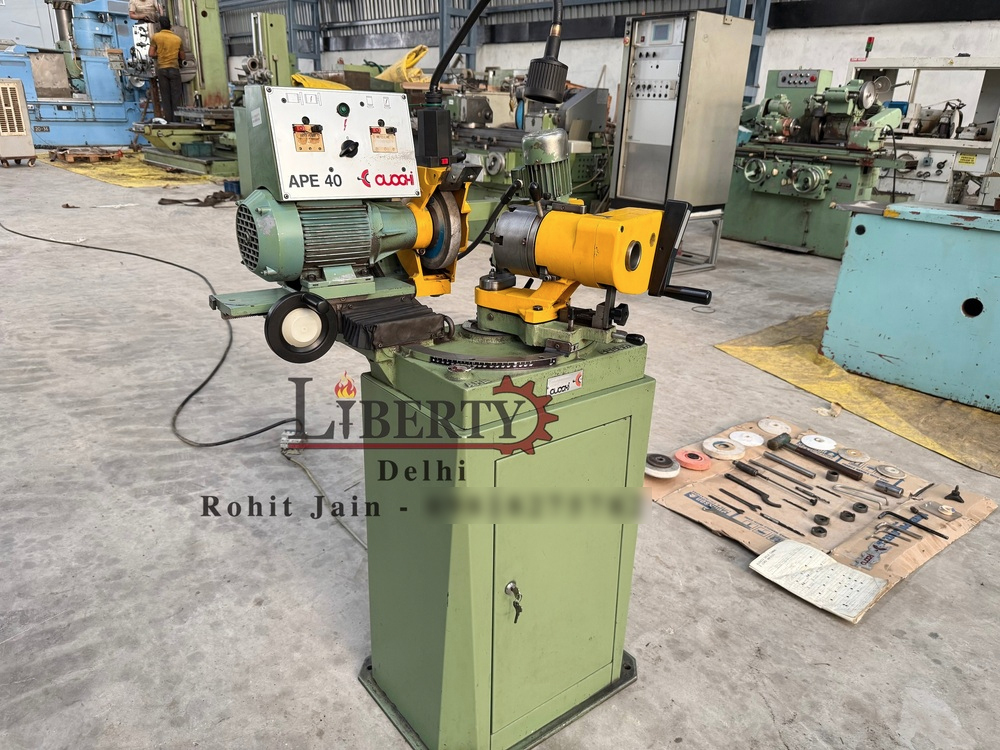

About Cuoghi Italy APE-40 Tool Sharpening Machine

Make - Cuoghi (Italy)

Model - APE-40

Diameter Range - 2 mm to 40 mm

Min. & Max. Drill Angle - 40 degree to 180 degree

Tool Flutes - 1 to 12

Grinding Wheel Size - Diameter 200 mm x 32 mm Width

Chuck Diameter - 130 mm (6-jaw type)

- Machine is equipped with its Web Thinning Attachment.

- Complete with spare Cams, Wheels, Flanges, & many other accessories.

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/vHUe3yUdh8g

Versatile Tool Sharpening Applications

The Cuoghi APE-40 can sharpen a broad spectrum of cutting tools ranging from twist drills and end mills to reamers and taps. Its wide clamping range and adjustable head make it suitable for various tool types and diameters, enhancing the efficiency in workshops and on production floors.

Robust Design with Integrated Coolant System

Crafted in Italy, the APE-40 features a sturdy cast iron frame for stability and durability. The built-in coolant tank and pump help prevent overheating of tools and grinding wheels during operation, ensuring prolonged tool life and consistent sharpening quality.

Precision and Ease of Operation

Equipped with micrometric adjustments and ergonomic manual controls, this machine provides excellent cutting accuracy. Users can benefit from its simple lever actions and clearly marked settings, facilitating seamless sharpening, even for intricate tool geometries.

FAQ's of Cuoghi Italy APE-40 Tool Sharpening Machine:

Q: How does the integrated coolant system benefit the tool sharpening process?

A: The integrated coolant tank and pump circulate coolant over the grinding area, reducing heat build-up. This prevents thermal damage to cutting tools, increases grinding wheel lifespan, and ensures a higher quality sharpened edge.

Q: What types of tools can be sharpened with the Cuoghi APE-40?

A: The machine is universally compatible, allowing the sharpening of twist drills ( 2-40 mm), end mills ( 3-40 mm), reamers, and taps. It accommodates a variety of tool lengths up to 320 mm and materials such as HSS, carbide, and cobalt.

Q: Where is the ideal environment to use the APE-40 sharpening machine?

A: This machine is best suited for workshops, tool rooms, manufacturing facilities, and maintenance environments that require reliable sharpening for a range of cutting tools.

Q: What is the sharpening process on the APE-40 machine?

A: The process involves securely clamping the tool, selecting the desired angle and adjustments with the tilting head (up to 40), and using precise manual controls to perform the grinding with CBN or Diamond wheels, depending on the tool material.

Q: When should I use a CBN wheel versus a Diamond wheel?

A: CBN wheels are suitable for sharpening high-speed steel (HSS) tools, while diamond wheels are recommended for carbide and other hard, non-ferrous materials, ensuring optimal grinding performance and wheel life.

Q: What are the main benefits of using this machine in a production setting?

A: Benefits include high sharpening accuracy, a wide clamping range for many tool types and sizes, robust construction for longevity, and an efficient cooling system to maintain tool hardness and edge quality during sharpening.

Q: How easy is it to operate the APE-40 sharpening machine?

A: The APE-40 is designed for user-friendly operation with manual lever mechanisms and micrometric adjustment features, making it accessible even for operators with basic training in tool sharpening.
