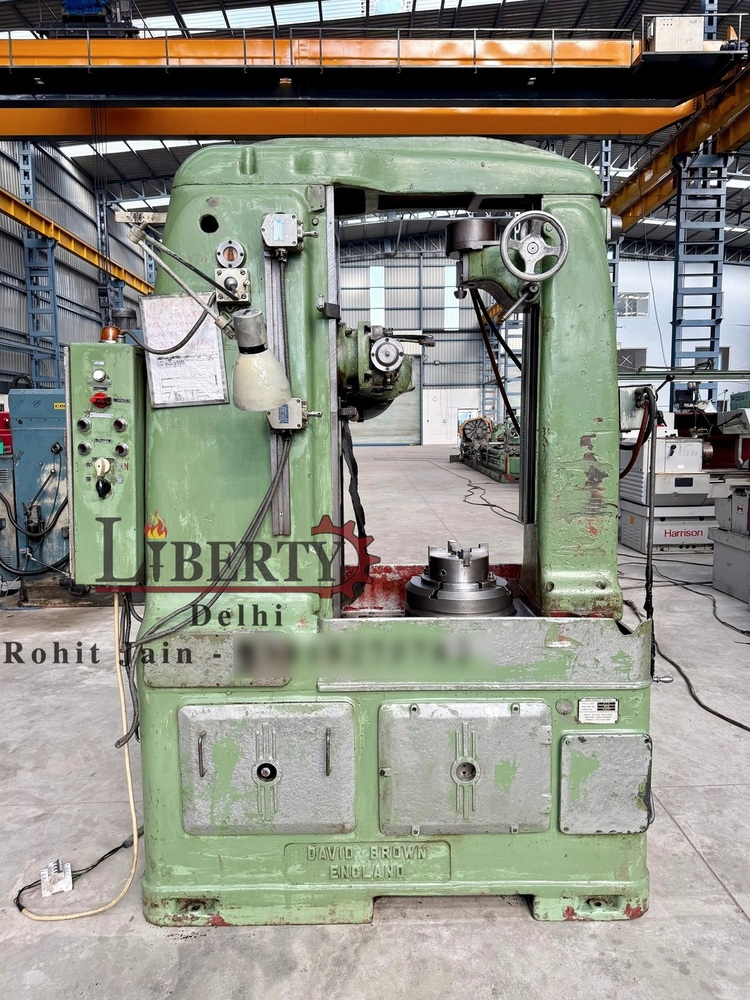

David Brown England MTV Gear Hobbing Machine

Name: David Brown England MTV Gear Hobbing Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

David Brown England MTV Gear Hobbing Machine Specification

Voltage
415 V (3 Phase)

Machine Type
Gear Hobbing Machine

Used For
Gear Cutting / Hobbing

Power
7.5 HP

Output
High Precision Gear Output

Capacity
Up to 500 mm (Gear Diameter)

Feature
Heavy Duty, Precision Engineering

Weight
Approx. 2500 Kg

Color
Blue & Grey

Dimension (L*W*H)
Approx. 2100 x 1700 x 2000 mm

Condition
Used

Hob Slide Travel
200 mm

Max. Workpiece Height
350 mm

Hob Head Swivel
+/- 45 Degrees

Material Compatibility
Steel, Cast Iron, Non-Ferrous Metals

Max Module
8 Module

Spindle Speed
25 250 RPM

Feed Rate
Adjustable

Coolant System
Available

Model Name/Series
MTV

Table Diameter
450 mm

David Brown England MTV Gear Hobbing Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About David Brown England MTV Gear Hobbing Machine

Make - David Brown (England)

Model - MTV

Max. Module - 5 Modules

Max. Gear Diameter - 400 mm

Vertical Travel of Hob-Cutter Slide - 800 mm

Max. Hob Cutter Size - Diameter 100 mm x 100 mm Length

Table Diameter - 370 mm

Hob Cutter Speeds - 40 rpm to 365 rpm

Max. Height between Table to Center - 920 mm

- Machine has Differential Gearbox for Helical Teeth Cutting.

- Extra Height machine suitable for long length gear cutting & spline cutting.

- Equipped with a Pneumatic Center.

- Operating Manuals & Electrical Drawings are available.

- Complete with Change Gears, Arbours, Mandrels, other accessories etc.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/y4fGs_qd2lc

Precision Engineering for Reliable Gear Production

Engineered for exactness, the David Brown MTV Gear Hobbing Machine delivers high-precision gear cutting. Its adaptable spindle speeds and adjustable feed rates enable users to achieve quality results across diverse gear types, making it ideal for workshops prioritizing accuracy and consistency.

Versatile Material Compatibility

This machine supports gear cutting on steel, cast iron, and non-ferrous metals, ensuring flexibility for various industrial applications. With capacity for gears up to 500 mm in diameter, it caters to automotive, heavy equipment, and machinery sectors demanding durability and wide-ranging process capability.

Optimized for User Convenience

Designed with a user-friendly interface and helpful features like hob slide travel and a built-in coolant system, operators find set-up and operation efficient. Its sturdy construction and heavy-duty build promise long-lasting performance, minimizing maintenance and maximizing productivity.

FAQ's of David Brown England MTV Gear Hobbing Machine:

Q: How does the David Brown MTV Gear Hobbing Machine ensure high precision in gear cutting?

A: The machine is engineered with precision mechanics, offering features such as adjustable spindle speeds (25-250 RPM), an advanced hob head swivel, and a stable build to maintain exact gear profiles. Its design minimizes vibration and allows precise control over gear dimensions, resulting in consistently accurate gear output.

Q: What types of materials can be processed with this gear hobbing machine?

A: This model is compatible with steel, cast iron, and various non-ferrous metals. Its robust construction and powerful 7.5 HP motor provide the capacity to efficiently hob gears from materials with differing hardness and characteristics.

Q: When is it appropriate to use the MTV Gear Hobbing Machine for gear manufacturing?

A: This machine is suitable for both single-piece and batch production where gears of up to 500 mm in diameter and 8 module need to be fabricated with high precision. It is particularly beneficial when heavy-duty and precision engineering are required in gear manufacturing environments.

Q: Where is the David Brown MTV Gear Hobbing Machine best utilized?

A: This gear hobbing machine is ideal for deployment in industrial gear manufacturing facilities, automotive workshops, heavy machinery production lines, and any workspace needing consistent, large-diameter precision gear cutting.

Q: What is the typical process for operating this gear hobbing machine?

A: Operators begin by setting the workpiece and required hob tooling, adjusting the spindle speed and feed rate to match material and desired gear specifications. The hob slides into position, and the machine cuts the gear teeth while the built-in coolant system maintains optimal temperatures.

Q: What are the main benefits of using this machine for gear cutting?

A: Key benefits include precision-engineered output, versatility with various metals, heavy-duty reliability, and efficient operation. Users benefit from quick set-up, adjustable cutting parameters, and dependable performance across large and varied gear production requirements.
