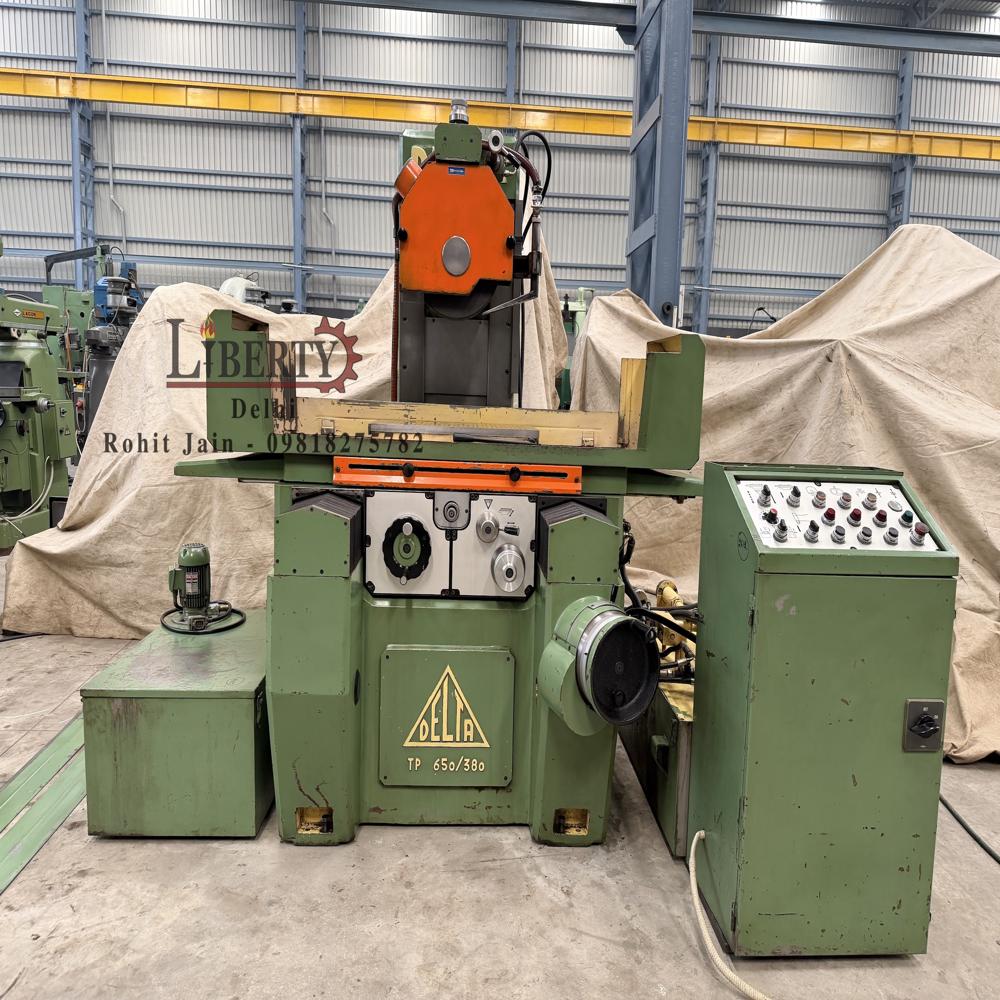

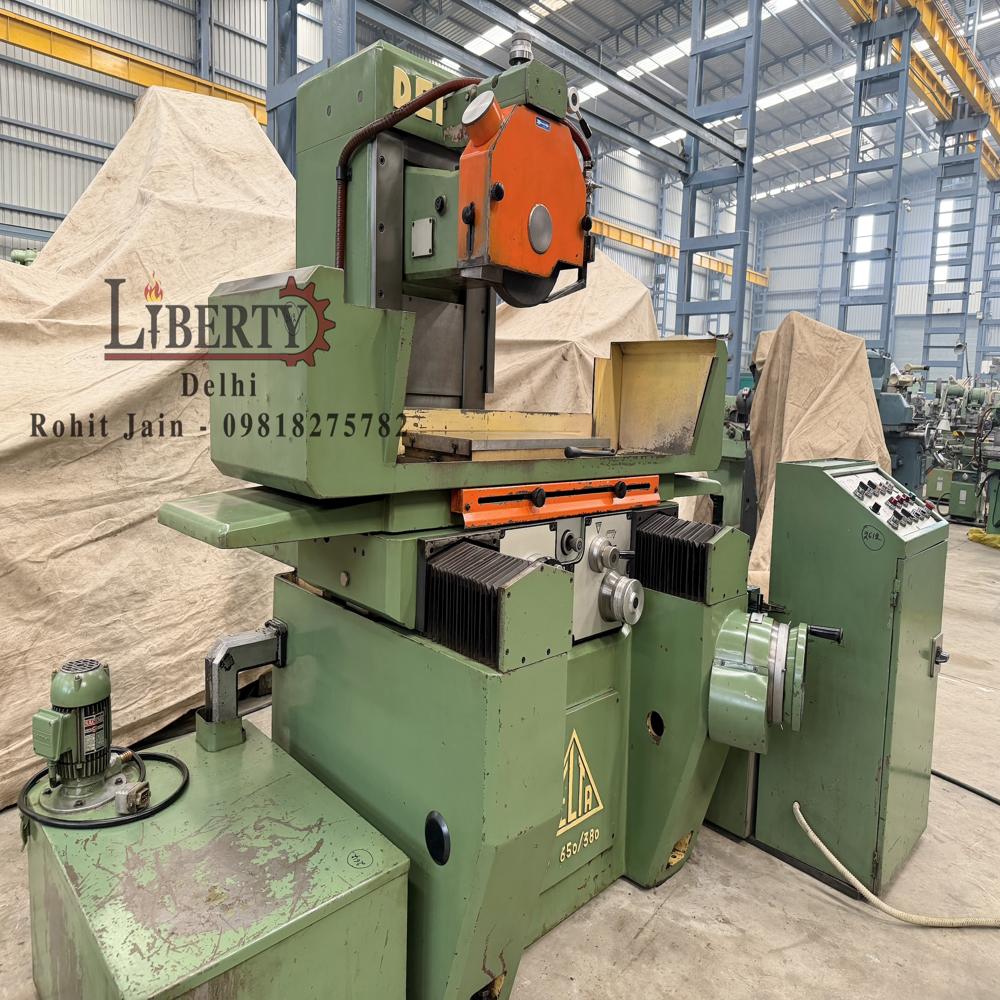

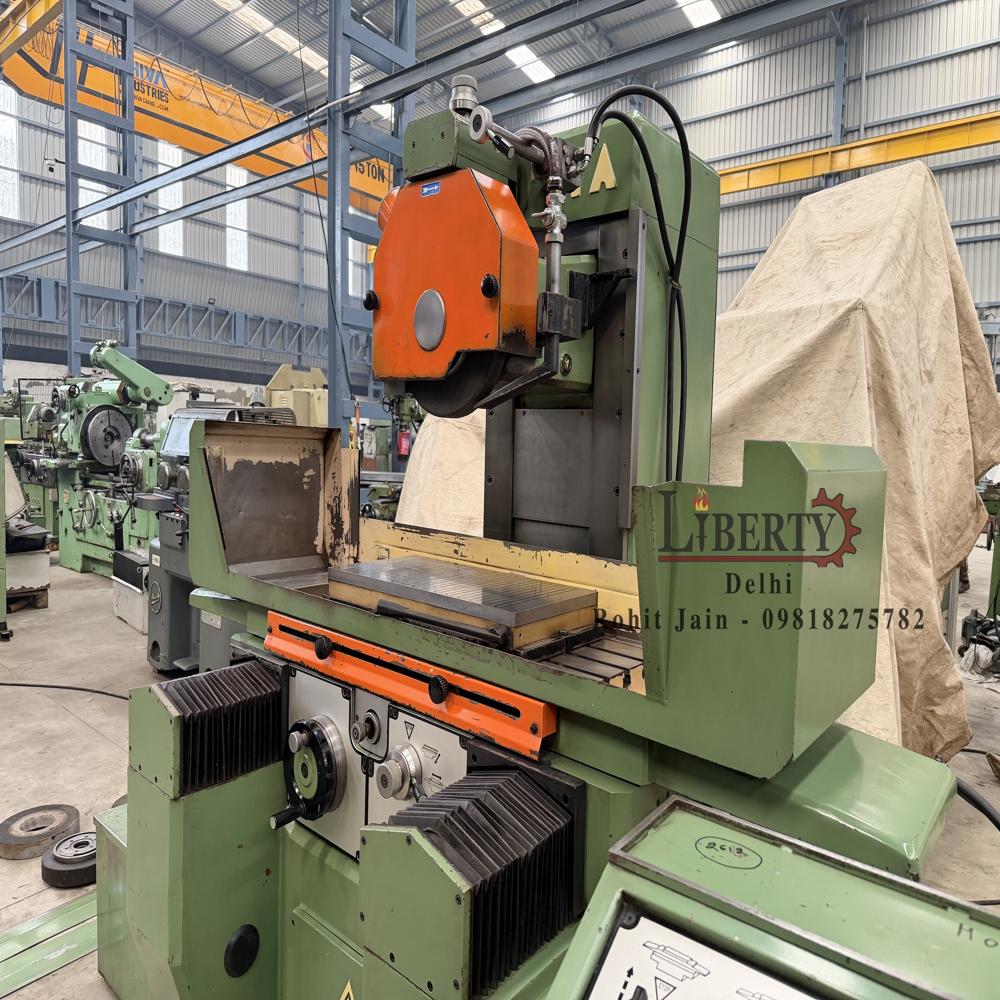

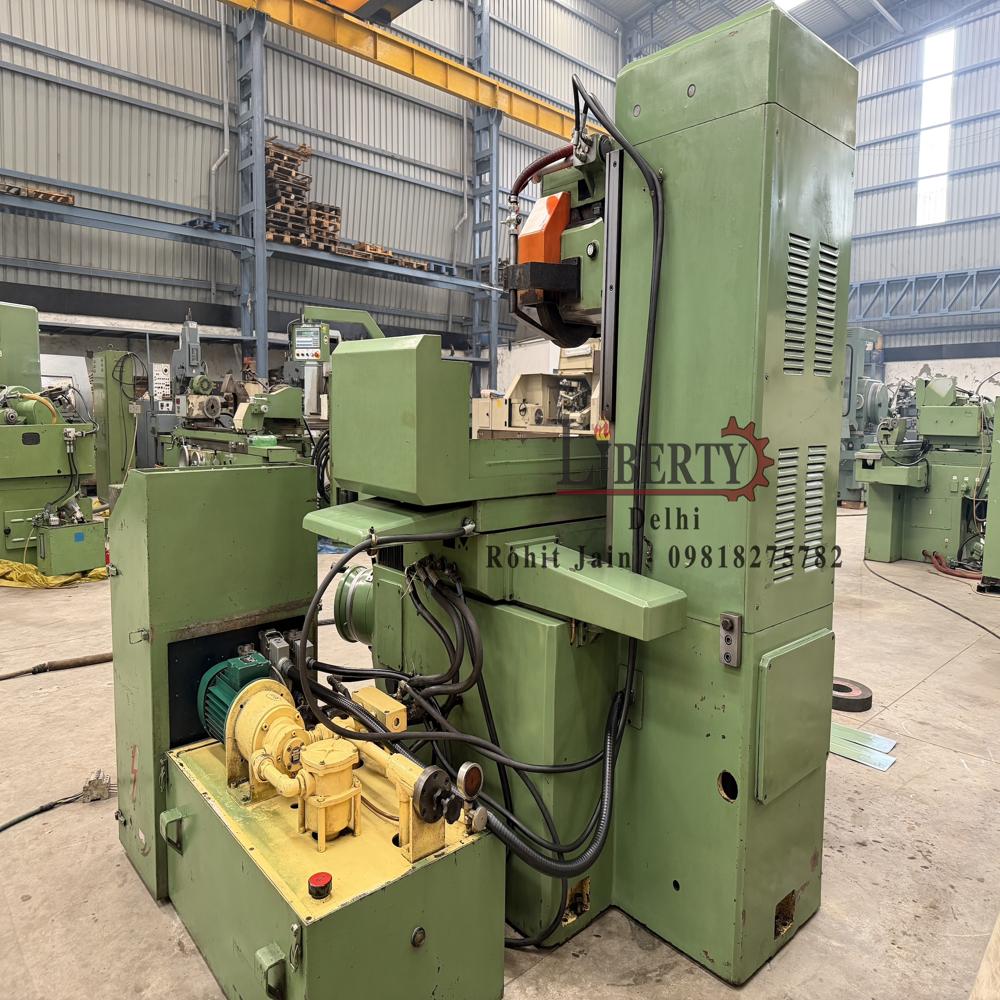

Delta Italy 300 mm x 600 mm Automatic Surface Grinder Machine

Name: Delta Italy 300 mm x 600 mm Automatic Surface Grinder Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Delta Italy 300 mm x 600 mm Automatic Surface Grinder Machine Specification

Model
TP-650/380

Rotation
Grinding wheel rotation, 1450 RPM

Product Type
Automatic Surface Grinder Machine

General Use
Delta (Italy) make Automatic Surface Grinding Machine in excellent working condition. The model of the machine is TP-650/380 and the Magnet Size of the machine is 300 mm x 600 mm. The machine is complete with its Wheel Top Mounted Hydraulic Wheel Dresser, Coolant Tank & Pump, spare Grinding Wheels, Flange etc. The technical details are as follows -

Material
Cast Iron Body, Alloy Steel Components

Type
Surface Grinder

Capacity
Longitudinal: 600 mm; Cross: 300 mm

Weight (kg)
2600 kg (approx.)

Computerized
No

Automatic
Yes

CNC Or Not
No (Automatic, not CNC)

Control System
Electro-Mechanical

Table Size
300 mm x 600 mm

Table Slide Way
Hydro-dynamic V & Flat type

Magnetic Chuck Size
300 mm x 600 mm

Grinding Wheel Size
350 mm x 40 mm x 127 mm

Grinding Wheel Speed
1450 RPM

Grinding Length
600 mm

Floor Space
2200 mm x 1900 mm x 2100 mm (approx.)

Fuel Tank Capacity
Coolant Tank: 120 liters (approx.)

Spindle Speed
1450 RPM

Power
5.5 kW (Main Motor)

Voltage
415 V, 3 Phase, 50 Hz

Dimension (L*W*H)
2200 mm x 1900 mm x 2100 mm

Feature
Wheel Top Mounted Hydraulic Wheel Dresser, Coolant Tank & Pump, Spare Grinding Wheels, Flange included

Color
Standard Industrial Grey

Vertical Feed Graduation
0.001 mm

Condition
Excellent working condition

Wheel Dresser
Top-mounted hydraulic

Max. Distance from Table to Spindle Center
500 mm (approx.)

Lubrication System
Automatic centralized lubrication

Accessories Included
Spare grinding wheels, flanges, coolant system, hydraulic dresser

Coolant System
Fitted with 120 liters tank and pump

Hydraulic System
Built-in, high efficiency

Handwheel Graduation
Fine division for precise adjustment

Table Travel (Cross)
380 mm (max.)

Table Travel (Longitudinal)
650 mm (max.)

About Delta Italy 300 mm x 600 mm Automatic Surface Grinder Machine

Make - Delta (Italy)

Model - TP-650/380

Magnet Size - 300 mm x 600 mm

Grinding Wheel Size - Diameter 350 mm x 50 mm Width

Max. Height between Magnet to Wheel Center - 475 mm

Longitudinal Travels - 670 mm

Cross Travels - 350 mm

Least Count of Vertical Travel - 5 Micron (0.005 mm)

Least Count of Cross Travel - 5 Micron (0.005 mm)

- Equipped with a Top Mounted Hydraulic Wheel Dresser.

- Feature of Automatic Depth Adjustment "Auto-Cut" and Automatic Plunge Grinding.

- With Motorised Vertical Travel of the Wheel-Head.

- Complete with Coolant Tank & Pump, spare Grinding Wheels & Flange.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/eZQny6mUibM

Precision Grinding with Unmatched Accuracy

The Delta TP-650/380 delivers outstanding grinding performance with its fine vertical feed graduation of 0.001 mm. Operators benefit from the high level of control and precise adjustment available via the handwheel, making it suitable for detailed finishing work on various metals. The hydro-dynamic V & flat table slide way further enhances stability and ensures a flawless surface finish with every use.

Built-In Hydraulic and Coolant System for Efficiency

Outfitted with a built-in hydraulic system and a 120-liter coolant tank and pump, the TP-650/380 maximizes reliability and efficiency during continuous operation. The automatic centralized lubrication system minimizes maintenance efforts, keeping components well-serviced for prolonged machine life and reduced downtime. These advanced features enhance productivity in demanding manufacturing environments.

Comprehensive Package & Accessories Included

This surface grinder arrives complete with all essential accessories, including spare grinding wheels, flanges, a hydraulic wheel dresser, and a coolant system. The design is ready for immediate operation, helping users minimize setup times. With its robust cast iron body and alloy steel parts, the TP-650/380 is built to withstand heavy industrial use while delivering consistent, high-quality results.

FAQ's of Delta Italy 300 mm x 600 mm Automatic Surface Grinder Machine:

Q: How does the Delta TP-650/380 ensure precise vertical feed adjustment?

A: The machine features a fine handwheel graduation with a vertical feed graduation of 0.001 mm, allowing operators to make highly accurate and consistent adjustments during grinding processes.

Q: What accessories are included with the Delta TP-650/380 surface grinder?

A: The TP-650/380 comes equipped with spare grinding wheels, flanges, a top-mounted hydraulic wheel dresser, and a complete coolant system with a 120-liter tank and pump. These accessories allow for seamless setup and operation out of the box.

Q: When should I use the hydraulic wheel dresser on this machine?

A: The top-mounted hydraulic wheel dresser is used during dressing operations to maintain the grinding wheel's shape and ensure optimal cutting performance. It is typically used before starting new projects or whenever the wheel loses its profile.

Q: Where is this surface grinder ideally installed?

A: This surface grinder is designed for installation in industrial environments such as tool rooms, workshop floors, and manufacturing units-anywhere high-precision surface finishing is required.

Q: What is the grinding capacity and table size of the TP-650/380?

A: The grinder has a magnetic chuck and table size of 300 mm x 600 mm, with a maximum grinding length of 600 mm and table travel (cross) of up to 380 mm, accommodating a wide range of workpiece sizes.

Q: How does the automatic lubrication system benefit machine operation?

A: The automatic centralized lubrication ensures all critical moving components receive consistent lubrication, reducing wear, extending component life, and minimizing the need for frequent manual maintenance.

Q: What types of materials can be processed with this surface grinder?

A: With its robust cast iron body, alloy steel components, and high-precision mechanisms, the Delta TP-650/380 is suitable for grinding a variety of metals, including high-hardness alloys and steels commonly used in industrial machining and toolmaking.
