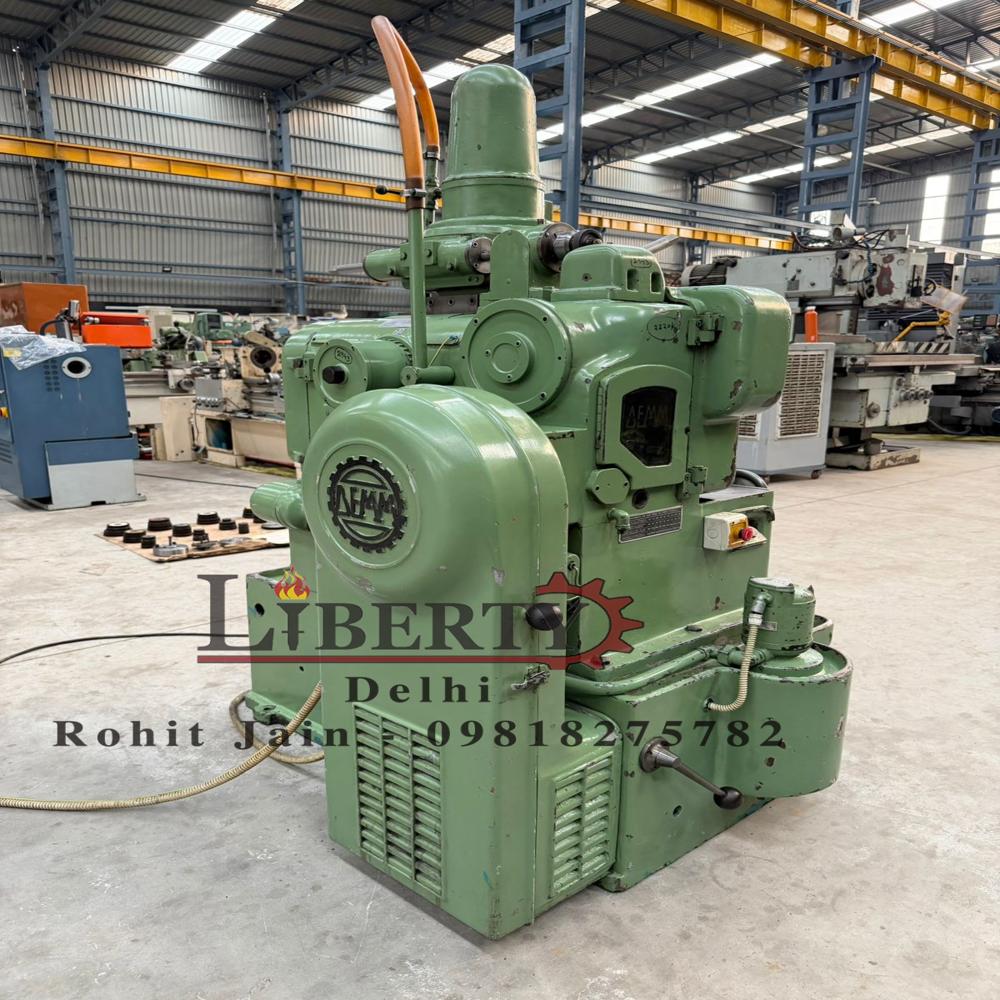

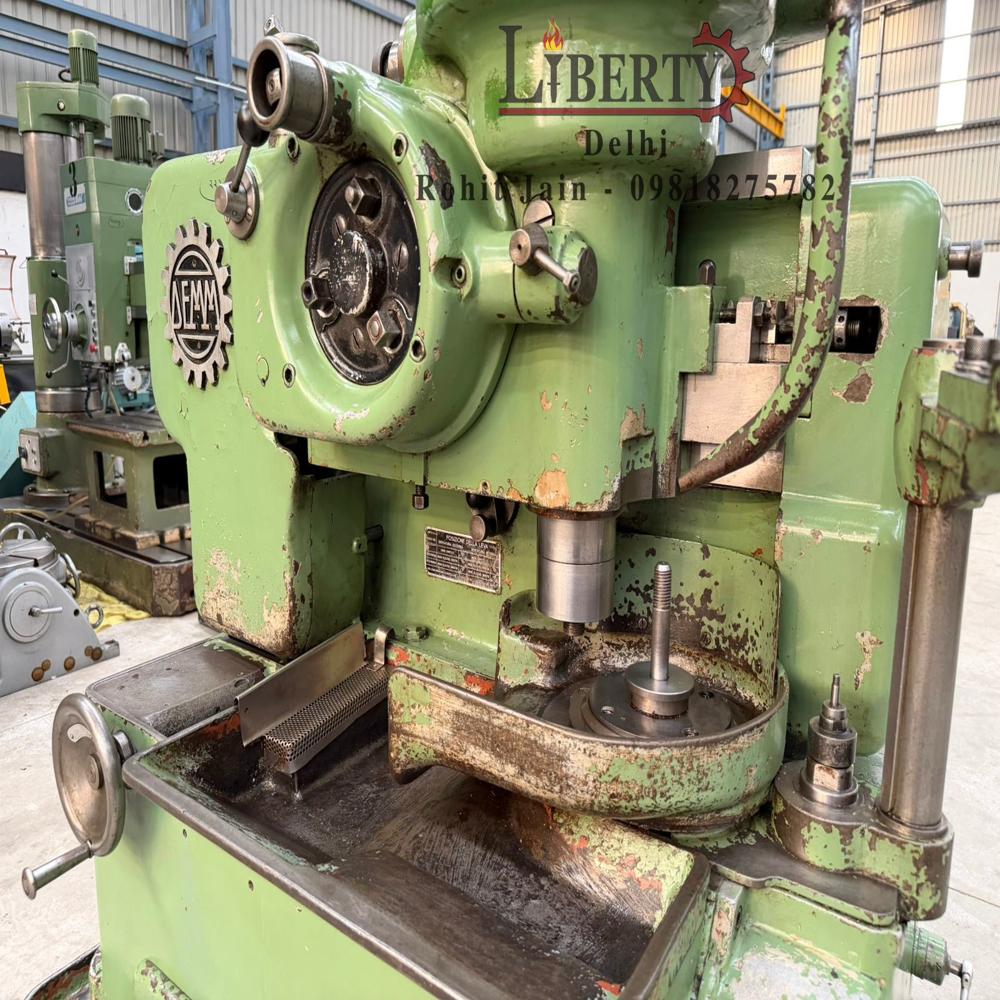

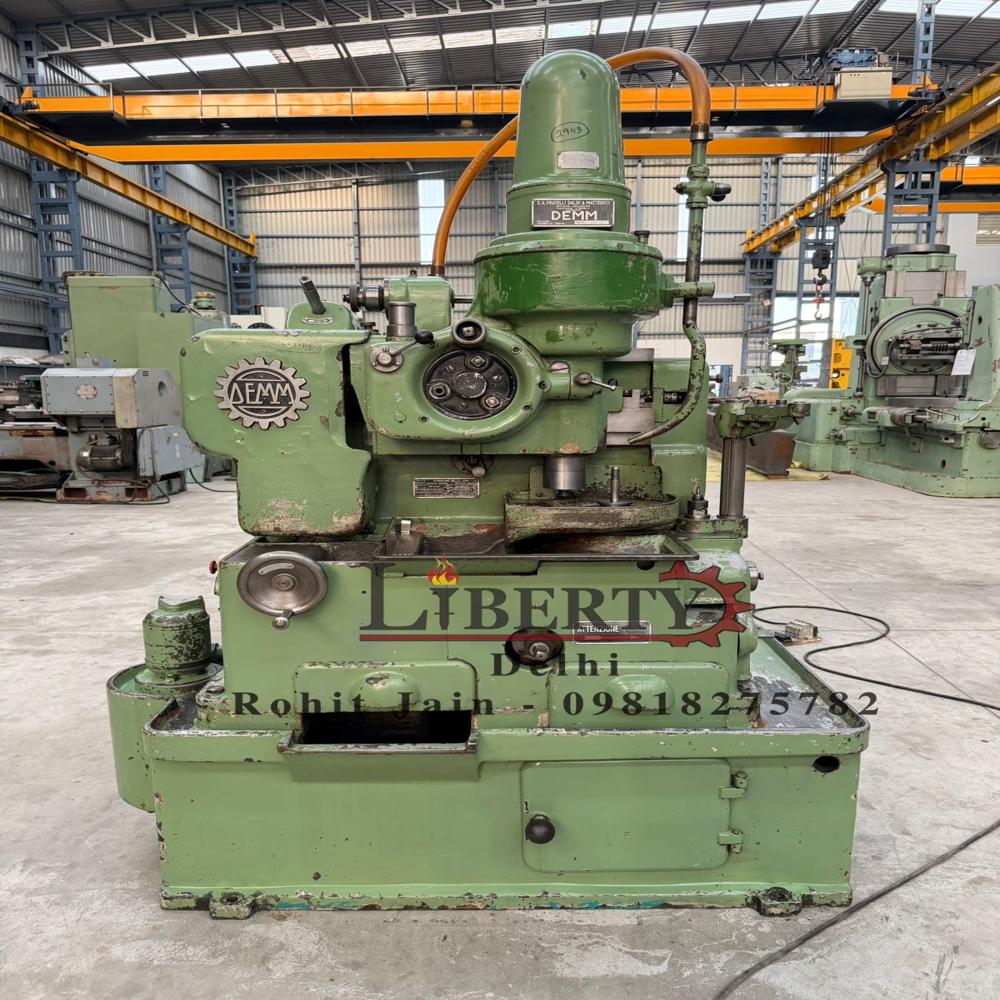

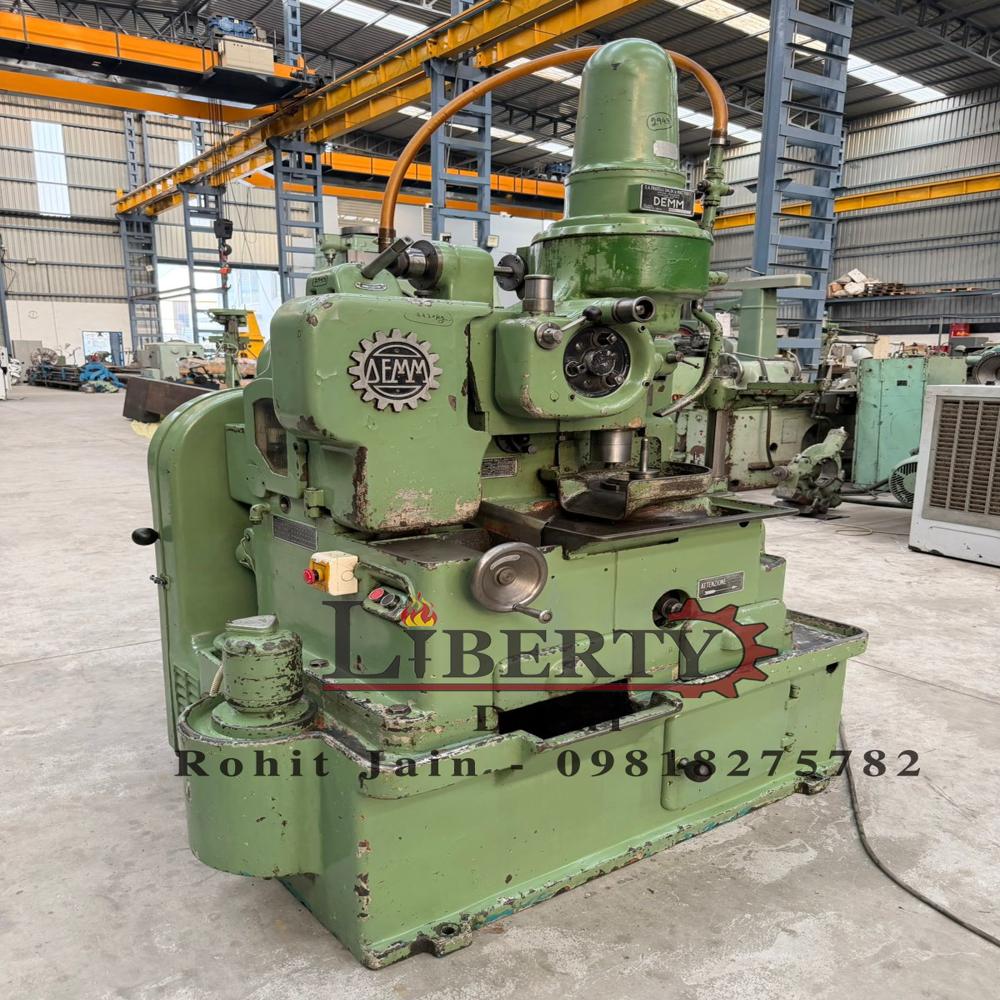

DEMM Italy SRI-180 Gear Shaper Machine with Tailstock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DEMM Italy SRI-180 Gear Shaper Machine with Tailstock Specification

Machine Type
Gear Shaping Machine made by Demm (Italy), Model SRI-180, available in excellent working condition. The machine is equipped with a Tailstock, making it suitable for long shafts, pinions, splined components and other long-length gear cutting applications. The machine has a maximum module capacity of 4.5 and a maximum gear diameter of 180 mm. The machine is complete with Change Gears, Operating Manual, Electrical Drawings and other accessories. The technical details are as follows -

About DEMM Italy SRI-180 Gear Shaper Machine with Tailstock

Make - Demm (Italy)

Model - SRI-180

Max. Module Capacity - 4.5 Modules

Max. Gear Diameter - 180 mm

Max. Stroke Length - 55 mm

Stroke Rates - 147 to 464 strokes/min

Spindle Diameter - 85 mm

Spindle Type - Hollow

Height between Table & Spindle Body - 140 mm

Max. Swing Diameter of Job - 220 mm

- Equipped with Tailstock for long-length jobs.

- Complete with Change Gears and other accessories.

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/02VepcRJZjU

Tailstock Advantage for Long Components

Equipped with a tailstock, the DEMM SRI-180 enables secure machining of longer shafts, pinions, and splined components. This addition minimizes workpiece deflection, ensuring precise results during gear shaping of extended parts, which is critical for maintaining component integrity and accuracy.

Optimized for Versatile Gear Production

With a maximum module of 4.5 and gear diameter up to 180 mm, the SRI-180 effortlessly handles a broad spectrum of gearing applications. Whether producing custom pinions or splined shafts, the machine's robust construction assures consistent, high-quality output for various manufacturing requirements.

FAQ's of DEMM Italy SRI-180 Gear Shaper Machine with Tailstock:

Q: How does the tailstock enhance the DEMM Italy SRI-180 Gear Shaper Machine's performance?

A: The tailstock supports longer workpieces, such as shafts and pinions, by reducing deflection during gear cutting. This helps maintain accuracy and precision in shaping long-length gears and splined components.

Q: What types of components can be machined with the SRI-180 Gear Shaper Machine?

A: This gear shaping machine is suitable for pinions, splined shafts, gears, and other long-length components, making it versatile for various manufacturing and repair tasks.

Q: When is the best time to use the tailstock feature on the gear shaper?

A: The tailstock should be used whenever machining longer workpieces that require additional support to prevent bending or vibration, particularly in applications involving extended shafts or splined gears.

Q: Where can the DEMM SRI-180 Gear Shaper Machine be used?

A: This machine is ideal for workshops, gear manufacturing facilities, repair centers, and production lines that require precise gear shaping for small to medium-scale components.

Q: What comes included with the machine upon purchase?

A: The DEMM SRI-180 is supplied with change gears, an operating manual, detailed electrical drawings, and other essential accessories, ensuring users have everything necessary for setup and ongoing operation.

Q: How does the machine's module capacity benefit gear production?

A: With a maximum module of 4.5, the SRI-180 can handle a variety of gear sizes, accommodating diverse production needs and allowing for flexible manufacturing processes.
