TOS OH-6 Rack Cutting Gear Shaping Machine

Send Inquiry

Request To Call Back

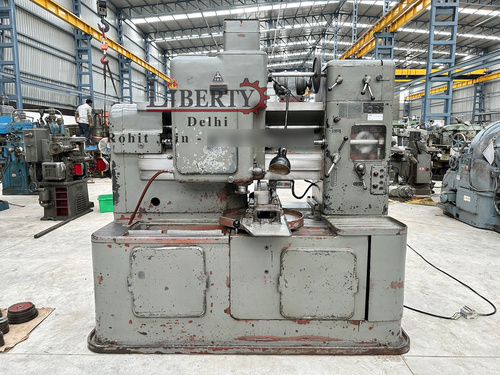

TOS OH-6 Rack Cutting Gear Shaping Machine

Name: TOS OH-6 Rack Cutting Gear Shaping Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS OH-6 Rack Cutting Gear Shaping Machine Specification

Color
Grey

Voltage
415V, 3 Phase

Capacity
Max module 6 mm, Max rack width 100 mm, Max rack length 1500 mm

Dimension (L*W*H)
2200 x 1600 x 2100 mm

Used For
Gear shaping and rack cutting applications

Machine Type
Rack Cutting Gear Shaping Machine

Feature
High precision shaping, durable construction, suitable for heavy-duty industrial use

Output
Accurate and efficient rack cutting

Weight
Approx. 2500 kg

Condition
Used

Power
7.5 kW

Max Table Traverse
1500 mm

Installation Floor Area Required
2500 x 2000 mm

Coolant System
Fitted with industrial pump

Table Size
700 x 120 mm

Safety Features
Mechanical guards, emergency stop.

Noise Level
Standard industrial

Max Stroke Length
180 mm

Minimum Module
1 mm

Spindle Taper
Morse taper #4

Control Type
Manual/Conventional

Lubrication System
Integral centralized lubrication

Gear Cutter Diameter
Up to 180 mm

Shaping Speed
Up to 50 strokes per minute

TOS OH-6 Rack Cutting Gear Shaping Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS OH-6 Rack Cutting Gear Shaping Machine

Make - TOS (Czech Republic)

Model - OH-6

Max. Module Capacity - 6 Modules

Max. Gear Diameter - 500 mm

Max. Stroke Length - 110 mm

Max. Rack Cutting Length - 500 mm

Stroke Rate - 50 strokes/min to 315 strokes/min

Spindle Diameter - 78 mm

Height between Table to Spindle Body - 235 mm

- Complete with its Change Gears.

- Motorised Rapid Travels for Rack Attachment & Cutter Rotation.

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/xDfbgsCNgII

Engineered for Precision and Durability

The TOS OH-6 combines robust construction with finely tuned machining capabilities. With a high-precision shaping mechanism, Morse taper #4 spindle, and compatibility with gear cutters up to 180 mm in diameter, it produces consistent results even under demanding industrial use. The integral centralized lubrication and effective coolant system further enhance longevity and operational stability.

Versatile Rack Cutting Capabilities

Built for versatility, the TOS OH-6 supports a maximum module of 6 mm, rack width up to 100 mm, and rack lengths as long as 1500 mm. The manual control interface allows skilled operators to adjust parameters for various gear shaping and rack cutting tasks with ease, ensuring adaptability in different production settings.

User Safety and Industrial Compliance

Safety is prioritized through mechanical guards and an emergency stop system, making the TOS OH-6 compliant with standard industrial safety guidelines. Its noise output remains within standard industrial levels, providing a safer and more comfortable working environment for operators without compromising performance.

FAQ's of TOS OH-6 Rack Cutting Gear Shaping Machine:

Q: How does the TOS OH-6 Machine enhance gear shaping precision?

A: The TOS OH-6 is designed with a rigid structure, precise spindle alignment, and a Morse taper #4 spindle to ensure stable and accurate shaping. Its maximum stroke length of 180 mm and shaping speed up to 50 strokes per minute enable consistent precision in rack and gear finishing.

Q: What materials or applications are suitable for use with the TOS OH-6?

A: This machine is suitable for gear shaping and rack cutting across various industries including automotive, heavy machinery, and general manufacturing. It can handle different materials compatible with its spindle range and cutter diameter, primarily for high-precision industrial production.

Q: When should I perform maintenance on the lubrication and coolant systems?

A: Regular maintenance is advisable before each production run and as per the manufacturer's guidelines. The integral centralized lubrication and industrial pump-fitted coolant system require periodic checks to ensure optimal machine performance and extend service life.

Q: Where can the TOS OH-6 be installed and what space is required?

A: The machine should be installed in well-ventilated industrial facilities with standard electrical supply (415V, 3 phase). It requires a minimum floor area of 2500 x 2000 mm for proper installation and operator movement.

Q: What steps are involved in operating the TOS OH-6 for rack cutting?

A: The operator mounts the blank workpiece on the 700 x 120 mm table, sets the required shaping parameters manually, selects the appropriate gear cutter (up to 180 mm), and starts the machine. The shaping process proceeds with trimming, feeding, and shaping cycles until the desired rack or gear profile is achieved.

Q: How does the TOS OH-6 benefit heavy-duty industrial applications?

A: Its robust construction, high shaping accuracy, and large capacity (max module 6 mm, rack length 1500 mm) make it ideal for demanding industrial environments where consistent quality and reliability are critical. Mechanically driven safety and efficient lubrication systems contribute to longer operational uptime and reduced risk of breakdowns.
