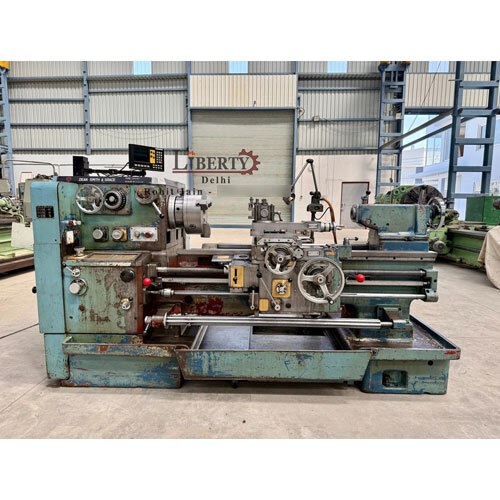

DSG England Type 1910 x 40 Heavy Duty Lathe Machine

Name: DSG England Type 1910 x 40 Heavy Duty Lathe Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DSG England Type 1910 x 40 Heavy Duty Lathe Machine Specification

Product Type
Heavy Duty Lathe Machine

Material
Cast Iron

Cutting Thickness
Up to 40 mm

Cutting Speed
Variable, up to 500 RPM

CNC Or Not
No (Manual Lathe)

Automatic Grade
Automatic Feed with Manual Operation

Control System
Manual

Max. Swing Diameter
480 mm

Voltage
415 V (Three Phase)

Weight (kg)
3700 kg (Approx.)

Dimension (L*W*H)
3000 mm x 1100 mm x 1350 mm (Approx.)

Capacity
High Capacity for Industrial Use

Feature
Heavy Duty, Precision Ground Bed, Hardened Gears and Spindle

Color
Industrial Blue & White

Distance of Spindle Axis from Bed
240 mm

Tailstock Quill Travel
160 mm

Main Motor Power
5 HP

Number of Feed Changes
48

Thread Cutting Range Metric
0.5 - 14 mm

Chuck Diameter
300 mm

Cross Slide Travel
300 mm

Thread Cutting Range Inch
2 - 56 TPI

Spindle Bore
52 mm

Tailstock Quill Diameter
75 mm

Bed Width
400 mm

Admit Between Centers
1000 mm

Bed Length
1910 mm

Spindle Speed Range
18 Speeds

Usage/Application
Industrial Turning, Metalworking, Fabrication Shops

DSG England Type 1910 x 40 Heavy Duty Lathe Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

DSG England Type 1910 x 40 Heavy Duty Lathe Machine About

Make - Dean Smith & Grace (England)

Model - Type 1910 x 40

Center Height - 250 mm

Max. Length of Job - 1000 mm

Max. Job Diameter over Bed - 500 mm

Max. Job Diameter over Cross-Slide - 265 mm

Max. Job Diameter in Gap - 750 mm

Spindle Speeds - 11.2 rpm to 2000 rpm

Bed Width - 445 mm

Chuck Diameter - 315 mm

Spindle Bore - 84 mm

- Equipped with 2-Axis DRO.

- Complete with Job Steady, other Accessories, Covers etc.

- Automatic Feed Travels on the Tool-Slide (Top-Slide).

- Graduations are in both Metric (mm) and Imperial (inches).

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/H_LTUjH0NXw

Precision Engineering for Demanding Tasks

Constructed with a precision-ground bed and hardened gears, the DSG England Type 1910 x 40 is tailored for heavy-duty industrial applications. Its design accommodates tasks requiring stringent tolerance and consistent output, making it a trusted choice in metalworking shops, fabrication facilities, and manufacturing plants. The manual operation system, paired with automatic feed options, enables flexibility across various turning operations. High-quality cast iron construction guarantees stability and minimizes vibration during machining.

Versatile Capabilities and User Benefits

Boasting 48 feed changes, 18 spindle speeds, and thread cutting ranges for both metric and inch standards, this lathe machine offers remarkable versatility. Industrial users can process a wide range of materials and components with variable cutting speeds up to 500 RPM. With its substantial 3000 mm x 1100 mm x 1350 mm footprint and a weight of approximately 3700 kg, the machine remains stable even under continuous high-capacity workloads. The heavy-duty build combines reliability with ease of operation.

FAQ's of DSG England Type 1910 x 40 Heavy Duty Lathe Machine:

Q: How does the DSG England Type 1910 x 40 lathe machine ensure precision during high-capacity operations?

A: The machine is constructed with a precision-ground bed, hardened gears, and a robust cast iron frame, which minimizes vibrations and maintains stability during heavy and continuous use, ensuring high-precision output at all performance levels.

Q: What types of materials and industries can benefit from this lathe machine?

A: This lathe machine is suitable for metalworking, industrial turning, and fabrication tasks, handling a variety of metals. It serves manufacturing plants, metal fabrication shops, and general industrial environments requiring reliable and precise turning machinery.

Q: When is the optimal situation to use the 1910 mm bed length and 1000 mm admit between centers?

A: These dimensions are optimal for handling medium to large-length workpieces where support between centers is crucial for precision turning, especially in industrial and fabrication settings requiring flexibility for different component sizes.

Q: Where is this heavy-duty lathe commonly installed and used?

A: The DSG England Type 1910 x 40 lathe is widely used in industrial workshops, manufacturing facilities, and fabrication shops in the United Kingdom and globally for both large-scale and custom metalworking applications.

Q: What is the process for changing feed rates and spindle speeds on this machine?

A: Operators can select from 48 feed changes and 18 different spindle speeds using manual controls, allowing for quick adjustment of cut depth or operation speed based on material and task requirements. This flexibility supports diverse threading and turning operations.

Q: How does the machine's manual control system enhance its usage?

A: The manual control system ensures direct operator involvement, enabling hands-on precision, better process feedback, and real-time adjustments. With automatic feed, it reduces fatigue during repetitive tasks while allowing close monitoring for quality assurance.

Q: What are the primary benefits of using this lathe in high-capacity environments?

A: High rigidity, a substantial swing diameter (480 mm), and reliable main motor power (5 HP) enable continuous, accurate operations. Its high-capacity design supports large, heavy workpieces, making it ideal for industrial-scale projects demanding durability and repeatability.
