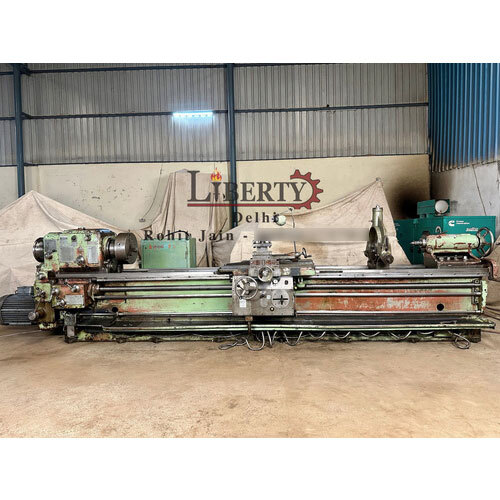

TOS 3500 mm Heavy Duty Lathe Machine

Name: TOS 3500 mm Heavy Duty Lathe Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS 3500 mm Heavy Duty Lathe Machine Specification

Product Type
Heavy Duty Lathe Machine

Material
Cast Iron

Cutting Thickness
Up to 50 mm

Cutting Speed
30 1500 RPM (variable)

CNC Or Not
No (Conventional Lathe)

Automatic Grade
Manual

Control System
Manual

Max. Swing Diameter
800 mm

Voltage
415 V, 3 Phase, 50 Hz

Weight (kg)
approx. 4500 kg

Dimension (L*W*H)
5100 mm x 1250 mm x 1500 mm

Capacity
3500 mm between centers

Feature
High rigidity, durable construction, precision ground bed ways

Color
TOS Standard Grey/Blue

Chuck Size
400 mm (3 or 4 Jaw)

Carriage Travel
3300 mm

Maximum Tool Size
32 mm x 32 mm

Thread Pitch (Inch)
2 to 40 TPI

Lubrication System
Manual or Centralized

Main Motor Power
7.5 kW

Distance Between Centers
3500 mm

Thread Pitch (Metric)
0.5 to 20 mm

Lead Screw Diameter
45 mm

Spindle Taper
MT6

Coolant System
Fitted

Spindle Bore
105 mm

Tailstock Quill Travel
250 mm

Bed Width
600 mm

TOS 3500 mm Heavy Duty Lathe Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS 3500 mm Heavy Duty Lathe Machine

Make - TOS (Czech Republic)

Model - SU 63 A / 3500

Center Height - 315 mm

Max. Length of Job - 3500 mm

Max. Diameter of Job over Bed - 630 mm

Max. Diameter over Cross-Slide - 360 mm

Max. Diameter near Chuck - 700 mm

Spindle Speeds - 8 rpm to 1180 rpm

Bed Width - 565 mm

Chuck Diameter - 400 mm

Spindle Bore - 60 mm

- Equipped with Taper Turning Attachment.

- Complete with a 3-point steady rest, Coolant Tank & Pump.

- Operating Manual and Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/cv5lBdSX_fA

Precision Engineering and Build Quality

This TOS heavy duty lathe offers exceptional precision and durability thanks to its precision-ground bed ways and robust cast iron construction. High rigidity ensures minimal vibrations, allowing for accurate and consistent performance, even under demanding workloads. The lathe's 600 mm bed width and 800 mm maximum swing diameter accommodate a wide range of workpiece sizes, making it suitable for both industrial and workshop environments.

Advanced Usability and Versatility

Designed with operator convenience in mind, the machine comes with a manual control system, an easy-to-use coolant system, and both manual and centralized lubrication options. The spindle is compatible with an MT6 taper, and the chuck options enable flexible work holding for various operations. With thread pitch capabilities from 0.5 to 20 mm (metric) and 2 to 40 TPI (inch), it serves diverse threading needs efficiently.

Powerful Performance and Capacity

Equipped with a 7.5 kW main motor, this lathe delivers consistent high-torque performance for even the most demanding applications. The machine handles workpieces up to 3500 mm between centers, and the variable speed control (30-1500 RPM) allows for precise machining of a variety of materials and thicknesses, including cuts up to 50 mm. Its weight of approximately 4500 kg and overall dimensions denote its capacity for industrial-grade operations.

FAQ's of TOS 3500 mm Heavy Duty Lathe Machine:

Q: How does the TOS 3500 mm Heavy Duty Lathe Machine enhance machining precision?

A: The lathe is engineered with precision ground bed ways and a robust cast iron body, which lend high rigidity and minimize vibrations during operations. This stable platform, coupled with a wide bed and centralized or manual lubrication system, ensures smooth and precise machining-ideal for heavy-duty, high-accuracy tasks.

Q: What types of workpieces and operations is this lathe suitable for?

A: With a distance between centers of 3500 mm, a max swing diameter of 800 mm, and support for both metric and inch thread pitches, this lathe is excellent for turning large shafts, rollers, and long cylindrical parts. Its capability to handle up to 50 mm cutting thickness and variable speeds accommodates a wide range of metals and machining processes including threading, facing, and grooving.

Q: When should the centralized lubrication system be used over manual lubrication?

A: The centralized lubrication system is ideal for continuous or long-duration operations, as it ensures consistent lubrication to all critical components, reducing wear and maintenance needs. Manual lubrication may suit smaller workshops or shorter tasks where effortless, periodic hand lubrication is sufficient.

Q: Where is this lathe typically installed and what are the installation requirements?

A: This lathe is often used in industrial settings like manufacturing plants, tool rooms, and heavy machine shops. Installation requires a solid, leveled foundation capable of bearing the machine's approximate weight of 4500 kg and access to a 415 V, 3-phase, 50 Hz power supply.

Q: What is the process for changing the chuck or accommodating different tool sizes?

A: The lathe accommodates both 3-jaw and 4-jaw chucks, allowing for flexible work holding. Changing the chuck involves disengaging the spindle and securing the new chuck in place; tool posts can handle tools up to 32 mm x 32 mm, which can be quickly swapped as needed for various operations.

Q: How does the variable speed control benefit machining operations?

A: The variable speed range (30-1500 RPM) allows operators to match the cutting speed to material type and operation, helping optimize surface finish, tool life, and production efficiency. This flexibility makes the lathe adaptable to numerous machining and finishing tasks.
