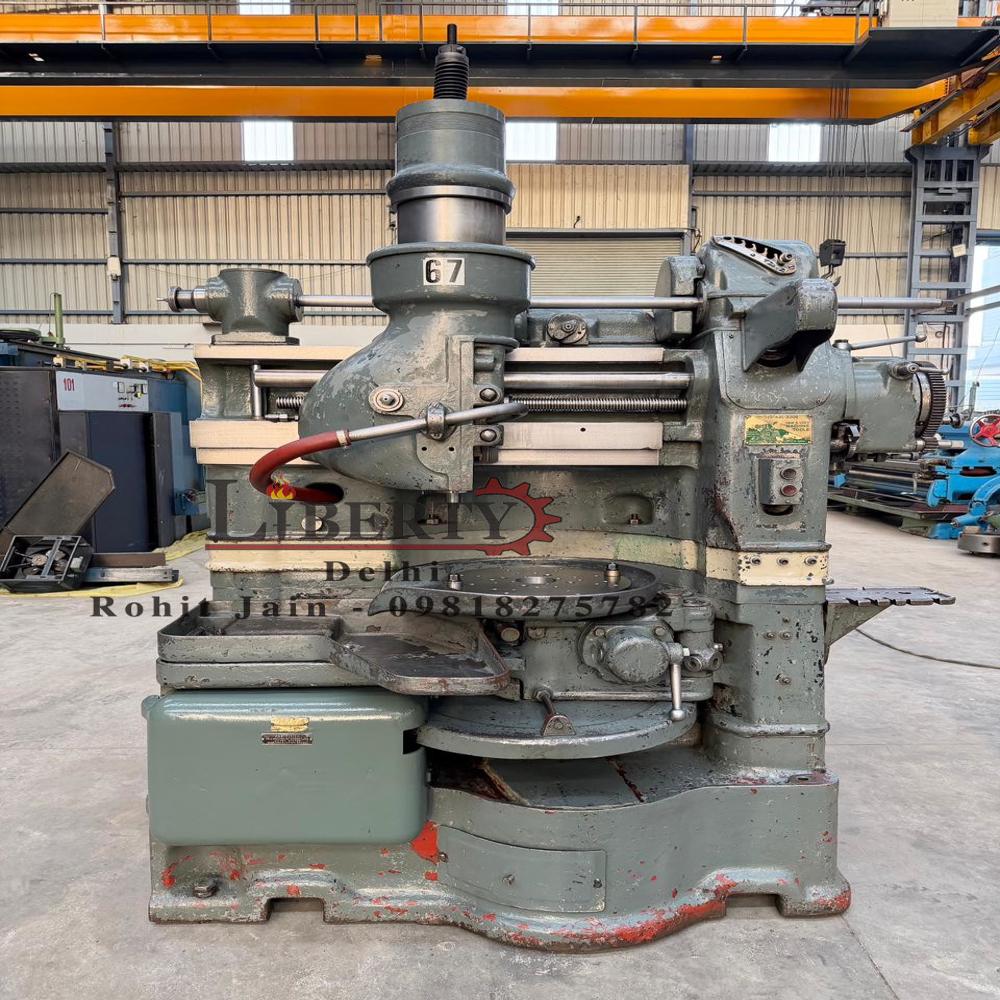

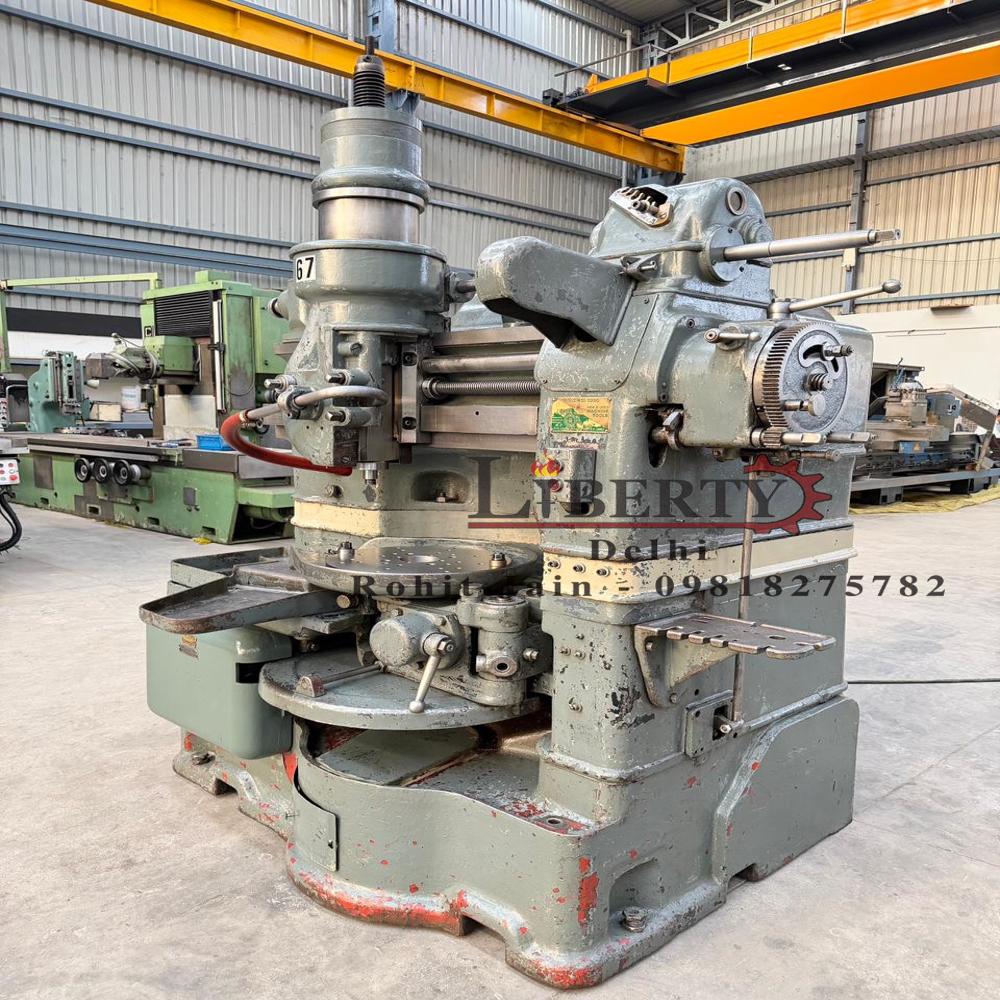

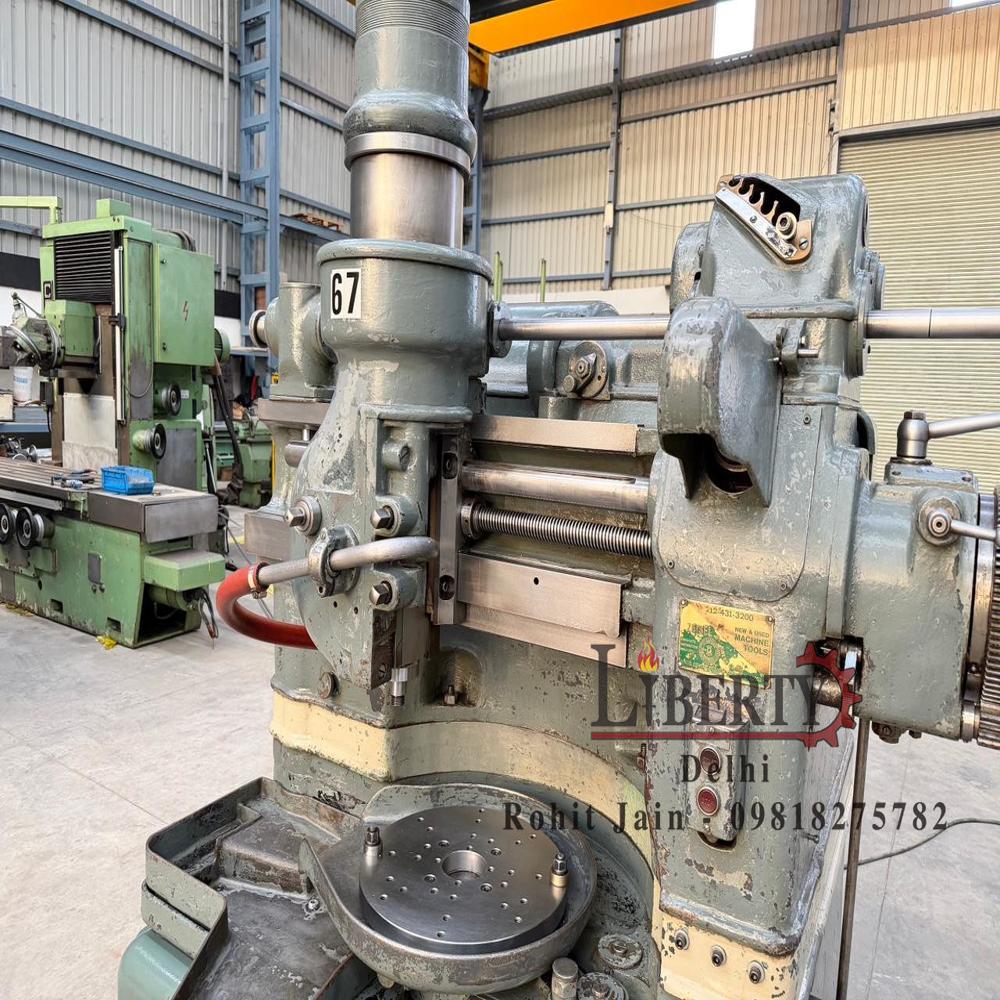

Fellows Type 6A Gear Shaper Machine

Get a Price/Quote

MOQ : 1 Piece

Fellows Type 6A Gear Shaper Machine Specification

Machine Type
Fellows (USA) make Gear Shaping Machine, Model Type 6A, available in excellent working condition. The machine is equipped with a 90 mm Packing Block, increasing the height between the Spindle and Table for enhanced job handling capability. The machine has a maximum capacity of 6.3 Modules with a maximum gear diameter of 458 mm (500 mm). It is supplied complete with Change Gears, and the Operating Manual is also available. The technical details are as follows -

About Fellows Type 6A Gear Shaper Machine

Make - Fellows (USA)

Model - Type 6A

Max. Module Capacity - 6.3 Modules

Max. Gear Diameter - 458 mm (500 mm)

Max. Stroke Length - 140 mm

Stroke Rate Range - 50 strokes/min to 300 strokes/min

Height between Table Top & Machine Body - 250 mm

- Equipped with a packing block of 90 mm height.

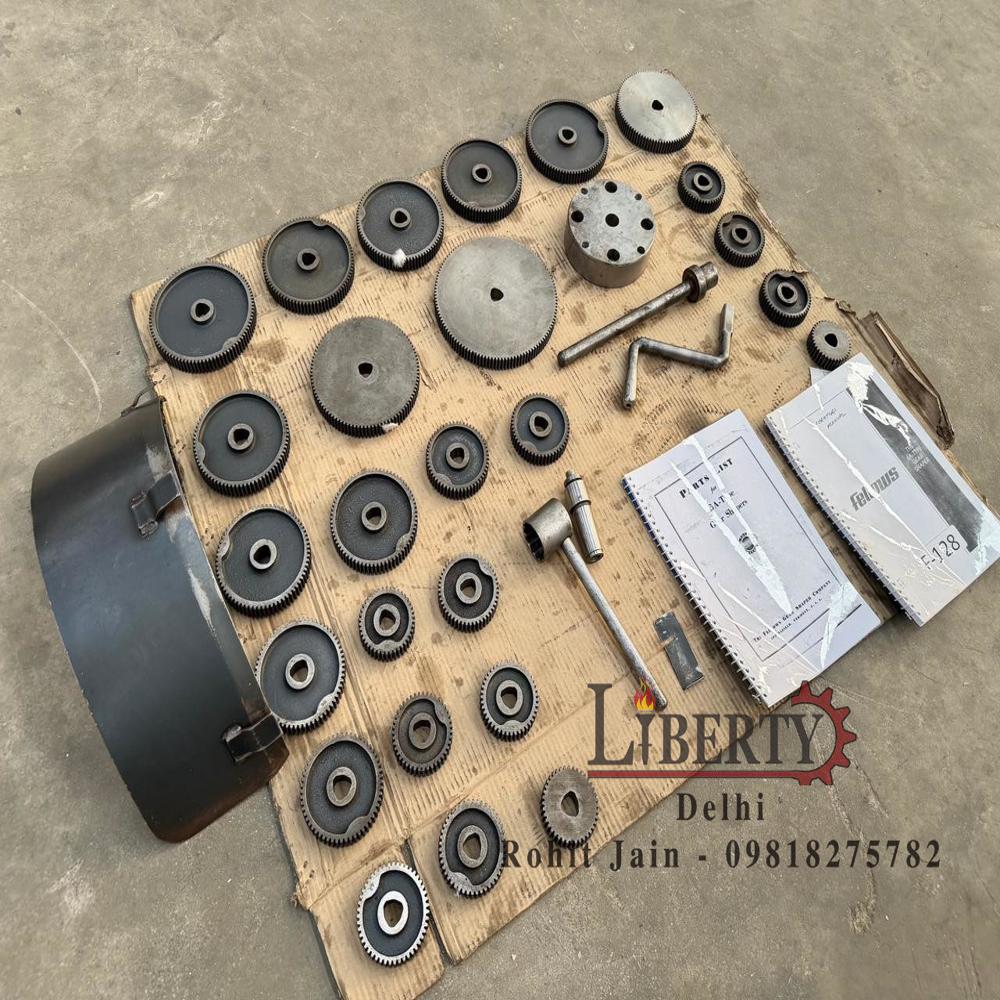

- Machine is complete with Change Gears.

- Operating Manual is available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/7E0YDGCAufw

Enhanced Gear Handling Capability

With a 90 mm packing block integrated into the design, the Fellows Type 6A Gear Shaper can efficiently handle larger gear blanks by increasing the clearance between the spindle and table. This makes the machine suitable for a broader range of gear cutting tasks and enhances operational versatility in demanding settings.

Robust Construction and Superior Precision

Designed and manufactured by Fellows (USA), the Type 6A model upholds a reputation for reliability and precision in gear shaping. Its ability to cut gears with a maximum module of 6.3 ensures suitability for both fine and high-strength gear production. Each unit is tested for top performance, delivering exceptional outcomes for manufacturers and end-users alike.

Comprehensive Support and Accessories Included

Supplied complete with a set of change gears and a detailed operating manual, this gear shaper machine is ready for immediate commissioning. Users benefit from straightforward setup, operational guidance, and the flexibility to adapt gear ratios according to specific project requirements.

FAQ's of Fellows Type 6A Gear Shaper Machine:

Q: How does the 90 mm packing block enhance job handling on the Fellows Type 6A Gear Shaper Machine?

A: The 90 mm packing block increases the vertical space between the spindle and table, allowing the machine to accommodate larger gear blanks. This added clearance facilitates the handling of oversized jobs and expands the range of gear sizes that can be manufactured.

Q: What is the maximum gear size and module that the Type 6A Gear Shaper can accommodate?

A: This model can machine gears with a maximum module of 6.3 and a diameter of up to 458 mm, with the potential to reach 500 mm when adjusted for maximum capacity. These specifications make it suitable for a wide variety of gear manufacturing needs.

Q: When is it beneficial to use a Fellows Type 6A Gear Shaping Machine in your facility?

A: The Fellows Type 6A is ideal for facilities requiring high-precision gear production, frequent gear size changes, or the ability to handle larger components. Its robust construction and included accessories make it especially valuable for both batch production and maintenance operations.

Q: Where can the Fellows Type 6A Gear Shaping Machine be installed?

A: This machine can be installed in manufacturing plants, workshops, maintenance shops, or any facility involved in gear production, repair, or servicing. Its standard design allows for straightforward integration into most industrial environments.

Q: What is the process for changing gears or setting up the machine for different gear dimensions?

A: The machine is supplied with a comprehensive set of change gears and an operating manual. Changing gears is a straightforward process involving removal of the current gear set and installation of the required set as per the manual. This allows users to adapt the machine rapidly for various gear sizes and profiles.

Q: How does the inclusion of change gears and the operating manual benefit users of the Type 6A machine?

A: Having change gears on hand enables easy adaptation to different pitches and gear sizes, while the operating manual provides essential instructions for safe operation, setup, and regular maintenance, ensuring optimal performance and minimized downtime.
