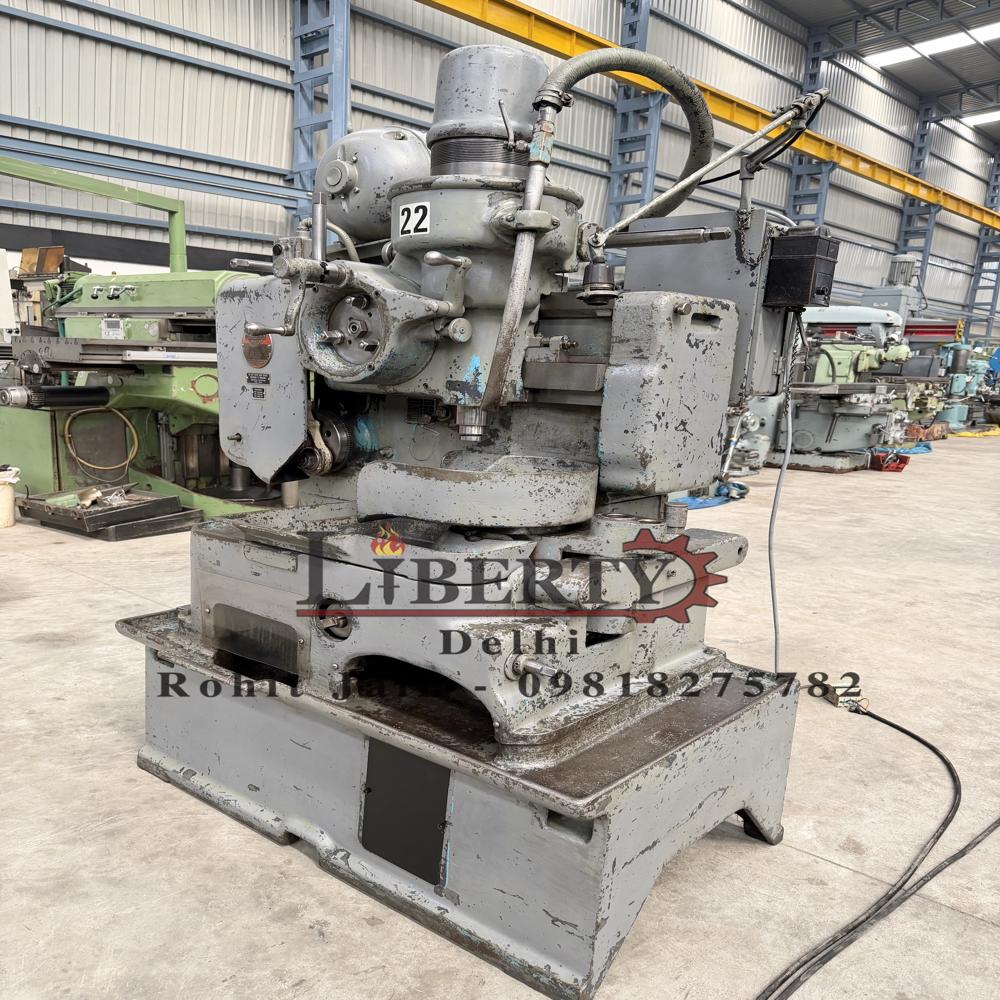

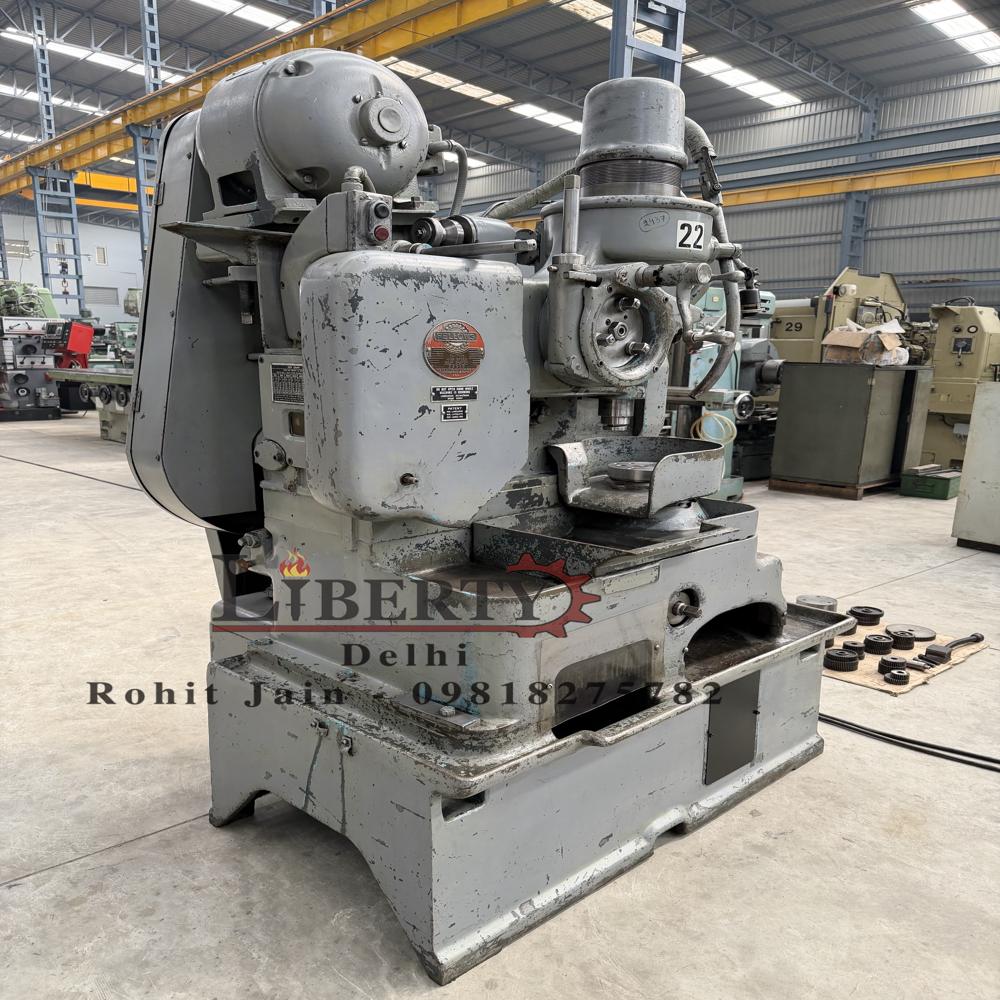

Fellows USA Type 7A Gear Shaper Machine

Name: Fellows USA Type 7A Gear Shaper Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fellows USA Type 7A Gear Shaper Machine Specification

Capacity
Max. Module Capacity 4 Modules

Machine Type
Fellows (USA) make Gear Shaping Machine in excellent working condition. The model of the machine is Type-7A and the Max. Module Capacity of the machine is 4 Modules. The machine is complete with its Change Gears, Operating Manuals etc. The technical details are as follows -

Output
High Precision Gear Shaping

Feature
Complete with Change Gears, Operating Manuals

Used For
Gear Shaping and Cutting Applications

Color
Industrial Grey

Condition
Excellent Working Condition

Maximum Gear Diameter (Internal/External)
350 mm

Main Motor Power
3.7 kW (5 HP)

Maximum Gear Face Width
60 mm

Number of Change Gears
As supplied with machine

Shaping Stroke Length
127 mm

Spindle Speed
Variable

Model
Type-7A

Control Type
Manual / Conventional

Max. Cutting Stroke per Minute
Variable, up to 225

Accessories Included
Operating Manuals, Change Gears

Table Hole Diameter
100 mm

About Fellows USA Type 7A Gear Shaper Machine

Make - Fellows (USA)

Model - Type 7A

Max. Module Capacity - 4 Modules

Max. Gear Diameter - 180 mm

Max. Face Width of Gear - 50 mm

Height between Table Top to Machine Body - 220 mm

Max. Swing Diameter of Job - 240 mm

Spindle Diameter - 69.85 mm

Spindle Type - Hollow

- Machine is complete with Change Gears.

- Operating Manual of the machine is available.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/h0Xxt4ebKAM

High Precision for Versatile Gear Shaping

The Fellows Type 7A Gear Shaper delivers remarkable accuracy with a max module capacity of 4, shaping intricate internal and external gears up to 350 mm in diameter. Its robust construction, variable speed, and reliable 3.7 kW motor guarantee long-term precision, making it suitable for batch production or one-off engineering requirements in manufacturing hubs.

Complete Package with Essential Accessories

Each machine comes fully equipped with change gears and clear operating manuals to streamline setup and daily use. The included accessories and intuitive manual controls ensure operators can adjust parameters easily, achieve precise gear profiles, and maintain operational safety and reliability.

FAQ's of Fellows USA Type 7A Gear Shaper Machine:

Q: How does the Fellows Type 7A Gear Shaper benefit my gear manufacturing process?

A: The machine delivers high precision shaping of both internal and external gears, allowing consistent, reliable results and supporting a wide range of gear sizes up to 350 mm diameter and 60 mm face width. Its variable speed and complete set of change gears boost operational flexibility and productivity.

Q: What accessories are provided with the Fellows Type 7A Gear Shaper machine?

A: The machine is supplied complete with change gears and comprehensive operating manuals, ensuring you have all necessary parts and instructions for efficient setup and continuous, accurate gear shaping operations.

Q: When is the ideal application for this gear shaper machine?

A: This gear shaping machine is most suitable for manufacturing or refurbishing precise gears required in automotive, machinery, and toolmaking industries, particularly where varied batch sizes and customized gear profiles are needed.

Q: Where can the Fellows Type 7A Gear Shaper be installed?

A: The machine is designed for industrial environments such as gear manufacturing plants, tool rooms, and mechanical workshops. With its robust build and reliable operation, it is suitable for both small-scale and large-scale production facilities across India and for export markets.

Q: What is the process for changing gears in this machine?

A: Changing gears is straightforward; the supplied change gears can be easily swapped as per the requirements of your gear specification. The detailed operating manual guides you through each step, ensuring smooth transitions between different operations.

Q: How is the speed and stroke of cutting adjusted?

A: Both spindle speed and cutting stroke rate are variable, allowing the operator to tailor the parameters for different materials and gear sizes. Adjustments are easily made through manual controls, supported by the included manuals for optimal settings.
