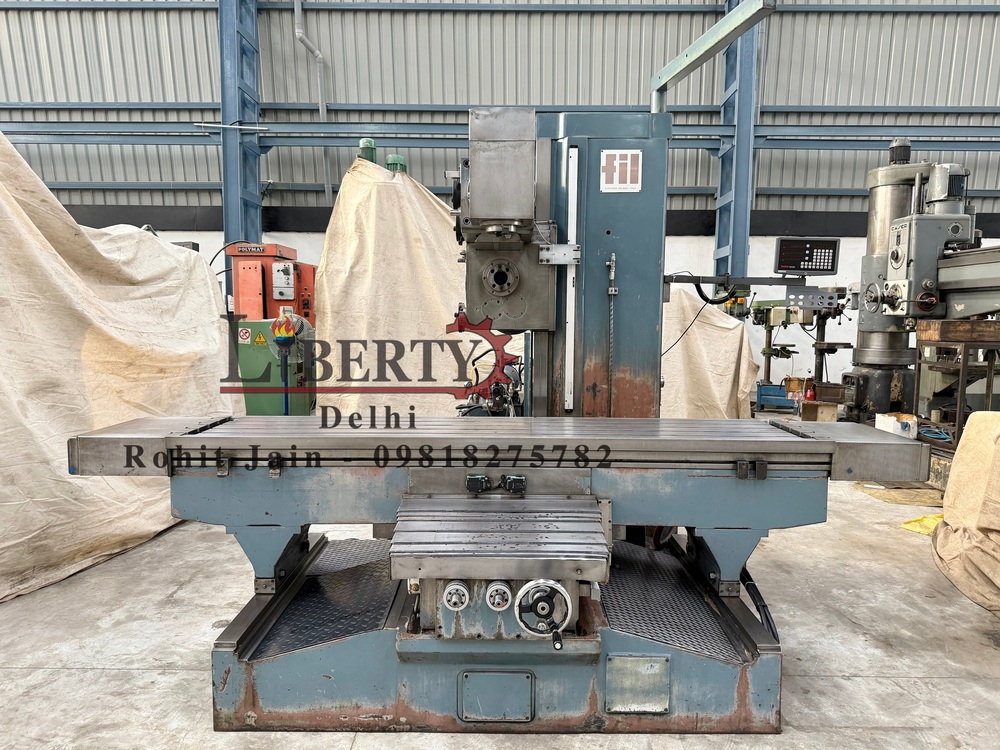

FIL Italy F200 Double Spindle Bed Milling Machine

Name: FIL Italy F200 Double Spindle Bed Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FIL Italy F200 Double Spindle Bed Milling Machine Specification

Rotation
Both Horizontal and Vertical Spindle Movement

Model
F200

Product Type
Double Spindle Bed Milling Machine

General Use
Precision Milling Operations

Material
High-Grade Cast Iron

Type
Bed Milling

Capacity
High Production, up to 2 Tons Load

Weight (kg)
Approx. 8900 kg

Computerized
Yes

Automatic
Automatic

CNC Or Not
CNC

Control System
FIL Italy Advanced Digital Controller

Table Size
2000 mm x 500 mm

Table Slide Way
Box Type Slideways

Floor Space
3850 mm x 2850 mm

Spindle Speed
40-3000 rpm (variable)

Power
15 kW (each spindle)

Voltage
380V / 50Hz

Dimension (L*W*H)
3850 mm x 2850 mm x 2300 mm

Feature
Heavy Duty Build, Dual Spindle Operation, Precision Machining

Color
Standard Industrial Grey and Red

X-Axis Travel
2000 mm

Safety Features
Emergency Stop, Overload Protection

Rapid Traverse Rate
10,000 mm/min (X-axis)

Z-Axis Travel
750 mm

Coolant System
Integrated Coolant Pump

Working Speed
Variable as per operation

Interface
Multi-language Touchscreen Panel

Max Job Diameter
Up to 500 mm

Lubrication System
Automatic Centralized Lubrication

Number of Spindles
2 (Double Spindle Design)

Precision
±0.015 mm

Spindle Taper
ISO 50

Y-Axis Travel
800 mm

Table Load Capacity
2000 kg

FIL Italy F200 Double Spindle Bed Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About FIL Italy F200 Double Spindle Bed Milling Machine

Make - FIL (Italy)

Model - F200

Table Size - 2500 mm x 530 mm

XYZ Travel - 2000 mm x 550 mm x 1000 mm

Horizontal Spindle Taper - ISO 50

Horizontal Spindle Speeds - 25 rpm to 1200 rpm

Vertical Spindle Taper - ISO 50

Vertical Spindle Speeds - 24 rpm to 1600 rpm

Max. Distance between Table & Vertical Spindle - 1150 mm

Horizontal Spindle Motor - 12.5 hp

Vertical Spindle Motor - 7.5 hp

- Horizontal Ram Travel of the Over-Arm of the Vertical Milling Head.

- Foot Operated Hydraulic Tool Clamping for the Horizontal Milling Head.

- Equipped with 3-Axis DRO.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/z2b2QUZO9dI

Dual Spindle Advantage

The F200's double spindle design maximizes productivity by enabling simultaneous machining of two components. With each spindle independently controlled and adjustable between 40-3000 rpm, manufacturers can shorten cycle times without compromising on precision. This unique setup greatly benefits high-volume production environments.

Precision and Capacity

Engineered for accuracy, the FIL Italy F200 delivers precision within 0.015 mm. Its large 2000 mm x 500 mm table and substantial load capacity up to 2 tons make it suitable for heavy parts. The box-type slideways provide stability during high-speed traversal, ensuring consistent machining quality even for large, demanding workpieces.

Advanced Control & Safety

Featuring an intuitive multi-language touchscreen, centralized automatic lubrication, and a robust integrated coolant system, this bed milling machine offers streamlined operation. Emergency stops and overload protection are integrated, enhancing safety during intensive milling tasks. The system's computerized controller ensures repeatable, error-free processes.

FAQ's of FIL Italy F200 Double Spindle Bed Milling Machine:

Q: How does the double spindle design improve operational efficiency on the F200 milling machine?

A: The F200's dual spindle configuration allows two workpieces to be processed simultaneously, effectively doubling throughput. This arrangement minimizes idle time, reduces setup frequency, and is especially beneficial for batch or high-volume precision milling jobs.

Q: What materials can the F200 Double Spindle Bed Milling Machine handle?

A: Constructed from high-grade cast iron and designed for heavy-duty capacity, the F200 can machine a wide range of metals, including steel, aluminum, and cast iron. Its robust build and high spindle power ensure reliable performance across various industrial applications.

Q: When is automatic centralized lubrication activated during machine operation?

A: The automatic centralized lubrication system engages at preset intervals determined by the machine's operation cycles. This ensures all critical moving parts receive consistent lubrication, reducing wear and maintenance interventions while supporting continuous machining.

Q: Where is this milling machine best utilized?

A: With its high table load capacity, precision capabilities, and dual spindle setup, the F200 is ideal for manufacturing plants, metalworking shops, and heavy industries. It excels in environments requiring frequent, accurate, and high-volume milling operations.

Q: What is the process for setting up jobs using the multi-language touchscreen panel?

A: Operators configure job parameters-such as spindle speeds, axis travel, and tool paths-directly on the multi-language touchscreen panel. The FIL Italy advanced digital controller guides users through setup steps, enabling quick adjustments and real-time monitoring for optimized workflows.

Q: How does the F200 ensure operator safety during machining?

A: Safety is prioritized through integrated features such as an emergency stop button and overload protection systems. These safeguards help prevent accidents and protect both operators and the equipment from damage during high-load or unforeseen conditions.

Q: What are the benefits of using the FIL Italy F200 for precision milling operations?

A: The F200 combines high production rates with exceptional accuracy, versatile job handling, and automated support systems. Its dual spindle design, CNC control, and heavy-duty build allow users to achieve repeatable quality while maintaining reduced operational costs and increased output.
