Send InquiryFMB Italy 550 mm Swing Diameter Internal Grinding Machine
Price 100000.0 INR/ Piece
MOQ : 1 Piece
FMB Italy 550 mm Swing Diameter Internal Grinding Machine Specification
- General Use

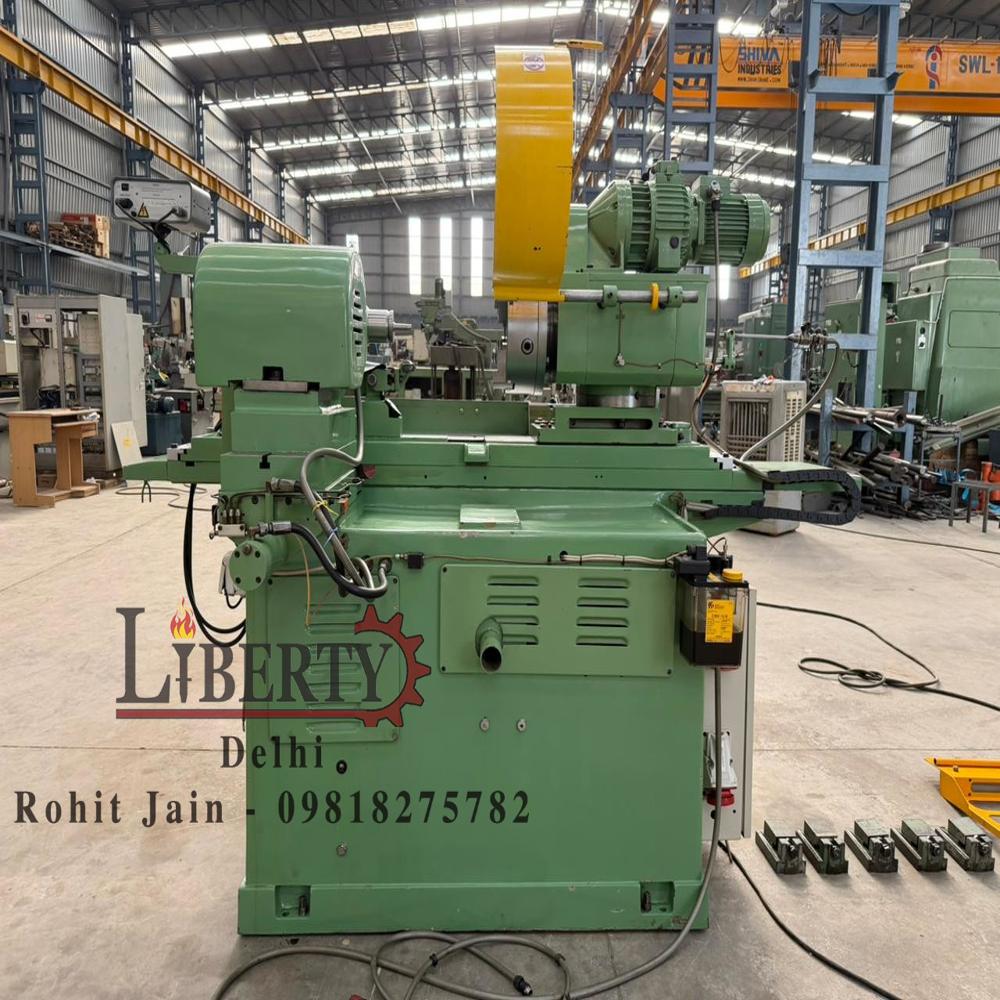

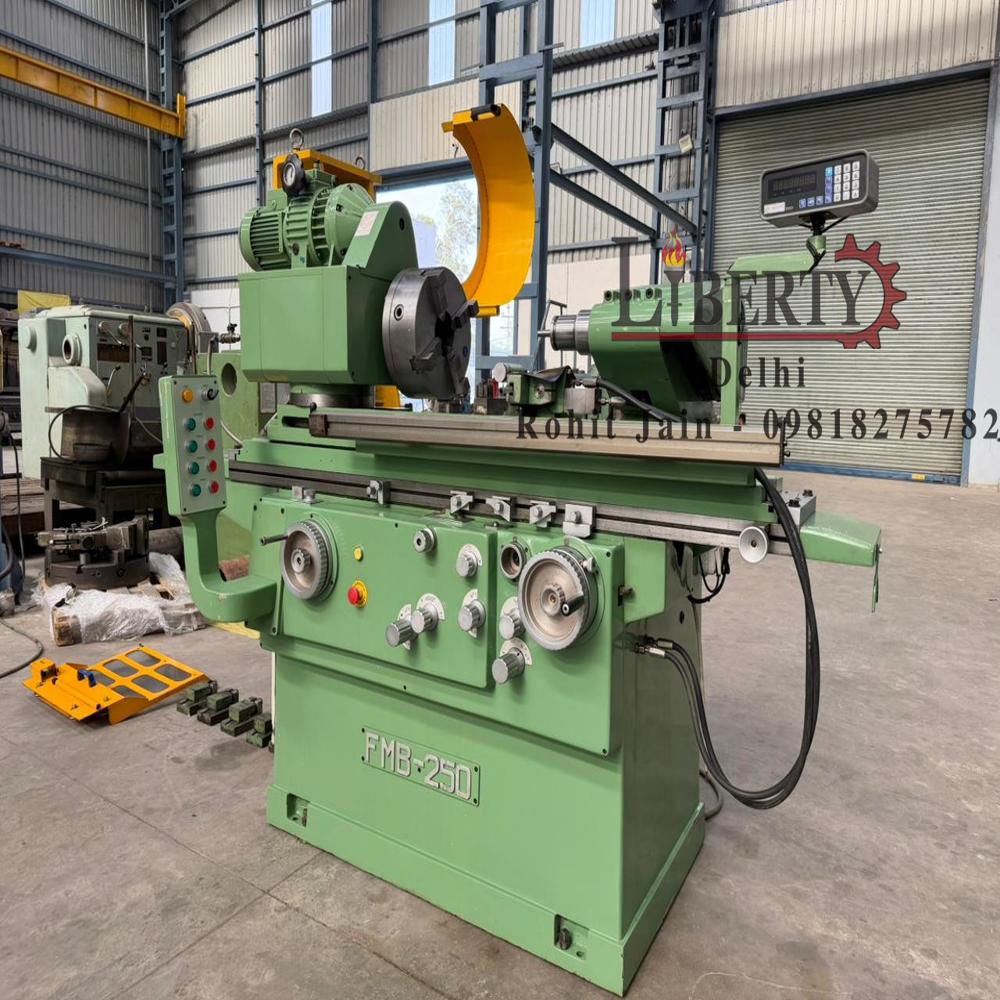

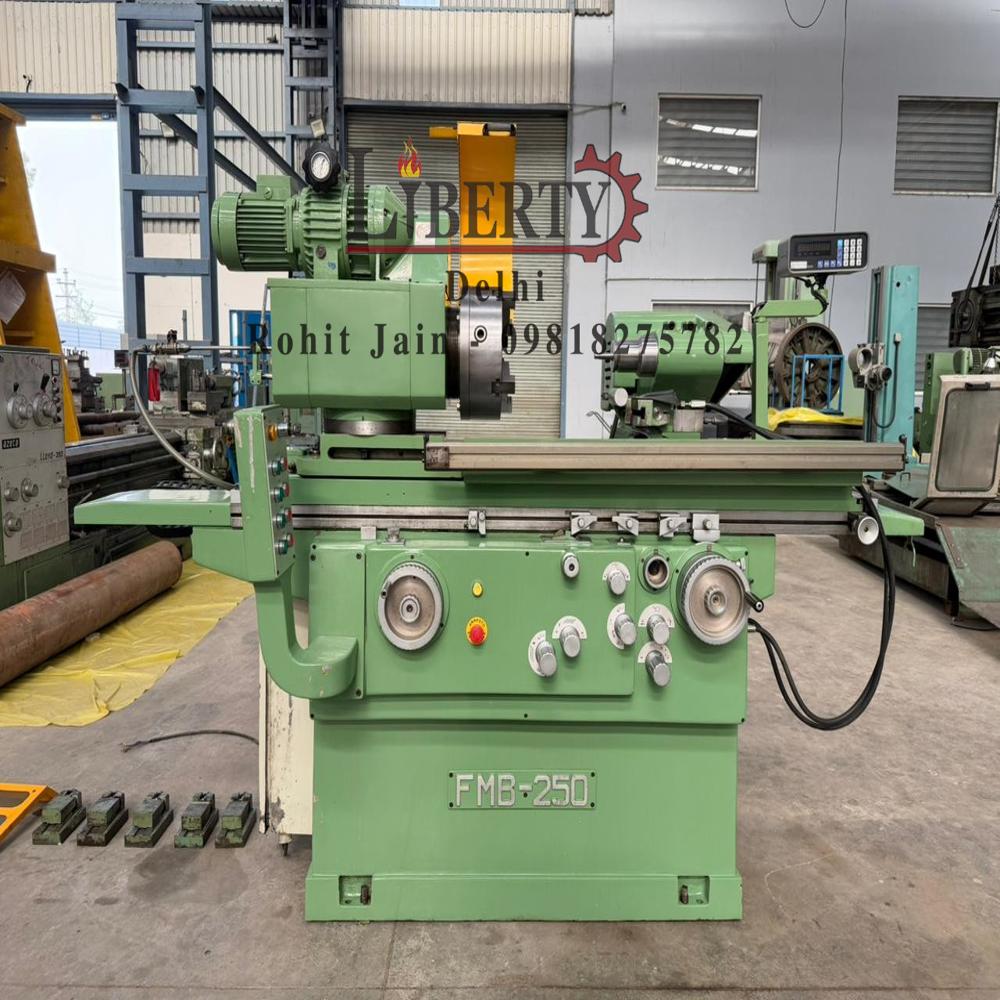

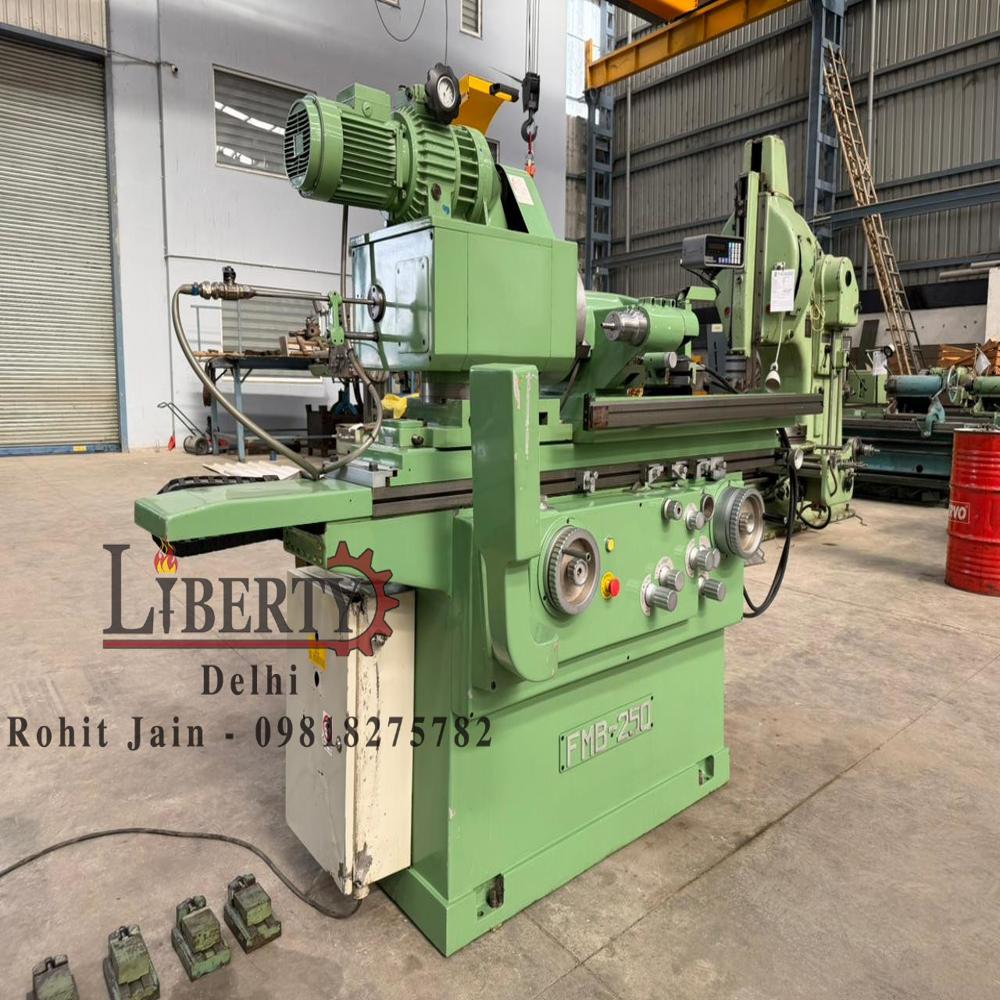

- Internal Grinding Machine made by FMB (Italy), Model 250, available in excellent working condition. The machine has a Maximum Job Swing Diameter of 550 mm and a Maximum Internal Grinding Capacity of 250 mm. The machine features Hydraulic Rapid Travels of the Wheel Head and is equipped with a Hydraulic Wheel Dresser. It also has features such as Automatic Depth Adjustment ("Auto-Cut"), Micro-Feed Movements on both Table and Wheel-Head along with a Single-Axis DRO. The technical details are as follows -
About FMB Italy 550 mm Swing Diameter Internal Grinding Machine
Make - FMB (Italy)
Model - 250
Max. Job Swing Diameter - 550 mm
Max. Internal Grinding Diameter - 250 mm
Table Longitudinal Travel - 600 mm
Max. Distance between Chuck & Spindle Support - 900 mm
Rotation of Work Head - +15 degree to -15 degree
Least Count - 5 Microns (0.005 mm)
Internal Grinding Spindle Diameter - 100 mm
Chuck Diameter - 315 mm
Internal Grinding Spindle Speeds - 8750 / 17500 RPM (Approximately)
Table Rotation Range - +6 degree to -6 degree
- Equipped with Hydraulic Wheel Dresser.
- Features Hydraulic Rapid Forward & Backward Movement of the Wheel Head.
- Features Automatic Depth Adjustment "Auto-Cut".
- Features Micro-Feed Movements for both Wheel Head & Table Travels.
- Equipped with a Single-Axis DRO on Wheel Head Travels.
- Machine is in Excellent Working Condition.
Video of the Machine -
