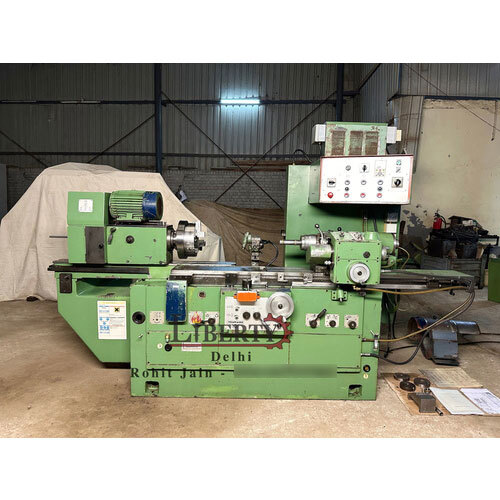

Voumard Type 5 Long Table Internal Grinding Machine

Send Inquiry

Request To Call Back

Voumard Type 5 Long Table Internal Grinding Machine

Name: Voumard Type 5 Long Table Internal Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 17000 INR
Availability: InStock

Price 17000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Voumard Type 5 Long Table Internal Grinding Machine Specification

Model
Voumard Type 5 Long Table

Rotation
Spindle rotating, workpiece stationary

Product Type
Internal Grinding Machine

General Use
Precision internal grinding of cylindrical parts, bores, and holes

Material
Cast Iron Body, Hardened Steel Components

Type
Long Table Internal Grinder

Capacity
Max workpiece bore up to 200 mm

Weight (kg)
Approx. 2200 kg

Computerized
No

Automatic
No

CNC Or Not
No

Control System
Manual

Table Size
1500 mm (L) x 200 mm (W) (approximate)

Table Slide Way
V and flat guideways

Magnetic Chuck Size
Not applicable (internal grinding configuration)

Grinding Wheel Size
ø 40-100 mm (typical)

Grinding Wheel Speed
Up to 30,000 RPM (variable based on spindle and wheel)

Grinding Length
up to 500 mm (approximate, dependent on table version)

Floor Space
2400 mm x 1400 mm x 1600 mm (approximate)

Fuel Tank Capacity
Coolant tank approx. 60 liters

Spindle Speed
Variable, up to 28,000 RPM

Power
3.7 kW (main motor)

Voltage
415 V / 3 Phase / 50 Hz

Dimension (L*W*H)
2400 x 1400 x 1600 mm

Feature
Robust construction, precise internal grinding, long table travel

Color
Industrial Green/Blue (standard finish)

Wheel Head Adjustment
Vertical and horizontal adjustment

Safety Features
Wheel guard, overload protection, emergency stop

Tailstock
Included, with adjustable quill

Coolant System
Integrated coolant pump and nozzle

Working Speed
Variable

Installation Requirement
Level floor, standard industrial power supply

Accessories Included
Standard tools, wheel flanges, coolant set, operation manual

Workpiece Fixing
Between centers or in chuck/collet

Year of Manufacture
1950s-1980s (model produced during these years)

Lubrication
Centralized lubrication system

Power Feed
Hand/Power feed for table

Surface Finish
Achievable up to Ra 0.2 µm

Max Table Travel
Up to 1100 mm

Application
Automotive, Tool Room, Aerospace, General Engineering

Noise Level
Less than 80 dB(A)

Chuck Type
Faceplate mounting or internal fixture

Voumard Type 5 Long Table Internal Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Voumard Type 5 Long Table Internal Grinding Machine

Make - Voumard (Switzerland)

Model - Type 5 (Long Table)

Grinding Diameter Range - 5 mm to 200 mm

Center Height - 180 mm

Max. Swing Diameter of Job - 360 mm

Maximum Table Stroke - 600 mm

Max. Spindle Speed - 22,000 rpm

Max. Length of Work-Piece - 1500 mm

Work-Head Speeds - 50 rpm to 500 rpm

Work-Head Swivel Angle - 0 Degree to 25 Degree

- Features like Hydraulic Wheel-Dresser, Auto-Cut etc.

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/mXYbUBiUe9Y

Precision and Versatility

The Voumard Type 5 Long Table Internal Grinding Machine is engineered for high-precision internal grinding tasks, capable of handling a diverse array of workpieces between centers or in a chuck. Its adaptable design accommodates different grinding wheel sizes and variable spindle speeds, making it ideal for both intricate tool room jobs and robust industrial requirements.

User-Friendly Manual Operation

Designed for manual, non-CNC control, the Voumard Type 5 offers both hand and power feed options for the table, ensuring measured, careful adjustments. The combination of vertical and horizontal wheel head movement allows skilled operators to achieve excellence in internal surface quality, even on long components with up to 1100 mm table travel.

Integrated Systems for Efficiency

With safety and efficiency at the forefront, the machine incorporates a centralized lubrication system, integrated coolant pump and nozzle, and essential safety mechanisms such as wheel guards and emergency stop. These integrated features ensure longevity, reduced downtime, and a consistently high-quality grinding process.

FAQs of Voumard Type 5 Long Table Internal Grinding Machine:

Q: How does the Voumard Type 5 Long Table Internal Grinding Machine secure workpieces during operation?

A: This machine can secure workpieces using a faceplate for internal fixtures or by fixing the workpiece between centers. It is also compatible with standard chucks or collets, providing flexibility based on the geometry and nature of the component being processed.

Q: What applications is this grinding machine best suited for?

A: The Voumard Type 5 Long Table is ideal for precision internal grinding tasks in automotive, aerospace, general engineering, and tool room settings. Its robust design and adjustable grinding length make it suitable for high-accuracy work such as cylindrical bores, sleeves, and similar components.

Q: Where should the machine be installed for optimal performance and safety?

A: Installation requires a level industrial floor and a standard three-phase 415 V / 50 Hz electrical supply. Ample working space (minimum footprint: 2400 x 1400 mm) should be provided for operators to manage workpieces and perform necessary adjustments safely.

Q: What is the process for adjusting the grinding wheel and table during operation?

A: The Voumard Type 5 allows both vertical and horizontal adjustment of the wheel head to suit different workpiece dimensions. The table can be moved either manually or via power feed, enabling fine control during grinding. These features facilitate precise alignment and optimal material removal.

Q: How does the integrated coolant and lubrication system benefit the operator?

A: The built-in coolant pump and nozzle ensure that grinding temperatures remain low, preventing material deformation. The centralized lubrication automatically delivers oil to critical components, minimizing wear, maintaining accuracy, and reducing maintenance intervals.

Q: What are the primary safety features included with this internal grinding machine?

A: Key safety features include an enclosed wheel guard, overload protection mechanisms, and an emergency stop function. These collectively protect the operator from accidental contact, manage system overloads, and enable rapid shutdown if necessary.

Q: When was the Voumard Type 5 Long Table model manufactured, and how does its construction contribute to durability?

A: Manufactured from the 1950s to the 1980s in Switzerland, the Voumard Type 5 uses a cast iron body and hardened steel components. This traditional build ensures rigidity, longevity, and stable performance, even during extended heavy-duty operations.
