G. Dufour France No. 230 Universal Milling Machine

Name: G. Dufour France No. 230 Universal Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

G. Dufour France No. 230 Universal Milling Machine Specification

Model
No. 230

Rotation
Spindle: Both Clockwise & Counter Clockwise

Product Type
Universal Milling Machine

General Use

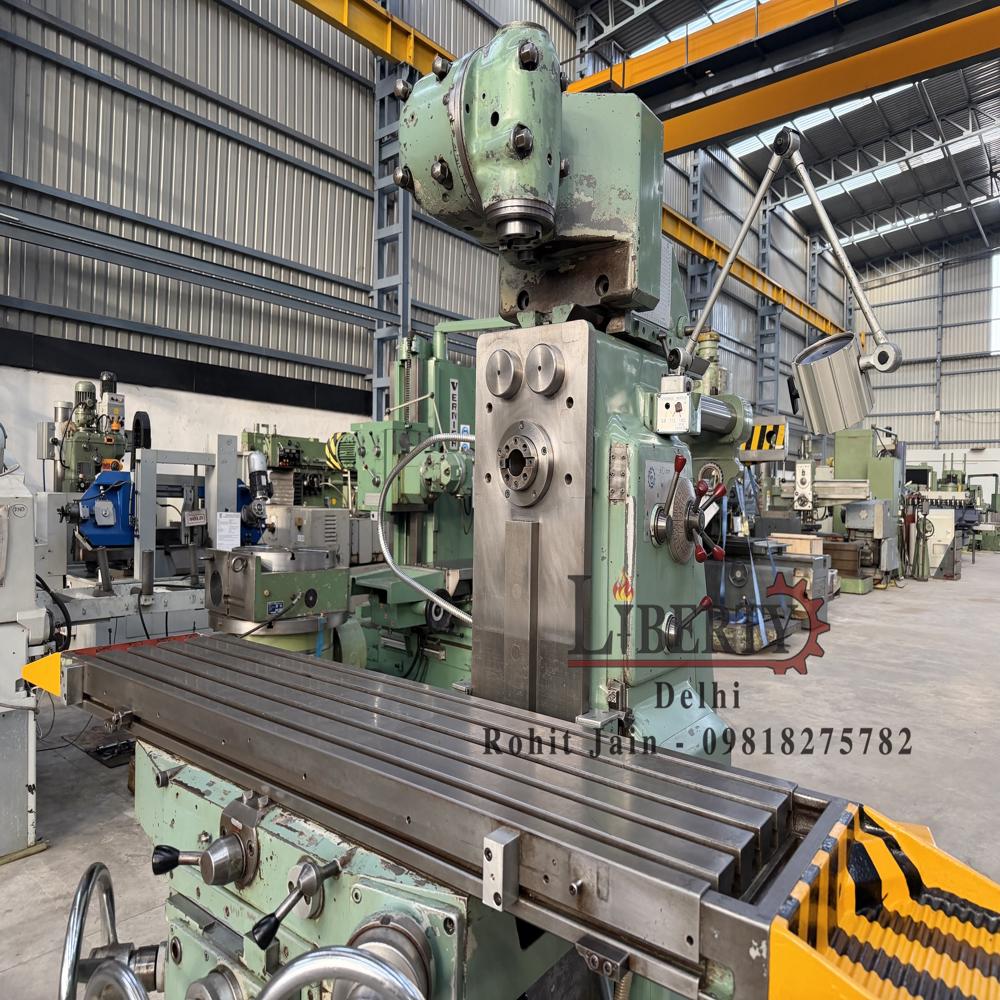

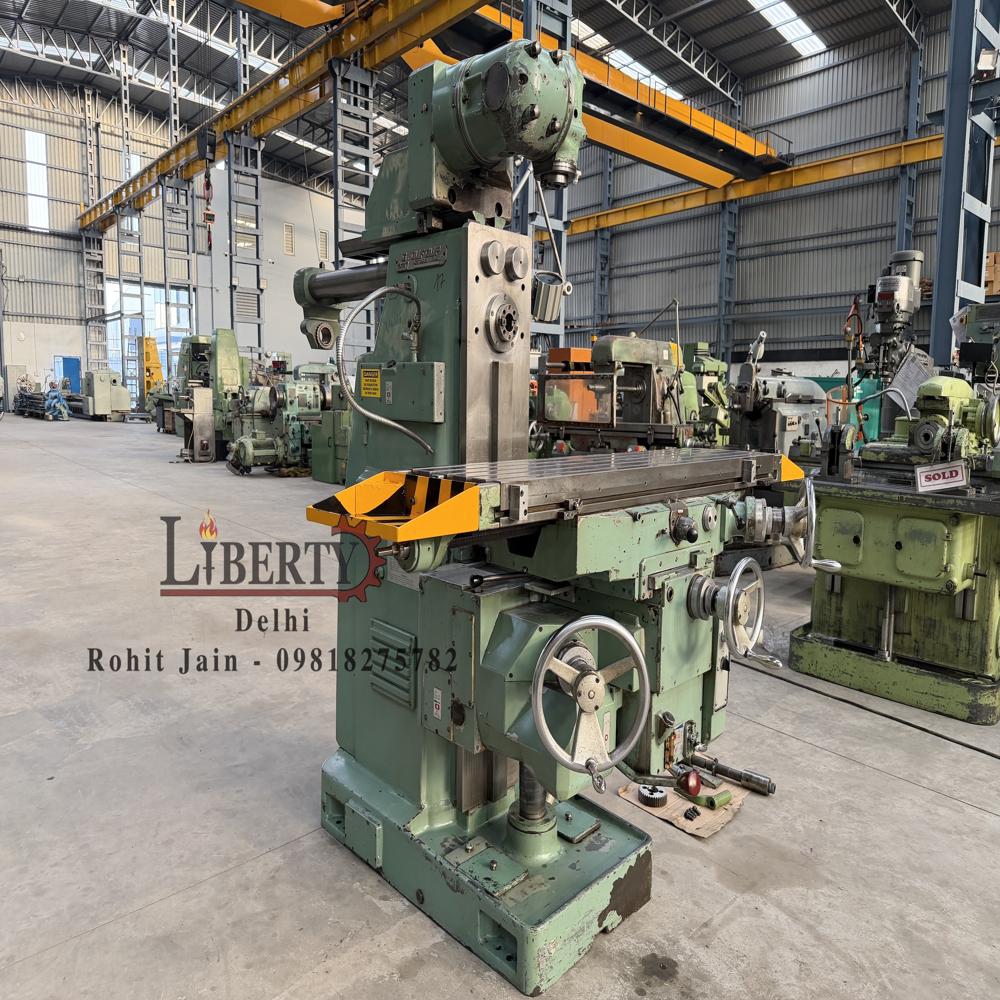

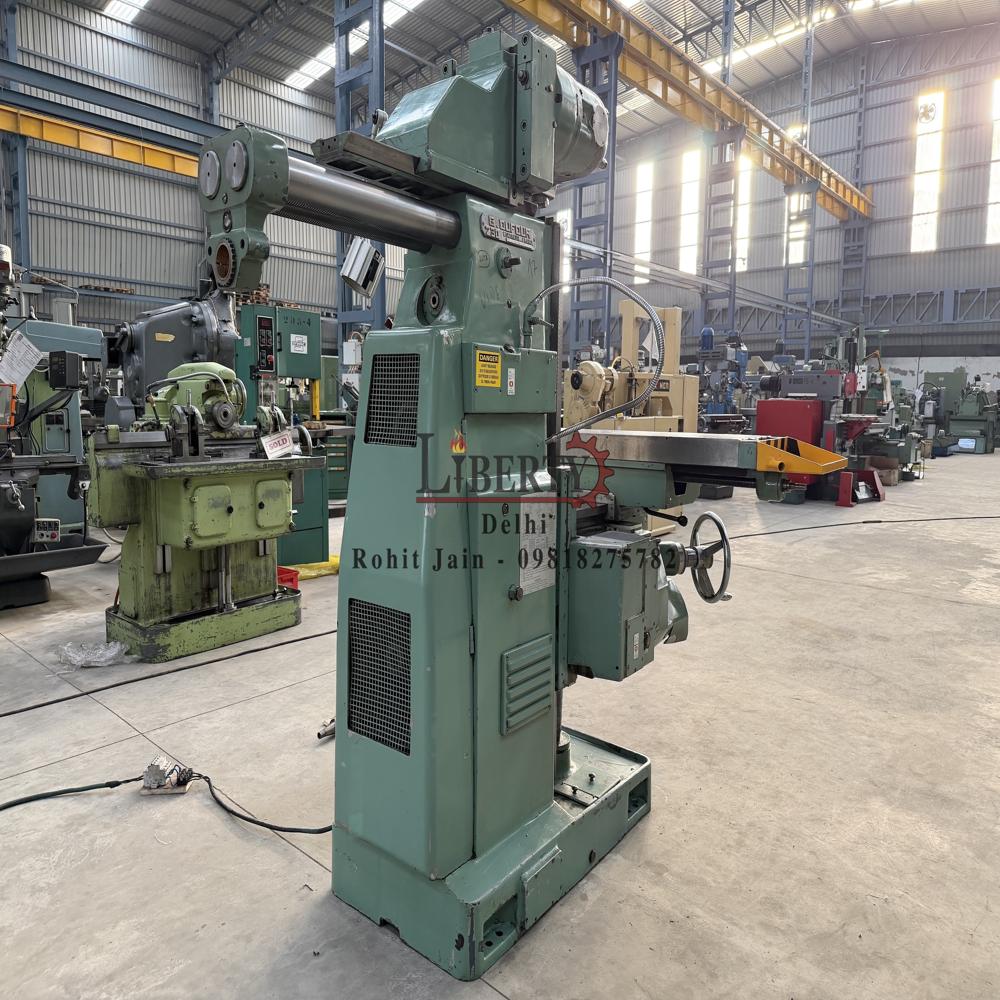

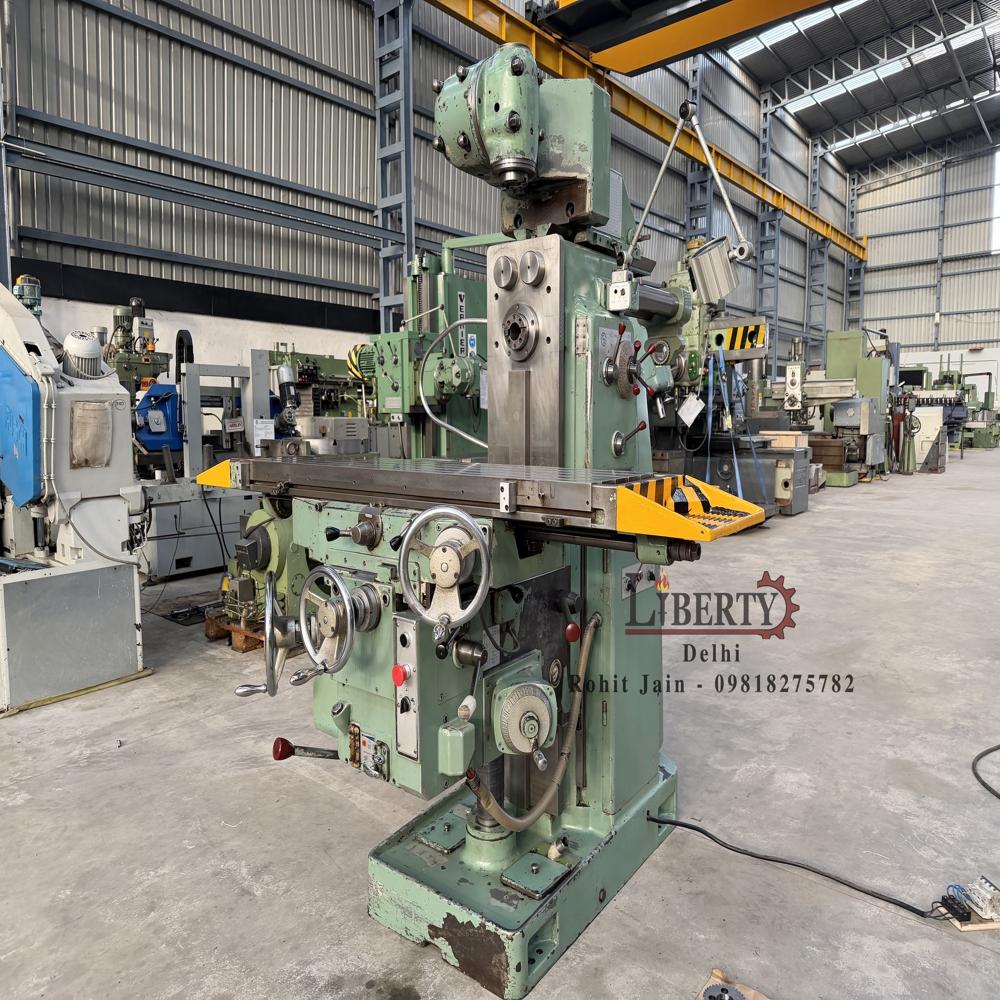

Universal Milling Machine made by G. Dufour (France) in excellent working condition. The model of the machine is 230 and the Table Size is 1300 mm x 325 mm. The machine is complete with its Arbour and Bracket for Horizontal Milling Operations. It is also complete with its Double-Swivel type Vertical Milling Head. The technical details are as follows -

Material
Cast Iron Body, Hardened Steel Gears

Type
Horizontal & Vertical (Universal)

Capacity
Medium to Heavy Duty

Weight (kg)
Approx. 2000 kg

Computerized
No

Automatic
No, Manual Operation

CNC Or Not
Not CNC, Conventional

Control System
Manual

Table Size
1300 mm x 300 mm (approx.)

Table Slide Way
Box Type Precision Ground

Floor Space
Approx. 2100 mm x 1800 mm

Spindle Speed
18 Speeds, 30 - 1500 RPM

Power
4 kW (approx.)

Voltage
415V, 3 Phase

Dimension (L*W*H)
Approx. 2100 mm x 1800 mm x 1800 mm

Feature
Swiveling Table, Horizontal & Vertical Milling Heads, Hardened Ways

Color
Industrial Green

Table Cross Travel
300 mm

Table Longitudinal Travel
1000 mm

Rapid Traverse
Available

Arbor Support
Provided

Coolant Pump
Integrated

No. of T-Slots
3

Milling Spindle Taper
ISO 40

Swivel Table Capacity
45

Working Speed
Variable, controlled by manual adjustment

Overarm Support
Yes, for Horizontal Milling

Height to Table Top
900 mm (approx)

Table Vertical Travel
400 mm

Feed Motor Power
0.75 HP

T-Slot Size
14 mm

G. Dufour France No. 230 Universal Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About G. Dufour France No. 230 Universal Milling Machine

Make - G. Dufour (France)

Model - 230

Table Size - 1300 mm x 325 mm

XYZ Travel - 900 mm x 300 mm x 560 mm

Spindle Taper - ISO-40

Spindle Speed - 24 rpm to 1500 rpm

Table Feed Rate - 10 mm/min to 900 mm/min

Weight of the Machine - 2430 kgs (Approximately)

- Complete with Arbour & Bracket for Horizontal Milling Operations.

- Complete with Double Swivel type Vertical Milling Head.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/FgyUMI8TzjE

Versatile Precision Milling Capability

The G. Dufour No. 230 Universal Milling Machine offers both horizontal and vertical machining in one unit, thanks to its interchangeable heads and swiveling table. This allows for an extensive range of operations including slotting, face milling, drilling, and contouring. Its sturdy box-type precision-ground slideways ensure stability and accuracy even when handling medium to heavy loads.

Robust Engineering & Durability

Constructed with a cast iron body and hardened steel gears, the machine is built to last. Its meticulously engineered mechanisms ensure smooth and precise movement across all axes. The manual control system provides direct operator oversight, while the 18 spindle speeds and rapid feed options empower operators to efficiently handle different materials and machining requirements.

Operator-Friendly With Advanced Features

With features like a 45-degree swiveling table, double-swivel vertical milling head, and fitted coolant system, the No. 230 ensures both convenience and operational efficiency. The machine is also equipped with ISO 40 spindle taper and is delivered complete with arbor and bracket, ready for immediate heavy-duty use in any production or workshop environment.

FAQ's of G. Dufour France No. 230 Universal Milling Machine:

Q: How versatile is the G. Dufour 230 milling machine for different machining operations?

A: The G. Dufour 230 is a universal milling machine designed for both horizontal and vertical operations, making it suitable for a range of applications such as slotting, face milling, drilling, and heavy milling. Its swiveling table and double-swivel vertical head further expand its capability, allowing work on inclined surfaces and complex geometries.

Q: What are the primary benefits of the machine's swiveling table and dual heads?

A: The 45-degree swiveling table and the availability of both horizontal and vertical milling heads provide exceptional flexibility. Operators can perform multi-sided machining without changing setups, enhancing efficiency and precision in production and prototyping tasks.

Q: When should I use the horizontal or the vertical milling operation?

A: Horizontal milling is ideal for heavy cuts and long workpieces, while vertical milling is well-suited for high-precision and intricate tasks. The G. Dufour 230 offers both setups, allowing you to switch based on the requirements of your job, boosting versatility and productivity.

Q: Where is this machine best suited for use?

A: This milling machine is perfect for engineering workshops, manufacturing units, toolrooms, and repair facilities that demand reliable, consistent, and accurate conventional machining for medium to heavy-duty components.

Q: What is the process for adjusting spindle speeds and feeds?

A: The G. Dufour 230 includes 18 pre-set speeds and 18 feed rates, selectable via manual levers and dials on the control panel. Rapid feed is also available for swift table movements, providing adaptable machining conditions for various materials and operations.

Q: How is the table maintained for precision during heavy-duty milling?

A: The machine features box-type precision-ground ways and a robust cast iron construction, ensuring minimal deflection under load. The CNC is not required, as the manual design provides tactile feedback and direct control for experienced machinists.
