Ghiringhelli Centerless Grinding Machine

Price 20000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Ghiringhelli Centerless Grinding Machine Specification

Model
Ghiringhelli

Rotation
Clockwise/Counter-Clockwise

Product Type
Centerless Grinding Machine

General Use
Centerless cylindrical grinding of precision components

Material
Cast Iron, Steel, Alloy Steel

Type
Manual Centerless Grinder

Capacity
Max workpiece diameter: 80 mm

Weight (kg)
Approx. 3000 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual Hand/Lever Control

Table Slide Way
V-Flat (Precision Ground)

Magnetic Chuck Size
Not Applicable (Centerless operation)

Grinding Wheel Size
400 mm diameter x 200 mm width

Grinding Wheel Speed
1750 RPM

Grinding Length
Max 150 mm

Floor Space
Approx. 2.3 m x 1.4 m

Spindle Speed
2000 RPM

Power
7.5 kW main motor

Voltage
415 V / 3 Phase / 50 Hz

Dimension (L*W*H)
2300 mm x 1400 mm x 1700 mm

Feature
High rigidity, Precision spindle, Compact design, Low vibration

Color
Ghiringhelli Standard Blue-Grey

Concentricity
Up to 0.001 mm

Regulating Wheel Size
250 mm diameter x 200 mm width

Wheel Material
Aluminium Oxide / CBN (as required)

WorkingSpeed
Variable

Application
Automotive, Aerospace, Bearing Industries

Max Workpiece Length
150 mm (Between supports)

Lubrication System
Automatic centralized lubrication

Work Rest
Adjustable carbide-tipped

Grinding Method
Plunge & Through-feed

Coolant System
Integral with filtered recirculation

Surface Finish
Up to Ra 0.2 m

Noise Level
Less than 80 dB

Ghiringhelli Centerless Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

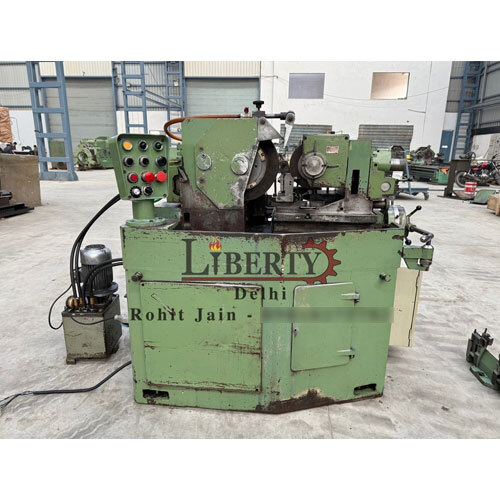

About Ghiringhelli Centerless Grinding Machine

Make - Ghiringhelli (Italy)

Model - M120

Max. Job Diameter - 100 mm

Grinding Wheel Diameter - 500 mm

Control Wheel Diameter - 300 mm

Wheel Width - 127 mm

Tilting Angle of Control Wheel - 5 degree to -5 degree

Least Count of Automatic Feed Travel - 2.5 microns (0.0025 mm)

Weight of the Machine - 4.75 tons (Approximately)

- Automatic Rapid & Feed Travels of the Control Wheel.

- Can work in Manual, Semi-Automatic & in Fully Automatic Mode.

- Infinitely Variable Speeds of the Control Wheel.

- Equipped with a Diamond Grinding Wheel.

- Complete with Coolant Tank & Pump.

- Machine is in excellent working condition.

Video of The Machine-

https://youtu.be/ICyK5rmxJLY

Precision Grinding for Demanding Industries

Engineered for the automotive, aerospace, and bearing industries, the Ghiringhelli Centerless Grinding Machine excels in manufacturing high-precision components. Its manual control system, robust spindle, and compact design offer reliable, repeatable results. The grinder accommodates workpieces up to 80 mm in diameter and 150 mm in length between supports, making it highly versatile for various applications requiring high accuracy and fine surface finishes.

Versatile Manual Operation and Superior Build

With manual hand and lever controls, operators maintain full command over the grinding process. The machines heavy-duty cast iron construction, automatic centralized lubrication, and low-vibration design ensure stability and long service life. Variable speed settings allow optimization for different workpiece materials, while the integral coolant system enhances both performance and safety during operation.

Advanced Surface Finish and Concentricity

Achieve industry-leading precision with up to 0.001 mm concentricity and surfaces as smooth as Ra 0.2 m. The adjustable carbide-tipped work rest and precision-ground slide way enable consistent results across batches. The choice of aluminium oxide or CBN wheels further extends the range of grinding applications, accommodating steel, alloy steel, and more. Suitable for exporters, manufacturers, and traders seeking Italian engineering excellence.

FAQs of Ghiringhelli Centerless Grinding Machine:

Q: How does the Ghiringhelli Centerless Grinding Machine ensure high precision and concentricity?

A: The machine is built with a precision-ground V-Flat table slide way, a high-rigidity spindle, and adjustable carbide-tipped work rests. Together with its precision bearings and robust construction, it consistently achieves up to 0.001 mm concentricity and ultra-fine surface finishes up to Ra 0.2 m.

Q: What applications are suitable for this centerless grinder?

A: This machine is ideal for centerless cylindrical grinding of precision components in the automotive, aerospace, and bearing industries. It is suited for grinding cast iron, steel, and alloy steel workpieces up to 80 mm in diameter and 150 mm in length.

Q: When should I choose plunge versus through-feed grinding on this machine?

A: Plunge grinding is recommended for components with complex shapes or multiple diameters, while through-feed grinding is best for simple cylindrical parts that require quick, continuous material removal. The Ghiringhelli machine supports both methods, depending on your production needs.

Q: Where can this machine be installed and what are its space requirements?

A: With dimensions of 2300 mm x 1400 mm x 1700 mm and a weight of approximately 3000 kg, the machine requires a stable industrial workshop floor with adequate space for operator access, maintenance, and coolant recirculation.

Q: What are the benefits of the integral coolant and automatic lubrication systems?

A: The integral filtered recirculation coolant system keeps grinding temperatures low and flushes away debris, preserving surface quality and tool life. The automatic centralized lubrication reduces maintenance, ensuring smooth operation and reducing wear over time.

Q: How is the working speed controlled, and what are the available speed options?

A: The grinder offers variable working speed, adjustable manually by the operator via hand and lever controls. The grinding wheel operates at 1750 RPM, with the spindle reaching up to 2000 RPM, allowing precise adaptation to material and job requirements.
