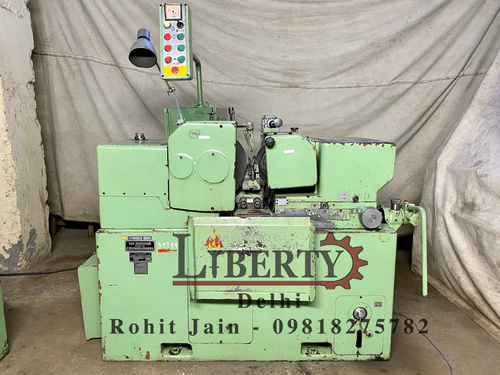

Ghiringhelli Italy Centerless Grinding Machine

Name: Ghiringhelli Italy Centerless Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Ghiringhelli Italy Centerless Grinding Machine Specification

Rotation
Clockwise/Counter-Clockwise

Model
Ghiringhelli Italy

Product Type
Centerless Grinding Machine

General Use
Industrial Centerless Grinding

Material
Cast Iron Body

Type
Centreless Grinder

Capacity
Up to 50 mm diameter

Weight (kg)
3700

Computerized
No

Automatic
Semi-Automatic

CNC Or Not
Not CNC

Control System
Manual

Table Size
Standard

Table Slide Way
V and Flat type

Magnetic Chuck Size
Standard

Grinding Wheel Size
350 mm x 150 mm

Grinding Wheel Speed
1500 RPM

Grinding Length
200 mm

Floor Space
2.8 m x 1.3 m

Spindle Speed
1450 RPM

Power
7.5 kW

Voltage
380 V

Dimension (L*W*H)
2800 mm x 1300 mm x 1700 mm

Feature
High Precision, Robust Structure

Color
Standard Factory Finish

Work Rest Blade
Hardened and Ground

Noise Level
Below 80 dB

Maximum Work Diameter
50 mm

Surface Finish Achievable
0.2 m Ra

Operation
Continuous/Through Feed and Infeed

Coolant System
Integrated Coolant Unit

Balancer Unit
Dynamic Wheel Balancer Included

Installation
Floor Mounted

Feed System
Manual or Automatic Feed

Safety
CE Standard Protective Covers

Minimum Work Diameter
2 mm

WorkingSpeed
Maximum 30 m/min

Input Frequency
50 Hz

Lubrication
Centralized Automatic Lubrication

Accessories Included
Tool Kit, Operation Manual, Spare Parts Kit

Ghiringhelli Italy Centerless Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Ghiringhelli Italy Centerless Grinding Machine

Make - Ghiringhelli (Italy)

Job Grinding Diameter - 3 mm to 85 mm

Max. Grinding Wheel Diameter - 350 mm

Max. Grinding Wheel Width - 100 mm

Max. Control Wheel Diameter - 225 mm

Max. Control Wheel Width - 100 mm

Control Wheel Feed Angle - +5 degree to -5 degree

Control Wheel Speeds - Continuously Variable.

- Equipped with Hydraulic Wheel Dressers.

- Suitable for both - Infeed and Through-Feed Grinding Operations.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/DZGwty8N4bg

Precision Grinding for Industrial Needs

Ghiringhelli Italy's centerless grinder is purpose-built for industries demanding precision and efficiency. Offering consistent grinding results for workpieces up to 50 mm in diameter, it ensures high-quality surface finishes. The inclusion of an advanced coolant system and dynamic wheel balancer further enhances operational accuracy and machinery longevity, making it a reliable solution for continuous or infeed grinding tasks.

User-Friendly and Safe Operation

Designed with a manual control system and semi-automatic features, this grinding machine accommodates both novice and experienced operators. Its floor-mounted, robust cast iron construction provides stability, while centralized automatic lubrication and below-80 dB noise levels prioritize operator comfort. CE-standard safety covers shield users from debris and hazards, fostering a secure working environment.

FAQ's of Ghiringhelli Italy Centerless Grinding Machine:

Q: How does the integrated coolant unit benefit the grinding process?

A: The integrated coolant system effectively controls the temperature during grinding operations, preventing overheating of both the workpiece and the grinding wheel. This helps maintain precision, extends tool life, and improves the overall surface finish quality.

Q: What types of workpieces are suitable for the Ghiringhelli Italy Centerless Grinding Machine?

A: This machine is ideal for cylindrical workpieces with diameters between 2 mm and 50 mm. It is commonly used in industries that require precise surface finishes, such as automotive, aerospace, and metalworking sectors.

Q: When should I use manual versus automatic feed on this machine?

A: Manual feed is best used for smaller batches or when greater operator control is needed, while automatic feed is ideal for higher production volumes or when continuous through-feed grinding is required for efficiency and consistency.

Q: Where should the Ghiringhelli Italy Grinding Machine be installed?

A: It is designed for industrial floor-mounted installation, occupying a floor space of 2.8 m by 1.3 m. Ensure installation in a well-ventilated area with access to 380 V power supply and a stable, level surface for optimal performance.

Q: What benefits does the dynamic wheel balancer provide?

A: The dynamic wheel balancing unit reduces vibration and wheel wear, ensuring smoother operation, improved surface finish, and extended wheel life. This results in higher precision and decreased machine maintenance.

Q: How does the centralized automatic lubrication system work?

A: The centralized lubrication system automatically delivers the right amount of lubricant to all necessary machine parts, minimizing wear, reducing maintenance needs, and helping maintain consistent grinding performance over time.

Q: What accessories are included with the machine upon delivery?

A: Each Ghiringhelli Italy Centerless Grinder is supplied with a tool kit, operation manual, and a spare parts kit, ensuring users have essential items for setup, operation, and basic maintenance.
