GSP France 405T 50 mm x 1300 mm Arm Radial Drilling Machine

Send Inquiry

Request To Call Back

GSP France 405T 50 mm x 1300 mm Arm Radial Drilling Machine

Name: GSP France 405T 50 mm x 1300 mm Arm Radial Drilling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

GSP France 405T 50 mm x 1300 mm Arm Radial Drilling Machine Specification

Spindle Speed
25 - 1600 RPM (Variable) approx.

Frequency
50 Hz

Table Size
900 x 700 mm (Approx)

Machine Type
Horizontal Arm Radial Drilling Machine

Cutting Area
Large Arm Reach - 1300 mm

Diameter
Max Drilling Diameter: 50 mm

Condition
Used - Good Working Condition

Dimension (L*W*H)
2400 x 1050 x 2400 mm

Features
Robust Construction, Gear-Driven, Power Feed, Adjustable Arm, Wide Working Range, Auto Lifting Arm

Noise Level
Standard Industrial Levels

Motor Power
5 HP Main Motor

Product Type

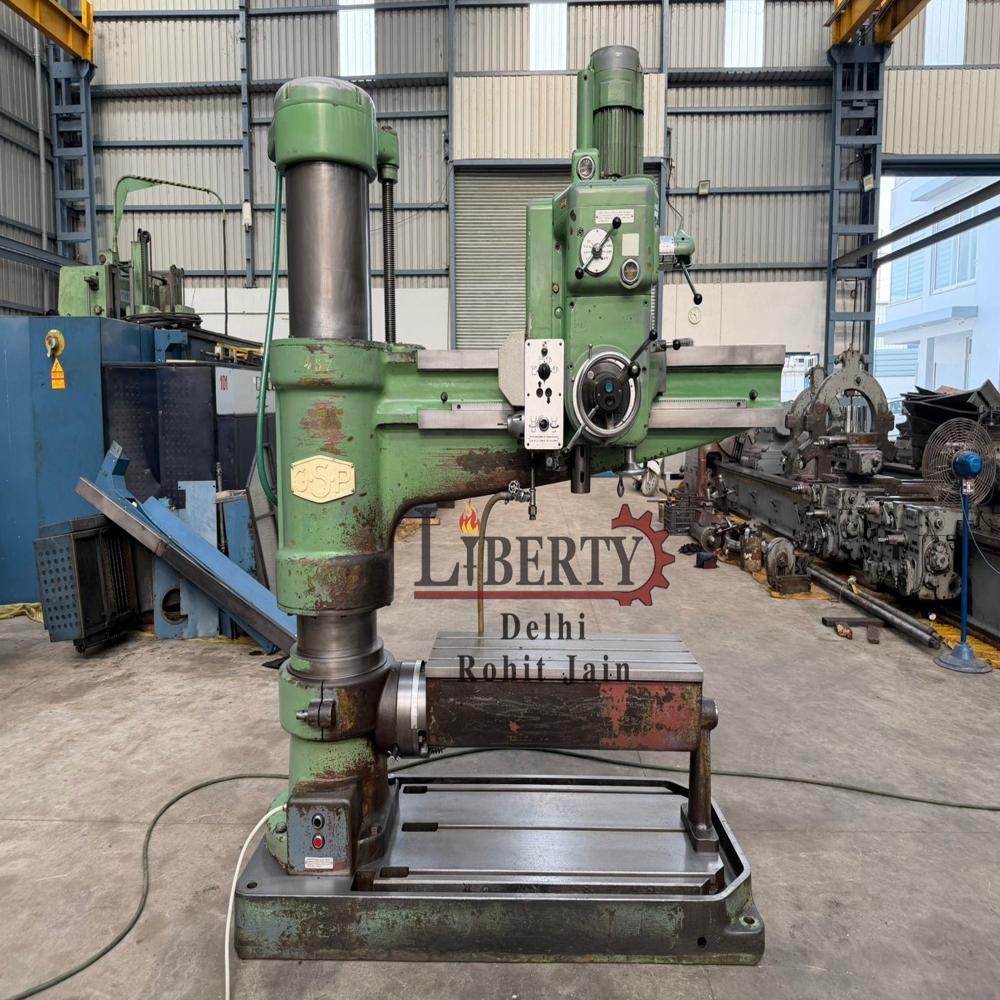

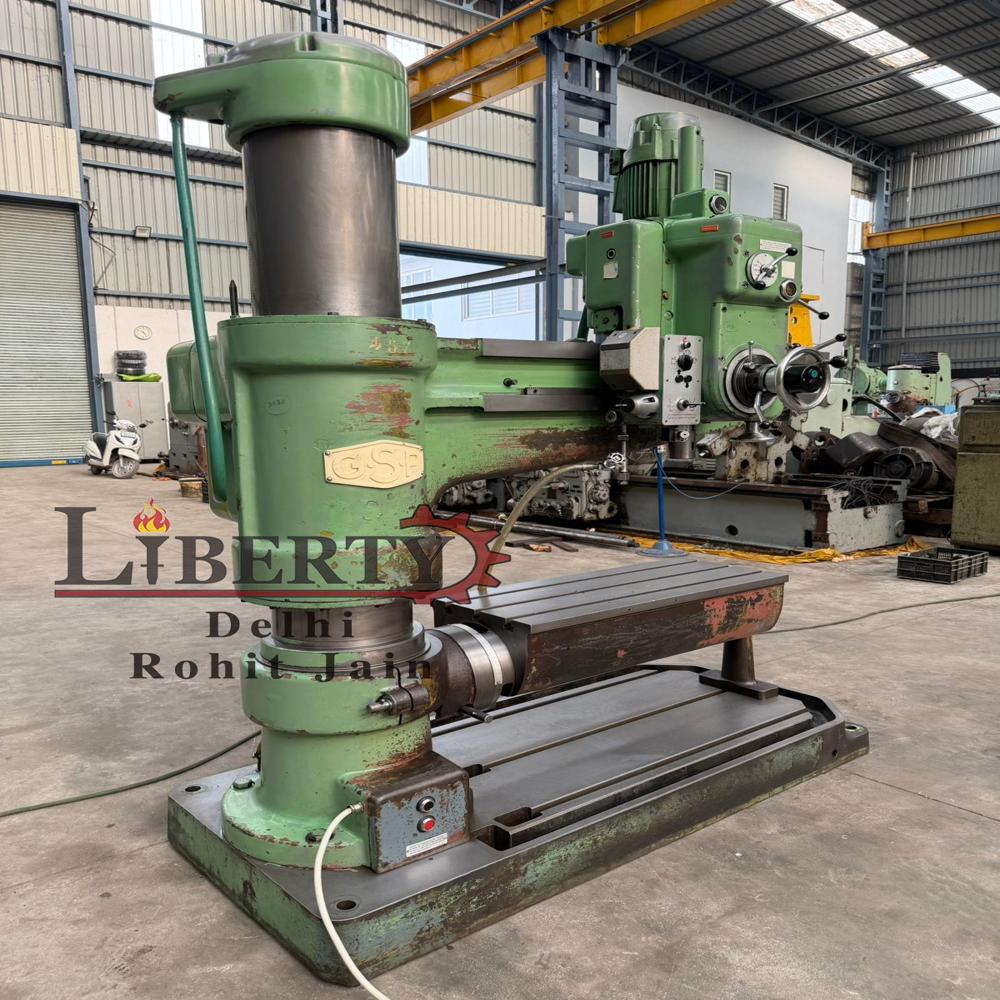

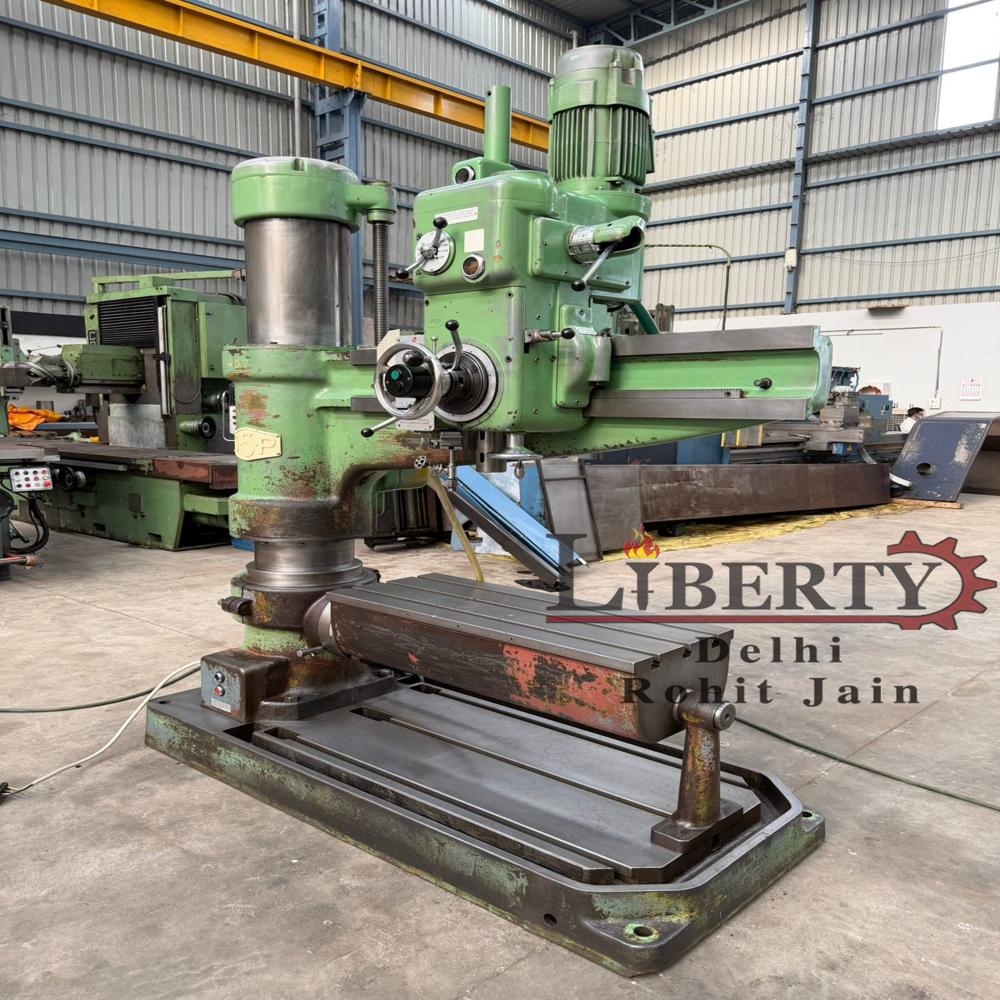

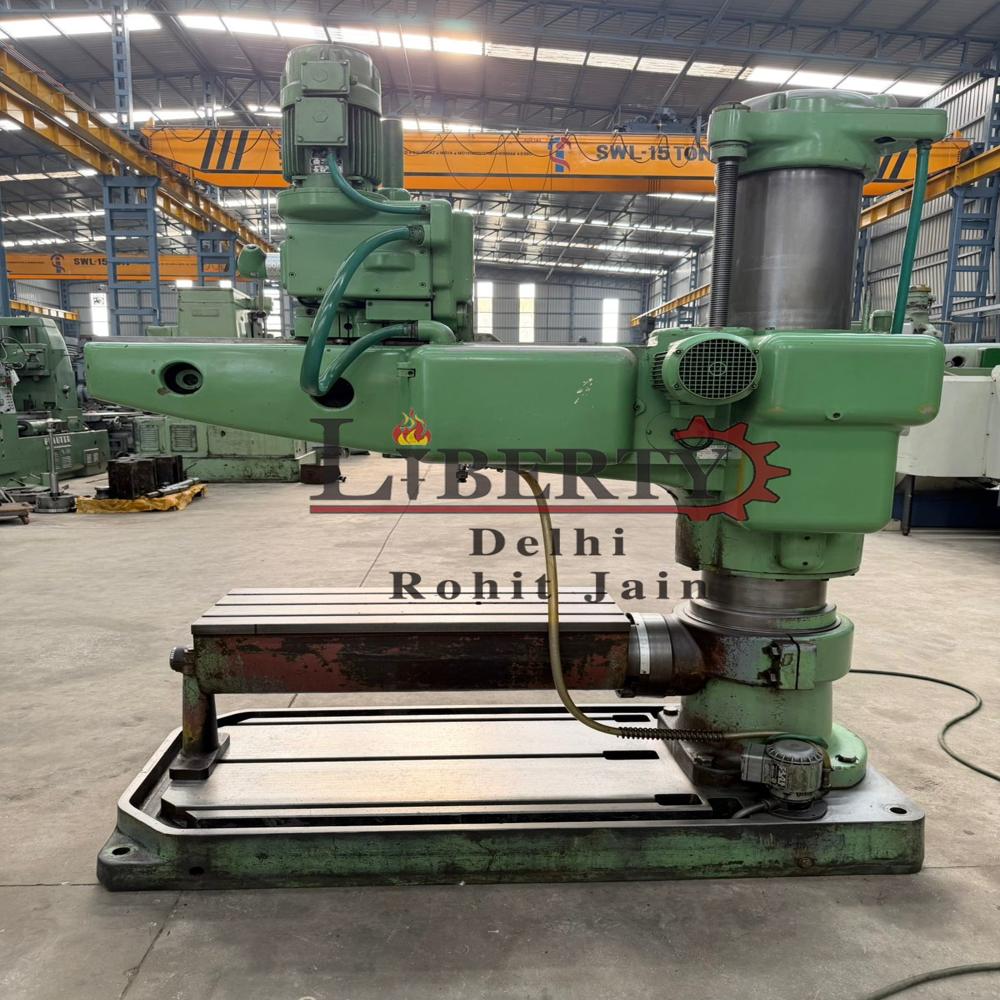

Radial Drilling Machine manufactured by GSP (France), Model 405T, available in excellent working condition. This Radial Drilling Machine has a Drilling Capacity of 50 mm and an Arm Length of 1300 mm, making it suitable for Drilling, Tapping, and Boring applications. It is also equipped with a Tilting Table, allowing Taper Drilling and Tapping operations. The machine is equipped with Hydraulic Automatic Clamping for both the Radial Arm and Drilling Head, providing quick positioning and rigid clamping during machining operations. The technical details are as follows -

Material
Heavy Duty Cast Iron, Hardened & Ground Components

Computerized
No

Automatic Grade
Semi-Automatic

Control System
Manual

Voltage
415 V

Power
5 HP

Power Source
Electric

Weight (kg)
Approx. 3500 kg

Capacity
Drilling Capacity: 50 mm in Steel

Color
Green

Usage & Applications
Heavy Drilling in Ferrous & Non-ferrous Metals, General Engineering Workshops, Fabrication Shops

Spindle Feed
Power and Manual

Distance Spindle to Base
250 mm to 1290 mm

Number of Spindle Speeds
12 Steps

Spindle Taper
MT 5

Vertical Travel of Arm
700 mm

Distance Spindle Axis to Column
350 mm to 1300 mm

Base Plate Size
1500 x 1000 mm approx.

Work Table Type
Box Table

Arm Length
1300 mm

Model
405T

About GSP France 405T 50 mm x 1300 mm Arm Radial Drilling Machine

Make - GSP (France)

Model - 405T

Drilling Capacity - 50 mm

Spindle Diameter - 95 mm

Arm Length - 1300 mm

Spindle Speed Range - 40 to 1800 RPM

Spindle Taper - MT-4

Spindle Feed Travel - 325 mm

Spindle Feed Rates - 0.045 to 0.50 mm/rev

Vertical Travel of Arm - 520 mm

Max. Height between Spindle & Top of Base - 1450 mm

Tilting Table Size - 995 mm x 400 mm

Tilting Table Rotation Range - +90 degree to -90 degree

Clamping Type - Automatic ; Hydraulic

Approx. Machine Weight - 2.50 Tons

- Equipped with Hydraulic Automatic Clamping for Radial Arm and Drilling Head.

- Equipped with a Tilting Table for Taper Drilling and Tapping operations.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/NhooREiMCuA

Versatile Drilling Capabilities

The GSP France 405T is engineered for a broad spectrum of drilling applications, offering a large arm reach of up to 1300 mm and a maximum drilling diameter of 50 mm in steel. Its variable spindle speeds (25-1600 RPM) ensure adaptability for diverse materials and machining requirements, making it a trusted choice for heavy drilling tasks in industrial environments.

Durable Construction and Precision

Built with heavy-duty cast iron and hardened, ground components, this radial drilling machine stands out for its stability and long operational lifetime. The gear-driven system supports both manual and power feed, while robust design features such as the wide work table and auto-lifting arm deliver consistent precision and facilitate larger workpieces.

FAQ's of GSP France 405T 50 mm x 1300 mm Arm Radial Drilling Machine:

Q: How do I operate the GSP France 405T Radial Drilling Machine?

A: The machine utilizes a manual control system with both power and manual feed options. Set your required spindle speed using the 12-step selector, position your workpiece on the box table, adjust the arm and spindle as needed, and engage drilling using the electric-powered 5 HP motor.

Q: What types of materials can be drilled with this machine?

A: The GSP France 405T is suitable for drilling in ferrous and non-ferrous metals, including mild steel, cast iron, aluminum, and certain alloys, making it ideal for general engineering workshops, fabrication shops, and heavy-duty industrial applications.

Q: When should I use the power feed versus the manual feed?

A: The power feed is best utilized for consistent and deeper drilling operations or when working with tough materials. Manual feed allows for greater control when precise entry or exit of the drill is required, or for small, intermittent drilling tasks.

Q: Where is the GSP France 405T typically used?

A: This machine is commonly found in general engineering workshops, fabrication shops, machine shops, and heavy industry where reliable, high-capacity drilling of large or thick workpieces is required.

Q: What is the process for setting up a workpiece on this machine?

A: Begin by securely clamping the workpiece onto the 900 x 700 mm box table or base plate. Adjust the radial arm for lateral positioning, set the spindle to the desired vertical height, and align the spindle axis with your drilling point before starting the operation.

Q: What are the key benefits of the GSP France 405T Radial Drilling Machine?

A: Some key benefits include its large working range (arm reach of 1300 mm), robust build for stability, versatility in handling various materials, adjustable arm for flexible operations, and the convenience of power feed and auto arm lifting.
