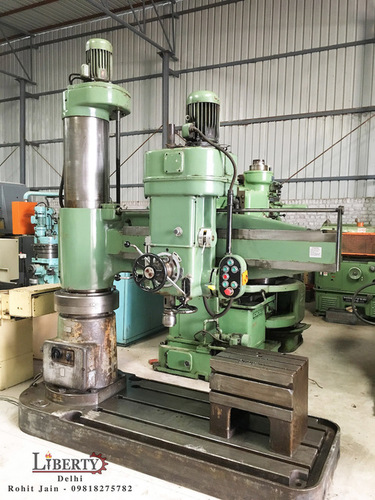

Otto Muller Germany Radial Drilling and Tapping Machine

Name: Otto Muller Germany Radial Drilling and Tapping Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Otto Muller Germany Radial Drilling and Tapping Machine Specification

Dimension (L*W*H)
2200 x 950 x 2200 mm

Table Size
520 x 400 mm

Features
Heavy duty, precision engineered, robust construction, easy operation

Noise Level
Low

Spindle Speed
8 Steps, 751220 RPM

Machine Type
Radial Arm Drilling & Tapping

Frequency
50 Hz

Diameter
Max drilling diameter 50 mm

Motor Power
3 HP

Cutting Area
Variable depending on arm position and stroke

Condition
New

Product Type
Radial Drilling and Tapping Machine

Material
Cast Iron and Steel

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Manual

Voltage
380-415 V

Power
2.2 kW

Power Source
Electric

Weight (kg)
Approx. 1100 kg

Capacity
Drilling up to 50 mm, Tapping up to M42

Color
Off White & Olive Green

Usage & Applications
Industrial drilling and tapping of metal & engineering material

Clamping Type
Hydraulic Manual

Column Diameter
200 mm

Work Table Movement
Manual Swivel

Coolant System
Integrated

Quill Diameter
72 mm

Chuck Size
1-13 mm (Drill); 3-42 mm (Tap)

Spindle Travel
250 mm

Model
OMR-50

Tapping Capacity
M42 in Steel

Distance from Spindle to Column
3401400 mm

Distance from Spindle to Base
1100 mm

Arm Length
1600 mm

Otto Muller Germany Radial Drilling and Tapping Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Otto Muller Germany Radial Drilling and Tapping Machine

Make - Otto Muller (Germany)

Drilling Capacity - 35 mm

Spindle Diameter - 80 mm

Spindle Taper - MT 4

Spindle Speeds - 100 rpm to 1400 rpm (Continuously Variable)

Spindle Feed Travel - 200 mm

Max. Height between Spindle to Table - 590 mm

Max. Distance between Spindle Center to Pillar - 960 mm

Min. Distance between Spindle Center to Pillar - 210 mm

Table Size - 1140 mm x 390 mm

Spindle Feed Rate of Travel - 0.08 mm/rev to 0.25 mm/rev

Head Rotation - 360 degrees

Clamping Type - Automatic ; Hydraulic

- With Automatic Tapping Feature.

- Complete with Coolant Tank and Pump.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/EcgBlxKwD4w

Heavy-Duty Industrial Performance

Engineered for substantial workloads, the OMR-50 provides exceptional drilling and tapping capacities. With a solid cast iron and steel build, this machine ensures longevity and stable performance for heavy-duty tasks. Precision is central, thanks to its robust design and advanced clamping system.

Flexible Workpiece Handling

The OMR-50's 1600 mm arm and large spindle-to-base distance enable the handling of sizeable and varied materials. Its manual swivel work table and radial arm motion grant operators significant flexibility in positioning, making it suited for an extensive range of industrial applications.

Ease of Operation and Maintenance

The machine's semi-automatic functions and manual controls ensure simple usage for operators of various skill levels. Integrated features like a coolant system and hydraulic clamping support efficient operation while minimizing wear and maintenance requirements.

FAQ's of Otto Muller Germany Radial Drilling and Tapping Machine:

Q: How is the Otto Muller OMR-50 Radial Drilling and Tapping Machine used in industrial operations?

A: The OMR-50 is used primarily for precision drilling and tapping in metal and engineering materials. Its robust construction and variable arm position allow operators to work on large or heavy workpieces, making it ideal for manufacturing, fabrication, and heavy engineering industries.

Q: What are the main benefits of using the OMR-50 over conventional drilling machines?

A: The OMR-50 offers substantial advantages such as a heavy-duty build, larger drilling and tapping capacities, greater reach with its 1600 mm arm, integrated coolant system, and advanced hydraulic clamping. This enhances machining accuracy, operational efficiency, and operator safety compared to standard machines.

Q: When should you consider the OMR-50 for your workshop or factory?

A: Consider the OMR-50 when your operations require frequent or high-capacity drilling and tapping, especially in hard metals or larger components. It is particularly suitable for workshops needing versatility, precision, and the ability to handle diverse or oversized workpieces.

Q: Where can the OMR-50 Radial Drilling and Tapping Machine be installed for optimal use?

A: The machine should be installed in well-ventilated industrial settings with sufficient space due to its size (2200 x 950 x 2200 mm). Ensure a stable, flat foundation to support its approximate weight of 1100 kg, and proximity to an appropriate power supply (380-415 V, 50 Hz).

Q: What is the process for setting up and operating the OMR-50?

A: Installation involves securing the machine to the workshop floor and connecting it to an electric power source. Operators position the radial arm and workpiece, select the appropriate spindle speed, clamp the material, and initiate drilling or tapping, using the manual controls and integrated coolant as needed.

Q: How does the integrated coolant system of the OMR-50 enhance its operation?

A: The integrated coolant system keeps the tool and workpiece cool during prolonged drilling and tapping, reducing wear, improving finish, and extending tool life. This results in smoother operation and less downtime for maintenance.

Q: What materials can the OMR-50 efficiently process?

A: Thanks to its cast iron and steel construction as well as its high spindle power and precision controls, the OMR-50 efficiently handles a wide range of metals, including steel, cast iron, and various engineering materials typically encountered in industrial fabrication.
