Webo 60 mm Capacity Pillar Drilling Machine

Name: Webo 60 mm Capacity Pillar Drilling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Webo 60 mm Capacity Pillar Drilling Machine Specification

Dimension (L*W*H)
(Approx.) 1220 x 600 x 2000 mm

Features
Rugged construction, high performance, low maintenance

Table Size
500 mm diameter

Machine Type
Pillar Type

Condition
New

Frequency
50 Hz

Motor Power
3 HP

Spindle Speed
8 Steps, 45 to 1445 RPM

Cutting Area
Up to 60 mm

Diameter
60 mm

Noise Level
Low

Product Type
Pillar Drilling Machine

Material
Heavy Duty Cast Iron Body

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Manual

Voltage
415 V

Power
3 HP

Power Source
Electric

Weight (kg)
Approx. 780 kg

Capacity
60 mm

Color
Green

Usage & Applications
Used for precision drilling in metal, plastic, wood applications

Spindle Travel
220 mm

Column Diameter
140 mm

Drilling Depth
220 mm

Distance from Spindle to Base
1020 mm

Spindle Taper
MT-5

Work Table Rotation
360°

Main Shaft Material
Alloy Steel, hardened and ground

Distance from Spindle to Table
620 mm

Base Size
600 x 450 mm

Number of Spindle Speeds
8

Drive Type
V-Belt driven

Coolant Pump
Provided

Webo 60 mm Capacity Pillar Drilling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

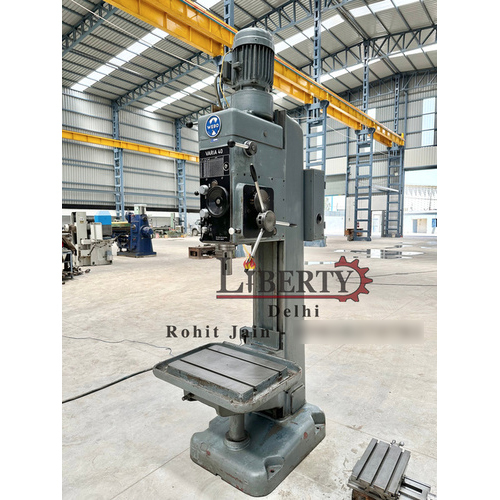

About Webo 60 mm Capacity Pillar Drilling Machine

Make - Webo (Germany)

Model - Varia 40

Capacity - 60 mm

Spindle Diameter - 85 mm

Spindle Taper - MT 4

Spindle Feed Travel - 240 mm

Spindle Speeds - 120 rpm to 2500 rpm

Spindle Feed Travel Rates - 0.06 mm/rev to 0.84 mm/rev

Table Size - 565 mm x 405 mm

Distance between Spindle Center to Vertical Pillar - 365 mm

Max. Height between Spindle to Table Top - 905 mm

Size of Additional Table - 350 mm x 200 mm

- With an Additional Table having Longitudinal & Cross Travels.

- Complete with Coolant Tank and Pump.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/UT2lQrjSVbM

Precision Engineering for Versatile Applications

Designed to meet rigorous industrial demands, the Webo 60 mm Pillar Drilling Machine delivers unmatched performance in tasks requiring high accuracy. Its hardened and ground alloy steel main shaft ensures longevity, while the heavy-duty cast iron body offers stability for vibration-free operation. The 360 rotating worktable enables flexible positioning, catering to diverse drilling needs in metal, plastic, and wood.

User-centric Features for Efficiency and Safety

This machine simplifies large and repetitive drilling tasks with its semi-automatic design and manual controls, providing hands-on precision. An integrated coolant pump extends tool life and sustains workpiece quality by maintaining appropriate temperatures. The low-noise, low-maintenance system makes it ideal for busy workshops and manufacturing settings.

FAQ's of Webo 60 mm Capacity Pillar Drilling Machine:

Q: How is the Webo 60 mm Pillar Drilling Machine best utilized in industrial settings?

A: This machine is ideal for precision drilling tasks in metal, plastic, and wood, commonly used in workshops, factories, and manufacturing units. Its sturdy construction and wide drilling capacity make it suitable for both small- and large-scale operations.

Q: What process should I follow to switch spindle speeds on this machine?

A: To change spindle speeds, simply adjust the V-belt drive system to select from eight speed settings ranging from 45 to 1445 RPM. This ensures optimal speed is set for different materials and drilling requirements.

Q: When should the built-in coolant pump be used during operation?

A: The coolant pump should be activated during extended drilling sessions or when working with metals and other hard materials to dissipate heat, minimize tool wear, and maintain drilling accuracy.

Q: Where is the machine most effectively positioned within a workspace?

A: Place the machine on a stable floor in an area with sufficient clearance for the 1220 x 600 x 2000 mm dimensions. Ensure accessibility around the 360 rotating table and allow space for easy loading and unloading of workpieces.

Q: What are the benefits of the alloy steel, hardened and ground main shaft?

A: The tough alloy steel main shaft is heat-treated and precisely ground to enhance durability, reduce wear, and support accurate, smooth spindle rotation for high-quality drilling results over extended use.

Q: How does the manual control system enhance usability?

A: The manual controls offer operators tactile feedback, making it easy to adjust drilling depth, spindle speed, and table position with precision, especially beneficial for custom or intricate job requirements.
