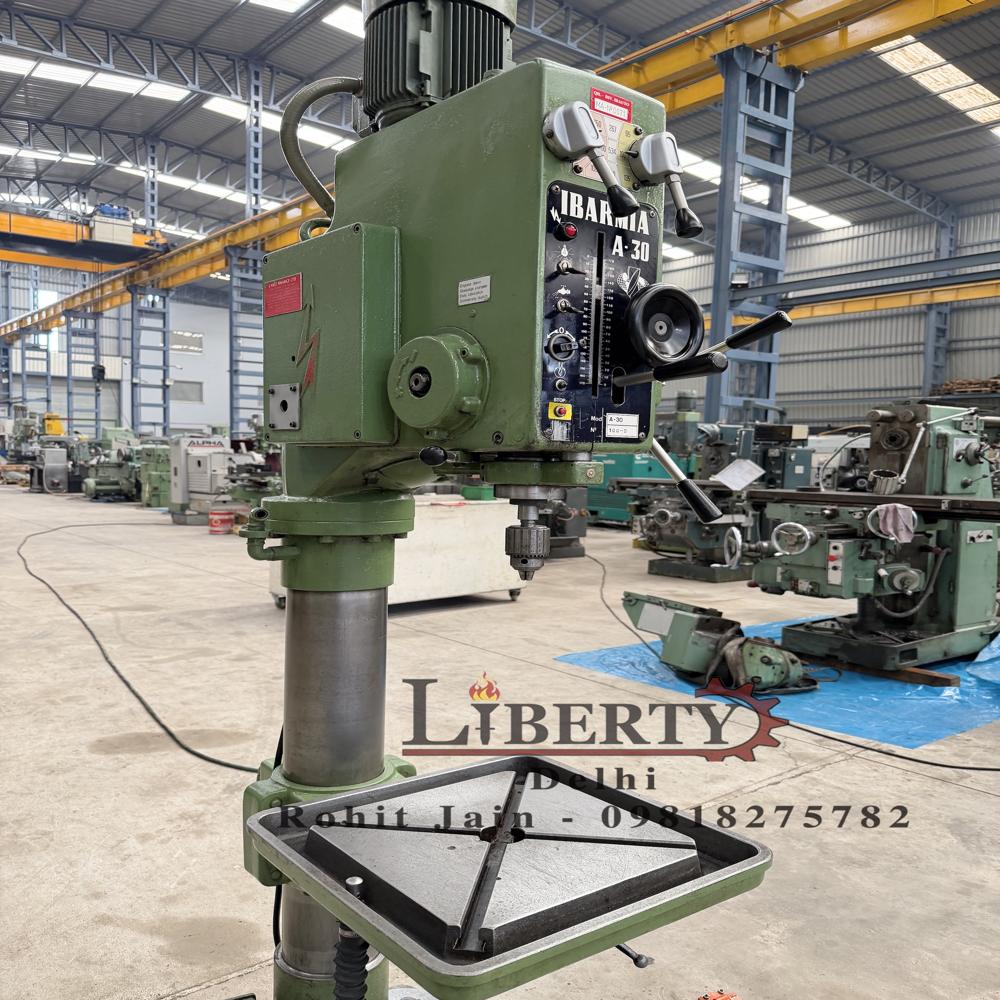

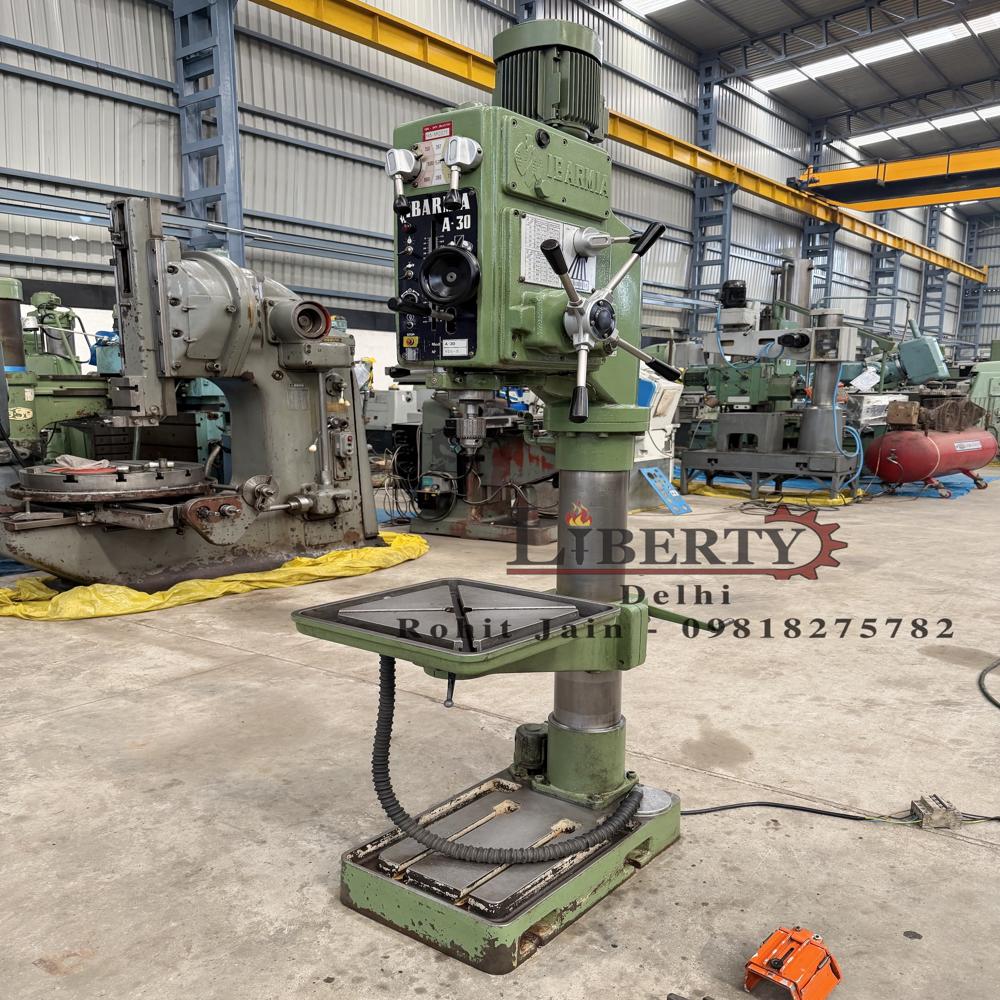

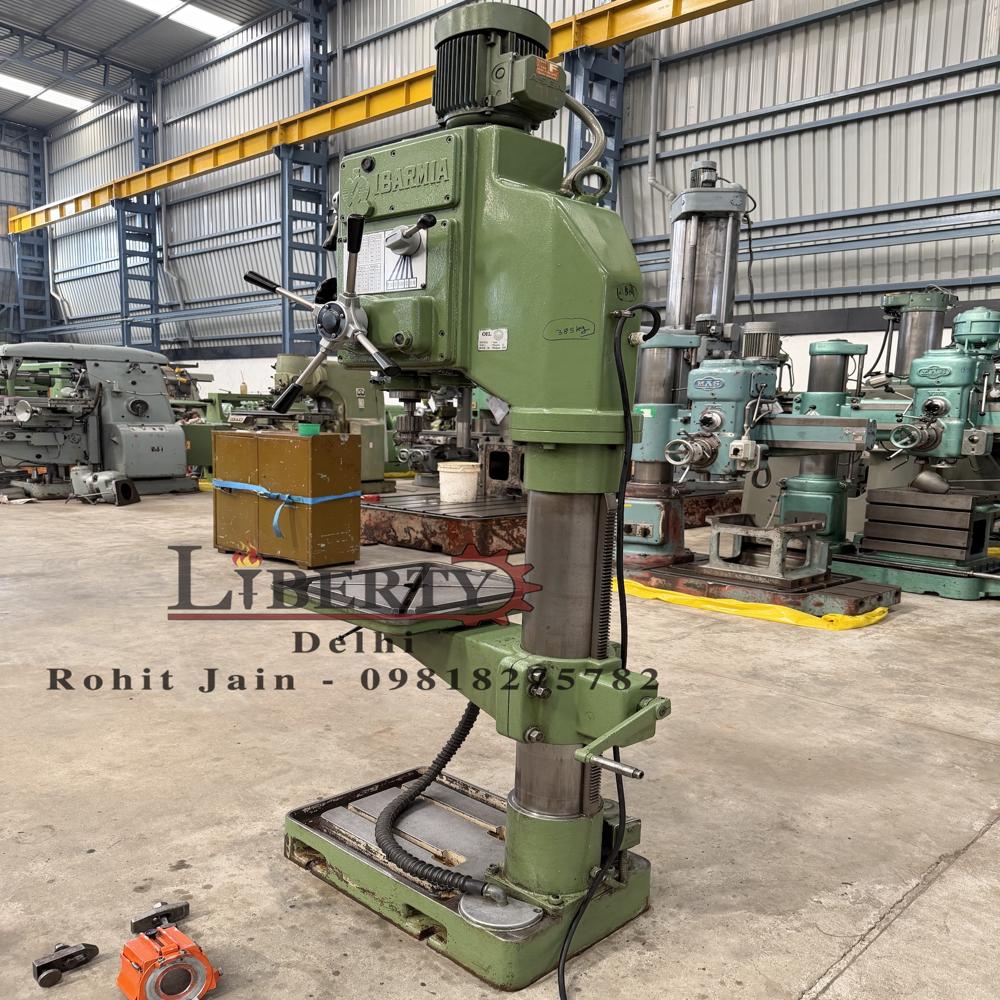

Ibarmia Spain 32 mm Capacity Auto-Feed Pillar Drilling Machine
Ibarmia Spain 32 mm Capacity Auto-Feed Pillar Drilling Machine
Ibarmia Spain 32 mm Capacity Auto-Feed Pillar Drilling Machine
Ibarmia Spain 32 mm Capacity Auto-Feed Pillar Drilling Machine
Ibarmia Spain 32 mm Capacity Auto-Feed Pillar Drilling Machine
Ibarmia Spain 32 mm Capacity Auto-Feed Pillar Drilling Machine

Ibarmia Spain 32 mm Capacity Auto-Feed Pillar Drilling Machine

Price 100000.0 INR/ Piece

MOQ : 1 Piece

Ibarmia Spain 32 mm Capacity Auto-Feed Pillar Drilling Machine Specification

  • Noise Level
  • Low
  • Motor Power
  • 3 HP
  • Diameter
  • 32 mm maximum drilling diameter
  • Dimension (L*W*H)
  • 850 x 625 x 2175 mm
  • Cutting Area
  • Suitable for up to 32 mm diameter drilling
  • Table Size
  • 400 x 390 mm
  • Features
  • All-Geared, Automatic Feed, High-precision, Robust built, Coolant Tank & Pump included
  • Frequency
  • 50 Hz
  • Spindle Speed
  • 75 - 3125 rpm (12 steps)
  • Machine Type
  • Auto-Feed Pillar Drilling Machine
  • Condition
  • Excellent working condition
  • Product Type
  • Automatic Feed type All-Geared Pillar Drilling Machine made by Ibarmia (Spain) in excellent working condition. The model of the machine is A-30 and the Drilling Capacity is 32 mm. The machine is also complete with its Coolant Tank and Pump. The technical details are as follows -
  • Material
  • Heavy-duty alloy steel construction
  • Computerized
  • No
  • Automatic Grade
  • Automatic
  • CNC Or Not
  • No
  • Control System
  • Manual & Auto-Feed Mechanism
  • Voltage
  • 415 V
  • Power
  • 2.2 kW
  • Power Source
  • Electric
  • Weight (kg)
  • Approx. 700 kg
  • Capacity
  • 32 mm drilling
  • Color
  • Standard Industrial Blue/Yellow
  • Usage & Applications
  • Industrial drilling on metal, manufacturing units, workshop machinery
  • Drilling Capacity in Steel
  • 32 mm
  • Number of Spindle Speeds
  • 12
  • Max Distance Spindle to Table
  • 670 mm
  • Spindle Taper
  • Morse Taper No.4
  • Column Diameter
  • 115 mm
  • Height
  • 2175 mm
  • Quill Travel
  • 180 mm
  • Feed Mechanism
  • Automatic and manual
  • Coolant System
  • Integrated coolant tank and pump
  • Model
  • Ibarmia A-30
  • Radial Arm Movement
  • Fixed pillar, no radial movement
  • Max Distance Spindle to Base
  • 1120 mm
  • Base Size
  • 650 x 470 mm



About Ibarmia Spain 32 mm Capacity Auto-Feed Pillar Drilling Machine

Make - Ibarmia (Spain)
Model - A-30
Capacity - 32 mm
Spindle Diameter - 75 mm
Spindle Taper - MT-3
Spindle Feed Travel - 170 mm
Spindle Speeds - 95 rpm to 1500 rpm
Spindle Feed Travel Rates - 0.1 mm/rev to 0.3 mm/rev
Table Size - 450 mm x 450 mm
Base Clamping Size - 295 mm x 380 mm
Distance between Spindle Center to Vertical Pillar - 340 mm
Max. Height between Spindle to Table Top - 680 mm
Max. Height between Spindle to Base Top - 1150 mm
Vertical Pillar Diameter - 150 mm
- Equipped with a Rotating Type Table.
- Complete with Coolant Pump & In-built Tank.
- Machine is in excellent working condition.

Video of The Machine -


Precision Industrial Drilling

The Ibarmia A-30 delivers high-precision drilling capacity up to 32 mm in steel, catering to the demanding requirements of manufacturing units and workshops. Its auto-feed mechanism and all-geared transmission ensure consistent results with minimal operator intervention, maximizing production efficiency.


Robust Construction and Durability

Built with heavy-duty alloy steel, the A-30 is designed to withstand rigorous industrial use. The accurate spindle design, broad column diameter, and reinforced base guarantee stability and minimal vibration, ensuring both safety and long-term reliability in operation.


User-Friendly Operation

The Ibarmia A-30 features both automatic and manual feed mechanisms and a conveniently integrated coolant system. Operators benefit from straightforward manual controls, minimizing training time and enhancing productivity while maintaining precision across a range of applications.

FAQ's of Ibarmia Spain 32 mm Capacity Auto-Feed Pillar Drilling Machine:


Q: How does the auto-feed mechanism work on the Ibarmia A-30 drilling machine?

A: The auto-feed system operates by allowing users to engage automatic spindle feeding during drilling, reducing the need for manual input. This ensures consistent penetration into the material and enhances speed and accuracy, especially in repetitive industrial drilling.

Q: What materials can be drilled using the Ibarmia A-30, and what is its maximum drilling capacity?

A: This machine is suitable for heavy-duty industrial drilling in metals, especially steel, with a maximum drilling diameter of 32 mm. Its robust construction allows it to handle various metal alloys with ease and precision.

Q: When is it beneficial to use the integrated coolant tank and pump in the drilling process?

A: The integrated coolant system should be used during prolonged drilling sessions or when working with hard metals. It reduces heat buildup, minimizes tool wear, and improves both drilling performance and overall machine longevity.

Q: Where can the Ibarmia A-30 be applied within industrial settings?

A: The A-30 is ideal for manufacturing units, metalworking workshops, and industrial plants requiring high-precision and repetitive drilling operations. Its robust design and automatic features make it suitable for a wide range of professional environments.

Q: What process should be followed for switching between automatic and manual feed operations?

A: Operators can switch from manual to automatic feed by adjusting the control lever on the machine. It is advisable to start manually for alignment, then engage automatic feed for continuous drilling. Reverse the process as needed for manual adjustments or finishing.

Q: How does the Ibarmia A-30 benefit users compared to conventional pillar drilling machines?

A: The A-30 offers enhanced productivity through its auto-feed feature, integrated coolant system, and precise spindle control. Users experience less fatigue, better drilling consistency, and reduced machine maintenance, resulting in faster turnaround and optimal results in industrial environments.
