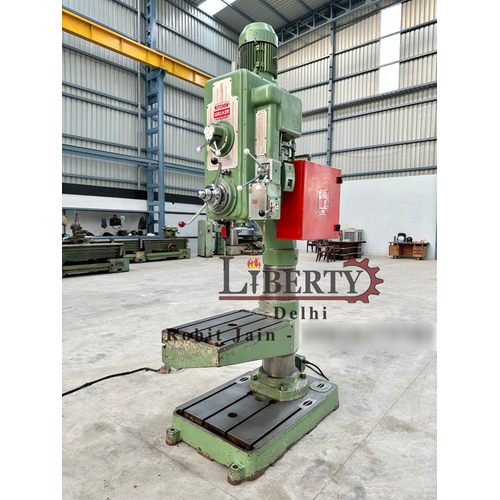

Kitchen Walker 63.5 mm Capacity Pillar Drilling Machine
Kitchen Walker 63.5 mm Capacity Pillar Drilling Machine

Kitchen Walker 63.5 mm Capacity Pillar Drilling Machine

Price 100000 INR/ Piece

MOQ : 1 Piece

Kitchen Walker 63.5 mm Capacity Pillar Drilling Machine Specification

  • Machine Type
  • Heavy Duty Pillar Drill
  • Dimension (L*W*H)
  • 650 mm x 450 mm x 1650 mm
  • Cutting Area
  • Large working area
  • Condition
  • New
  • Diameter
  • 63.5 mm
  • Spindle Speed
  • 75 to 1500 RPM (variable)
  • Frequency
  • 50 Hz
  • Motor Power
  • 2-3 HP
  • Noise Level
  • Low
  • Table Size
  • 400 mm x 400 mm (approx.)
  • Features
  • High-precision drilling, smooth operation, rigid body structure, low maintenance
  • Product Type
  • Pillar Drilling Machine
  • Material
  • Cast Iron Body
  • Computerized
  • No
  • Automatic Grade
  • Semi-Automatic
  • CNC Or Not
  • No
  • Control System
  • Manual
  • Voltage
  • 220-415 V
  • Power
  • 2-3 HP
  • Power Source
  • Electric
  • Weight (kg)
  • Approximately 350 kg
  • Capacity
  • 63.5 mm drilling capacity
  • Color
  • Green
  • Usage & Applications
  • Ideal for metalworking, workshop and industrial drilling operations
  • Drill Chuck
  • Standard 20 mm (supplied separately)
  • Quill Travel (Spindle Stroke)
  • Approx. 200 mm
  • Number of Spindle Speeds
  • 8 to 10 steps
  • Base Size
  • 600 mm x 400 mm
  • V-Belt Drive
  • Yes
  • Distance Spindle to Base
  • 1000 mm
  • Distance Spindle to Table
  • 500 mm
  • Column Diameter
  • 95 mm


Kitchen Walker 63.5 mm Capacity Pillar Drilling Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Main Domestic Market
  • All India


About Kitchen Walker 63.5 mm Capacity Pillar Drilling Machine

Make - Kitchen Walker (England)

Model - V-50

Capacity - 63.5 mm

Spindle Diameter - 76 mm

Spindle Taper - MT 4

Spindle Feed Travel - 350 mm

Spindle Speeds - 25 rpm to 1560 rpm

Spindle Feed Travel Rates - 0.089 mm/rev to 1.04 mm/rev

Table Size - 690 mm x 510 mm

Base Clamping Size - 610 mm x 740 mm

Distance between Spindle Center to Vertical Pillar - 405 mm

Height between Spindle to Top of Base - 1185 mm

Max. Height between Spindle to Table Top - 740 mm

Min. Height between Spindle to Table Top - 310 mm

Vertical Pillar Diameter - 254 mm

- Machine is in excellent working condition.


Video of The Machine -

https://youtu.be/LEQC22ShpH4



Superior Drilling Capacity and Versatility

With an impressive 63.5 mm drilling capacity and variable spindle speeds, the Kitchen Walker Pillar Drilling Machine handles even the toughest industrial tasks. Its spacious working area, precise quill travel, and compatibility with a 20 mm drill chuck make it a versatile choice for multiple drilling requirements in metalworking and fabrication shops.


Robust Construction for Long-Lasting Durability

Engineered with a rigid cast iron body and a 95 mm column diameter, this machine ensures exceptional stability and minimal vibration during use. Its solid build quality translates into reduced maintenance demands and enhanced operational longevity, making it a cost-effective investment for busy workshops.


Efficient Operations for Professional Results

The semi-automatic, manual control system is easy to operate and allows for fine adjustments, ensuring high-precision drilling. Its powerful 2-3 HP motor and smooth, low-noise performance contribute to a productive workplace environment, helping you achieve consistent, high-quality results.

FAQ's of Kitchen Walker 63.5 mm Capacity Pillar Drilling Machine:


Q: How does the Kitchen Walker Pillar Drilling Machine ensure high-precision drilling operations?

A: This machine features a rigid cast iron body, a stable 95 mm column, and precise quill travel of approximately 200 mm. These attributes minimize vibration, allowing for accurate and consistent drilling, making it ideal for professional workshops.

Q: What materials and industries are best suited for this drilling machine?

A: Designed primarily for metalworking, the Kitchen Walker Pillar Drilling Machine is suitable for workshops, fabrication units, and various industrial settings that require reliable drilling of metals and sturdy materials.

Q: When should I consider choosing this machine over lighter models?

A: If your operations demand drilling larger diameters (up to 63.5 mm), frequent usage, or work with dense materials, this heavy-duty pillar drilling machine offers enhanced durability, superior capacity, and a larger working area compared to lighter alternatives.

Q: Where can I install this drilling machine for optimal use?

A: The machine is best installed in spacious workshops or industrial production areas with stable flooring, adequate ventilation, and a compatible power supply (220-415 V), ensuring safety and operational efficiency.

Q: What is the process for changing spindle speeds on this model?

A: This machine utilizes a V-belt drive system allowing you to select from 8 to 10 spindle speeds between 75 and 1500 RPM by manually adjusting the belt position according to your drilling needs.

Q: How does the semi-automatic, manual control impact usage?

A: The manual control system allows skilled operators to make precise adjustments, giving them full control over drilling operations, which is particularly beneficial for tasks that require attention to detail and adaptability.

Q: What are the main benefits of choosing this model for industrial applications?

A: Key advantages include its high drilling capacity, stable operation due to a rigid cast iron structure, ease of use, low maintenance requirements, and the ability to handle heavy-duty and large-volume drilling tasks reliably.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Radial Drilling Machine Category

MAS VR4 50 mm Capacity Radial Drill Machine

MAS VR4 50 mm Capacity Radial Drill Machine

Price 14500 INR / Piece

Minimum Order Quantity : 1 Piece

CNC Or Not : Other, Not CNC

Condition : New

Capacity : 50 mm

Spindle Speed : 651800 RPM

Webo 60 mm Capacity Pillar Drilling Machine

Webo 60 mm Capacity Pillar Drilling Machine

Price 100000 INR / Piece

Minimum Order Quantity : 1 Piece

CNC Or Not : Other, No

Condition : New

Capacity : 60 mm

Spindle Speed : 8 Steps, 45 to 1445 RPM

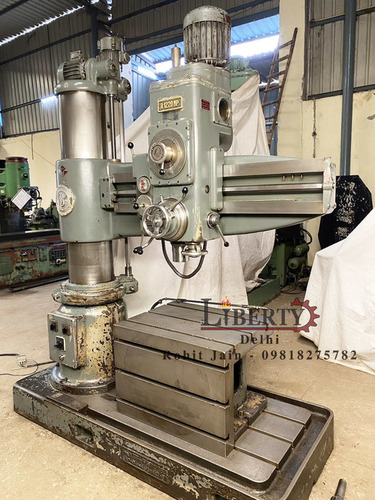

Breda Italy 40 mm Capacity Radial Drilling Machine
