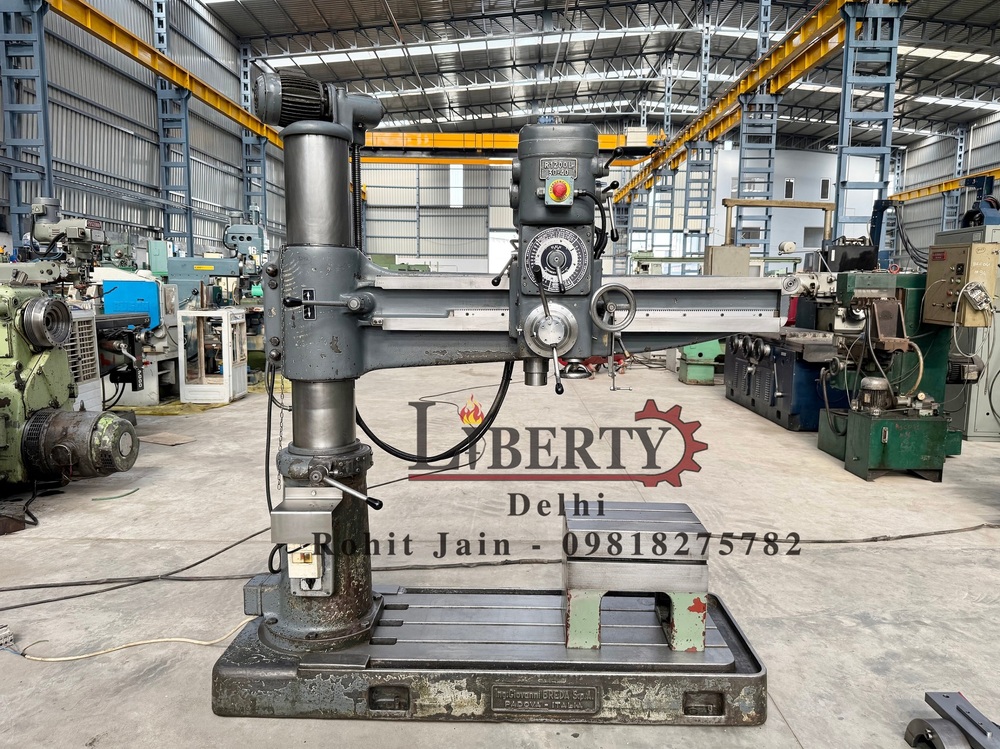

Breda Italy 40 mm Capacity Radial Drilling Machine

Name: Breda Italy 40 mm Capacity Radial Drilling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Breda Italy 40 mm Capacity Radial Drilling Machine Specification

Diameter
40 mm maximum drill diameter

Table Size
700 x 500 mm

Dimension (L*W*H)
2250 x 950 x 2700 mm

Noise Level
Low

Machine Type
Floor Mounted

Features
Robust construction, high precision, adjustable arm

Cutting Area
Up to 40 mm diameter

Condition
Used (Good Condition)

Spindle Speed
8 Speeds, 75-2000 RPM

Frequency
50 Hz

Motor Power
3 HP

Product Type
Radial Drilling Machine

Material
Cast Iron, Steel

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Manual

Voltage
415V

Power
3 HP

Power Source
Electric

Weight (kg)
Approx 2400 kg

Capacity
40 mm drilling capacity

Color
Green

Usage & Applications
For heavy duty drilling in metalworking industries

Min Distance Spindle to Base
350 mm

Made In
Italy

Work Table Movement
Manual

Vertical Travel of Arm
800 mm

Arm Length
1500 mm

Cooling System
Provided

Max Distance Spindle to Base
1200 mm

Year of Manufacture
Reconditioned or Used (Year varies)

Condition of Paint
Repainted

Main Drive Motor
3 HP, 1440 RPM

Spindle Taper
MT4

Breda Italy 40 mm Capacity Radial Drilling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Breda Italy 40 mm Capacity Radial Drilling Machine

Make - Breda (Italy)

Model - R1200L

Drilling Capacity - 40 mm

Spindle Diameter - 60 mm

Arm Length - 1330 mm

Spindle Speeds - 40 rpm to 1350 rpm

Spindle Taper - MT 4

Max. Spindle Feed Travel - 175 mm

Spindle Feed Travel Rates - 0.10 mm/rev to 0.30 mm/rev

Vertical Travel of the Arm - 535 mm

Table Size - 450 mm x 320 mm

Clamping Type - Manual.

- Machine is in excellent working condition.

Video of The machine -

https://youtu.be/2E-rehinJ1w

Built for Industrial Precision

Engineered for metalworking environments, the Breda radial drilling machine offers superior stability and accuracy, thanks to its rugged cast iron and steel frame. The adjustable arm and vertical movement support versatile operations, accommodating various workpiece sizes with ease. Its robust construction ensures reduced vibration and consistent drilling outcomes.

Efficient and User-Friendly Design

Featuring a manually operated work table and control system, the machine allows straightforward adjustments for different tasks. The low noise level and efficient cooling system add to user comfort and machine longevity. The repainted condition enhances its appearance, and the semi-automatic grade delivers flexibility for operators.

Versatile Applications and Reliable Operation

With up to 40 mm drilling capacity and a maximum spindle-to-base distance of 1200 mm, the machine is suitable for a variety of metal drilling applications. Its multiple spindle speed options enable precise work on different materials, making it a valuable addition to manufacturing and metal fabrication setups.

FAQ's of Breda Italy 40 mm Capacity Radial Drilling Machine:

Q: How does the Breda Italy 40 mm Capacity Radial Drilling Machine operate for heavy-duty drilling?

A: The machine uses a 3 HP electric motor and manual controls to drive the spindle, which can be set to eight different speeds. The sturdy arm and adjustable vertical travel allow operators to position the drill accurately for heavy-duty applications in metals.

Q: What are the primary applications for this radial drilling machine?

A: This machine is primarily used for heavy-duty drilling tasks in metalworking industries, such as manufacturing, fabrication, and machining workshops. It is suitable for creating precise holes up to 40 mm in diameter in cast iron, steel, and other metals.

Q: When should I choose a semi-automatic, manual control radial drilling machine over a CNC model?

A: A semi-automatic, manual machine is ideal when frequent adjustments and setup flexibility are required, or when production quantities are moderate. It is also preferred for applications that do not demand full automation or programming, resulting in lower operational costs.

Q: Where is this machine typically installed, and what is its footprint?

A: This floor-mounted machine is usually installed in industrial settings, such as machine shops or fabrication plants. Its dimensions (2250 x 950 x 2700 mm) and weight (about 2400 kg) require sufficient workspace and a stable, reinforced floor.

Q: What is the process for adjusting the drill arm and spindle to accommodate different workpieces?

A: Operators manually unlock and adjust the arm length (up to 1500 mm) and vertical travel (up to 800 mm) to position the spindle over the desired drilling point. The spindle speed is selected based on the material and hole size, then locked in place for drilling.

Q: What are the benefits of using this reconditioned radial drilling machine from Italy?

A: Benefits include high structural durability, reliable performance, precise drilling capabilities, low noise, and value for money. The reconditioned status ensures it meets functionality standards while being cost-effective compared to new equipment.

Q: How does the included cooling system improve machine operation?

A: The provided cooling system helps dissipate heat generated during extended drilling operations, protecting both the drill bit and workpiece. This helps maintain drilling accuracy and prolongs the service life of the machine.
