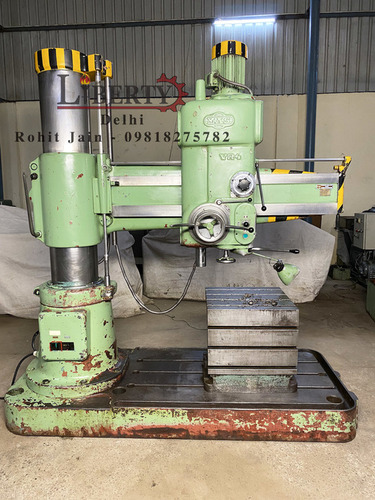

MAS 40 mm Capacity Radial Drilling Machine

Send Inquiry

Request To Call Back

MAS 40 mm Capacity Radial Drilling Machine

Name: MAS 40 mm Capacity Radial Drilling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MAS 40 mm Capacity Radial Drilling Machine Specification

Features
High torque, robust construction, adjustable radial arm

Table Size
500 x 400 mm

Condition
New

Spindle Speed
75-1200 RPM

Frequency
50 Hz

Diameter
40 mm

Cutting Area
40 mm diameter

Noise Level
Low

Dimension (L*W*H)
1800 x 900 x 2300 mm

Machine Type
Radial Drill

Motor Power
3 HP

Product Type
Radial Drilling Machine

Material
Cast Iron & Steel

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Manual

Voltage
415 V

Power
2.2 kW

Power Source
Electric

Weight (kg)
1350 kg

Capacity
40 mm

Color
Green

Usage & Applications
Heavy duty drilling, engineering workshops, fabrication workshops

Swing
2000 mm

Drilling Head Movement
Manual Traverse

Spindle Travel
250 mm

Base Size
950 x 670 mm

Tool Clamping
MT4 Taper

Tapping Capacity
32 mm

Number of Speed Steps
8

V-Belt Type
Standard Industrial V-Belt

Maximum Distance Spindle to Column
1000 mm

Quill Diameter
72 mm

Chuck Type
Keyed or Keyless

Column Diameter
220 mm

Lubrication System
Manual

Maximum Distance Spindle to Base
1100 mm

Arm Length
1100 mm

Coolant System
Optional

MAS 40 mm Capacity Radial Drilling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About MAS 40 mm Capacity Radial Drilling Machine

Make - MAS (Czech Republic)

Model - VO 32

Drilling Capacity - 40 mm

Spindle Diameter - 75 mm

Spindle Taper - MT 4

Arm Length - 1150 mm

Spindle Speeds - 90 rpm to 4500 rpm

Spindle Feed Travel - 250 mm

Spindle Feed Rate of Travel - 0.03 mm/rev to 0.31 mm/rev

Vertical Travel of Arm - 510 mm

Tilting Cube Table Size - 630 mm x 560 mm

Tilting Angle of Cube Table - 0 to 90 Degree

Clamping Type - Manual

- Complete with a Clamping Vice.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/xHy8gP52mVI

Superior Drilling Performance

The MAS 40 mm Capacity Radial Drilling Machine provides exceptional power and accuracy for heavy-duty operations. With its MT4 taper tool clamping and 8 spindle speed steps, users can adapt to various drilling requirements. The machine's robust cast iron and steel build ensures stability and reduces vibration, enabling precise work on large components. Its adjustable radial arm and wide swing capacity further enhance versatility.

Optimized for Industrial Applications

Engineered for the demands of engineering and fabrication workshops, this radial drill excels in challenging environments. The manual traverse drilling head and significant arm and swing dimensions allow users to efficiently address complex tasks. The machine's low noise output and manual lubrication system contribute to a user-friendly and productive workspace.

Flexible and User-Friendly Design

With a spacious base and table size, the MAS radial drill accommodates various workpiece sizes. It features the option for keyed or keyless chucks, standard V-belt drive, and an optional coolant system for enhanced performance. Manual control ensures straightforward operation, while durable materials promise long service life with minimal maintenance.

FAQ's of MAS 40 mm Capacity Radial Drilling Machine:

Q: How does the MAS 40 mm Capacity Radial Drilling Machine enhance heavy-duty drilling operations?

A: This machine is equipped with a 40 mm drilling capacity, high torque motor, robust construction, and adjustable radial arm, making it ideal for heavy-duty tasks in engineering and fabrication workshops. Its versatility allows it to handle large workpieces with ease.

Q: What features ensure precise and uniform drilling with this machine?

A: The 8-step spindle speed (75-1200 RPM), manual traverse drilling head, and MT4 taper tool clamping offer users control over speed and placement, helping achieve consistent accuracy on various materials. The stable cast iron and steel build minimizes vibration during operation.

Q: When is it advisable to use the optional coolant system?

A: The optional coolant system is beneficial during prolonged drilling sessions or when working with tougher metals, as it helps dissipate heat, extends tool life, and improves surface finish. It is especially useful in continuous production environments.

Q: Where can this radial drilling machine be utilized efficiently?

A: It is ideally used in engineering workshops, fabrication shops, maintenance units, and heavy-duty machinery manufacturing. Its design and features accommodate both small-scale and large-scale industrial applications.

Q: What is the process for changing spindle speeds or chucks on this machine?

A: Users can change spindle speeds simply by adjusting the control lever to the preferred setting among the 8 steps. Chuck replacement is straightforward, supporting both keyed and keyless designs, and tool holding is secured by the MT4 taper system.

Q: How does the MAS radial drilling machine benefit workshop productivity and safety?

A: It offers high torque output for challenging drilling tasks, low noise operation for a safer environment, and robust construction for long-term reliability. The manual lubrication and control systems promote ease of maintenance and safe operation.
