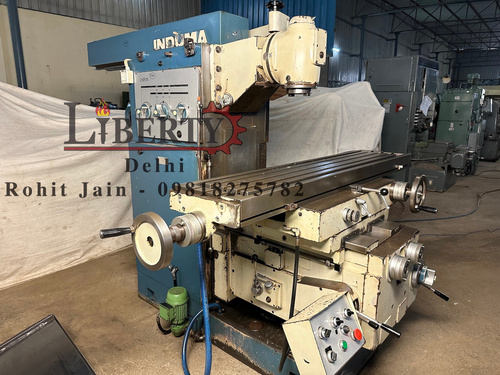

Induma 1250 mm x 250 mm Universal Milling Machine

Name: Induma 1250 mm x 250 mm Universal Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Induma 1250 mm x 250 mm Universal Milling Machine Specification

Model
Induma 1250 x 250

Rotation
360 Swivel Table

Product Type
Universal Milling Machine

General Use
Universal Milling Operations

Material
Cast Iron Body

Type
Horizontal & Vertical

Capacity
Heavy Duty

Weight (kg)
Approx. 1800 kg

Computerized
No

Automatic
Semi-Automatic

CNC Or Not
Not CNC

Control System
Manual

Table Size
1250 mm x 250 mm

Table Slide Way
Precision Ground Hardened

Floor Space
Approx. 2000 mm x 1700 mm

Spindle Speed
40 - 1800 RPM (variable) via gearbox

Power
3 HP

Voltage
415 V

Dimension (L*W*H)
Approx. 2000 mm x 1700 mm x 1800 mm

Feature
Swivel Table, Sturdy Construction, Gear Driven

Color
Standard Industrial Green/White

Table Longitudinal Travel
900 mm

Lubrication System
Centralized

Table Vertical Travel
400 mm

Table Cross Travel
255 mm

Max Distance Spindle to Table
420 mm

Main Motor Drive
Electric

T-Slots (Number x Width)
3 x 14 mm

Rapid Traverse
Provided

Vertical Spindle Taper
ISO 40

Horizontal Spindle Taper
ISO 40

Coolant System
Provided

Induma 1250 mm x 250 mm Universal Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Induma 1250 mm x 250 mm Universal Milling Machine

Make - Induma (Italy)

Model - NL 49

Table Size - 1250 mm x 250 mm

XYZ Travels - 850 mm x 255 mm x 440 mm

Spindle Speeds - 40 rpm to 1450 rpm

Spindle Taper - ISO 40

Feed Rates of Travel - 10 mm/min to 600 mm/min

- With 2 x Brackets, Arbour, Bracket Support for Horizontal Milling Operations.

- Equipped with a parking-type Vertical Milling Head.

- Universal type Rotating Table.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/QzNLPgDmoHc

Rugged Construction and Versatility

The Induma Universal Milling Machine is built with a cast iron body and a precision-ground, hardened table slide way to withstand challenging machining tasks. Both horizontal and vertical spindle options with ISO 40 taper enable the machinist to tackle a diverse range of operations, from squaring and slotting to drilling and contouring, making it a dependable workhorse in workshops and industrial settings.

User-Friendly Semi-Automatic Operation

Operated via a manual control system, the Induma machine avoids CNC complexity while supporting semi-automatic operation through rapid traverse and centralized lubrication features. Operators benefit from intuitive handling, ensuring processes remain controlled and efficient while minimizing setup time for recurring tasks.

Comprehensive Performance with Advanced Features

The milling machine offers a wide selection of variable spindle speeds (40-1800 RPM), a coolant system to maintain tooling life, and a 360 swivel table for versatile part positioning. These features, combined with a robust gear-driven mechanism and rapid traverse system, enable optimal productivity and high-precision machining outcomes for medium to heavy-duty applications.

FAQ's of Induma 1250 mm x 250 mm Universal Milling Machine:

Q: How does the Induma 1250 mm x 250 mm Universal Milling Machine enhance my milling operations?

A: The Induma milling machine's combination of horizontal and vertical spindles, wide table travel, and 360 swivel feature allows users to undertake a diverse spectrum of milling tasks efficiently. Its robust gear-driven system and precision-ground slideways ensure accurate and heavy-duty performance, making it suitable for both general and complex machining requirements.

Q: What are the steps involved in operating this universal milling machine?

A: Operation involves securely mounting the workpiece to the table, adjusting the spindle (vertical or horizontal depending on the process), setting the required spindle speed using the gearbox, and manually controlling the table's movement. Centralized lubrication and coolant systems are activated for smooth workflow and tool longevity. Rapid traverse aids in repositioning the table swiftly during operation.

Q: When should I use the vertical versus the horizontal spindle on this machine?

A: Use the vertical spindle (ISO 40) for operations like end milling, drilling, or plunge cutting, and the horizontal spindle for slab milling and deeper or heavier cuts. The flexibility to switch between these spindles makes the machine a universal solution, adaptable to varying production and repair tasks.

Q: Where is this milling machine best utilized?

A: The Induma Universal Milling Machine is ideal for manufacturing workshops, tool-making industries, maintenance departments, and educational institutions where both versatility and reliability in machining operations are critical. Its semi-automatic and manual control systems make it suitable for environments requiring skilled operation rather than fully automated CNC solutions.

Q: What maintenance processes should be followed to ensure smooth operation?

A: Routine maintenance includes checking and refilling the centralized lubrication system, ensuring the coolant system is operational, inspecting slideways for wear, tightening bolts, and cleaning the machine after each use. Periodic inspection of the gear mechanism and spindle taper is also recommended to maintain machine accuracy and longevity.

Q: Can this milling machine handle heavy-duty workpieces?

A: Yes, with an 1800 kg sturdy cast iron body, heavy-duty precision slideways, and a table capacity suited for substantial workpieces, the Induma 1250 x 250 model is designed to withstand and process heavy-duty components reliably.

Q: What are the benefits of the 360 swivel table on this universal milling machine?

A: The 360 swivel table increases operational versatility by enabling precise angular and complex positioning of workpieces without the need for additional clamps or fixtures. This feature is particularly beneficial for multi-faceted machining, compound angle cuts, and reducing setup times for intricate jobs.
