Induma NL63 Milling Machine
Induma NL63 Milling Machine
Induma NL63 Milling Machine
Induma NL63 Milling Machine
Induma NL63 Milling Machine
Induma NL63 Milling Machine

Induma NL63 Milling Machine

MOQ : 1 , , Piece

Induma NL63 Milling Machine Specification

  • Model
  • NL63
  • Rotation
  • Swivel Head 360°
  • Product Type
  • Universal Milling Machine
  • General Use
  • Industrial Milling Operations
  • Material
  • Cast Iron
  • Type
  • Horizontal & Vertical
  • Capacity
  • Can handle up to 400 kg workpiece
  • Weight (kg)
  • Approx. 1400 kg
  • Computerized
  • No
  • Automatic
  • No
  • CNC Or Not
  • No
  • Control System
  • Manual
  • Table Size
  • 320 mm x 1370 mm
  • Table Slide Way
  • Box-type
  • Floor Space
  • 1800 mm x 1800 mm approx.
  • Spindle Speed
  • 40 - 2,000 rpm (variable range)
  • Power
  • 2.2 kW (3 HP)
  • Voltage
  • 415 V, 3 Phase
  • Dimension (L*W*H)
  • Approx. 1800 x 1700 x 1750 mm
  • Feature
  • Rigid Construction, Precision Ground Table, Swivel Head, Mechanical Feed
  • Color
  • Industrial Green
  • Vertical Table Travel
  • 410 mm
  • Rapid Traverse
  • Provided for All Axes
  • Spindle Taper
  • ISO 40
  • Longitudinal Table Travel
  • 900 mm
  • Max Distance from Table to Spindle Nose
  • 430 mm
  • Lubrication System
  • Centralized
  • Arbor Diameter
  • 25.4 mm
  • Cross Table Travel
  • 340 mm
  • Quill Travel
  • 125 mm
  • Coolant Pump
  • Included
  • Number of Feeds
  • 12
  • Overarm Travel
  • 630 mm
  • Main Motor
  • 3 HP



About Induma NL63 Milling Machine

  • Make - Induma (Italy)
  • Model - NL63
  • Table Size - 1700 mm x 350 mm
  • XYZ Travel - 1200 mm x 350 mm x 475 mm
  • Spindle Speeds - 35 rpm to 1500 rpm
  • Horizontal Spindle Taper - ISO 50
  • Table Feed Rates - 10 mm/min to 800 mm/min
  • - Complete with Double-Swivel type Vertical Milling Head
  • - With 2 x Brackets, Arbour & horizontal support for Horizontal Milling.

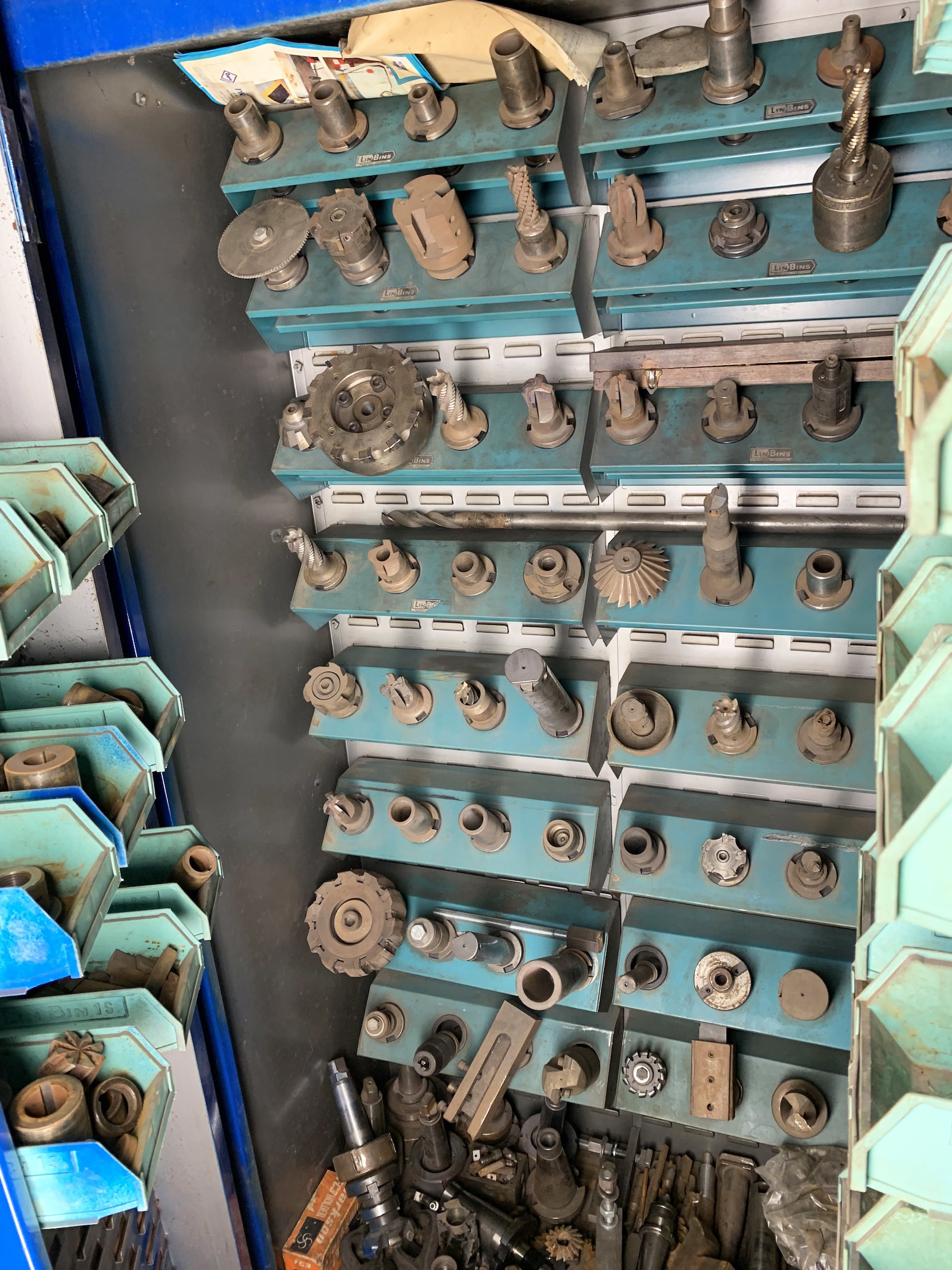

  • - 1 x Almirah full of all type of milling related tooling.
  • - Complete with very Big size Boring Head & many Boring Bars.
  • - Rotating Type Universal Table.
  • - Machine is in excellent working condition

Video link-https://youtu.be/Kr3uGwAe2Cw



Precision Engineering for Reliable Industrial Performance

The Induma NL63 Milling Machine is meticulously crafted for high-precision industrial milling tasks. Offering both horizontal and vertical operations, its rigid construction and precision-ground table provide stability and accuracy. This machine is suitable for high-load tasks, supporting pieces up to 400 kg. Its centralized lubrication system extends component life, making it a powerful choice for manufacturers and engineering workshops.


Versatile and Flexible Milling Capabilities

Featuring a 360 swivel head and rapid traverse function on all axes, the NL63 delivers exceptional versatility, allowing for complex and varied machining tasks. The large table size and multiple feed options enable efficient handling of diverse workpieces and job requirements, while mechanical feed ensures consistent results during extended production runs.

FAQs of Induma NL63 Milling Machine:


Q: How does the Induma NL63 Milling Machine handle heavy workpieces during milling operations?

A: With a sturdy cast iron frame and a precision-ground table, the Induma NL63 can safely support and mill workpieces weighing up to 400 kg. Its box-type slideways and robust construction minimize vibration, ensuring stability and precision even under heavy loads.

Q: What are the main benefits of the 360 swivel head in this milling machine?

A: The 360 swivel head allows for flexible machining angles and approaches, enabling operators to tackle complex milling tasks without repositioning the workpiece. This enhances workflow efficiency and accommodates intricate operations in both horizontal and vertical orientations.

Q: What is the process for adjusting spindle speeds and feeds on the NL63?

A: Spindle speeds are variably adjustable from 40 to 2,000 rpm using the manual control system. The NL63 provides 12 different mechanical feed rates, which can be selected based on material type and operation requirements for optimal performance and finish quality.

Q: Where can the Induma NL63 Milling Machine be most effectively used?

A: The NL63 is ideally suited for industrial manufacturing environments such as machine shops, fabrication centers, and plants where precision milling of metal components is required. Its versatility fits a wide range of industrial milling applications.

Q: When should you utilize the rapid traverse feature in all axes?

A: Rapid traverse is best used for quickly positioning the table or headstock between machining operations. It reduces idle time, enhances productivity, and minimizes manual labor when shifting between workpiece locations or setups.

Q: How does the centralized lubrication system contribute to the machines operation?

A: The centralized lubrication system ensures that all critical moving parts receive consistent oiling, greatly reducing wear and tear. This extends machine lifespan, maintains smooth operation, and minimizes maintenance requirements.

Q: What usage precautions are recommended for maximizing machine longevity and precision?

A: Regular maintenance, proper use of the lubrication system, avoiding overloading beyond the 400 kg capacity, and ensuring operators are trained with the manual control interface are important for preserving the NL63s precision and operational reliability over time.
