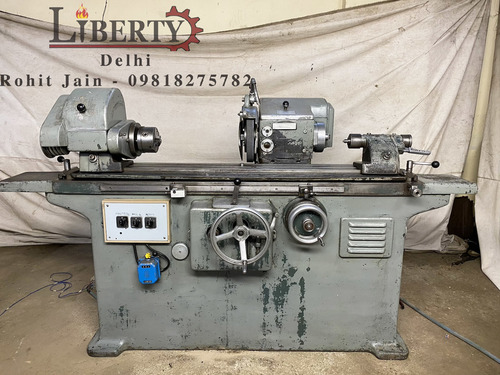

Jones Shipman 1310 Universal Cylindrical Grinding

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Jones Shipman 1310 Universal Cylindrical Grinding Specification

Product Type
Universal Cylindrical Grinding Machine

General Use
External and Internal Grinding Applications

Material
Cast Iron

Type
Cylindrical Grinder

Capacity
300 mm (Grinding length)

Weight (kg)
900 kg

Computerized
No

Automatic
Semi-Automatic

Control System
Manual Hand Wheel

Drive Type
Electric

Grinding Diameter
125 mm

Grinding Length
300 mm

Spindle Speed
303000 rpm (variable)

Grinding Wheel Size
254 mm x 25 mm x 76.2 mm

Voltage
415 V

Dimension (L*W*H)
1500 mm x 1200 mm x 1400 mm

Feature
Precision Grinding, Hardened Bed

Color
Grey

Internal Grinding Spindle Speed
Variable, up to 28000 rpm

Maximum Distance Between Centers
305 mm

Coolant System
Included

Maximum Swing Over Bed
178 mm

Work Head Taper
Morse Taper No. 2

Table Traverse
400 mm

Lubrication Type
Automatic Lubrication

Wheel Head Motor
1 HP

Jones Shipman 1310 Universal Cylindrical Grinding Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Jones Shipman 1310 Universal Cylindrical Grinding

Make - Jones & Shipman (England)

Model - 1310

Center Height - 102 mm

Max. Job Diameter - 203 mm (8")

Max. Length of Job - 458 mm (18")

Grinding Wheel Size - Diameter 305 mm x 32 mm Width

Work-Head Speeds - 30 rpm to 415 rpm

- Equipped with Internal Grinding Attachment.

- With 2-point Steady, 3-point steady, Wheel Dresser and other accessories.

- Micro-Feed Adjustments on both Table & Wheel-Head Travel.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/V_4t9fH-eyY

Precision Grinding for Diverse Applications

With its hardened bed and robust cast iron frame, the Jones Shipman 1310 ensures consistently precise surface finishes on a wide range of components. Its capacity to handle both external and internal grinding makes it suitable for industries requiring high-accuracy results, such as automotive, toolmaking, and general engineering. The universal design coupled with semi-automatic operation makes it user-friendly and adaptable to varying production needs.

Versatile and Efficient Operation

Equipped with variable spindle speeds (303000 rpm) and an internal spindle that can reach up to 28,000 rpm, this cylindrical grinder accommodates an array of grinding processes. The 1 HP electric motor delivers dependable power, while automatic lubrication and a built-in coolant system promote smooth, low-maintenance operation. Its manual hand wheel control provides technical flexibility for both skilled machinists and production floors.

FAQs of Jones Shipman 1310 Universal Cylindrical Grinding:

Q: How is the Jones Shipman 1310 Universal Cylindrical Grinder operated?

A: This machine is operated using a manual hand wheel with a semi-automatic control system. Operators can adjust the speed, traverse the table, and position workpieces with precision, making it suitable for both routine and intricate jobs.

Q: What grinding processes can the Jones Shipman 1310 handle?

A: The grinder is designed for both external and internal cylindrical grinding applications, with the ability to process workpieces up to 300 mm in length and 125 mm in diameter. Its internal spindle reaches up to 28,000 rpm for fine internal work.

Q: When is it beneficial to use this cylindrical grinding machine?

A: This machine is ideal when you require precise, repeatable grinding of cylindrical components. It is especially beneficial in toolrooms, repair shops, and light-to-medium manufacturing environments that demand tight tolerances and consistent finishes.

Q: Where can the Jones Shipman 1310 typically be installed and used?

A: Designed with a compact footprint (1500 mm x 1200 mm x 1400 mm), this grinder fits well in industrial workshops, production facilities, and toolrooms. Its 415 V electric drive makes it compatible with most standard industrial power supplies.

Q: What are the main benefits of the automatic lubrication and coolant system?

A: Automatic lubrication minimizes wear and maintenance demands on moving parts, prolonging machine life. The integrated coolant system helps manage heat during grinding, preserving part integrity and achieving superior finishes.

Q: How do the features of this machine enhance user productivity?

A: Features like the variable spindle speed, quick adjustment capabilities, and stable construction (weight of 900 kg) ensure smooth operation, minimize downtime, and enable efficient grinding cycles, thus improving overall productivity.
