Kellenberger Switzerland No. 50M Universal Cylindrical Grinder Machine

Name: Kellenberger Switzerland No. 50M Universal Cylindrical Grinder Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Kellenberger Switzerland No. 50M Universal Cylindrical Grinder Machine Specification

Product Type

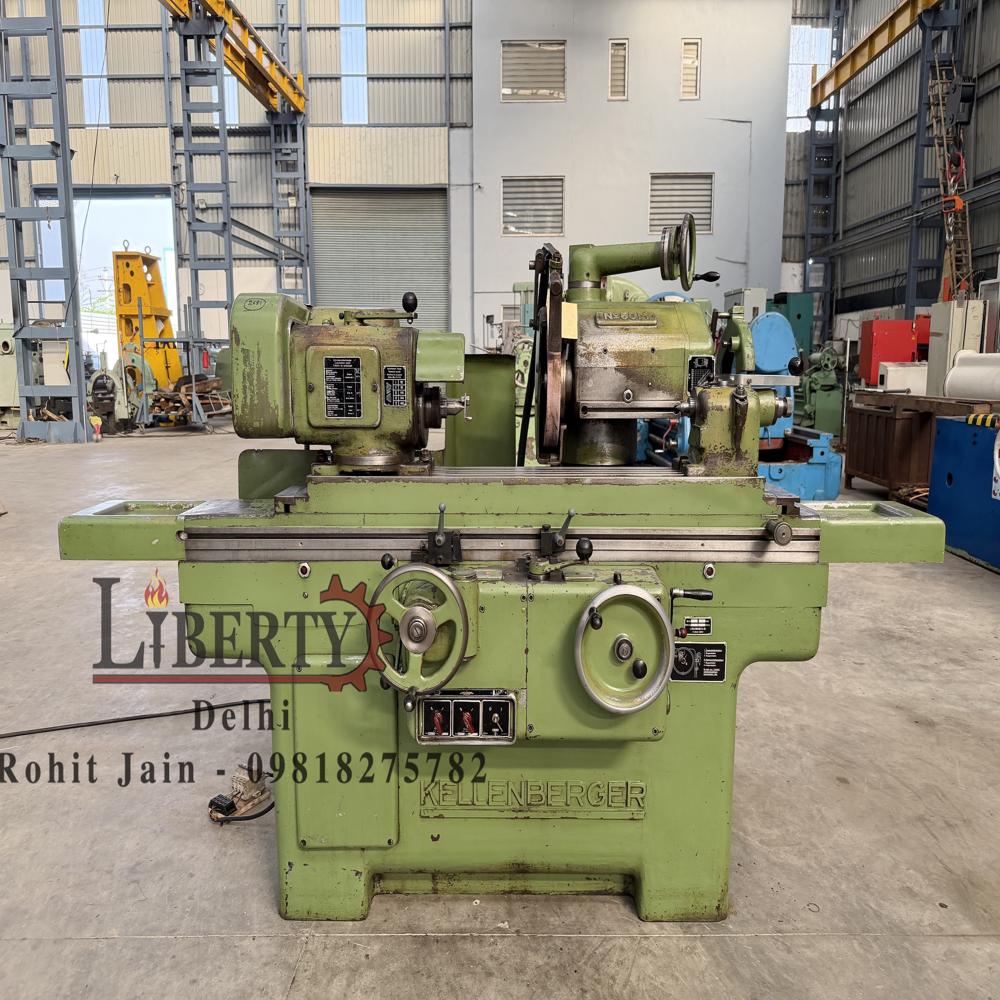

Kellenberger (Switzerland) make Universal Cylindrical Grinding Machine in excellent working condition. The model of the machine is No. 50M and it is designed for external, face & internal precision grinding of all kinds, and it is fitted with a rising and falling swivelling wheel-head for handling all types of tool and cutter grinding operations. The machine is complete with Chuck, spare Wheel Flanges, Wheel Balancing Stand, Centers, Operating Manuals, Electrical Drawings, and many other accessories. The technical details are as follows -

General Use
Precision external and internal grinding of cylindrical surfaces

Material
Cast Iron/Steel

Type
Manual

Capacity
500 mm

Weight (kg)
2200 kg

Computerized
No

Automatic
No

Control System
Hand-operated

Drive Type
Electric

Grinding Diameter
200 mm

Grinding Length
500 mm

Spindle Speed
25 - 1800 RPM (workhead variable)

Grinding Wheel Size
350 x 50 x 127 mm

Voltage
380V / 50Hz

Dimension (L*W*H)
2300 x 1600 x 1450 mm

Feature
High precision, robust construction, versatile setup options

Color
Blue & White

Chuck Size
160 mm

Max Workpiece Weight
70 kg

Application
Component grinding, tool room, maintenance, and production workshops

Table Travel
550 mm

Swiveling Wheelhead
Yes, with internal grinding spindle

Lubrication
Centralized manual lubrication

Max Distance Between Centers
500 mm

Coolant System
Integrated

Tailstock
Manually operated

About Kellenberger Switzerland No. 50M Universal Cylindrical Grinder Machine

Make - Kellenberger (Switzerland)

Model - No. 50M

Center Height - 125 mm

Max. Length of Job - 600 mm

Max. Diameter of Job - 250 mm

Grinding Wheel Size - Diameter 300 mm x 40 mm Width

Work-Head Speeds - 50 rpm to 400 rpm

Face Grinding Wheel Diameter - 250 mm

Table Swivel Angle - +10 degree to -10 degree

Type - Motorised Mechanical.

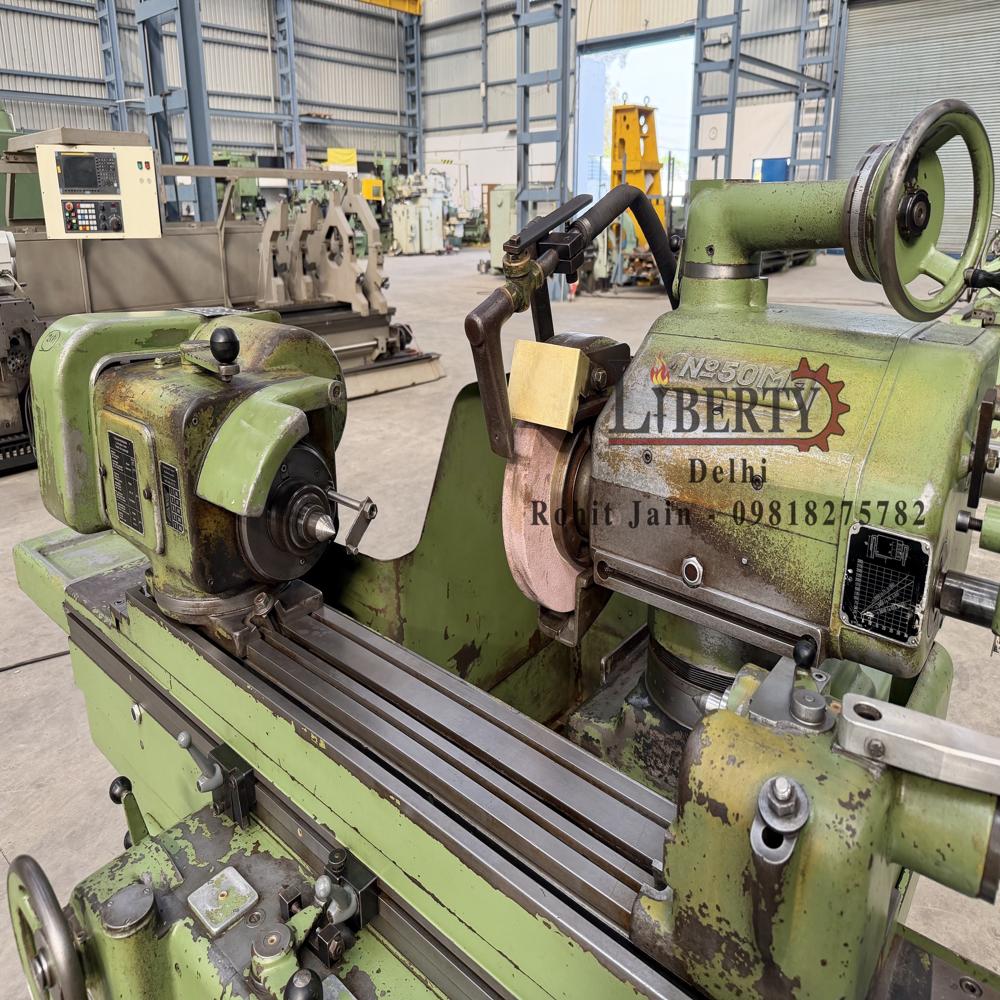

- Equipped with Internal Grinding Attachment.

- Suitable for External, Internal & Face Grinding Applications.

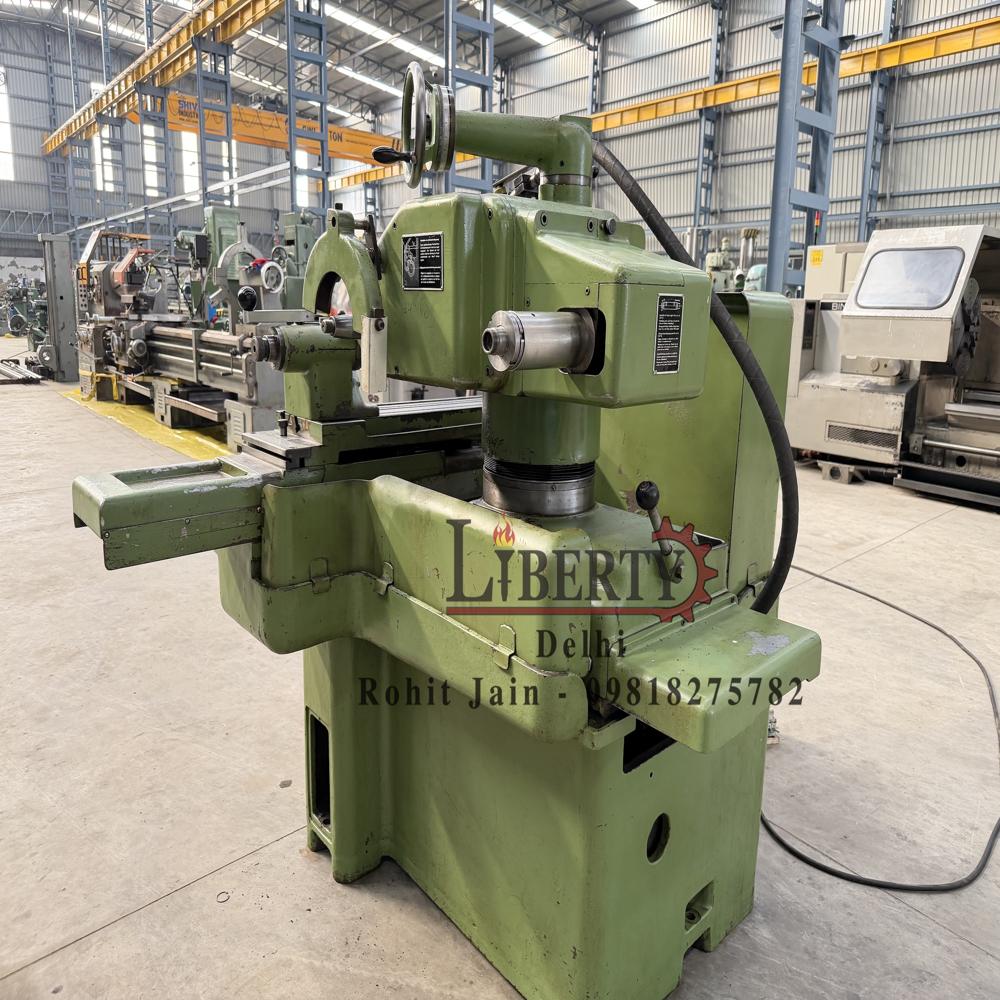

- Vertical Travel of the Wheel-Head for all types of Tool & Cutter Grinding Applications.

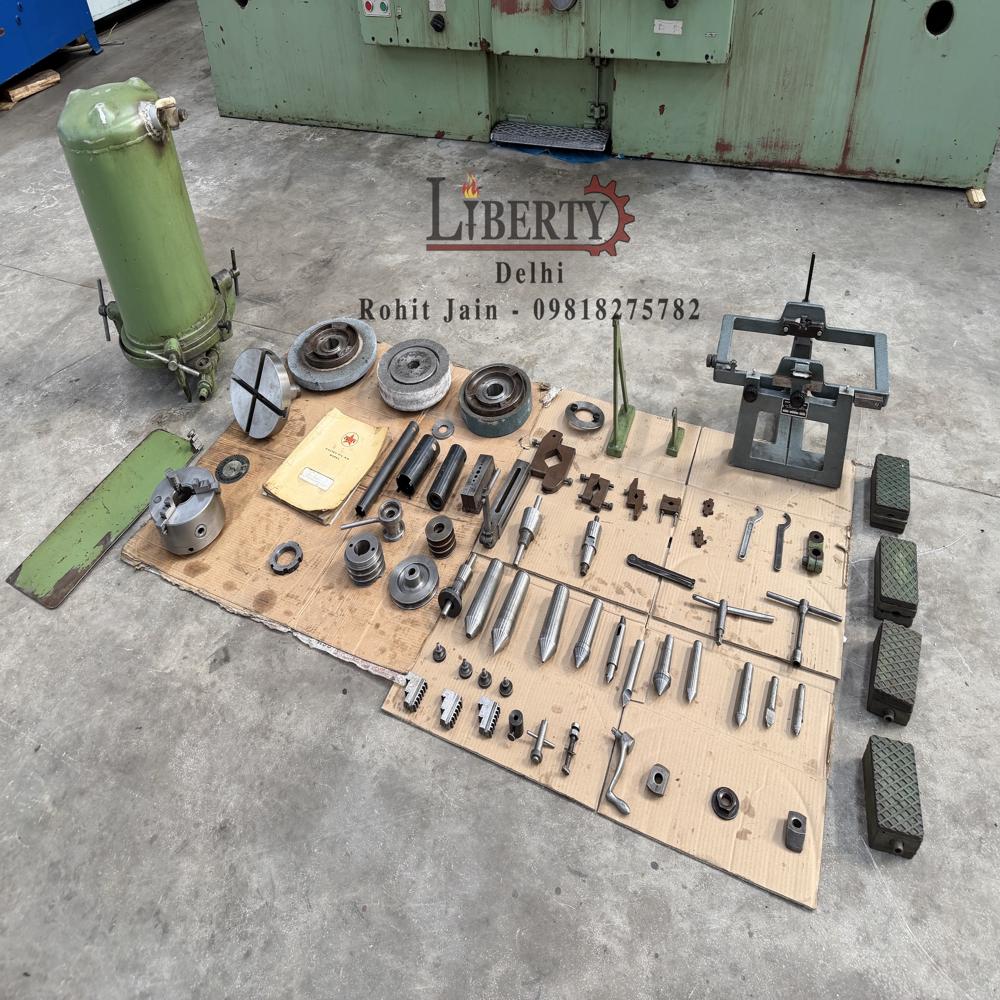

- Complete with Chuck, spare Wheel Flanges, Face Plate, Centers, etc.

- Complete with Wheel Balancing Stand, Leveling Pads, & other accessories.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/BOKBVG2rxhs

Precision Meets Versatility

The Kellenberger 50M is designed for high-precision grinding tasks, suitable for both external and internal surfaces. Engineered with robust construction and versatile features, it excels in applications that demand accuracy and adaptability, such as tool rooms, maintenance workshops, and small-batch production.

User-Friendly Manual Operation

With hand-operated controls, a manually operated tailstock, and a centralized manual lubrication system, operators retain maximum feel and oversight of the grinding process. The machine's ergonomic design ensures ease of setup and reliable operation throughout demanding workdays.

Robust Construction for Consistent Results

Manufactured from high-grade cast iron and steel, the Kellenberger 50M delivers unwavering stability and durability. Its heavy-duty build, weighing 2200 kg, provides reduced vibration and enhanced accuracy even with heavier workpieces, making it an ideal choice for delicate and precision grinding.

FAQ's of Kellenberger Switzerland No. 50M Universal Cylindrical Grinder Machine:

Q: How does the Kellenberger 50M ensure high-precision grinding for components?

A: The machine is equipped with a robust, high-quality spindle, precise hand-operated controls, and a swiveling wheelhead, all of which facilitate repeatable results. Centralized manual lubrication and an integrated coolant system further maintain consistent accuracy by reducing heat and friction.

Q: What types of materials and applications are suitable for the Kellenberger 50M Universal Cylindrical Grinder?

A: This grinder is ideal for high-precision grinding of cylindrical surfaces on cast iron, steel, and similar metals. It's frequently used in tool rooms, maintenance, and production workshops for component grinding, thanks to its versatility and stable construction.

Q: Where can this machine be effectively used?

A: The Kellenberger 50M is best suited for environments requiring precise, adaptable grinding such as tool rooms, component repair workshops, maintenance areas, and small to medium-scale manufacturing facilities, particularly where versatility is essential.

Q: What is the process for setting up and operating the Kellenberger 50M?

A: Setup involves positioning the workpiece between centers, securing the 160 mm chuck, and adjusting the swiveling wheelhead as needed. Operators use the manual controls for feed and tailstock settings, while centralized manual lubrication and the integrated cooling system help maintain optimal functioning during grinding.

Q: When should you utilize the internal grinding spindle feature?

A: The internal grinding spindle is best used when precision internal surface finishing or diameter sizing of cylindrical components is required. This feature allows the machine to handle both external and internal grinding tasks efficiently without the need for additional equipment.

Q: What benefits does the centralized manual lubrication system provide?

A: Centralized manual lubrication ensures that critical machine components receive consistent and adequate lubrication, reducing wear and prolonging service life. This leads to smoother operation, less maintenance downtime, and more reliable high-precision output.

Q: How does the integrated coolant system enhance the grinding process?

A: The integrated coolant system dissipates heat generated during grinding, prevents thermal deformation, and helps maintain tight tolerances by keeping both the workpiece and grinding wheel cool, ensuring high surface finish quality and extending tool life.
