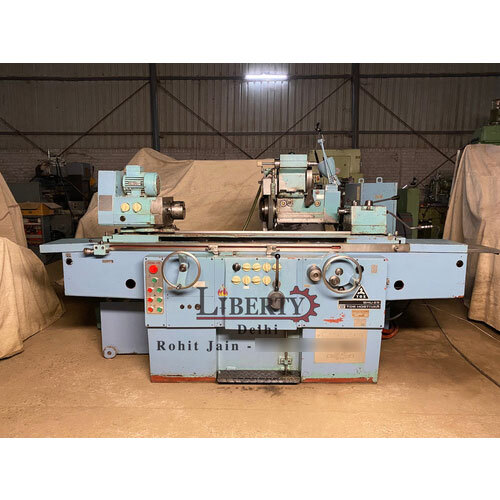

TOS 2Ud P2 750 mm Universal Cylindrical Grinding Machne
TOS 2Ud P2 750 mm Universal Cylindrical Grinding Machne

TOS 2Ud P2 750 mm Universal Cylindrical Grinding Machne

Price 100000 INR/ Piece

MOQ : 1 Piece

TOS 2Ud P2 750 mm Universal Cylindrical Grinding Machne Specification

  • Product Type
  • Universal Cylindrical Grinding Machine
  • General Use
  • For external and internal cylindrical grinding of shafts, rolls, bushes, and other components
  • Material
  • Heavy-duty Cast Iron (machine body)
  • Type
  • 2Ud P2
  • Capacity
  • Max. Grinding Length: 750 mm
  • Weight (kg)
  • Approx. 2700 kg
  • Computerized
  • No
  • Automatic
  • Semi-Automatic
  • Control System
  • Manual with hand-wheel controls
  • Drive Type
  • Electric Motor Drive
  • Grinding Diameter
  • Max. 320 mm
  • Grinding Length
  • 750 mm
  • Spindle Speed
  • Variable, up to 1670 rpm
  • Grinding Wheel Size
  • 400 mm x 50 mm x 203.2 mm
  • Voltage
  • 415 V, 3 Phase
  • Dimension (L*W*H)
  • 2550 mm x 1450 mm x 1500 mm
  • Feature
  • Robust construction, precision ground bed, centralized lubrication
  • Color
  • Standard Industrial Green
  • Table Swivel Range
  • +/- 7°
  • Workhead Spindle Taper
  • Morse 4
  • Max. Weight of Workpiece
  • 80 kg between centers
  • Coolant System
  • Included
  • Center Height
  • 180 mm
  • Internal Grinding Attachment
  • Yes, included
  • Distance Between Centers
  • 750 mm
  • Wheel Head Motor Power
  • 2.2 kW
  • Chuck Size
  • Optional, as per customer requirement
  • Lubrication System
  • Centralized automatic
  • Taper Grinding
  • Possible via table swivel


TOS 2Ud P2 750 mm Universal Cylindrical Grinding Machne Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Main Domestic Market
  • All India


About TOS 2Ud P2 750 mm Universal Cylindrical Grinding Machne

Make - TOS Hostivar (Czech Republic)

Model - 2Ud P2

Center Height - 150 mm

Max. Length of Job - 750 mm

Max. Diameter of Job - 290 mm

Grinding Wheel Size - 350 mm Diameter x 50 mm Width

Work-Head Speeds - 38 rpm to 380 rpm

- Equipped with Internal Grinding Attachment.

- Features like Auto-Cut, Plunge Grinding, Auto-Slow, Delay etc.

- Equipped with Hydraulic Tail-Stock.

- Complete with Wheel Dresser, Steady, Magnetic Coolant Filtration Unit etc.

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.


Video of The Machine -

https://youtu.be/sN4Ij_sX5Eo




Engineered Precision and Versatility

The TOS 2Ud P2 offers exceptional versatility, handling components up to 750 mm in length and 320 mm in diameter. Its precise manual controls, semi-automatic features, and ability to grind both external and internal surfaces make it adaptable to various industrial applications.


Robust Construction for Long-Term Use

Designed with a heavy-duty cast iron bed and robust mechanical components, the machine is built for endurance and vibration resistance. The centralized automatic lubrication system enhances operational life and contributes to consistent accuracy over time.


Efficient and User-Friendly Operation

This grinder supports both manual and semi-automatic control, allowing operators to achieve precise results with ease. Table swiveling enables effective taper grinding, while its adjustable spindle speed and integrated coolant system ensure optimal grinding quality and safety.

FAQs of TOS 2Ud P2 750 mm Universal Cylindrical Grinding Machne:


Q: How do I achieve internal grinding on the TOS 2Ud P2 machine?

A: The machine comes equipped with an internal grinding attachment, allowing you to perform internal cylindrical grinding by mounting the appropriate grinding wheel and aligning the attachment as per the workpiece requirements.

Q: What types of workpieces can be processed with this cylindrical grinder?

A: This machine is suitable for grinding shafts, rolls, bushes, and other cylindrical components up to 320 mm in diameter and 750 mm in length, weighing up to 80 kg, making it an excellent fit for manufacturing and repair workshops.

Q: When should the lubrication system be checked or maintained?

A: The TOS 2Ud P2 features a centralized automatic lubrication system, which drastically reduces maintenance intervals. However, its essential to inspect the lubrication levels regularly as part of routine machine upkeep to ensure optimal performance.

Q: Where can this grinding machine be installed for best results?

A: Install the machine on a flat, stable industrial floor with minimal vibration, and ensure adequate access to 415V, 3-phase power supply. Proper ventilation and adherence to safety standards further optimize installation and operation.

Q: What is the process for performing taper grinding on this machine?

A: Taper grinding can be accomplished by swiveling the table within its +/- 7 range. Position the workpiece and adjust the table to the desired angle for precise taper grinding on the required section.

Q: How does the coolant system benefit the grinding process?

A: The integrated coolant system ensures continuous cooling of the workpiece and grinding wheel, minimizing heat buildup, reducing thermal distortion, preventing wheel glazing, and enhancing both accuracy and surface finish.

Q: What advantages does the robust cast iron construction provide?

A: Heavy-duty cast iron construction increases durability and vibration dampening, directly contributing to the grinding machines precision and long-term operational stability. This yields consistent, high-quality grinding results over its service life.
