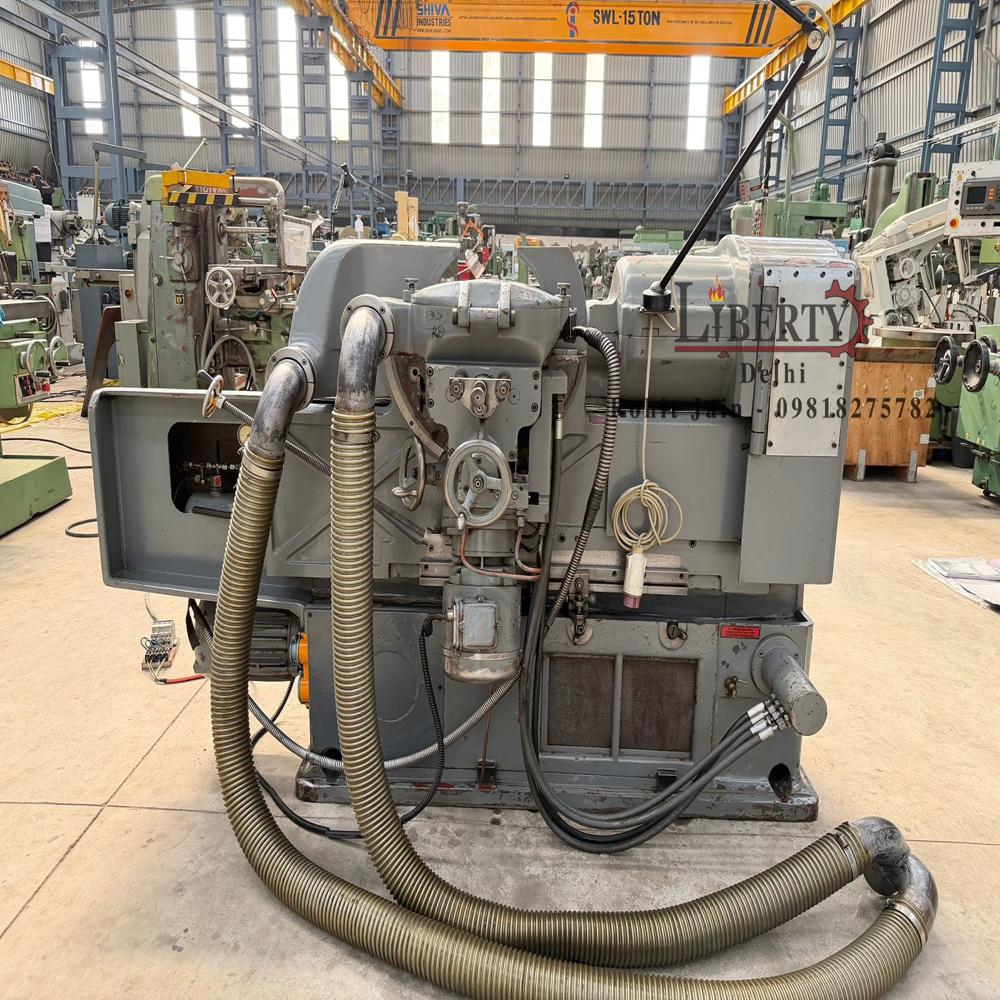

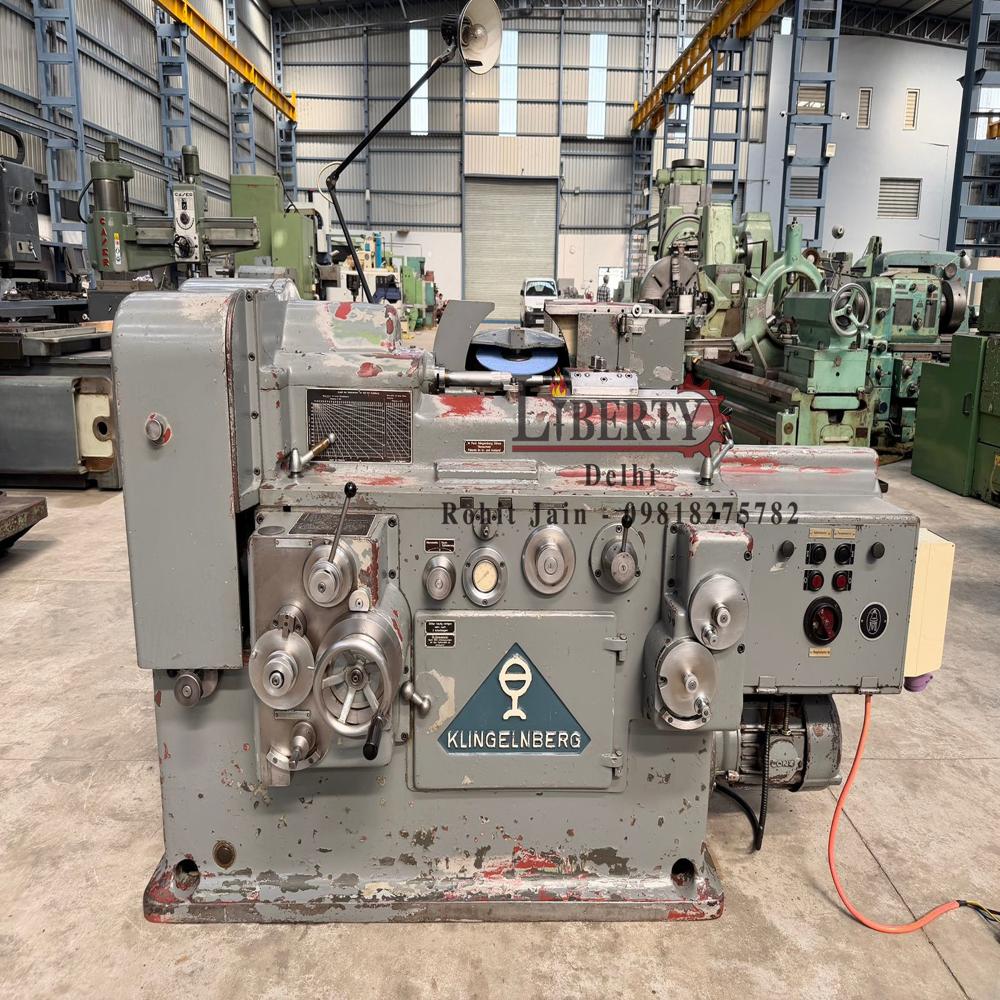

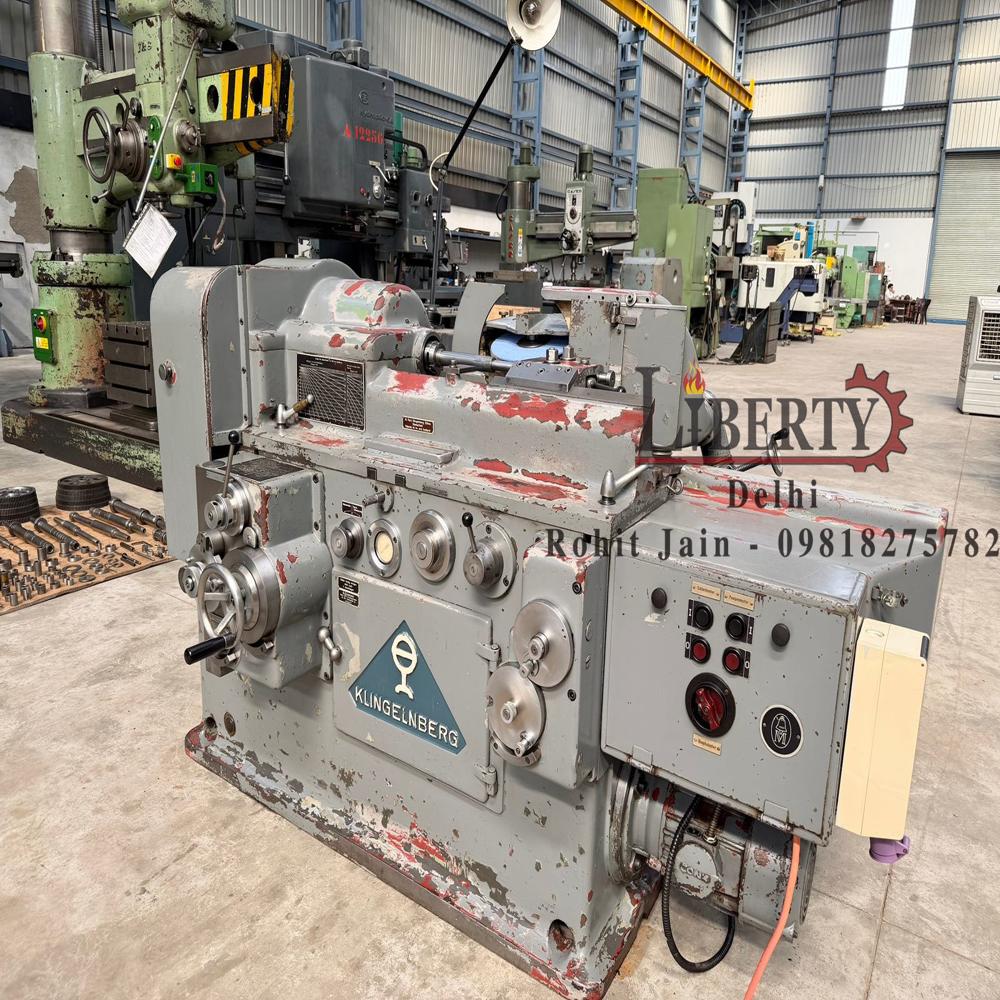

Klingelnberg AGW-30A Automatic Hob Cutter Sharpener Machine

Name: Klingelnberg AGW-30A Automatic Hob Cutter Sharpener Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Klingelnberg AGW-30A Automatic Hob Cutter Sharpener Machine Specification

Gear Type
Cylindrical and worm gear mechanisms

Material
Heavy-duty cast iron & steel structure

Processing Type
Automatic Hob Cutter Sharpening

Gear Tooth Profile
Compatible with involute and straight tooth hobs

Gearing Arrangement
Internal precision gear system

Direction
Bi-Directional operation

Output Torque
High torque for industrial operation

Rated Power
Approx. 3-5 kW

Input Speed
1450 RPM (approx) motor

Output Speed
Variable via panel controls

Voltage
3-Phase, 415V, 50Hz

Efficiency
High precision, industrial grade

Control Panel
Manual Push Button with Indicators

Application
Automatic sharpening of gear hobs and cutters

Machine Weight
Approx. 2,500 kg

Dimensions (LxWxH)
2200 x 1200 x 1500 mm

Max Workpiece Diameter
300 mm

Model
AGW-30A

Automatic Operation
Yes

Sharpening Wheel Diameter
up to 200 mm

Coolant System
Integrated

Klingelnberg AGW-30A Automatic Hob Cutter Sharpener Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Klingelnberg AGW-30A Automatic Hob Cutter Sharpener Machine

Klingelnberg (Germany) make Hob Sharpener Machine in excellent working condition. The model of the machine is AGW-30A and the Max. Hob Cutter Diameter is 300 mm. It is an Automatic machine suitable for sharpening cylindrical, straight and spiral-grooved tools and especially for sharpening of spur and worm gear hob cutters as well as profile roller milling cutters. The machine has Automatic Hydraulic Wheel Dressing, Automatic increase of Wheel Dressing Depth, and Automatic Depth Adjustment "Auto-Cut". The machine is complete with Change Gears, Index Plates, Grinding Wheels, Mandrels, Operating Manuals etc. The technical details are as follows -

Make - Klingelnberg (Germany)

Model - AGW-30A

Max. Diameter of Hob Cutter - 300 mm

Max. Length of Hob Cutter - 400 mm

Max. Stroke Length - 500 mm

Grinding Wheel Diameter - 300 mm

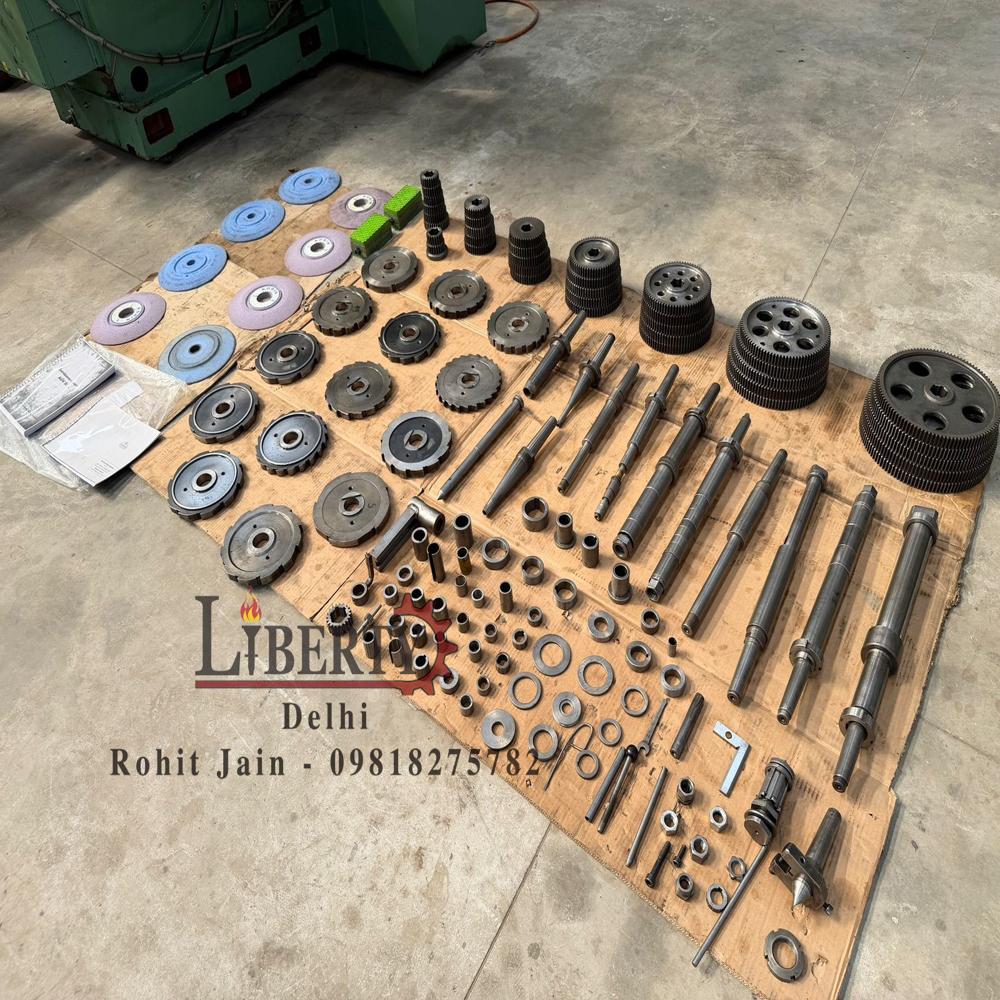

- Complete with Index Plates, Change Gears, Mandrels etc.

- Complete with many NEW Grinding Wheels, and many other accessories.

- Feature of Automatic Depth Adjustment "Auto-Cut", Hydraulic Wheel Dressing, Automatic increase of Dressing Depth etc.

- Operating Manuals of the machine are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/rcM81gMWjbk

High-Precision Sharpening for Hobs and Milling Cutters

The Klingelnberg AGW-30A is specifically designed to restore the cutting edges of gear hobs and special milling cutters with exceptional accuracy. Its internal precision gear system and automated feed mechanism guarantee consistent results, enhancing the lifespan and effectiveness of your tooling. Built for industrial environments, this sharpener delivers reliability and repeatability even during demanding operations.

Robust Construction and Versatile Operation

Engineered with a solid cast iron and steel frame, the machine offers durability and long-term service in heavy-duty settings. Manual controls combine with automatic feed and bi-directional functionality to suit a variety of sharpening requirements. Compatible with both involute and straight tooth hobs, the AGW-30A is an ideal choice for tool rooms, gear manufacturing units, and service workshops.

FAQ's of Klingelnberg AGW-30A Automatic Hob Cutter Sharpener Machine:

Q: How does the Klingelnberg AGW-30A sharpen hob cutters?

A: The Klingelnberg AGW-30A utilizes an automatic feed mechanism and bi-directional grinding operation to efficiently sharpen gear hobs and special milling cutters. Operators set the desired parameters manually, and the integrated internal gear system ensures precision during the sharpening process.

Q: What is the maximum size of hob cutter that can be sharpened on this machine?

A: This model can accommodate hob cutters up to approximately 300 mm in diameter and 400 mm in length, making it suitable for a broad range of gear-making tools.

Q: When should the Klingelnberg AGW-30A be used in a manufacturing process?

A: The machine is best employed when gear hobs or milling cutters become worn or dull. Regular sharpening, using the AGW-30A, ensures consistent performance and extends the usable life of cutting tools.

Q: Where is this machine available and what is its condition?

A: The Klingelnberg AGW-30A Automatic Hob Cutter Sharpener is available in Delhi, India. It is a used machine that has been reconditioned and is in good working order, ready for immediate industrial use.

Q: What are the main benefits of using this particular sharpening machine?

A: Utilizing the AGW-30A sharpener enhances cutting accuracy, prolongs tool longevity, reduces replacements, and increases efficiency in gear manufacturing. Its precision controls and sturdy build cater to high-volume industrial operations.

Q: How is the sharpening process monitored and controlled?

A: Operators use manual controls to set up the hob or cutter and select machine parameters, such as speed via the panel. The automatic feed and coolant system assist in consistent, high-quality sharpening while preventing tool overheating.
