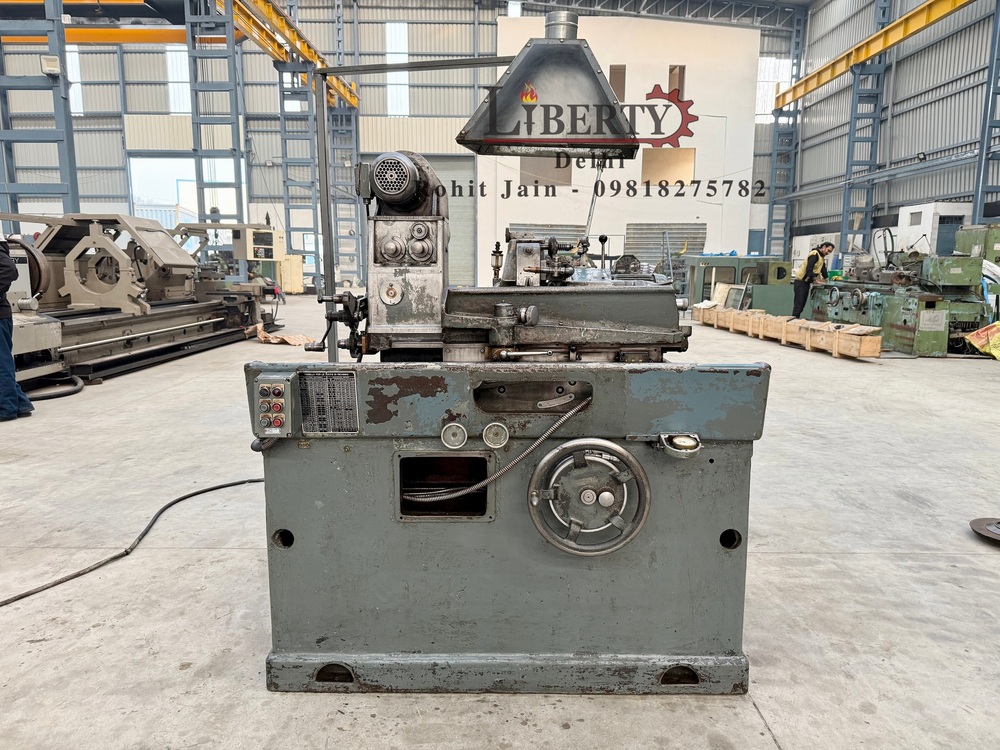

Lindner "Type Standard" Thread Grinding Machine

Name: Lindner "Type Standard" Thread Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Lindner "Type Standard" Thread Grinding Machine Specification

Rotation
Left and Right

Model
Type Standard

Product Type
Thread Grinding Machine

General Use
Thread grinding of precision screws, worms, and external threads

Material
Cast Iron & Steel

Type
Type Standard

Capacity

Weight (kg)
Approx. 1800 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Table Size

Table Slide Way
V and flat guideways

Magnetic Chuck Size

Grinding Wheel Size
300 mm x 32 mm x 127 mm

Grinding Wheel Speed
1900 RPM

Grinding Length
Approx. 400 mm

Floor Space
1850 mm x 1600 mm

Fuel Tank Capacity

Spindle Speed
Variable, up to 2500 RPM

Power
5 HP

Voltage
415 V / 3 Phase

Dimension (L*W*H)
1850 mm x 1600 mm x 1400 mm

Feature
High accuracy grinding, robust construction

Color
Grey

Coolant System
Integral

Lead Screw
Precision ground

WorkingSpeed

Workhead Swivel
60

Headstock Motor
2 HP

Max. Workpiece Length
400 mm

Wheelhead Swivel
30

Chuck Type
Three Jaw

Lubrication System
Automatic

Thread Diameter Range
5 mm to 80 mm

Application
External thread grinding of various materials

Thread Pitch Range
0.5 mm to 12 mm

Tailstock
Manual Clamp

Max. Job Weight
30 kg

Lindner "Type Standard" Thread Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Lindner "Type Standard" Thread Grinding Machine

Make - Lindner (Germany)

Model - Type Standard Model D

Max. Grinding Length - 500 mm

Max. Distance between Centers - 800 mm

Max. Job Diameter near Work-Head - 250 mm

Min. Job Diameter - 1 mm

Max. Job Diameter over Table - 200 mm

Max. Job Length for 250 mm Diameter Job - 100 mm

Range of Pitch for Single-Point Wheel - 0.25 mm to 6 mm

Grinding Wheel Diameter - 350 mm

Helix Angle Range - +10 degree to -10 degree

No. of Flutes - 2-10, 12, 14, 16, 18

- Equipped with Relief Grinding Attachment.

- Complete with both Single-Point Wheel Dresser and Multi-Rib Dresser.

- Complete with spare Wheel Flanges, Change Gears, Crushers & other accessories.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/U7TOAZFXhpg

Precision Thread Grinding for Versatile Applications

The Lindner Type Standard is engineered to meet the demands of thread grinding in manufacturing settings. Whether producing precision screws, worms, or specialized external threads, this machine's manual operation allows for exacting control. Its adaptable capacity and robust frame ensure consistent performance for a broad range of thread geometries and material types.

Durable Construction and User-Friendly Features

Constructed from cast iron and steel, the machine boasts high stability for vibration-free grinding. Key features include an integral coolant system, automatic lubrication, variable spindle speeds up to 2500 RPM, and both wheelhead (30) and workhead (60) swiveling. These elements work together to promote long machine life and accommodate a variety of thread grinding requirements.

FAQ's of Lindner "Type Standard" Thread Grinding Machine:

Q: How do I set up the Lindner Type Standard machine for a new thread grinding job?

A: Setting up involves selecting the appropriate grinding wheel, adjusting the three-jaw chuck for your workpiece, inputting thread specifications, and aligning the work and wheelhead angles. Always confirm coolant and lubrication systems are filled before starting.

Q: What kinds of materials can I grind with this machine?

A: The Lindner Type Standard is suitable for external thread grinding of a wide range of materials, including various steels, cast iron, and non-ferrous metals, ensuring flexibility in different manufacturing environments.

Q: When should I use the manual wheelhead and workhead swiveling features?

A: The manual wheelhead (30) and workhead (60) swiveling allow you to grind threads at precise angles required for specialized profiles or non-standard thread geometries, increasing your thread production versatility.

Q: Where is the coolant system located, and how does it function?

A: The integral coolant system is built into the machine base, delivering continuous coolant flow to the grinding area to reduce heat buildup and ensure superior surface finish during operation.

Q: What is the process for achieving high-accuracy thread grinding on this model?

A: Start by securely clamping the workpiece, accurately setting thread parameters and wheel angles, and running the automatic lubrication system. Gradual, controlled movements with regular monitoring yield high precision and consistent thread quality.

Q: How does the automatic lubrication system benefit operation?

A: The automatic lubrication system reduces manual maintenance, providing consistent lubrication to critical components. This minimizes wear, extends machine lifespan, and keeps performance stable over time.

Q: What are the main benefits of using a non-CNC, manual thread grinding machine like this one?

A: Manual machines offer exceptional tactile control and flexibility for short production runs, prototyping, or custom threads, making them cost-effective and highly adaptable for specialized applications.
