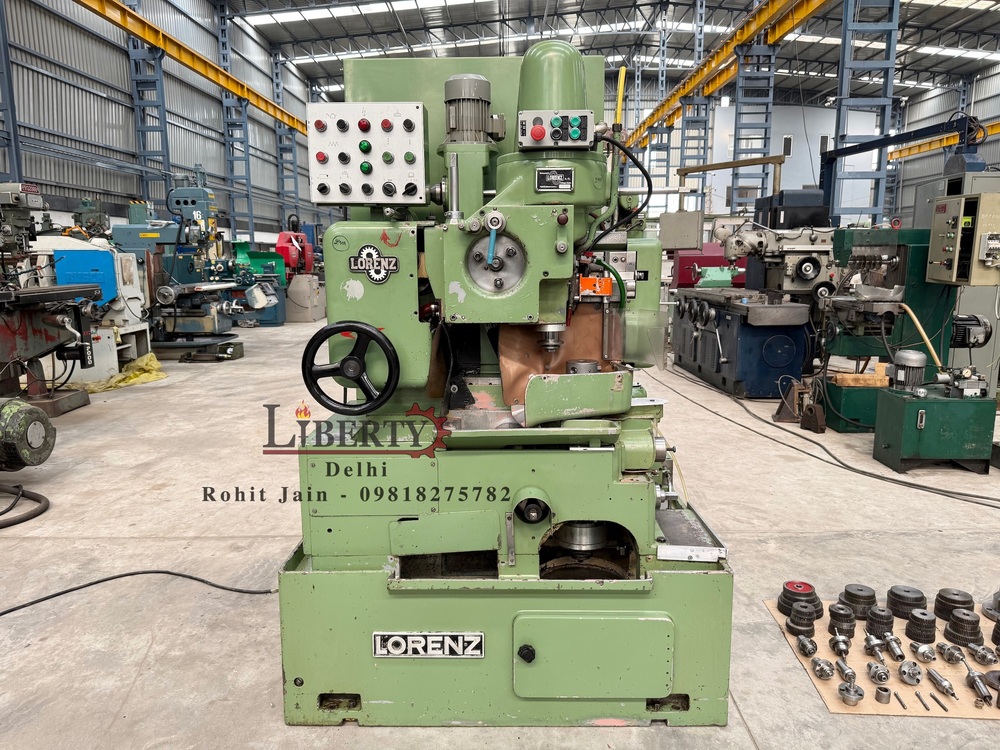

Lorenz Germany S-00 Gear Shaper Machine
Lorenz Germany S-00 Gear Shaper Machine

Lorenz Germany S-00 Gear Shaper Machine

Price 100000 INR/ Piece

MOQ : 1 Piece

Lorenz Germany S-00 Gear Shaper Machine Specification

  • Feature
  • High accuracy, Robust construction
  • Capacity
  • Maximum gear diameter 400 mm
  • Color
  • Light Green
  • Condition
  • Used
  • Voltage
  • 380 V
  • Weight
  • Approx. 1800 kg
  • Used For
  • Precision gear cutting
  • Dimension (L*W*H)
  • 1800 mm x 1200 mm x 2000 mm
  • Machine Type
  • Gear Shaper Machine
  • Power
  • 5 kW
  • Output
  • Up to 150 pieces per shift (depending on gear size)
  • Maximum Module
  • 6 module
  • Shank Diameter
  • 38 mm
  • Number of Strokes per Minute
  • 32 - 160 (variable)
  • Chuck Size
  • 315 mm
  • Cutter Spindle Taper
  • Morse Taper No. 4
  • Spindle Stroke
  • Max 120 mm
  • CE Certification
  • No
  • Max Workpiece Height
  • 110 mm
  • Shaper Cutter Diameter
  • up to 125 mm
  • Control System
  • Manual
  • Table Diameter
  • 420 mm
  • Max Internal Gear Diameter
  • 320 mm
  • Model
  • S-00
  • Main Motor
  • 3.7 kW


Lorenz Germany S-00 Gear Shaper Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Main Domestic Market
  • All India


About Lorenz Germany S-00 Gear Shaper Machine

Make - Lorenz (Germany)

Model - S-00

Max. Gear Diameter - 180 mm

Max. Module Capacity - 4 Modules

Max. Stroke Length - 55 mm

Spindle Diameter - 58 mm

Spindle Type - Hollow

Height between Table to Spindle Body - 195 mm

- Feature of Automatic Increase of Spindle Stroke Rate for Finish Cut.

- Automatic Hydraulic Clamping of the Job.

- Complete with Change Gears, many Fixtures, spare Cam etc.

- Machine is in excellent working condition.


Video Of The Machine -

https://youtu.be/KlXZuvAezCs



Robust Gear Cutting Performance

Built in Germany, the Lorenz S-00 Gear Shaper combines robust construction with high-precision capabilities, making it suitable for producing both internal and external gears up to 400 mm in diameter. Its variable stroke rate and manual control system allow operators to adapt to diverse production requirements. The machine is ideal for manufacturers seeking consistent, accurate output in demanding industrial environments.


Versatility and Efficiency

With a spindle stroke of 120 mm and the ability to handle varied workpiece heights and diameters, the S-00 model supports efficient gear production for multiple applications. Its versatility extends to cutter diameters up to 125 mm and output of up to 150 pieces per shift, depending on gear size. The machine is particularly beneficial for exporters, importers, and traders focused on precision gear manufacturing.


Precision Engineering and Construction

The Lorenz S-00 Gear Shaper Machine is constructed for durability and accuracy, featuring a sturdy frame, high-quality spindle, and accurate table movements. Despite being a used machine, it maintains high standards of operational reliability, making it a cost-effective solution for businesses that require exacting gear shaping and robust performance.

FAQ's of Lorenz Germany S-00 Gear Shaper Machine:


Q: How does the Lorenz Germany S-00 Gear Shaper Machine support high-precision gear manufacturing?

A: The Lorenz S-00 Gear Shaper Machine ensures high-precision gear cutting through its robust construction, precise spindle movements, and adjustable stroke rate (32-160 per minute). Its manual control system allows skilled operators to achieve accurate gear shaping for both internal and external gears, making it ideal for businesses requiring dependable results.

Q: What is the process for operating the Lorenz S-00 Gear Shaper Machine?

A: Operation of the S-00 involves mounting the workpiece on the chuck, setting up the desired cutter and stroke parameters, and manually adjusting settings for optimal output. The machine uses a Morse Taper No. 4 spindle and accommodates cutters up to 125 mm in diameter. Skilled operators ensure correct setup for each gear size to maximize efficiency and accuracy.

Q: When is this gear shaper most beneficial in manufacturing?

A: The S-00 is especially advantageous during production runs requiring high accuracy and repeatability, such as in the manufacturing of precision gears for automotive, industrial, or export markets. It is also valuable when a versatile yet robust solution is needed for variable batch sizes or custom gear profiles.

Q: Where can the Lorenz S-00 Gear Shaper be utilized effectively?

A: This machine is suited for gear manufacturing facilities, metalworking shops, and factories focusing on precision engineering. Its used condition makes it an affordable choice for small to medium-sized enterprises, as well as larger producers aiming to expand capacity for gear production.

Q: What are the key benefits of choosing a used Lorenz S-00 Gear Shaper Machine?

A: Choosing a used S-00 offers benefits such as cost savings, proven reliability, and immediate availability. Despite being pre-owned, it maintains German engineering quality, robust performance, and the capability to deliver high output-up to 150 gear pieces per shift, depending on the size.

Q: How is the output of the S-00 Gear Shaper determined?

A: Output depends on the size and complexity of the gears being produced. Generally, the machine can produce up to 150 pieces per shift, adjusting for gear module, diameter, and stroke requirements. Skilled operation and proper maintenance further enhance productivity.
