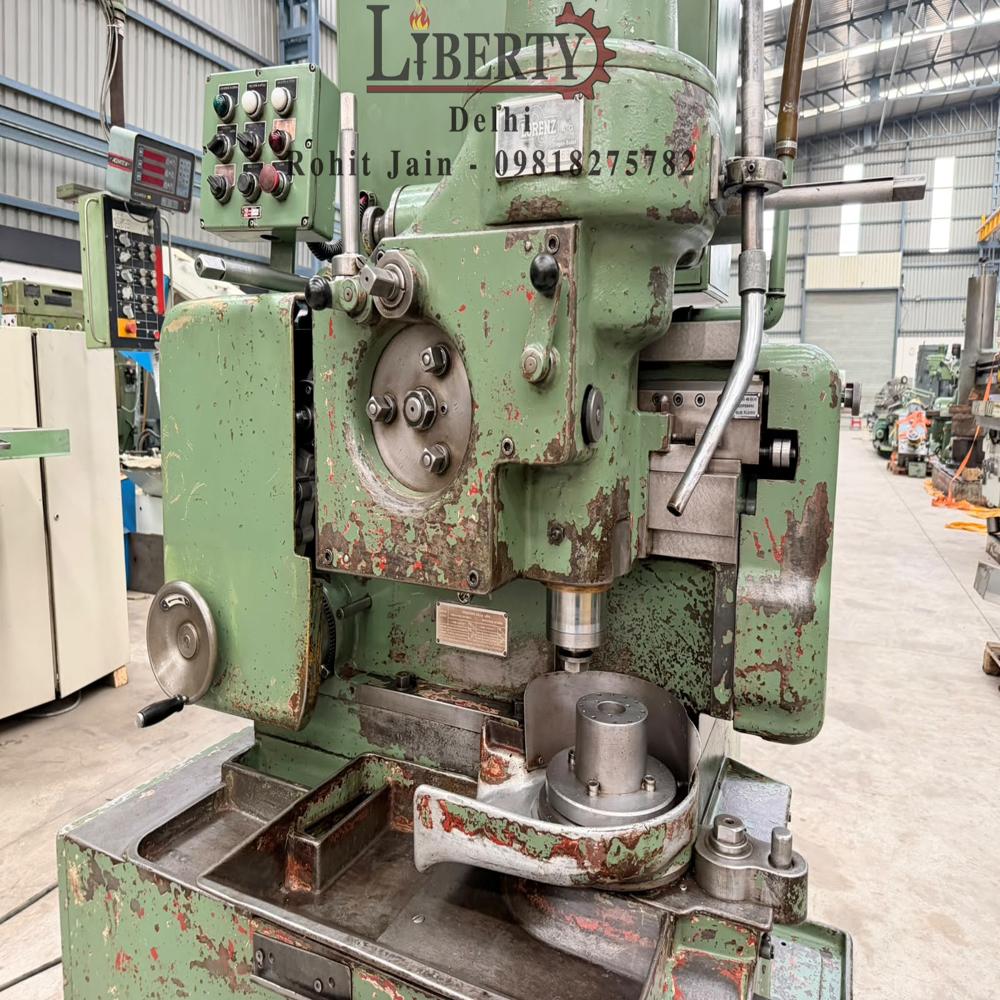

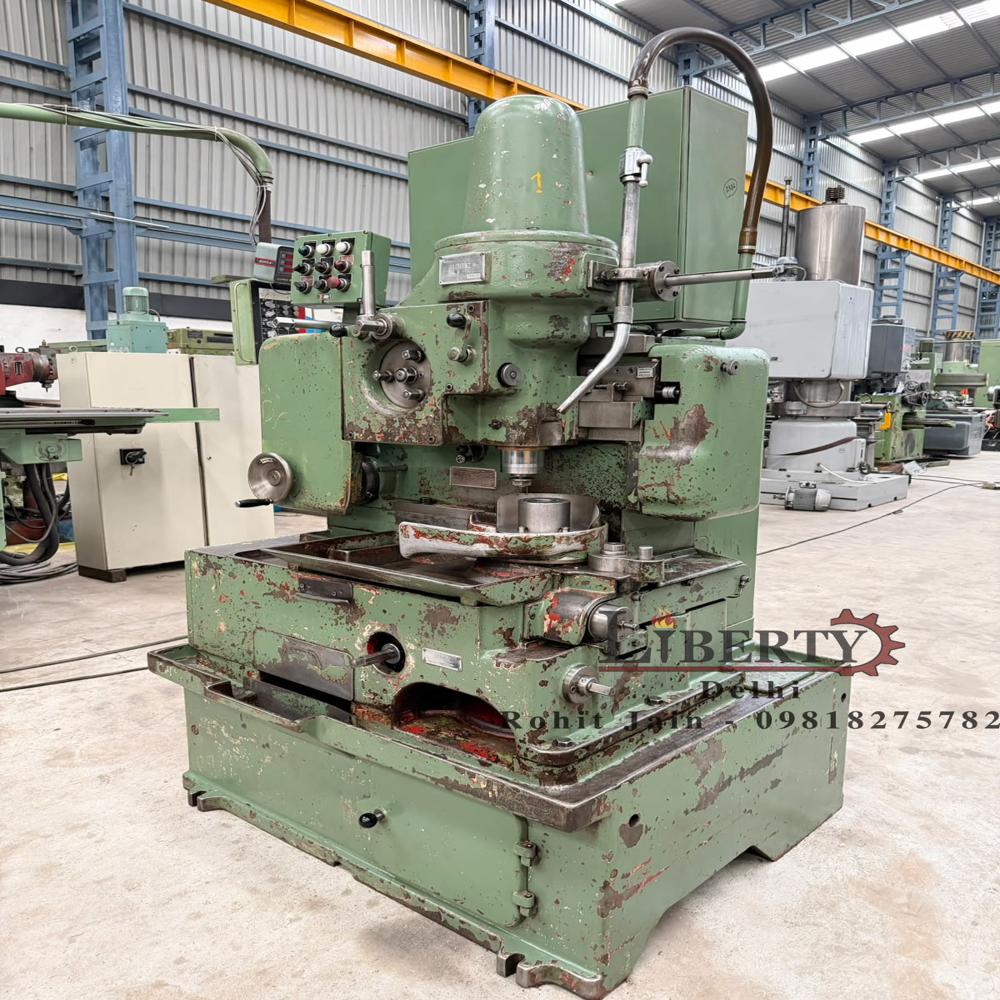

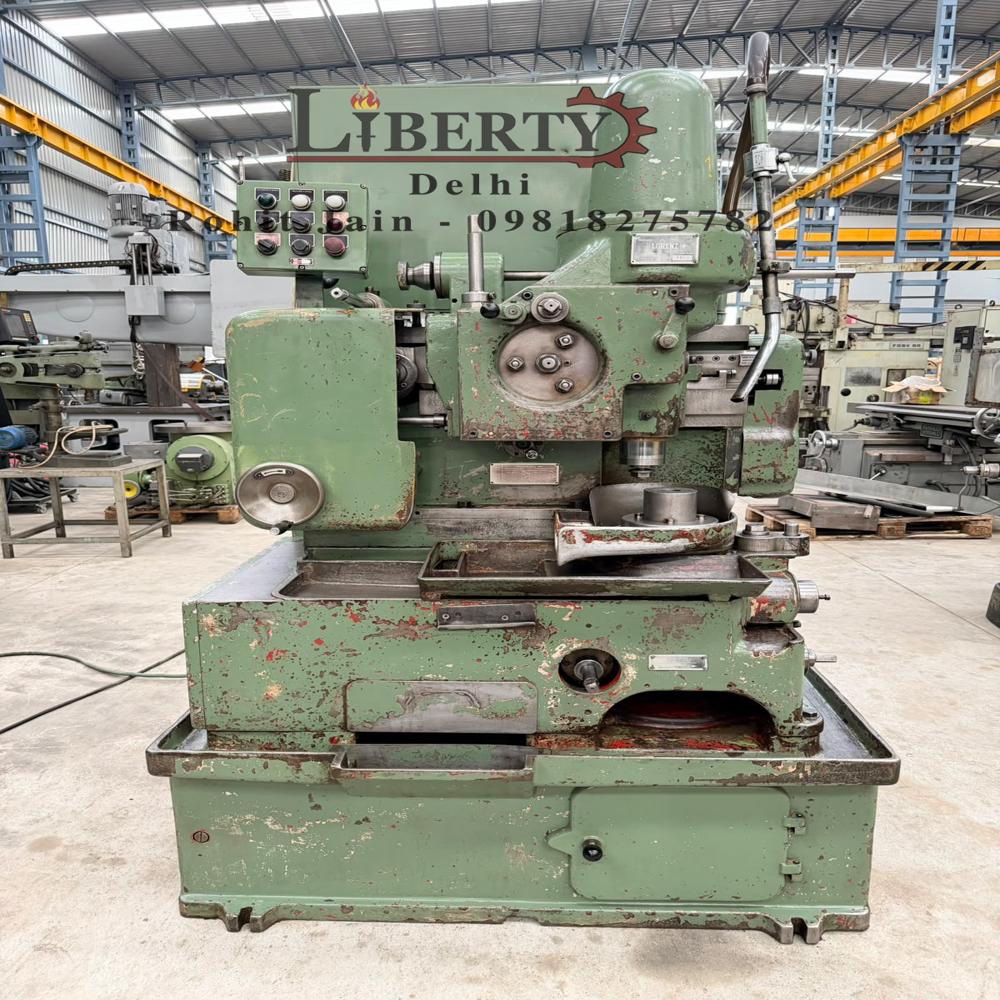

Lorenz SV-00 Gear Shaping Machine

Name: Lorenz SV-00 Gear Shaping Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Lorenz SV-00 Gear Shaping Machine Specification

Machine Type
Gear Shaping Machine made by Lorenz (Germany), Model SV-00, available in excellent working condition. It is a 4 Module machine with a Max. Gear Diameter of 180 mm and a Maximum Stroke Length of 55 mm. The machine is complete with Change Gears, a spare Cam, and Electrical Drawings. The technical details are as follows -

Lorenz SV-00 Gear Shaping Machine Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About Lorenz SV-00 Gear Shaping Machine

Make - Lorenz (Germany)

Model - SV-00

Max. Gear Diameter - 180 mm

Max. Module Capacity - 4 Modules

Max. Stroke Length - 55 mm

Spindle Diameter - 85 mm

Spindle Type - Hollow

Stroke Rate - 190 to 400 strokes/min

Height between Table and Spindle Body - 220 mm

Max. Swing Diameter of Job - 220 mm

- Feature of Automatic Increase in Spindle Stroke Rate during finishing cut.

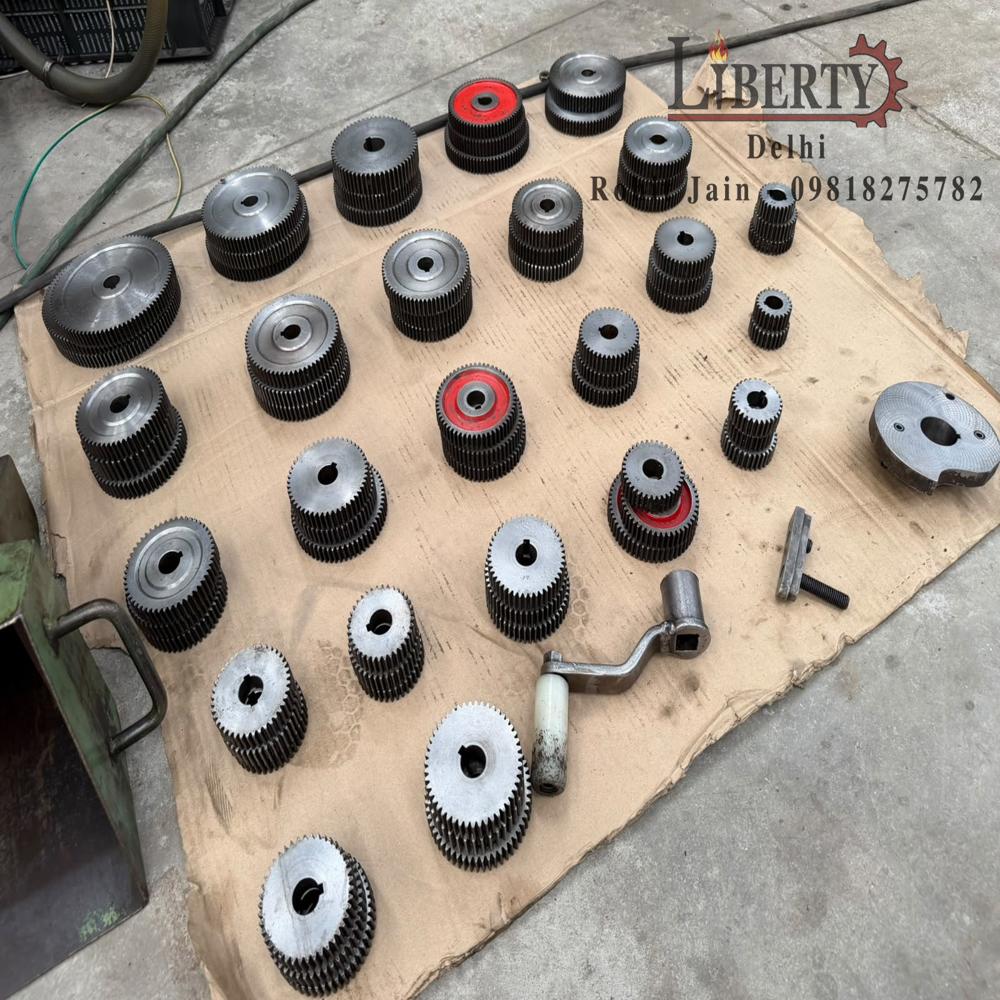

- Complete with Change Gears, a spare Cam, & Electrical Drawings.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/b7MqpI84l90

Precision Engineering from Lorenz

Built in Germany, the Lorenz SV-00 Gear Shaping Machine embodies precision and durability. Known for its stable performance, it is suitable for a diverse range of gear making requirements. The machine's fully equipped status, including change gears and electrical documentation, assures operators of smooth integration into existing production lines.

Optimized for Versatile Gear Production

With a 4 Module capacity and ability to process gears up to 180 mm in diameter, the Lorenz SV-00 is a versatile solution for small to medium batch productions. Its maximum stroke length of 55 mm enables the creation of a variety of gear profiles with high accuracy, making it a perfect fit for demanding manufacturing environments.

FAQ's of Lorenz SV-00 Gear Shaping Machine:

Q: How does the Lorenz SV-00 Gear Shaping Machine work?

A: The Lorenz SV-00 operates by utilizing a reciprocating cutting tool to gradually generate accurately shaped gear teeth. Change gears and cams enable customization for different module sizes and gear shapes, while its solid German engineering guarantees precision during the process.

Q: What are the main benefits of using the Lorenz SV-00 Gear Shaping Machine?

A: Key benefits include high reliability, precise gear cutting for modules up to 4, and the ability to handle gear diameters up to 180 mm. The inclusion of change gears, a spare cam, and electrical drawings ensures operational flexibility and efficient maintenance.

Q: Where can the Lorenz SV-00 Gear Shaping Machine be used?

A: This machine is highly suitable for gear manufacturing facilities, workshops, and industrial production lines. Exporters, importers, manufacturers, suppliers, and traders will find it a valuable asset for both in-house use and resale.

Q: What is included with the Lorenz SV-00 Gear Shaping Machine?

A: The machine is supplied in excellent working condition and comes complete with essential accessories such as change gears, a spare cam, and detailed electrical drawings. This package ensures that users have the necessary components for set-up and maintenance.

Q: When is it advisable to use the SV-00 model for gear production?

A: The SV-00 is best utilized when precise, small to medium gears (up to 180 mm diameter) with up to a 4 Module specification are required. It is especially suitable when flexibility, accuracy, and reliability are priorities in the production process.

Q: What is the typical process for setting up and operating this shaping machine?

A: Set up involves mounting the appropriate change gears, calibrating the machine per the desired gear specifications, and following the provided electrical drawings for accurate wiring. The operator then adjusts stroke length and feeds the workpiece, ensuring precise gear shaping with every cycle.
