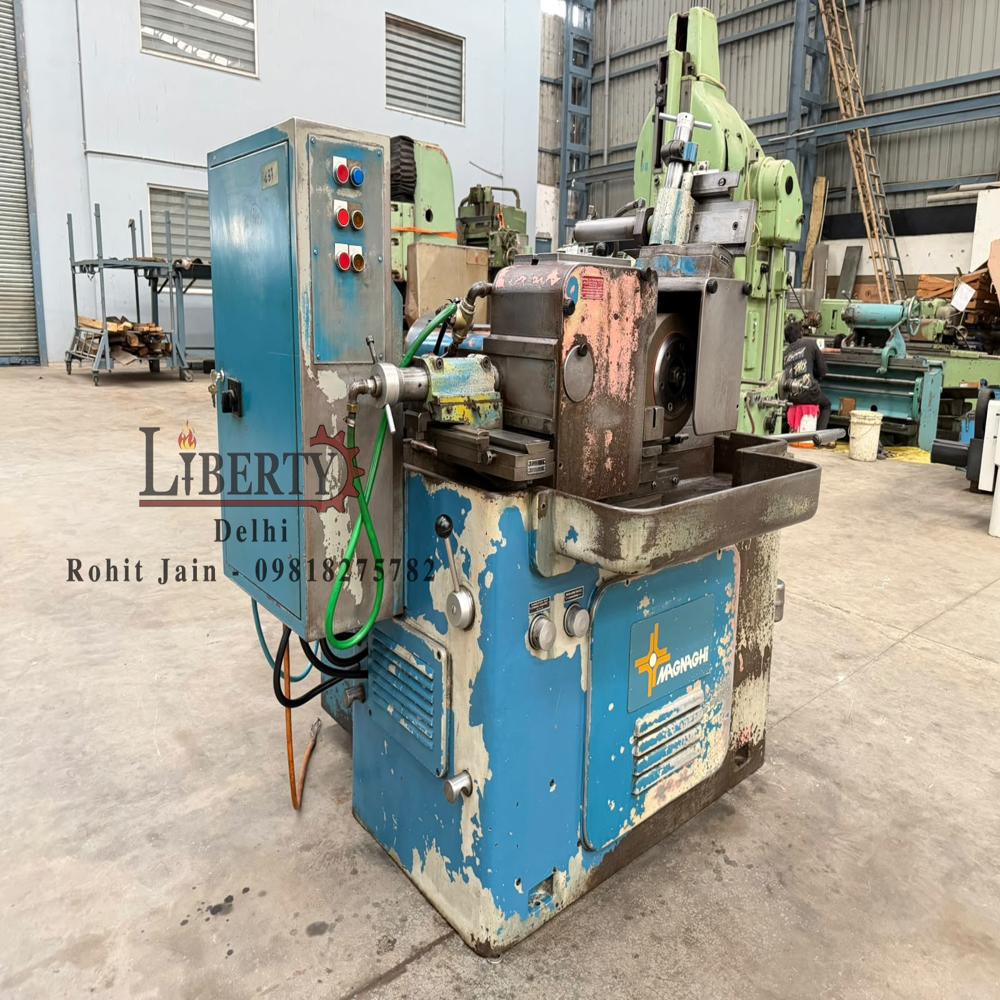

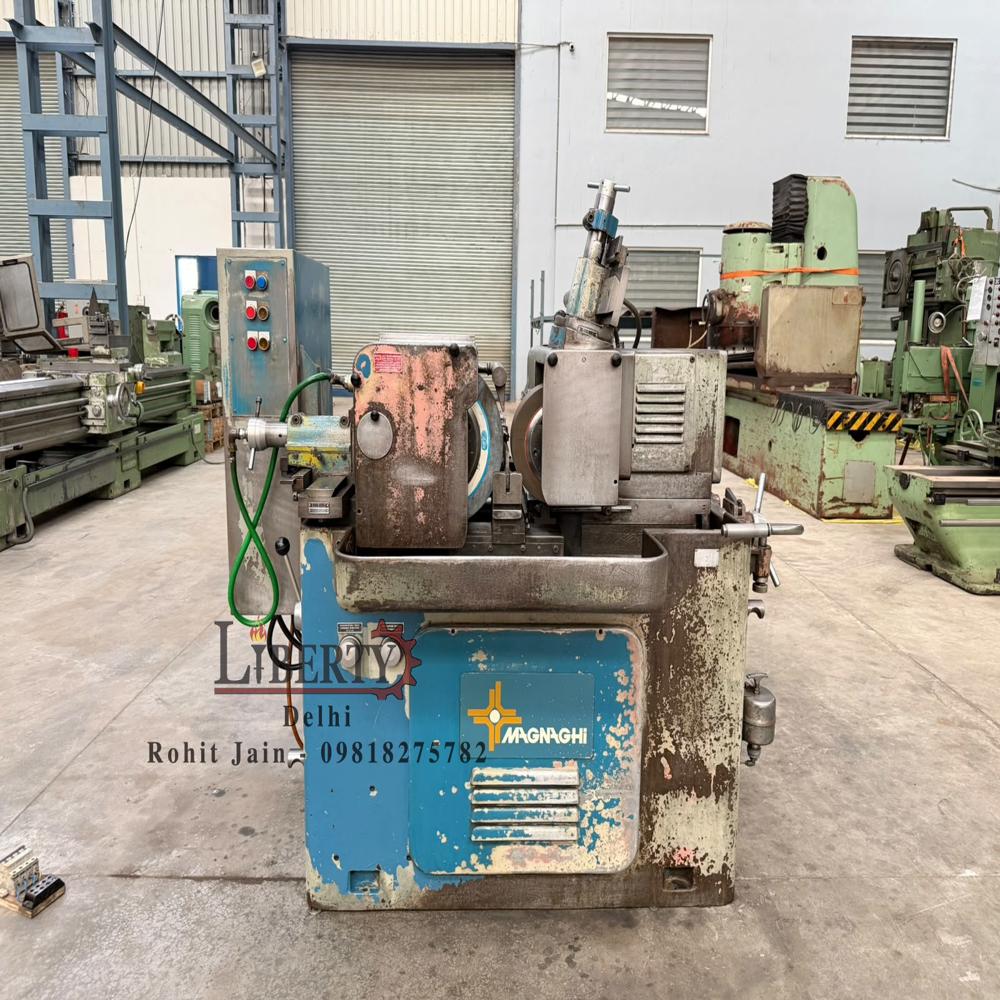

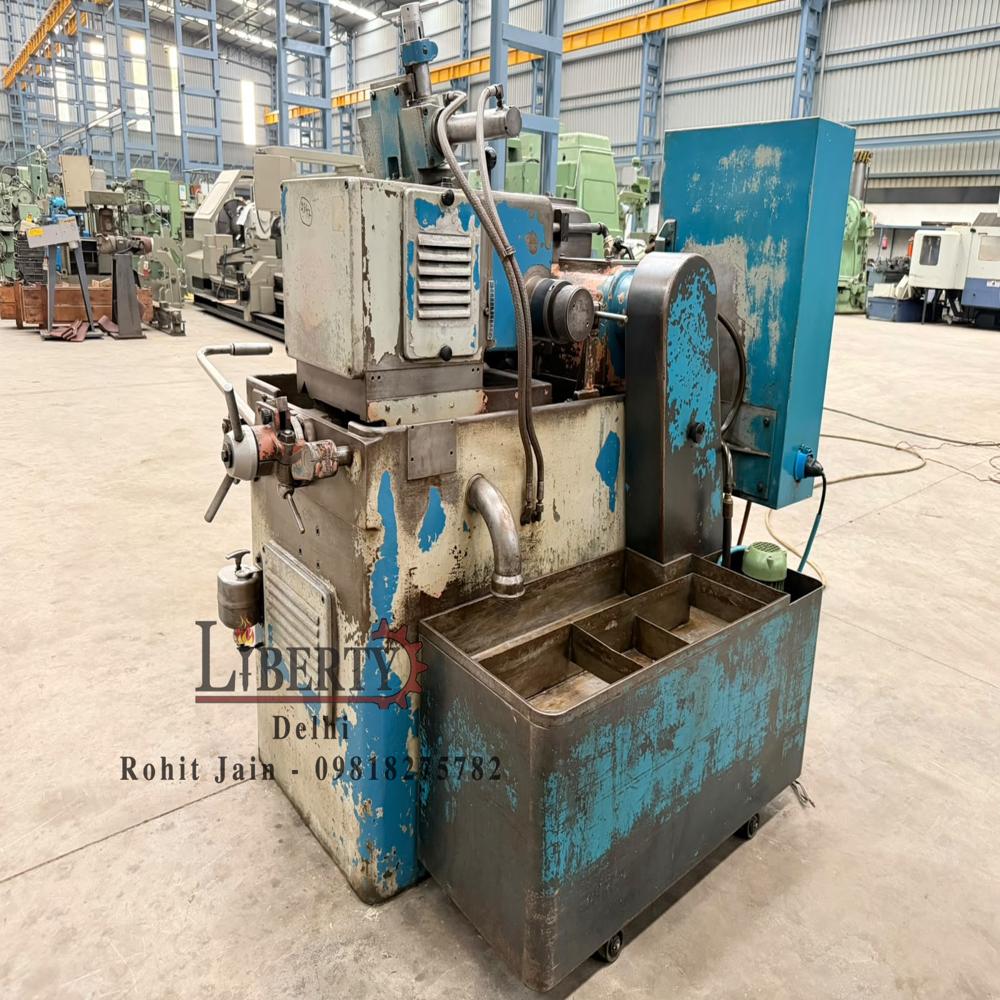

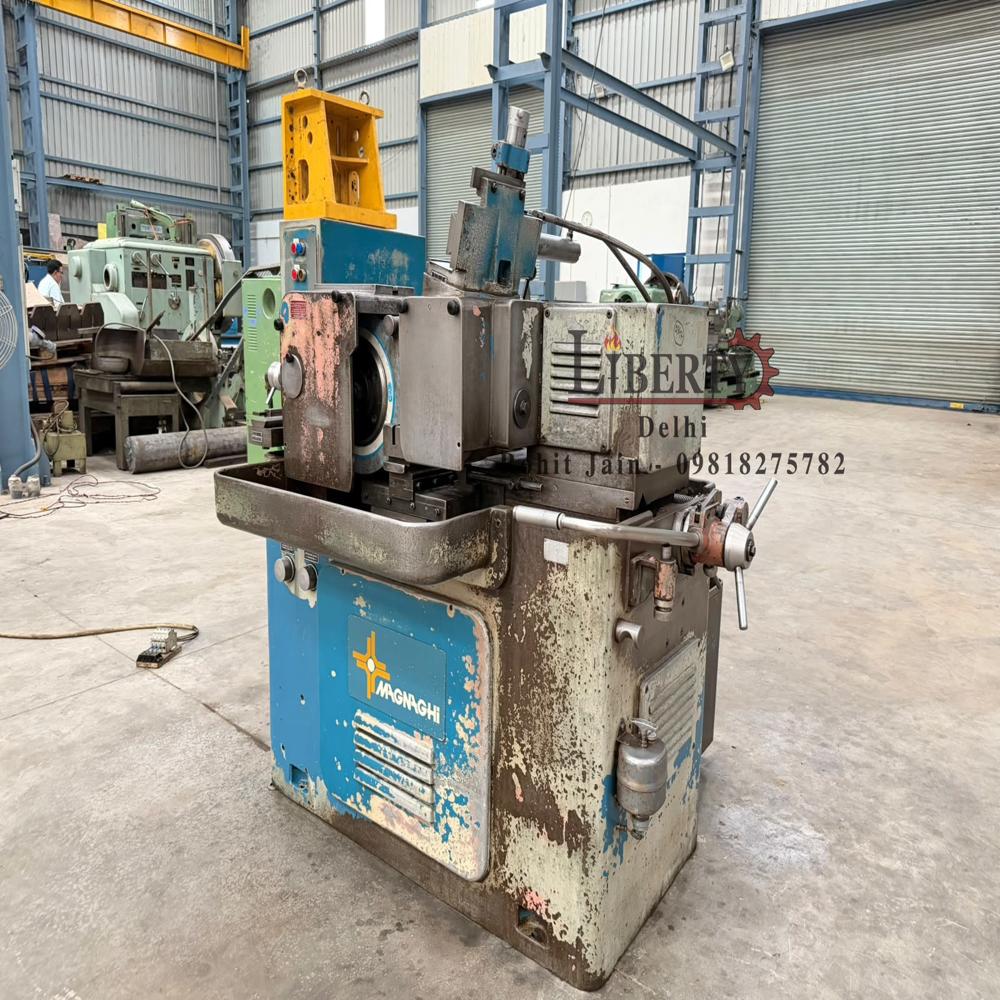

Magnaghi Italy RSC-350 Centerless Grinding Machine

Name: Magnaghi Italy RSC-350 Centerless Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Magnaghi Italy RSC-350 Centerless Grinding Machine Specification

Rotation
Right Hand / Clockwise

Model
RSC-350

Product Type
Centerless Grinding Machine

General Use
Centerless Grinding Machine made by Magnaghi (Italy), Model RSC-350, available in excellent working condition. The machine is equipped with Automatic Job Pusher Attachment for In-Feed Grinding applications. The Control Wheel can be tilted by 5 degrees for Through-Feed Grinding applications. The machine is equipped with Hydraulic Wheel Dressing Units for quick and accurate wheel dressing. It is complete with Coolant Tank and Coolant Pump. The technical details are as follows -

Material
Cast Iron, Steel components

Type
Centerless Grinder

Capacity
Varies as per application

Weight (kg)
Approx. 1800 kg

Computerized
No

Automatic
No (Manual Operation)

CNC Or Not
No (Conventional Machine)

Control System
Manual

Table Slide Way
V and Flat ways

Magnetic Chuck Size
Not Applicable (Centerless)

Grinding Wheel Size
350 mm Diameter

Grinding Wheel Speed
Approx. 1800-2000 RPM

Grinding Length
Approx. 200 mm

Floor Space
Approx. 1700 x 1200 mm

Spindle Speed
Approx. 1800 RPM

Power
4 kW

Voltage
415 V, 50 Hz, 3-Phase

Dimension (L*W*H)
Approx. 1800 x 1200 x 1650 mm

Feature
Robust Construction, Precision Grinding

Color
Blue / Grey

Lubrication
Centralized Lubrication

Coolant System
Integrated Coolant Tank & Pump

Feed Type
Through-feed / Infeed

Hydraulic System
Not Present (Manual Movements)

Grinding Wheel Material
Aluminum Oxide

Condition
Pre-owned / Used

Working Speed
Adjustable (by manual feed)

Wheel Dressing
Manual Single Point Dresser

Main Motor Rating
4 HP

Min/Max Workpiece Diameter
6 mm - 80 mm

Application
Precision grinding of rods, pins, tubes, and similar cylindrical components

About Magnaghi Italy RSC-350 Centerless Grinding Machine

Make - Magnaghi (Italy)

Model - RSC-350

Job Grinding Diameter - 2 mm to 85 mm

Grinding Wheel Diameter - 350 mm

Grinding Wheel Width - 100 mm

Control Wheel Diameter - 250 mm

Max. Wheel Width Capacity - 120 mm

Control Wheel Feed Angle - +5 degree to -5 degree

Control Wheel Speeds - 18 / 24 / 34 / 250 RPM

- Suitable for both In-Feed and Through-Feed Grinding Applications.

- Equipped with Hydraulic Wheel Dressers.

- Automatic Job Pusher Attachment for In-Feed Grinding.

- Tilting Type Control Wheel for Through-Feed Grinding.

- Complete with Coolant Tank and Coolant Pump.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/zo78ZNummBA

Precision Through Simplicity

The Magnaghi RSC-350 centerless grinder is engineered specifically for applications requiring precision grinding without the need for computer controls. Its manual feed adjustments and robust build ensure repeatable accuracy when processing rods, pins, and tubes. The traditional V and Flat Table Slide Way arrangement, combined with quality materials like cast iron and steel, provide long-lasting durability and vibration-free operation.

Efficient Manual Operation

Ideal for workshops or manufacturers looking for hands-on control, the RSC-350 operates with manual adjustments for speed and feed, offering flexibility to suit varied grinding requirements. The automatic job pusher attachment simplifies in-feed grinding tasks, while the integrated coolant system and centralized lubrication contribute to longevity and low maintenance. This machine fits seamlessly into environments focusing on high throughput and precise results.

Versatile and Adaptable

With its ability to handle workpiece diameters between 6 mm and 80 mm and adaptable feed types (through-feed and infeed), the Magnaghi RSC-350 is suitable for a variety of grinding projects. The tiltable control wheel and hydraulic wheel dressing system enhance operational efficiency, ensuring quick setup changes and consistent grinding quality for small and medium-scale production runs.

FAQ's of Magnaghi Italy RSC-350 Centerless Grinding Machine:

Q: How is the working speed of the Magnaghi RSC-350 adjusted?

A: The working speed is adjustable manually using the feed mechanism. Operators can fine-tune the feed speed according to the specific requirements of the workpiece and grinding operation, allowing for optimal surface finish and precision.

Q: What is the range of workpiece diameters supported by this centerless grinder?

A: The Magnaghi RSC-350 can process cylindrical workpieces with diameters ranging from 6 mm up to 80 mm, making it suitable for grinding a variety of rods, pins, and tubes.

Q: What are the main benefits of using a manual centerless grinding machine like the RSC-350?

A: Manual operation provides greater tactile control, allowing skilled machinists to adjust and optimize grinding processes in real-time. This results in precise, customized finishes, lower maintenance complexity, and suitability for both small batch and continuous production.

Q: How does the wheel dressing process work on this machine?

A: Wheel dressing on the RSC-350 is accomplished using a manual single-point dresser or a hydraulic wheel dressing unit. This process regenerates the grinding wheel surface to maintain sharp cutting edges and consistent performance.

Q: Where is the coolant stored and supplied in the RSC-350?

A: The machine features an integrated coolant tank and pump, ensuring a continuous supply of coolant to the grinding area. This helps manage heat buildup and preserves both workpiece quality and grinding wheel life.

Q: What type of materials is the RSC-350 constructed from?

A: The machine is built using robust cast iron and steel components. This sturdy construction minimizes vibration, enhances durability, and supports high-precision grinding operations.
