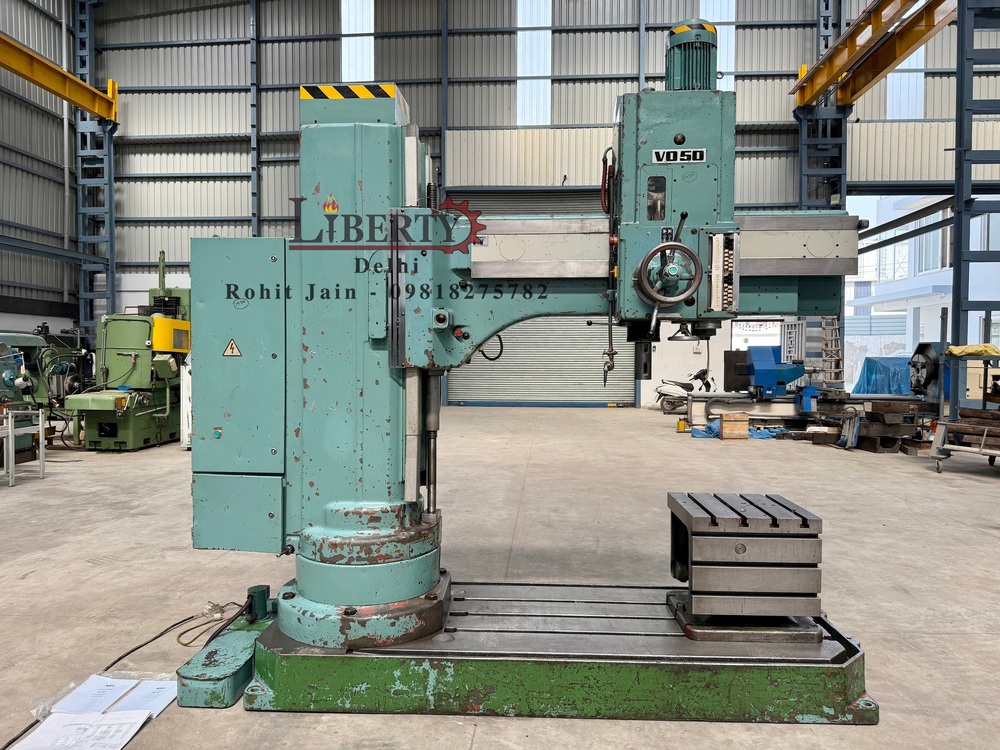

MAS Czech 60 mm x 1750 mm Arm Radial Drilling Machine

Send Inquiry

Request To Call Back

MAS Czech 60 mm x 1750 mm Arm Radial Drilling Machine

Name: MAS Czech 60 mm x 1750 mm Arm Radial Drilling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MAS Czech 60 mm x 1750 mm Arm Radial Drilling Machine Specification

Frequency
50 Hz

Table Size
650 mm x 540 mm

Machine Type
Radial Arm Type

Dimension (L*W*H)
2500 mm x 1100 mm x 3100 mm

Diameter
Maximum 60 mm drill diameter

Condition
New

Features
Robust structure, Wide working area, Precision feed, Adjustable arm

Spindle Speed
56~1200 RPM (Variable)

Cutting Area
Up to 1750 mm arm length

Noise Level
<75 dB

Motor Power
7.5 HP (approx. 5.5 kW)

Product Type
Radial Drilling Machine

Material
Heavy Duty Cast Iron & Steel

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Manual

Voltage
415 V (Three Phase)

Power
5.5 kW

Power Source
Electric

Weight (kg)
Approx. 3500 kg

Capacity
Drilling up to 60 mm diameter

Color
Machine Green

Usage & Applications
Heavy Industrial Metal Drilling, Fabrication Workshops, Machine Shops

Lubrication System
Automatic

Safety System
Integrated guards & emergency stop

Chuck Size
5~60 mm

Min Distance from Spindle to Column
350 mm

Drilling Depth
350 mm

Spindle Taper
Morse Taper No 5

Column Diameter
400 mm

Number of Spindle Speeds
18

Arm Length
1750 mm

Swing
Approx. 2200 mm

Number of Feed Rates
16

Coolant System
Fitted

Surface Finish
Grinded and Hardened

Lifting Type
Power Elevation Arm

Max Distance from Spindle to Table
1250 mm

MAS Czech 60 mm x 1750 mm Arm Radial Drilling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About MAS Czech 60 mm x 1750 mm Arm Radial Drilling Machine

Make - MAS (Czech Republic)

Model - VO-50

Drilling Capacity - 60 mm

Spindle Diameter - 85 mm

Arm Length - 1750 mm

Spindle Speeds - 28 rpm to 2500 rpm

Spindle Taper - MT 5

Spindle Feed Travel - 310 mm

Spindle Feed Rate of Travel - 0.05 mm/rev to 2.00 mm/rev

Vertical Travel of Arm - 875 mm

Max. Height between Spindle to Top of Base - 1500 mm

Table Size - 550 mm x 555 mm

Tilting Angle of Table - 0 degree to 90 degree

Clamping Type - Hydraulic

- Feature of Automatic Tapping.

- Complete with Coolant Tank and Pump.

- Electrical Drawings & Operating Manual is available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/aEz8iscE8xs

Enhanced Drilling Capacity for Industrial Workspaces

The MAS Czech radial drilling machine excels in heavy-duty metalworking environments. Its 60 mm drilling capacity and 1750 mm arm length equip operators to handle large and intricate pieces with ease. Automated functions like the power elevation arm and automatic lubrication system reduce manual labor and extend component life, while the wide table and swing dimensions accommodate larger materials seamlessly.

Precision Engineering with Safety Integrated

Designed for both performance and safety, this drilling machine incorporates integrated guards and an emergency stop system. The grinded and hardened surface finish ensures longevity and consistent accuracy with every operation. Adjustable feed rates and spindle speeds allow tailored settings for different material types, ensuring optimal results without compromising operator safety.

Versatile and Reliable for Diverse Applications

From metal fabrication workshops to machine shops, the MAS Czech radial arm drilling machine provides the versatility needed for a range of drilling demands. Semi-automatic controls and manual adjustments offer flexibility, while the rugged build and noise level under 75 dB create a durable yet comfortable workspace. Its heavy-duty frame guarantees stability for professional use across various industries.

FAQ's of MAS Czech 60 mm x 1750 mm Arm Radial Drilling Machine:

Q: How does the power elevation arm improve the drilling process?

A: The power elevation arm allows for effortless vertical adjustment of the drilling arm, enabling precise positioning and consistent drilling without manual lifting. This feature increases operational efficiency and safety, particularly when working with large or heavy materials.

Q: What is the benefit of having 18 spindle speeds and 16 feed rates?

A: Having 18 spindle speeds and 16 feed rates provides flexibility to adjust the drilling parameters according to the material type and thickness. This ensures optimal cutting performance, prolongs tool life, and delivers greater precision with minimal manual intervention.

Q: When is this machine most effectively used?

A: The MAS Czech radial drilling machine is most effective during heavy industrial drilling projects, especially in metal fabrication workshops or machine shops where large parts and precise hole placement are required.

Q: Where can this machine be installed and operated?

A: This machine is suitable for installation in industrial environments such as fabrication workshops, machine shops, manufacturing plants, and other facilities engaged in heavy-duty metalworking.

Q: What safety systems are integrated into the machine?

A: The machine includes integrated guards and an emergency stop system designed to protect the operator during operation. These safety features help prevent accidents by providing rapid shutdown and physical barriers against moving parts.

Q: How does the automatic lubrication system impact the machine's usage?

A: The automatic lubrication system continuously and efficiently maintains optimal lubrication of moving components, reducing wear and tear, minimizing maintenance downtime, and extending the lifespan of the machine.

Q: What benefits does the grinded and hardened surface finish offer?

A: A grinded and hardened surface finish improves resistance to wear, enhances the machine's durability, and promotes consistent accuracy throughout its operational life. This results in reliable, high-quality drilling performance.
