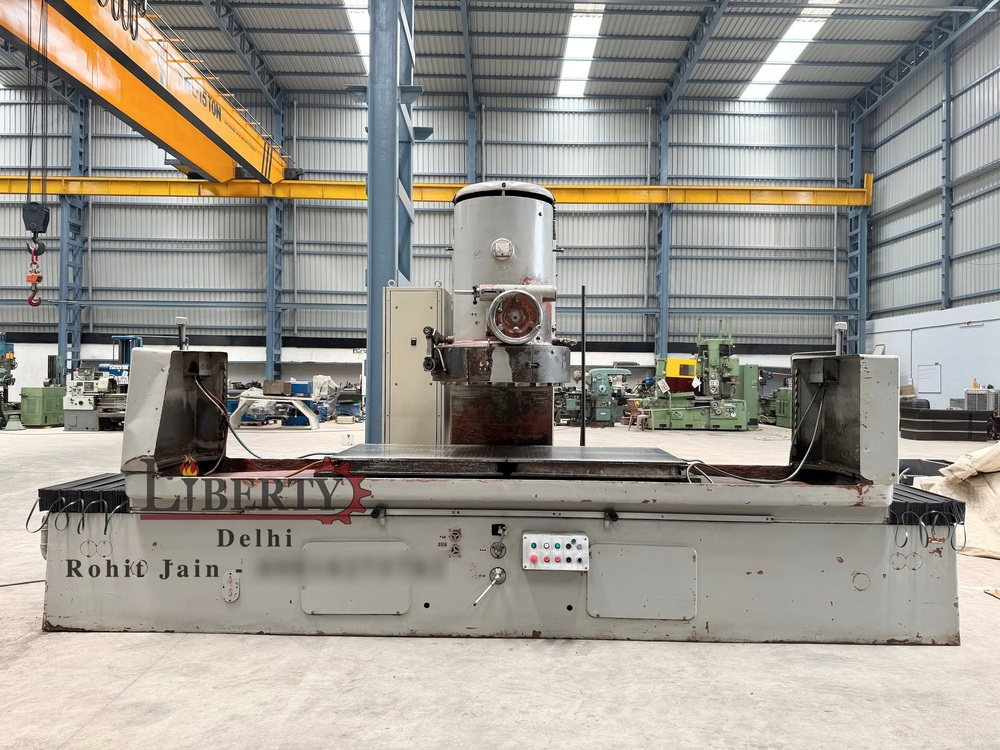

MAS Czech 700 mm x 2000 mm Vertical Surface Grinder Machine

Send Inquiry

Request To Call Back

MAS Czech 700 mm x 2000 mm Vertical Surface Grinder Machine

Name: MAS Czech 700 mm x 2000 mm Vertical Surface Grinder Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MAS Czech 700 mm x 2000 mm Vertical Surface Grinder Machine Specification

Model
MAS Czech 700 x 2000

Rotation
Grinding Wheel Rotary

Product Type
Vertical Surface Grinder

General Use
Precision Vertical Surface Grinding

Material
Heavy Duty Cast Iron Body

Type
Vertical Surface

Capacity
Heavy Duty, Up To 2000 mm Workpiece

Weight (kg)
Approx. 18,000 kg

Computerized
No

Automatic
Semi-Automatic

CNC Or Not
Not CNC

Control System
Manual Controls

Table Size
700 mm x 2000 mm

Table Slide Way
V and Flat Guideways

Magnetic Chuck Size
700 mm x 2000 mm

Grinding Wheel Size
500 mm diameter approx.

Grinding Wheel Speed
Approx. 1400 RPM

Grinding Length
2000 mm

Floor Space
Approx. 4300 mm x 2300 mm

Spindle Speed
Variable, up to 1400 RPM

Power
Approx. 15 kW

Voltage
380/415 V, 3 Phase

Dimension (L*W*H)
Approx. 4300 x 2300 x 3100 mm

Feature
High Precision, Heavy Duty Construction

Color
Standard Industrial Grey

Grinding Wheel Material
Abrasive (Standard)

Surface Finish Accuracy
Up to 2 microns

Vertical Travel
~650 mm

Min. Feed Increment
0.001 mm

Drive Motor Type
Three Phase Induction Motor

Cross Travel
~750 mm

WorkingSpeed
Adjustable

Table Traverse Speed
Approx. 125 m/min (hydraulic)

Electrical Standard
IEC Compliant

Lubrication System
Centralized Automatic

Coolant System
Yes, Integrated

Max. Table Load
3500 kg

MAS Czech 700 mm x 2000 mm Vertical Surface Grinder Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About MAS Czech 700 mm x 2000 mm Vertical Surface Grinder Machine

Make - MAS (Czech Republic)

Model - BPV-700/2

Job Grinding Capacity - 700 mm x 2000 mm

Magnet Size - 800 mm x 2000 mm (680 mm x 2000 mm)

Segmented Wheel Cup Diameter - 750 mm

No. of Segments - 18 pcs.

Max. Height of Job - 400 mm

Main Spindle Motor Power - 30 HP

- Feature of Automatic Depth Adjustment "Auto-Cut".

- Complete with Wheel Dresser, Coolant Filtration Unit, Coolant Tank & Pump.

- Complete with many NEW spare wheels, Splash Guards, etc.

- Operating Manuals, Electrical Drawings, Mechanical Drawings etc. are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/w3cvDPDWQRI

Engineered for Precision and Durability

Constructed from heavy-duty cast iron and equipped with robust V and flat guideways, the MAS Czech 700 x 2000 ensures long-term stability and accuracy during intensive grinding operations. Its semi-automatic functions and integrated coolant and lubrication systems help minimize downtime and enhance operating efficiency.

Heavy Duty and High Capacity

Supporting a maximum table load of 3,500 kg and accommodating large workpieces up to 2,000 mm, this vertical surface grinder is well-suited for demanding industrial environments. The adjustable working speed and variable spindle speed provide flexibility for a range of grinding requirements.

Exceptional Surface Finish and Accuracy

The vertical grinder delivers surface finishes accurate to 2 microns, thanks to precise manual controls and advanced abrasive grinding wheels. The minimum feed increment of just 0.001 mm means extremely fine adjustments are possible for consistent, high-quality results in every operation.

FAQ's of MAS Czech 700 mm x 2000 mm Vertical Surface Grinder Machine:

Q: How can I operate the MAS Czech 700 x 2000 Vertical Surface Grinder Machine?

A: The machine utilizes manual controls for operation, allowing operators to adjust table traverse speed, feed increment, and spindle speed as needed. Its semi-automatic features and integrated systems simplify setup and support precise, hands-on grinding processes.

Q: What types of workpieces can this grinder handle effectively?

A: With a magnetic chuck size of 700 mm x 2000 mm and a maximum table load of 3,500 kg, the machine is designed for heavy duty and large workpieces, particularly those requiring high-precision vertical surface grinding in industrial manufacturing.

Q: When is the coolant system utilized during machine operation?

A: The integrated coolant system runs during grinding activities to reduce heat, prevent thermal distortion, and maintain the required surface finish accuracy, especially when working with large components and abrasive wheels.

Q: Where is regular maintenance required on this grinder?

A: Automatic centralized lubrication covers the primary moving parts, reducing manual intervention. Regular inspections should focus on the abrasive wheel, guideways, and the coolant system to ensure optimal performance and longevity.

Q: What is the grinding process on this machine?

A: Workpieces are placed on the magnetic chuck, and grinding is performed with an abrasive wheel rotating at up to 1400 RPM. Hydraulic table traverse and manual control of feed increments allow for smooth, accurate grinding along the 700 mm x 2000 mm table.

Q: How does using this machine benefit industrial users?

A: This grinder offers exceptional surface finish accuracy up to 2 microns, supports high capacity workpieces, and includes automated systems for coolant and lubrication. Its robust construction and manual controls enable precise, repeatable grinding-maximizing both productivity and the quality of finished surfaces.
