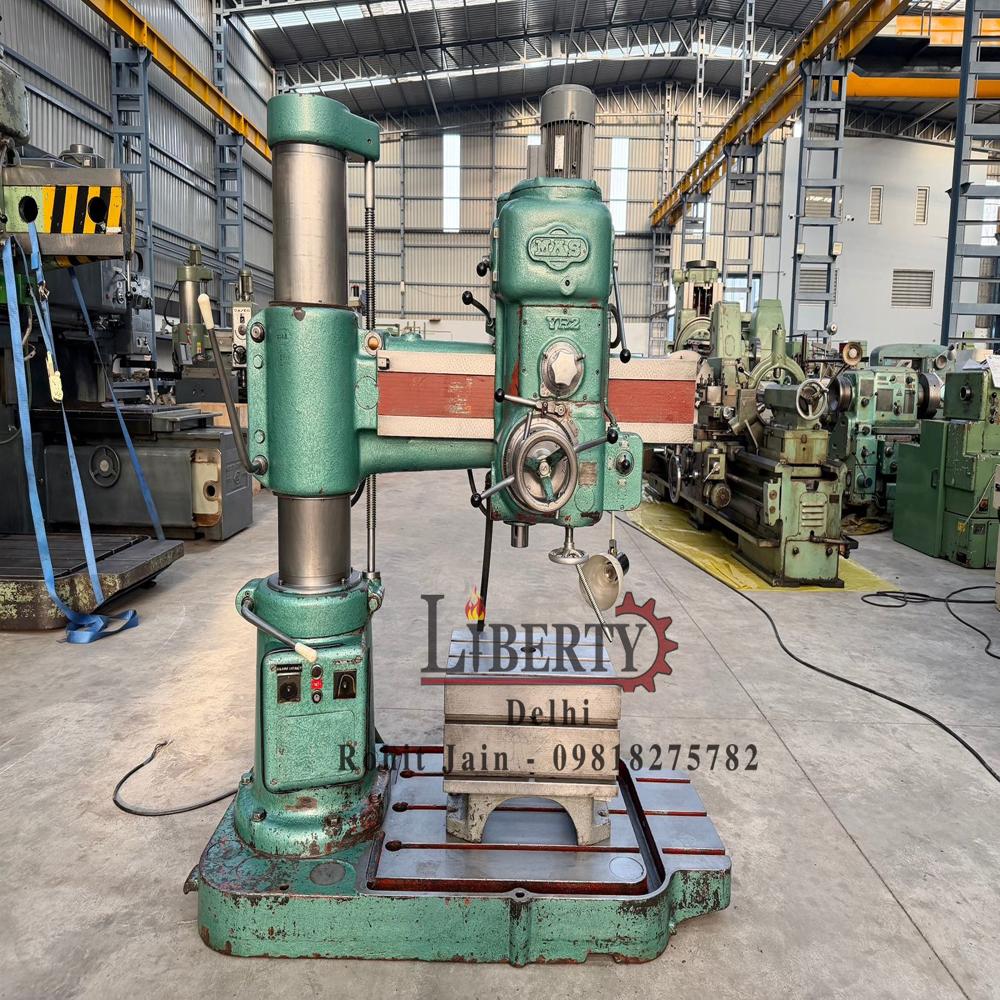

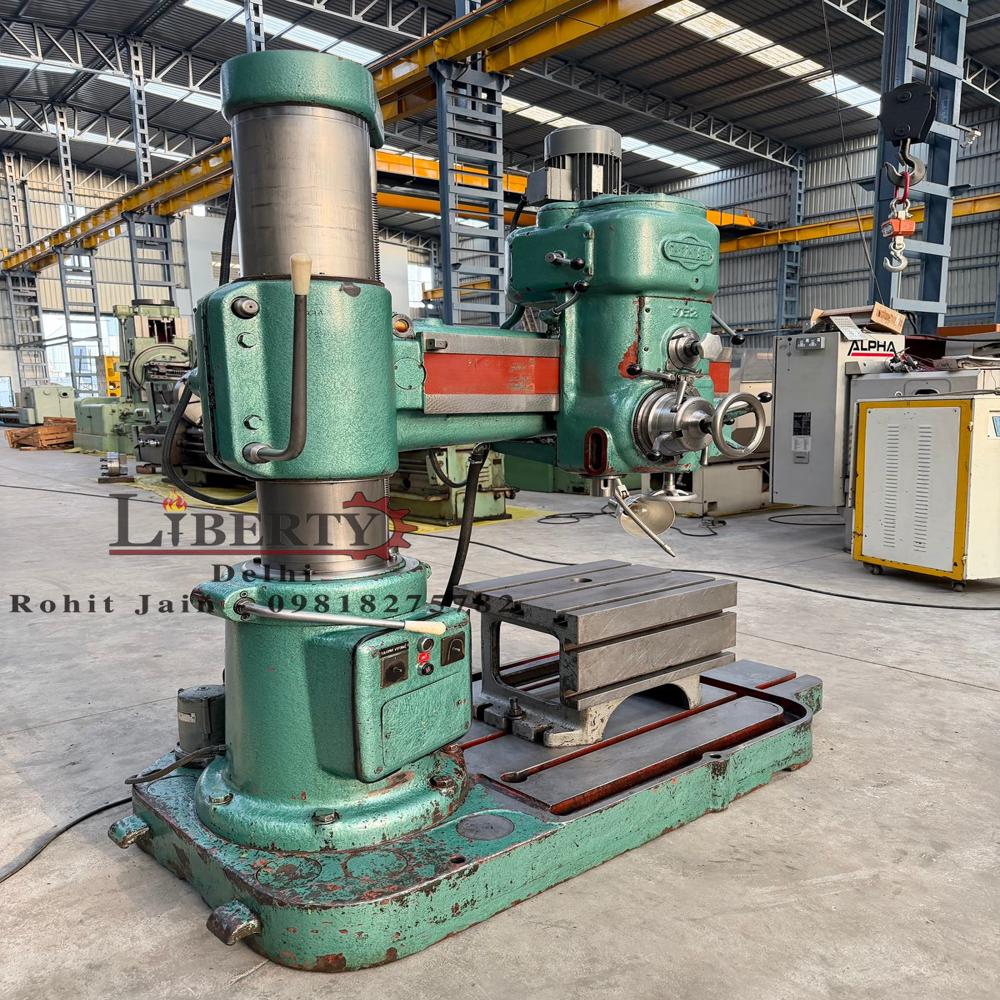

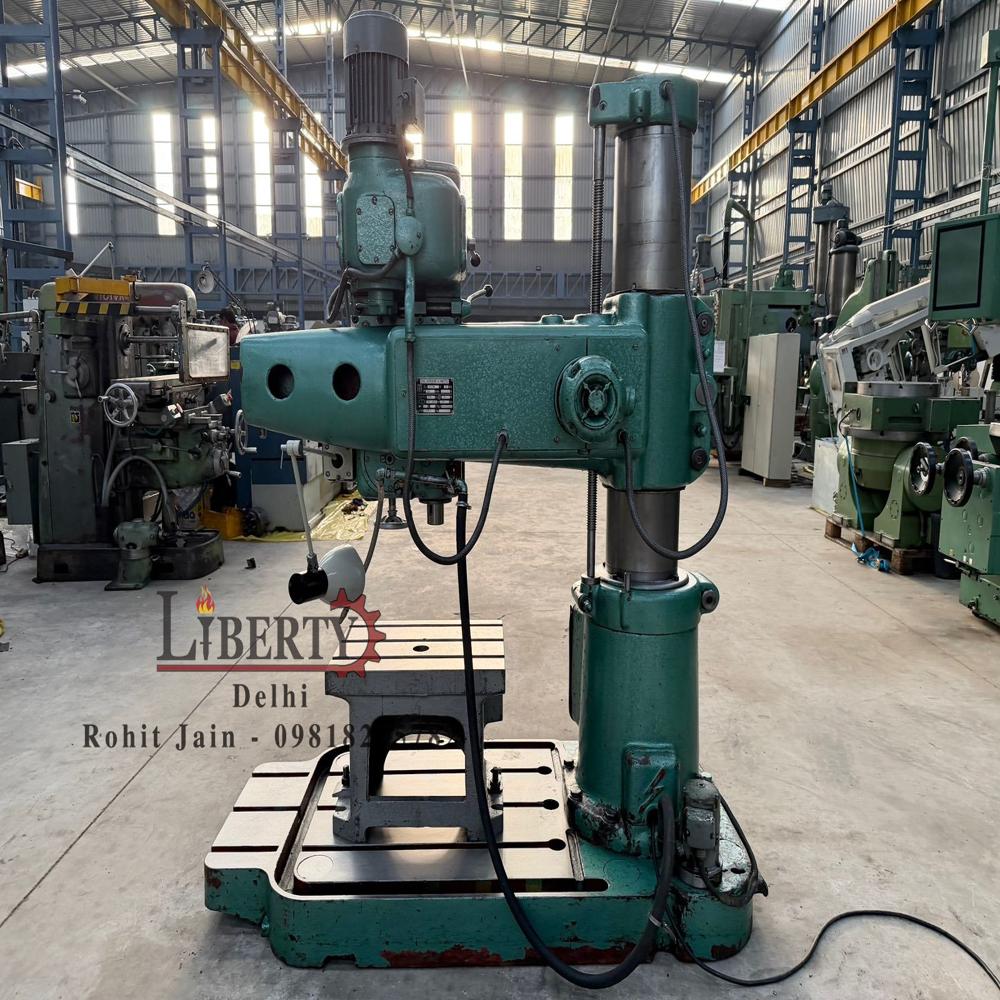

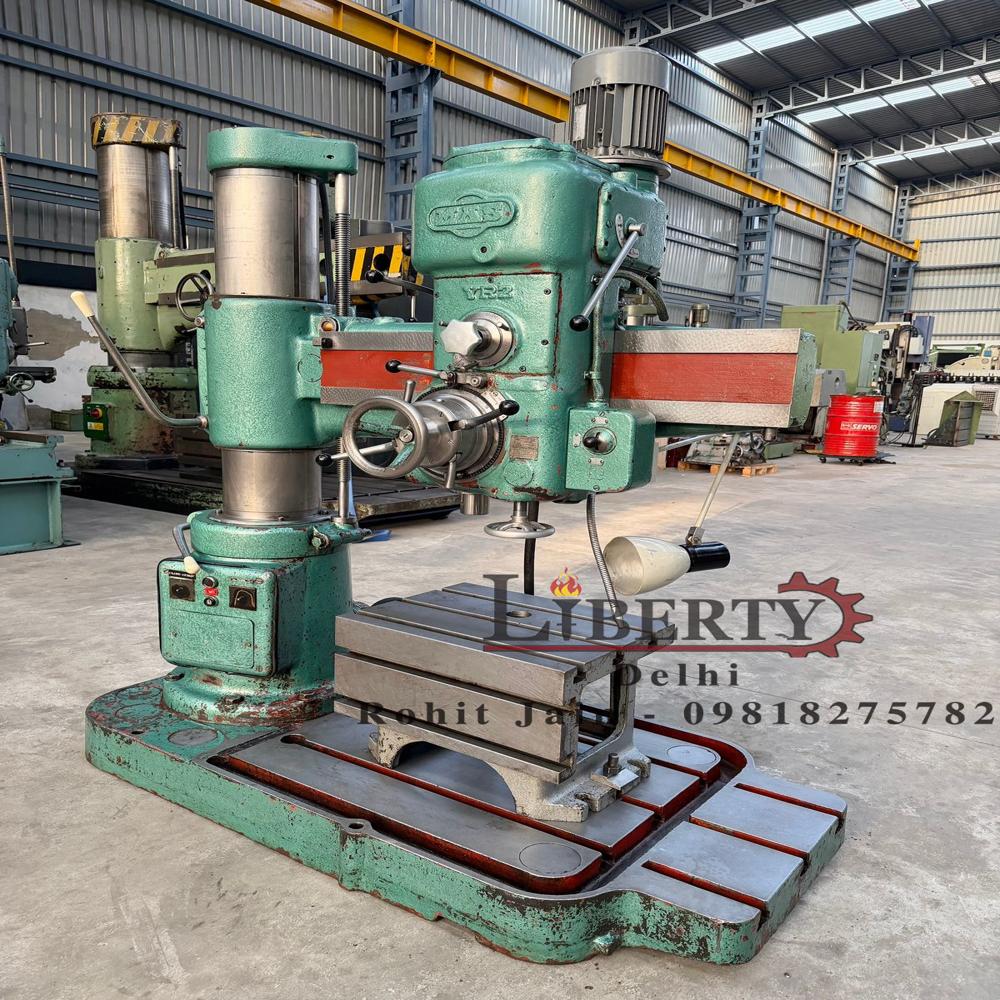

MAS Czech VR-2 Radial Drilling Machine

Name: MAS Czech VR-2 Radial Drilling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MAS Czech VR-2 Radial Drilling Machine Specification

Condition
Used (Good Working Condition)

Diameter
Up to 50 mm in steel

Noise Level
Low

Spindle Speed
25 - 2000 RPM (Variable)

Features
Robust Construction, High Rigidity, Smooth Operation, Adjustable Arm

Cutting Area
Large Working Area

Frequency
50 Hz

Dimension (L*W*H)
2200mm x 1000mm x 2500mm

Table Size
600 mm x 400 mm

Machine Type
Radial Drilling

Motor Power
3 HP

Product Type
Radial Drilling Machine made by MAS (Czech Republic) in excellent working condition. The model of the machine is VR-2 and the Drilling Capacity is 35 mm. The machine has a Maximum Spindle Speed of 4,500 rpm and is complete with its Cube Table & Coolant Pump. The technical details of the machine are as follows:

Material
Cast Iron & Steel

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Manual

Voltage
415V

Power
3 HP

Power Source
Electric

Weight (kg)
Approx. 2000 kg

Capacity
Drilling up to 50 mm diameter in mild steel

Color
Green

Usage & Applications
Industrial, Heavy-duty Drilling, Boring, Reaming, Tapping

Arm Vertical Travel
900 mm

Base Size
Approx. 1440 x 880 mm

Spindle Taper
Morse Taper No. 4

Model
VR-2

Quill Travel
250 mm

Clamping of Arm & Head
Manual/Mechanical

Range of Arm Movement
1000 mm

Condition Details
Fully refurbished, tested and ready for immediate use

Coolant System
Available

MAS Czech VR-2 Radial Drilling Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About MAS Czech VR-2 Radial Drilling Machine

Make - MAS (Czech Republic)

Model - VR-2

Drilling Capacity - 35 mm

Spindle Diameter - 60 mm

Arm Length - 1000 mm

Spindle Taper - MT-3

Spindle Speeds - 90 rpm to 4500 rpm

Spindle Feed Travel - 230 mm

Spindle Feed Travel Rates - 0.03 mm/rev to 0.30 mm/rev

Vertical Travel of Arm - 490 mm

Max. Height between Top of Base to Spindle - 1000 mm

Table Size - 525 mm x 400 mm

Clamping Type - Manual

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/sobs7R_kiaM

Versatile Industrial Performance

Equipped with a 1600 mm arm and a spindle travel of approximately 300 mm, the VR-2 supports a large working area, allowing precise operations on mild steel, cast iron, and aluminium. Its motorized arm elevation and adjustable rotary table provide unmatched adaptability for a variety of tasks.

Reliable Safety and Control

Safety is prioritized through an integrated emergency stop and overload protection, ensuring operator security during use. The manual control system (non-computerized) provides tactile feedback, so users have full oversight of every process with simple, reliable mechanics.

Built for Heavy-Duty Applications

Constructed from cast iron and steel for durability, this machine weighs around 2000 kg and is suited for floor mounting. The VR-2 excels at tapping, reaming, boring, and drilling up to 50 mm in diameter, making it a preferred choice for exporters, suppliers, and manufacturers alike.

FAQ's of MAS Czech VR-2 Radial Drilling Machine:

Q: How do you operate the MAS Czech VR-2 Radial Drilling Machine for different applications?

A: Operation is straightforward by adjusting the spindle speed (25-2000 RPM) according to the material and task-drilling, boring, tapping, or reaming. The machine supports both automatic and manual spindle feeds, while the arm elevation is motorized for efficient setup on parts.

Q: What materials can the VR-2 efficiently process?

A: The VR-2 is suitable for a range of materials including mild steel, cast iron, and aluminium, allowing versatility across industries that require heavy-duty or precision drilling operations.

Q: When should I use the automatic feed versus manual feed on the spindle?

A: Use the automatic feed for deep or repetitive drilling tasks to maintain consistent pressure and quality. The manual feed is helpful for delicate operations or when you need finer control during setup or finishing passes.

Q: Where is the ideal location to mount the VR-2 in an industrial setting?

A: The VR-2 is designed for floor mounting, ideally in a dedicated workshop area with sufficient space (minimum 2200mm x 1000mm x 2500mm) for easy material handling and operator movement around the machine.

Q: What is the process for adjusting spindle-to-base plate distance?

A: The minimum and maximum spindle-to-base plate distances (350 mm to 1400 mm) are set by raising or lowering the motorized arm. This adjustability accommodates various workpiece sizes and drilling depths.

Q: How does the machine ensure operator safety during heavy-duty tasks?

A: Safety features include a built-in emergency stop for immediate machine shutdown and overload protection to prevent equipment damage or operator harm during excessive load conditions.

Q: What are the benefits of choosing the VR-2 Radial Drilling Machine for industrial use?

A: The VR-2 combines a robust construction, adjustable large working area, precise spindle control, and proven safety features. These traits make it a reliable choice for heavy-duty industrial drilling with low noise and minimal maintenance requirements.
