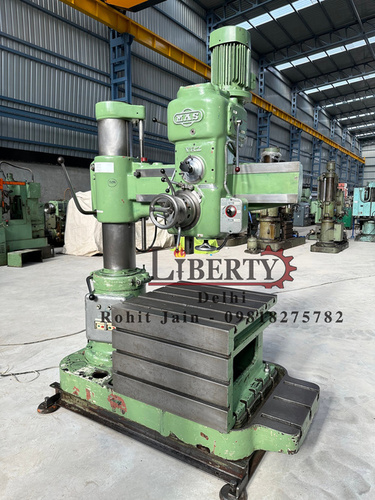

MAS VR2 35 mm Capacity Radial Drill Machine

Price 20000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MAS VR2 35 mm Capacity Radial Drill Machine Specification

Dimension (L*W*H)
1350 x 700 x 2200 mm

Cutting Area
35 mm (diameter)

Machine Type
Radial Drill

Diameter
35 mm

Motor Power
2 HP

Frequency
50 Hz

Spindle Speed
62 to 2000 RPM

Features
Heavy Duty, Rigid Construction, Low Maintenance, Accurate Drilling

Table Size
560 x 400 mm

Condition
New

Noise Level
Low

Product Type
Radial Drill Machine

Material
Cast Iron & Steel

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Manual

Voltage
415 V

Power
2 HP

Power Source
Electric

Weight (kg)
Approx. 1250 kg

Capacity
35 mm

Color
Standard/Blue & White

Usage & Applications
Industrial Drilling, Metalworking, Workshop, Fabrication Shop

Spindle Travel
250 mm

Number of Spindle Speeds
8

Base Plate Size
950 x 600 mm

Column Diameter
200 mm

Distance From Spindle Center to Column
940 mm

Max Drill Depth
250 mm

Max Distance from Spindle Nose to Base
890 mm

MAS VR2 35 mm Capacity Radial Drill Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About MAS VR2 35 mm Capacity Radial Drill Machine

Make - MAS (Czech Republic)

Model - VR 2

Drilling Capacity - 35 mm

Spindle Diameter - 60 mm

Arm Length - 1000 mm

Spindle Taper - MT 3

Spindle Speeds - 90 rpm to 4500 rpm

Spindle Feed Travel - 220 mm

Spindle Feed Travel Rates - 0.03 mm/rev to 0.30 mm/rev

Vertical Travel of Arm - 515 mm

Table Size - 550 mm x 550 mm

Clamping Type - Manual

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/2I6OAfgoMGU

Superior Drilling Precision

Engineered with a spindle travel of 250 mm and an impressive 35 mm drilling capacity, the MAS VR2 Radial Drill Machine guarantees precise, deep drilling for industrial and workshop applications. Its rigid construction ensures stability throughout operations.

Adaptable for Varied Applications

This machines robust design, coupled with eight selectable spindle speeds, supports versatility in industrial drilling and metalworking. The manual control facilitates efficient workflow for fabrication shops, engineering units, and exporters alike.

Durable Build & Low Maintenance

Constructed from premium cast iron and steel, the MAS VR2 is designed for longevity. Its heavy-duty frame, low-maintenance components, and effective noise control deliver reliable performance in challenging work environments.

FAQs of MAS VR2 35 mm Capacity Radial Drill Machine:

Q: How does the MAS VR2 Radial Drill Machine ensure accurate drilling?

A: The MAS VR2 features a rigid, heavy-duty construction combined with precise machining and an adjustable spindle with eight speed options, helping users achieve consistent and precise drilling results up to 35 mm in diameter.

Q: What are the main benefits of using this machine in a metalworking workshop?

A: Key benefits include its high drilling capacity, low noise output, low maintenance requirements, and the flexibility to handle various metals. The sturdy build also withstands demanding industrial usage, ensuring long-term productivity.

Q: What is the process for setting up the MAS VR2 Radial Drill Machine?

A: Installation involves placing the machine on a level surface, securing it properly, connecting to a 415 V power supply, and checking alignment. Detailed instructions are provided in the manual for safe and efficient assembly.

Q: When should the spindle speed be adjusted during operation?

A: Spindle speed should be set according to the material type and drill bit size. Lower speeds suit harder materials, while higher speeds are optimal for softer metals and smaller diameters, ensuring smooth, controlled drilling.

Q: Where can this machine be used most effectively?

A: The MAS VR2 Radial Drill Machine excels in environments like industrial plants, metal workshops, fabrication shops, and manufacturing facilities where precision, capacity, and reliability are essential requirements.

Q: What type of maintenance does the machine require for optimal performance?

A: Regular lubrication of moving parts, periodic inspection of mechanical components, and proper cleaning are recommended to maintain efficiency and prevent wear. The machines design also minimizes maintenance demands overall.
